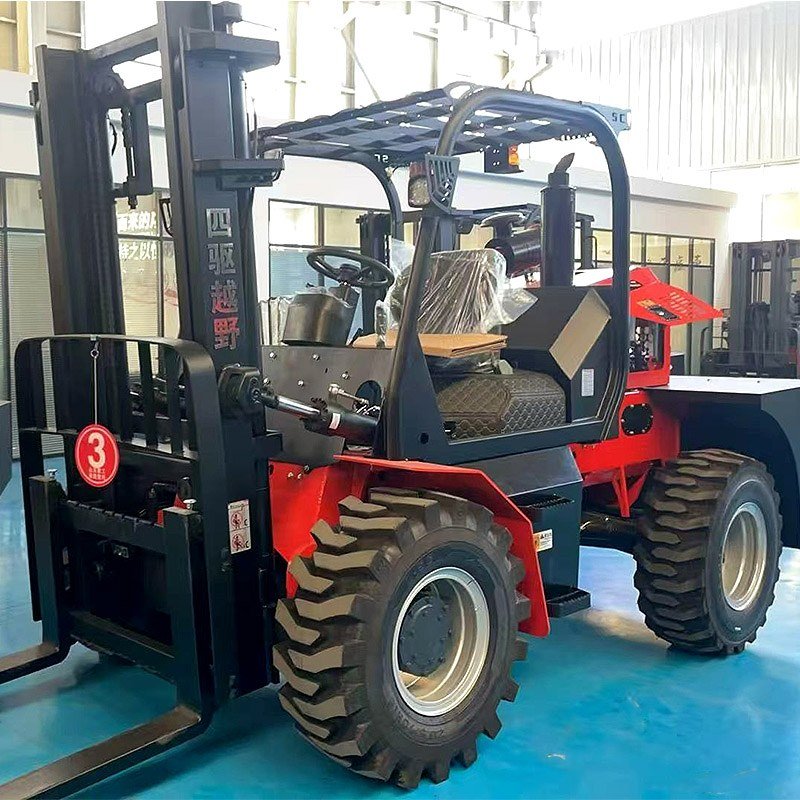

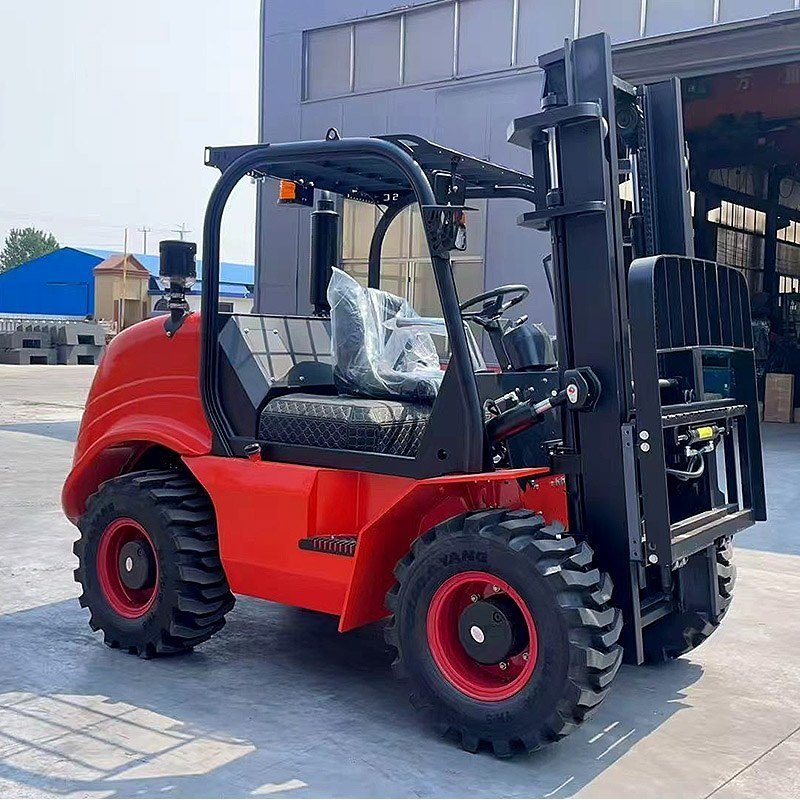

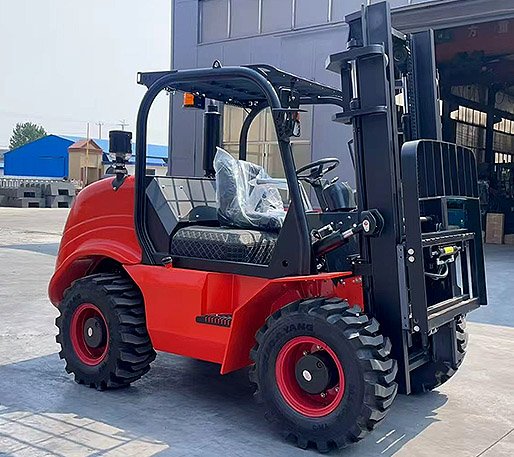

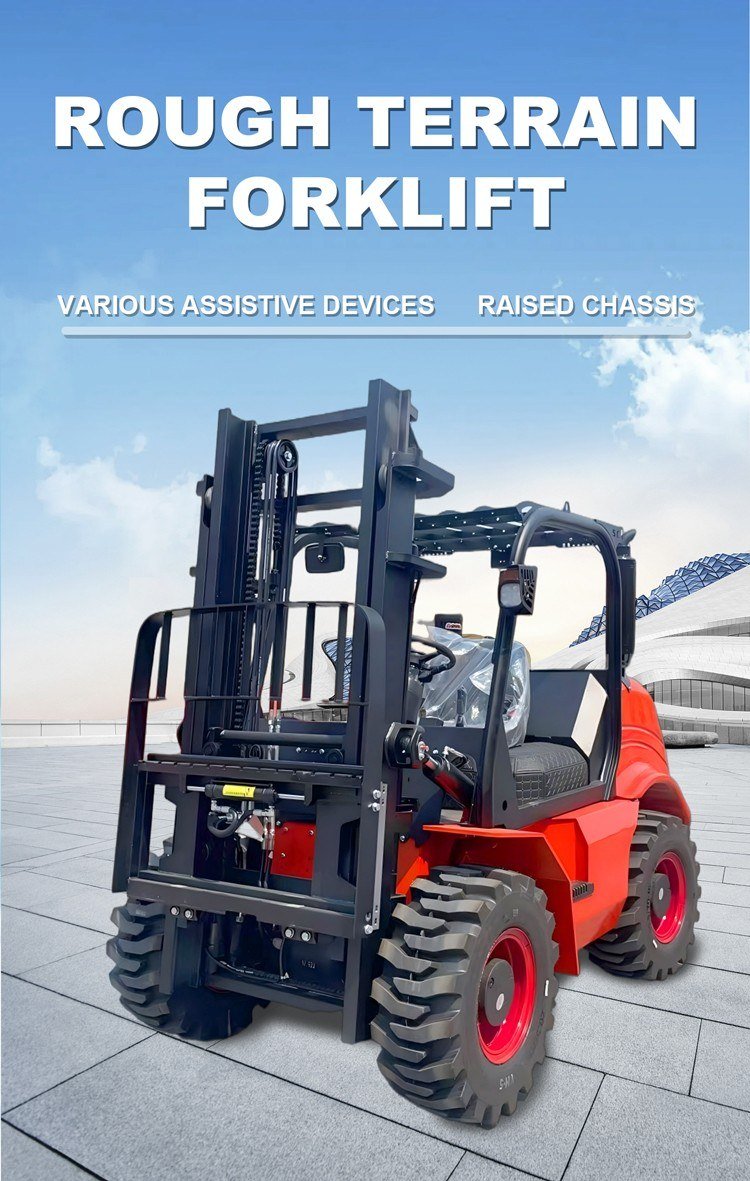

Rough Terrain Forklift is designed for demanding outdoor material handling applications, offering reliable performance on uneven roads, construction sites, mining areas, and industrial yards. Equipped with a hydraulic automatic transmission system and electric-hydraulic directional control valve, the forklift provides smooth power output and efficient operation under heavy-duty conditions.
Four-wheel drive, excellent off-road performance, adaptable to complex terrain
Diesel engine, powerful, fuel-efficient and durable
Mast tilt angle, safer and more flexible loading and unloading
Transmission, smooth shifting, comfortable operation

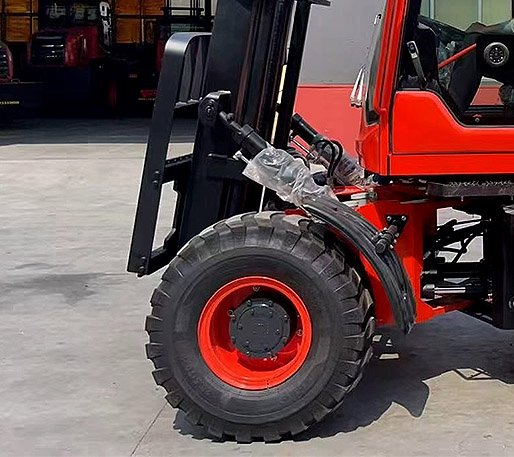

Semi-solid tires, wear-resistant, explosion-proof, and with strong grip
Minimum turning radius of 2500mm, highly maneuverable
Lifting height of 3000-6000mm optional to meet different needs
Various optional auxiliary equipment
Wide-body cab, flexible control levers, convenient operation
1.Hydraulic Automatic Transmission.
2.Electric-hydraulic Directional Control Valve.
3.Full hydraulic steering device, with small turning radius, light and flexible steering, safe and reliable> Low position instrument frame and wide view portal mast design
4.Variety of power memory options, energy-saving shock
5.Low noise, small vibration, energy saving and environmental protection
6. The smaller front suspension design service life of front tires and drive axle

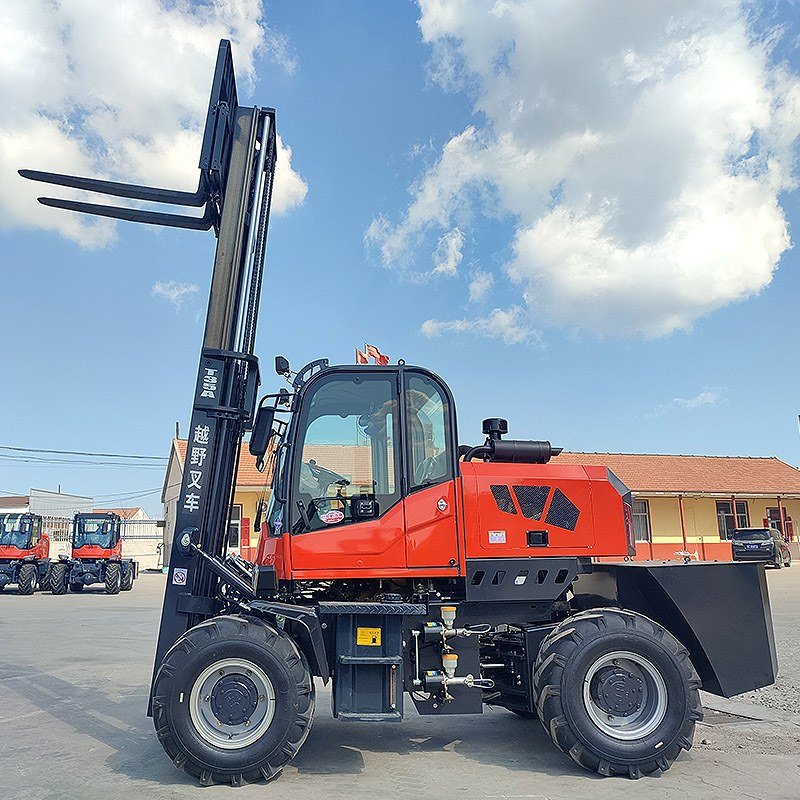

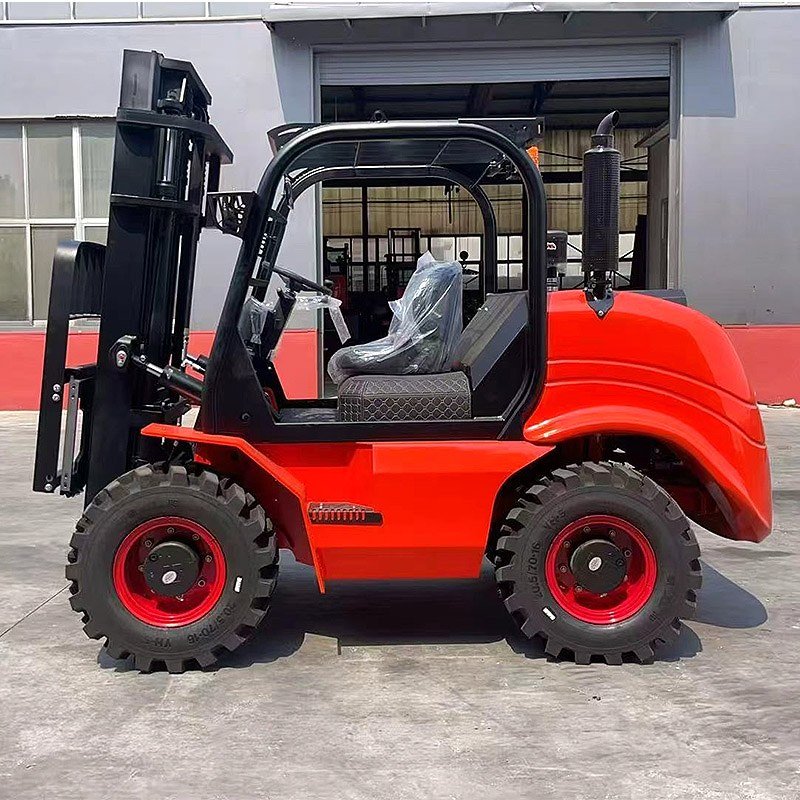

Our TYF-35 4x4 off-road diesel forklift is designed for rugged terrain and harsh outdoor environments, where ordinary forklifts fall short. With a rated lifting capacity of 3500 kg, this forklift is powered by a robust Quanchai China IV 495 turbocharged high-pressure common rail engine, delivering a power output of 36.8 kW, combining exceptional power, fuel efficiency, and long service life. The four-wheel drive system, paired with a 280 high-low speed hydraulic torque converter transmission, provides smooth shifting and excellent traction on mud, gravel, slopes, and uneven surfaces. Semi-solid tires offer superior puncture resistance, wear resistance, and grip, while minimal ground clearance ensures outstanding off-road performance. The TYF-35 boasts a maximum gradeability of ≤38° and a top speed of 35 km/h, enabling it to quickly and confidently tackle a variety of challenging work environments. This forklift features a mast that can tilt forward 10° and backward 20° for safe and efficient loading and unloading. Lifting height is customizable from 3000 mm to 6000 mm. With a turning radius of only 2500 mm, it boasts excellent maneuverability in its class. The spacious cab and ergonomic joystick controls effectively reduce operator fatigue during long hours of work. The true highlight of this forklift is its versatility—it can be equipped with a variety of attachments, including forks, unloaders, bulldozer blades, cylindrical clamps, crusher buckets, brick clamps, swivels, and clamping forks. It is ideal for farms, construction sites, logging operations, mining, and any outdoor heavy material handling application.
Small and flexible , large carrying capacity , long-lasting battery life , to meetthe handling needs of different places .

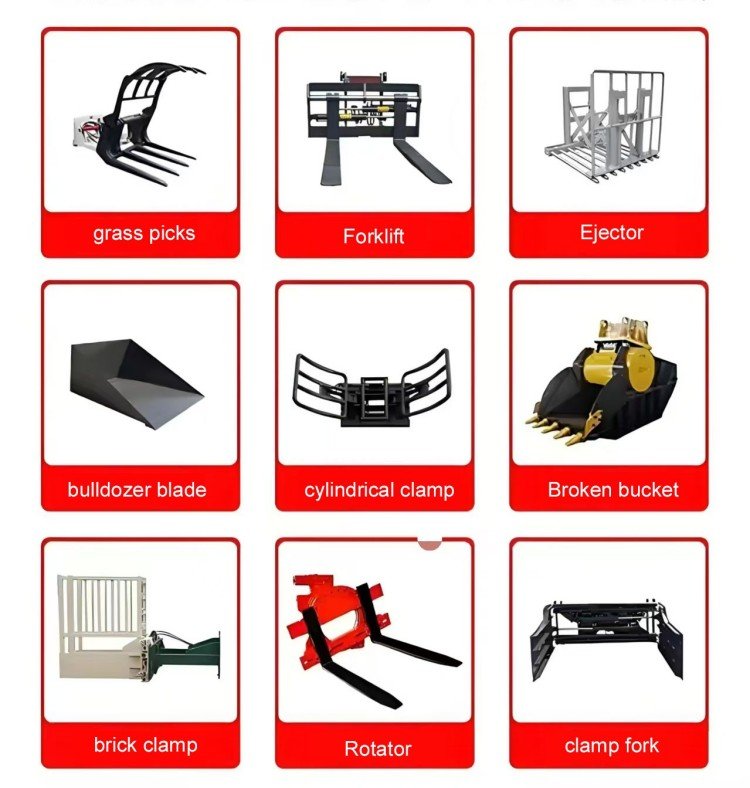

Agriculture/Farms: Forklifts for transporting hay bales, feed, barrels, etc.
Construction Sites: Bulldozer blades for leveling sites, transporting bricks, steel, and cement.
Timber Processing/Forestry: Clamps for transporting logs and planks.
Mining/Quarries: Crushing buckets for handling stones and gravel.
Container Loading/Unloading: Rotators in conjunction with forks for tipping operations.
Brick Factories/Building Materials Markets: Brick clamps for efficient transport of brick stacks.
Municipal/Sanitation: Bulldozer blades for cleaning and leveling operations.
Operations in muddy, snowy, sandy, and sloping terrain.
| Product details | ||
 |  |  |
| BRAND ENGINE High-power engine, sufficienthorsepower, low fuel consumption, fastefficiency and long service life. | THICKENED DOOR FRAME Upgraded thickened secondary doorframe, integrated torque converter,stable and firm, high stabilitycoefficient. | HUMANIZED DESIGN Humanized design, wide cab, and flexible joystickoperation more convenic |
| CPCDY-35 Integrated | |
| Rated lifting weight | 3500kg |

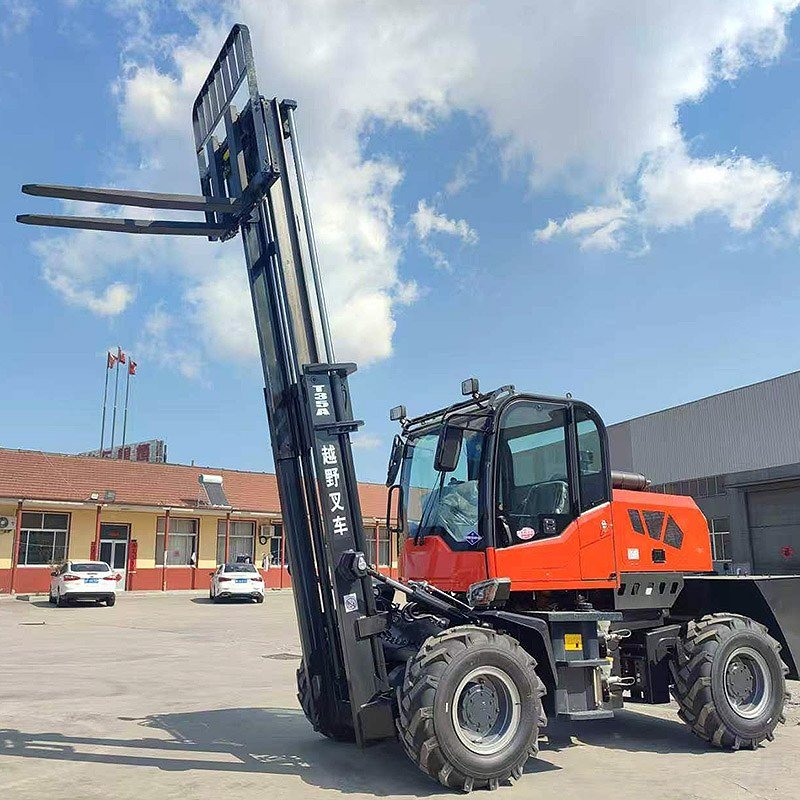

| Rated lifting height | 3000-6000mm (optional) |
| Load center distance | 600mm |
| Minimum turning radius | 2500mm |
| Maximum climbing angle | ≤38° |
| Minimum ground clearance | 320mm |

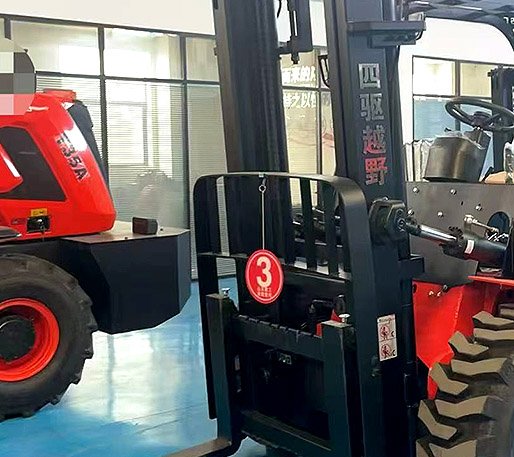

| gantry tilt/rollback angle | 10°/20° |
| Fastest running speed | 35km/h |
| Maximum hook traction | 30.0Kn |
| Engine Model | Quanchai National IV 495 turbocharged high-pressure common rail engine (36.8kW) |
| drive mode | Four-wheel drive |
| gearbox model | 280 High and Low Speed Hydraulic Torque Converter |
| axle model | Branded cast steel wheel-side steering axle (rear steering) |
| Tire Model | Chaoyang 20.5/70-16 semi-solid tires |
| axisdistance | 1697mm |
| gantry steel width | 160mm Heavy Duty |
| Fork length | 1220mm (optional) |
| Total weight | 5600-5900 (kg) |
| Overall dimensions | 2980/1550/2250(mm) |
Q1: What is the biggest difference between this forklift and a regular forklift?
A: The biggest difference is four-wheel drive and off-road capability. Regular forklifts are suitable for flat, hardened surfaces, while the CPCDY-35 can operate normally on complex terrains such as mud, sand, gravel roads, grass, snow, and slopes (maximum 38°).
Q2: What is the maximum climbing angle?
A: The maximum climbing angle is ≤38°, far exceeding that of regular forklifts (usually 15-20%), making it ideal for mountainous, hilly, and mining environments.
Q3: What is the maximum speed?
A: The maximum operating speed can reach 35km/h, which is excellent among off-road forklifts in its class, facilitating rapid relocation between different work sites.
Q4: Is the lifting height optional?
A: Yes. The standard lifting height is 3000mm, and it can be upgraded to 6000mm to meet different stacking needs.
Q5: Are the tires pneumatic? Are they wear-resistant?
A: Equipped with Chaoyang 20.5/70-16 semi-solid tires, which fall between pneumatic and solid tires, offering good shock absorption, excellent wear resistance, and puncture resistance, making them ideal for off-road conditions.
Q6: What is the ground clearance? How is its passability?
A: The minimum ground clearance is 320mm, significantly higher than ordinary forklifts (typically 130-150mm), providing excellent passability and easily overcoming obstacles such as rocks, tree roots, and ditches.
Q7: What type of transmission is used?
A: It uses a 280 high-low speed hydraulic torque converter transmission, offering smooth operation and minimal shift shock. The hydraulic torque converter automatically adapts to the load, making it suitable for complex terrain operations.
Q8: Is it suitable for snow or mud?
A: Absolutely. Four-wheel drive, 320mm ground clearance, 38° climbing ability, and semi-solid tires ensure excellent performance on low-traction surfaces such as snow, mud, sand, and grass.
Q9: Is maintenance complicated?
A: Not complicated. Quanchai engine parts are highly interchangeable, and the torque converter and transmission are highly reliable. Routine checks mainly involve checking the engine oil, hydraulic oil, tires, and four-wheel drive
