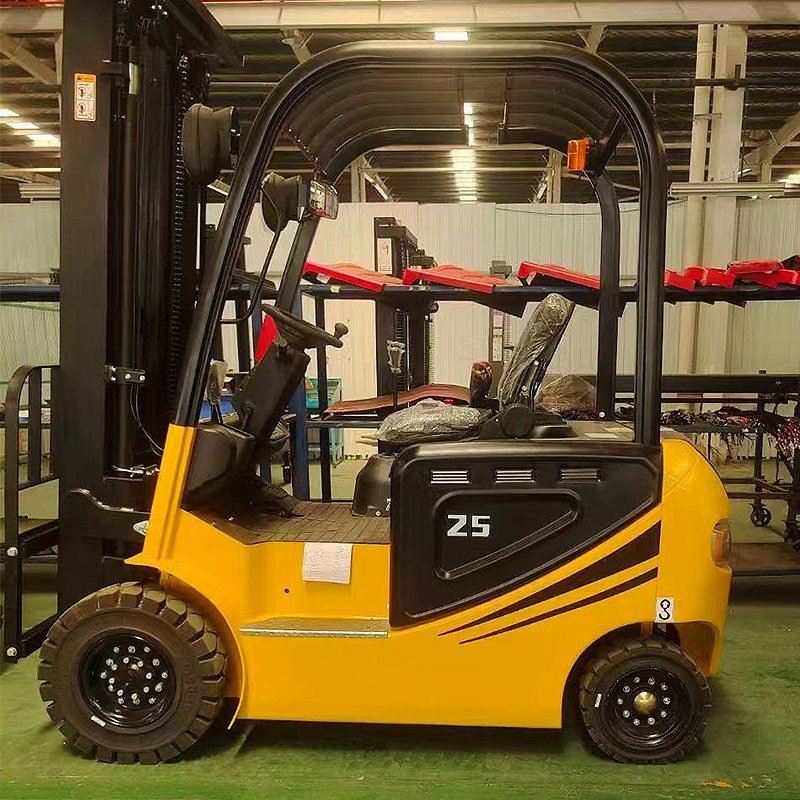

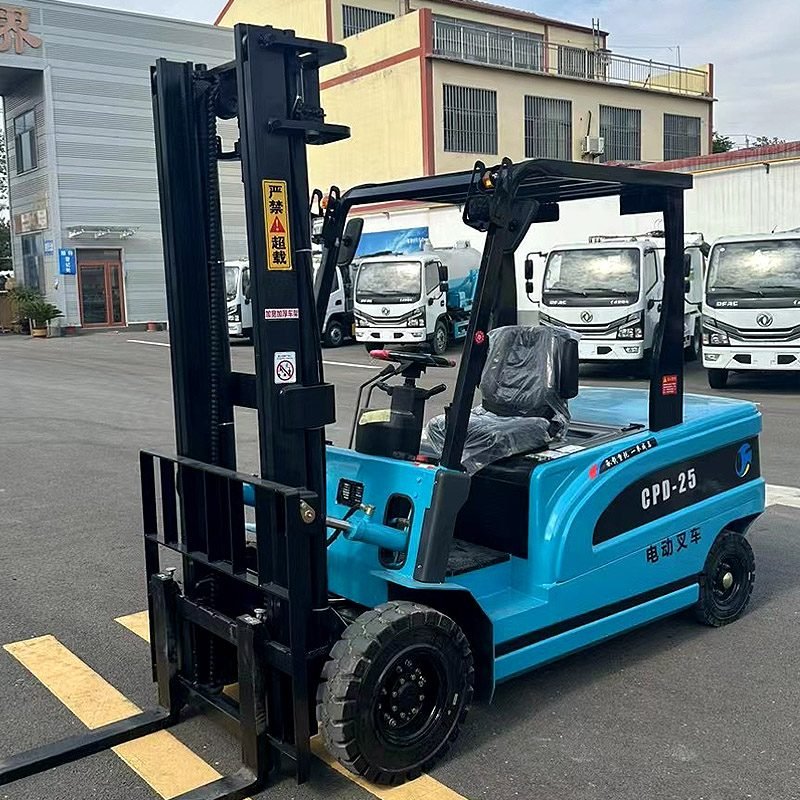

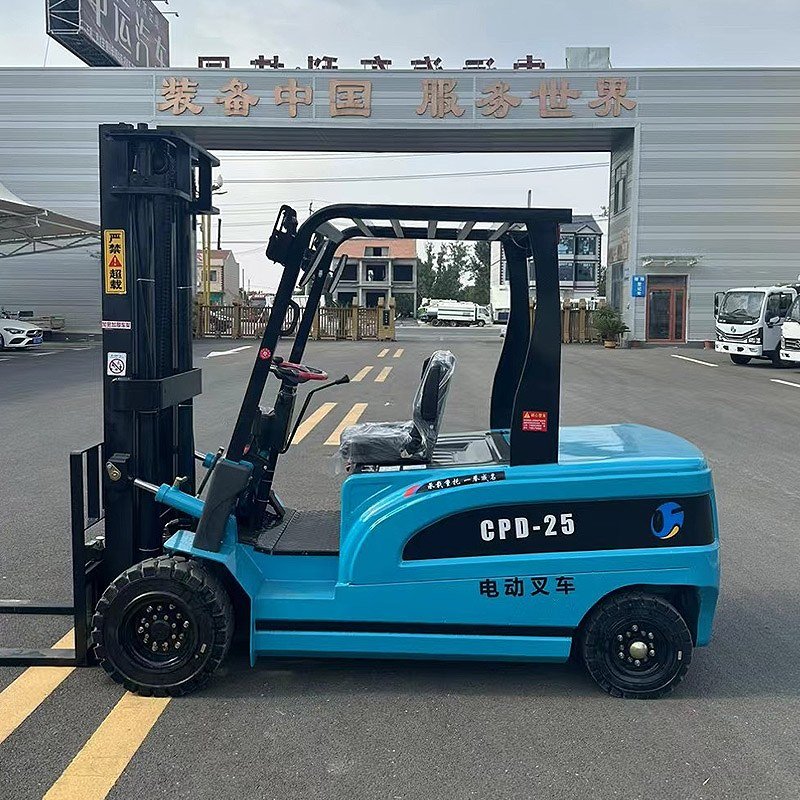

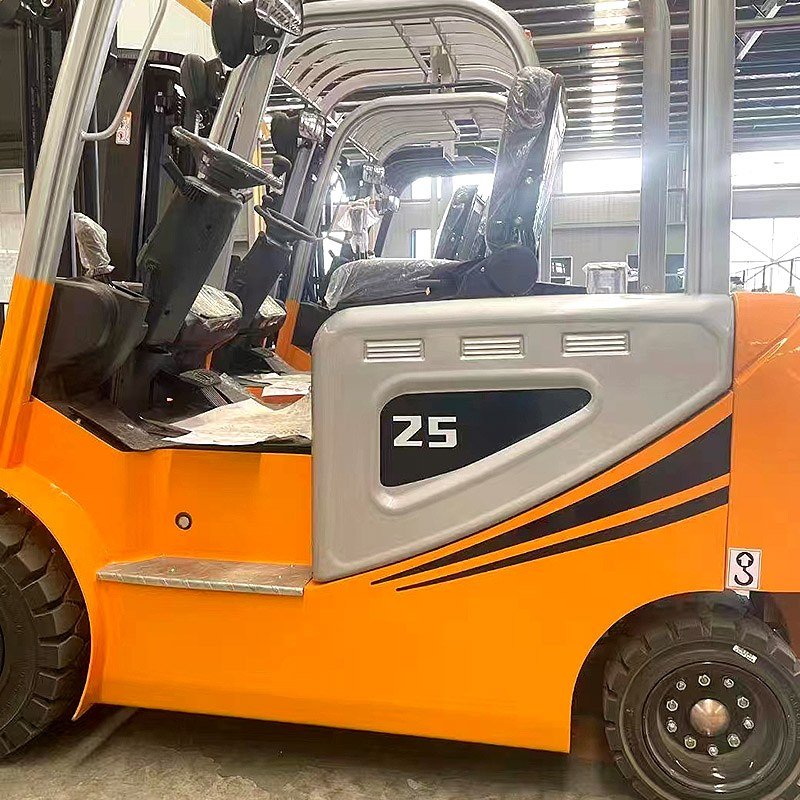

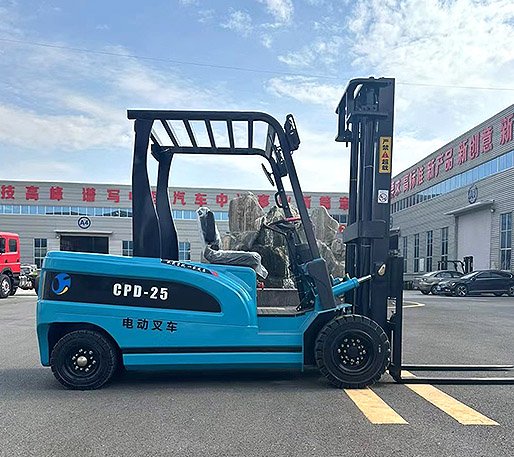

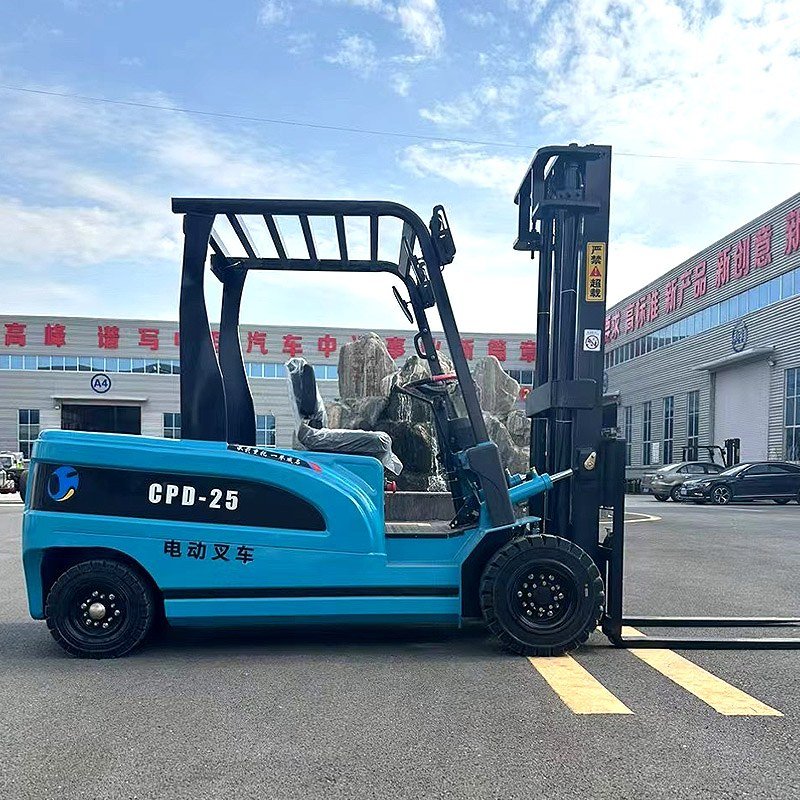

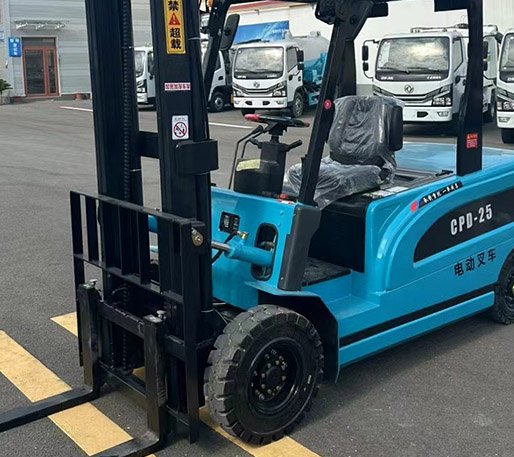

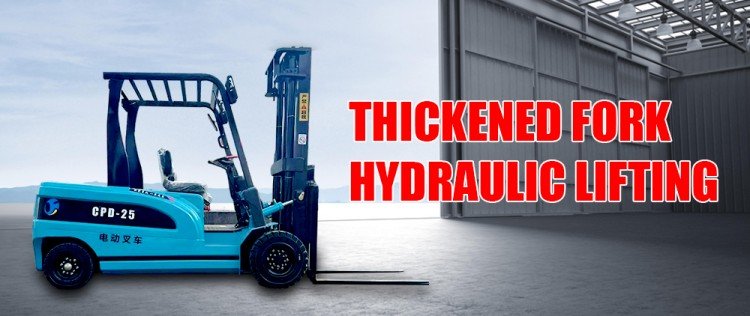

The 2.5 TON Mini Electric Forklift is designed for efficient and stable material handling in warehouses, logistics centers, and industrial environments. With a rated lifting capacity of 2500kg and a maximum lifting height of 3000mm, it delivers strong performance for daily operations.
Electric forklift, fully electric drive, zero emissions, low noise, energy saving and environmentally friendly
10KW high-power motor, strong power, efficient operation

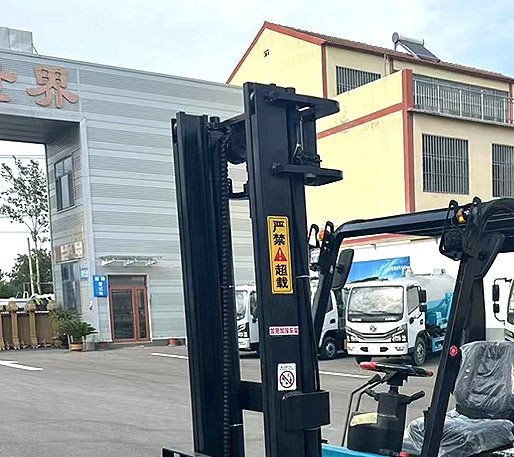

Manganese steel "C" mast, thickened steel, extended service life

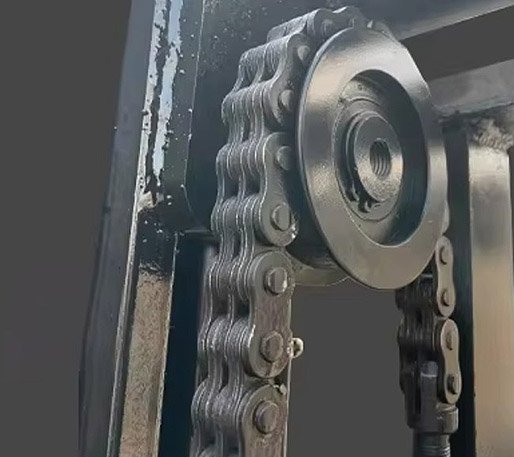

Reinforced multi-piece composite chain, strong load-bearing capacity, deformation resistance, and long service life
Hydraulic steering system, easy, stable, and energy-saving operation

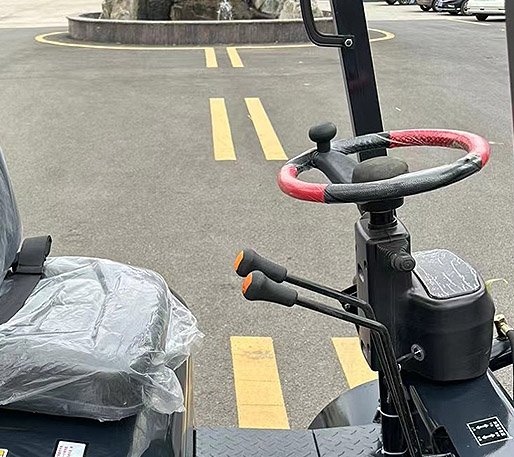

180° steering handle, small turning radius, flexible operation in tight spaces
Our TPF-25 electric forklift is a high-performance heavy-duty forklift designed for demanding material handling applications. With a rated payload of 2500 kg and a maximum payload of 2700 kg, it easily handles large cargo handling in warehouses, logistics centers, and industrial sites. Equipped with a 10 kW high-efficiency motor and a maintenance-free 60-volt high-capacity battery, it offers powerful performance, rapid charging, and extended continuous operation. The manganese steel "C" mast structure, combined with a reinforced multi-plate composite chain, provides superior load-bearing capacity and resistance to deformation, maintaining stability even under prolonged stress and significantly extending the forklift's lifespan. The hydraulic steering system ensures easy, stable, and energy-efficient operation, while the 180° steering handle provides a small turning radius, allowing for flexible maneuverability in confined spaces. A high-end adjustable seat (150 mm forward and backward) enhances operator comfort during extended work periods. With a maximum lifting height of 3000 mm, a travel speed of 10 km/h, and a mast tilt angle of 2° forward and 18° backward, the TPF-25 provides safe, efficient, and reliable performance for your most demanding jobs.
Small and flexible , large carrying capacity , long-lasting battery life , to meetthe handling needs of different places .
Heavy-duty warehouse cargo stacking and handling; bulk cargo loading and unloading at logistics transit centers; raw material and finished product transportation in manufacturing plants; large retail distribution centers; container loading and unloading (on level and hardened surfaces); narrow aisles or confined indoor working environments; industrial environments requiring long-term continuous operation.
| Product details | ||
 |  |  |
| High-end seats providecomfortable driving The seat can be adjusted forwardand backward by 150 millimeterssimultaneously, and the operatorcan choose a comfortable drivingposition. | Large capacity battery High-powered high-quality batteries,fast charging, lasting batteries,strong power, long continuous use,no maintenance, energy saving andefficiency, strong power | Strengthen the multi-piececomposite plate chain It has a strong load-bearing capacityand smooth transmission, which is"N" times that of ordinary decorativestrips, load capacity is increased,refusing to deformation after a longperiod of time under tension,increasing the life of the vehicle |
 |  |  |
| Hydraulic steering system easy to operate, high stability, powersaving.High temperature and highpressure resistance, more stableperformance | Manganese steel material Thicker "C" door frame steel, thechoice of thicker steel to extend thelife of the door frame | Compact structure,flexible 180 degree steering handle, smallturning radius, flexible steering,good operability in tight spaces |
| Machine Parameters | ||||||
| Rated lifting capacity | 2500kg | Max lifting capacity | 2700kg | |||
| Power mode | Electric | Machine Weight | 3500kg | |||
| Standard load center distance | 500mm | Rated voltage | 60V | |||
| Rated Power | 10KW | Maximum lifting height | 3000mm | |||
| Frame form | Level 2 | Travel speed | 10km/h | |||
| Maximum lifting speed | 200mm/s | Maximum descent speed | 300mm/s | |||
| Fork inclination(front) | 2° | Fork inclination(rear) | 18° | |||
Q1: What is the maximum load capacity?
A: The rated load capacity is 2500kg, and the maximum load capacity is 2700kg. It is recommended to operate at the rated load capacity for daily use to extend the equipment's lifespan.
Q2: Does the battery require maintenance?
A: No. We use maintenance-free, high-capacity batteries that do not require water addition, are energy-efficient and environmentally friendly, and have a long service life.
Q3: How long can it operate continuously on a full charge?
A: The operating time depends on the load and operating conditions. Generally, a 60V high-capacity battery can support 4-6 hours of continuous heavy-duty operation. For longer operating time, an upgraded battery is available.
Q4: Why is the gantry more durable?
A: We use a thickened manganese steel "C"-shaped gantry + reinforced multi-piece composite plate chain, which has several times the tensile strength of ordinary chains. It is not easily deformed under long-term tensile stress, significantly extending its service life.
Q5: Can it be operated flexibly in confined spaces?
A: Yes. The 180° steering handle, combined with a small turning radius design, is ideal for working in narrow passages or compact areas.
Q6: Is the seat adjustable?
A: Yes. The seat can be adjusted forward and backward by 150mm to accommodate operators of different body types, improving comfort during long working hours.
Q7: What is the purpose of the 18° recline?
A: A large recline angle effectively prevents goods from slipping forward during transport, improving handling safety, especially suitable for loading unstable or irregular goods.
Q8: How long does it take to charge?
A: A full charge with the standard charger takes approximately 6-8 hours. It supports intelligent charging, automatically cutting off power when fully charged to protect battery life.
