The 1.5 TON Mini Electric Forklift is designed for efficient material handling across warehouses, factories, and logistics environments. Its compact and flexible structure allows stable operation even in narrow spaces while maintaining a strong load capacity.
All-electric drive, energy-saving, zero emissions, and low noise. Maximum lifting height: 3000mm. Four-point integral frame structure, stable and durable. Mechanical transmission, direct response, and simple maintenance. Large-capacity battery for strong range.
Our TP-F15 electric forklift is a robust and efficient medium-duty material handling solution. With a rated lifting capacity of 1500 kg and a maximum lifting height of 3000 mm, it is ideal for warehouse stacking, shop floor loading and unloading, and light industrial applications. The four-point integral frame chassis ensures superior stability and durability, while the mechanical drive system provides direct and reliable power response. A 150 mm forklift lift height enables efficient stacking in confined spaces. Whether you need rapid lifting or controlled lowering, the TP-F15 provides safe, stable, and energy-efficient operation for everyday industrial use.
Small and flexible , large carrying capacity , long-lasting battery life , to meetthe handling needs of different places .
Warehouse goods stacking and turnover; Production workshop material distribution; Loading and unloading operations in small logistics centers; Cold storage and packaging workshops (electrically driven, zero emissions); Narrow aisles or dense indoor storage areas.
| Product details | ||
 |  |  |
| High-end seats providecomfortable driving The seat can be adjusted forwardand backward by 150 millimeterssimultaneously, and the operatorcan choose a comfortable drivingposition. | Large capacity battery High-powered high-quality batteries,fast charging, lasting batteries,strong power, long continuous use,no maintenance, energy saving andefficiency, strong power | Strengthen the multi-piececomposite plate chain It has a strong load-bearing capacityand smooth transmission, which is"N" times that of ordinary decorativestrips, load capacity is increased,refusing to deformation after a longperiod of time under tension,increasing the life of the vehicle |
 |  |  |

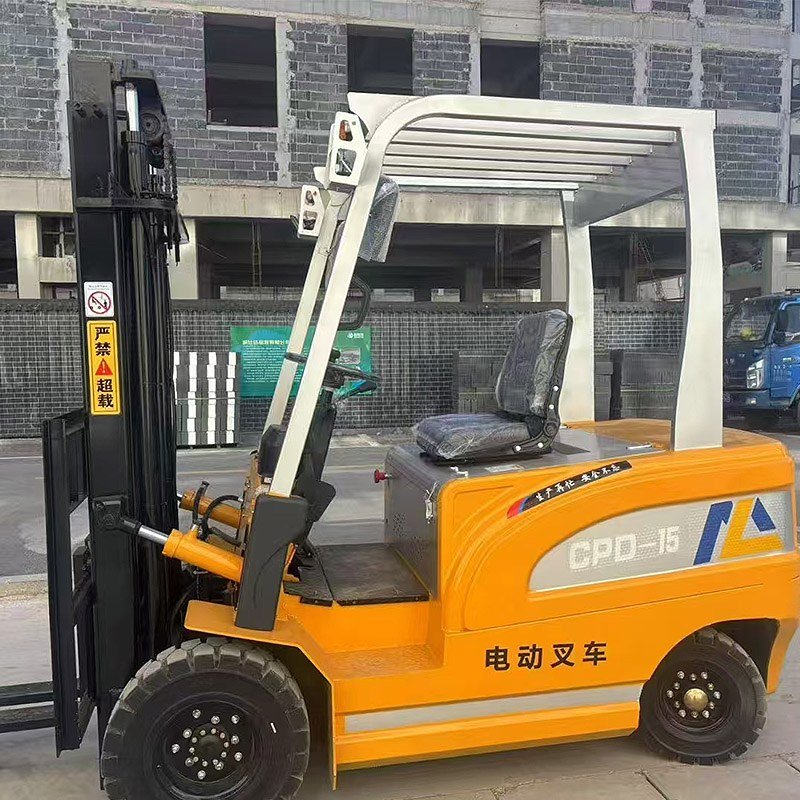

| Hydraulic steering system easy to operate, high stability, powersaving.High temperature and highpressure resistance, more stableperformance | Manganese steel material Thicker "C" door frame steel, thechoice of thicker steel to extend thelife of the door frame | Compact structure,flexible 180 degree steering handle, smallturning radius, flexible steering,good operability in tight spaces |
| Machine Parameters | ||||||
| Overalldimensions | 2570*1150*2250mm | Exercise | electric | |||
| Rated lifting capacity | 1500kg | Standard load center distance | 500mm | |||
| Transmission method | Mechanical transmission | Chassis structure | Four-point integral frame structure | |||
| Self-respect | 2300kg | Engine rated power | 4KW | |||
| Battery pack rated voltage | 60V | Maximum lifting height withou load | 3000mm | |||
| Maximum running speed(Unloaded) | 10km/h | Mast/Fork Tilt Angle(Front/Rear) | 2°/18° | |||
| Maxmum running speed(Rated lifting capacity) | 8km/h | Full (free ascent height) | 150mm | |||
| Maximumlifting speed | Unloaded | 200mm/s | Maximum descent speed | Unloaded | 300mm/s | |
| Rated lifting capacity | 180mm/s | Rated lifting capacity | 320mm/s | |||
Q1: Does the battery require maintenance?
A: We use a high-capacity, maintenance-free battery. It requires no daily water addition, making it energy-efficient and worry-free.
Q2: What is the purpose of the mast's tilt angle?
A: The tilt angle can reach 18°, effectively preventing goods from slipping forward during transport and improving safety.
Q3: What are the advantages of a four-point integrated frame?
A: Compared to a three-point structure, a four-point integrated frame offers higher stability, making it safer and more durable, especially under heavy loads or when turning.
Q4: Is it suitable for long-term continuous operation?
A: Yes. The 60V high-capacity battery, combined with a high-efficiency motor, can support continuous normal operation for many hours. Specific range depends on the load and operating conditions.
