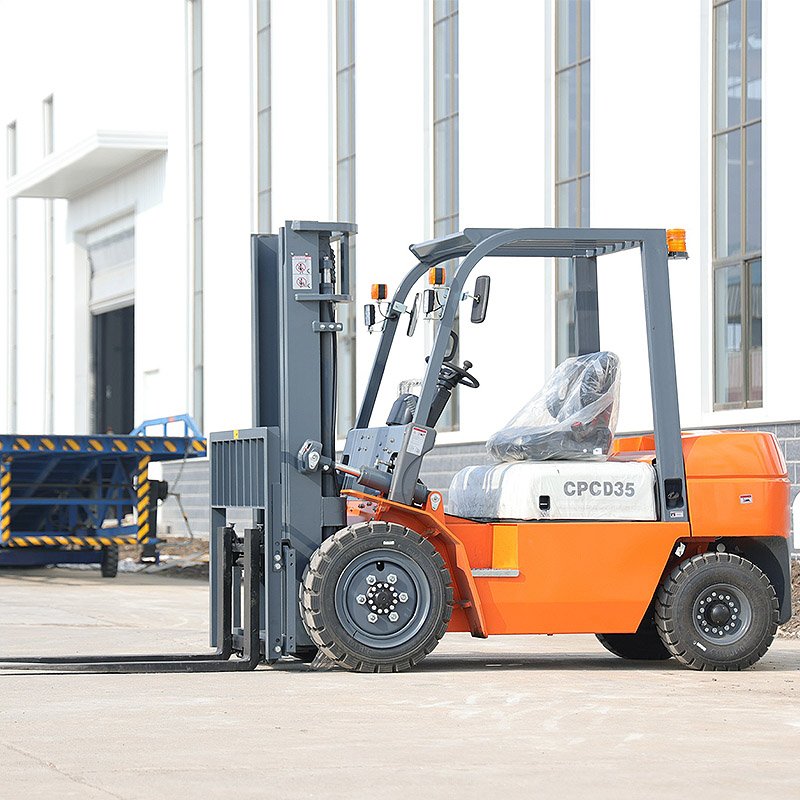

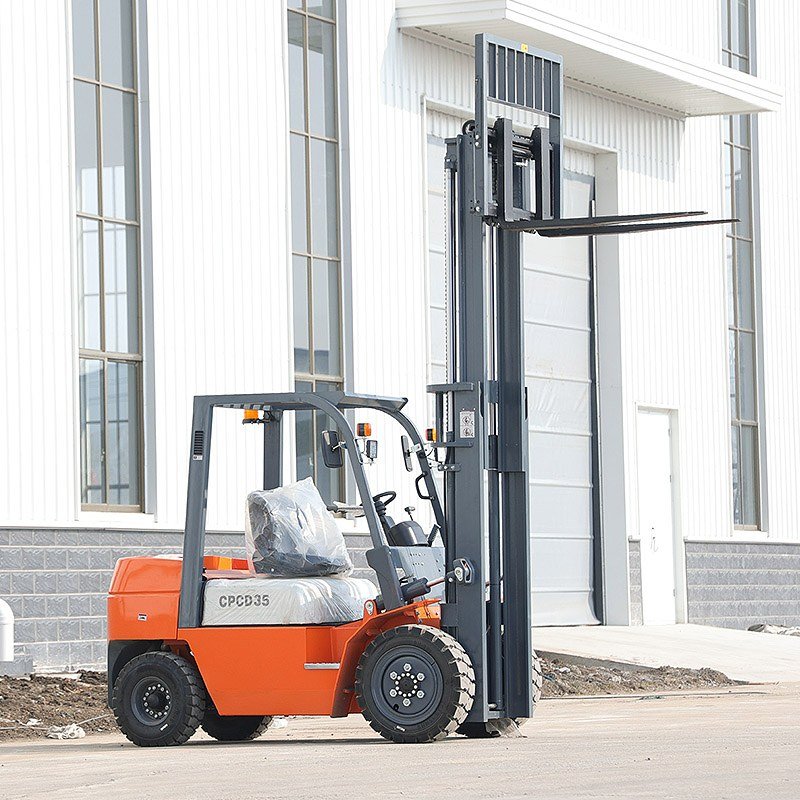

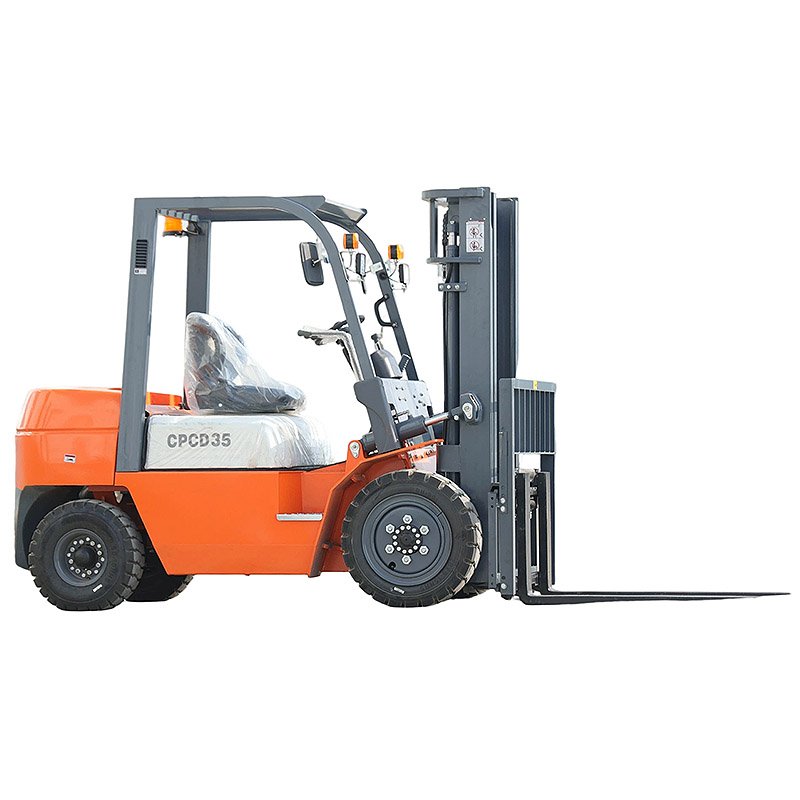

3.5 TON Mini Diesel Forklift is designed for efficient material handling in warehouses, factories, logistics centers, and industrial sites. The optimized steering wheel adjustment mechanism improves driving comfort and operational reliability during long working hours.
Rated load capacity 3500kg, stable and reliable for heavy-duty operations
Powerful and durable
High-speed travel, efficient and fast
Maximum gradeability, adaptable to complex terrain
Maintenance tilt angle for safe loading and unloading
Turning radius 2420mm, flexible and maneuverable
Durable and wear-resistant tires

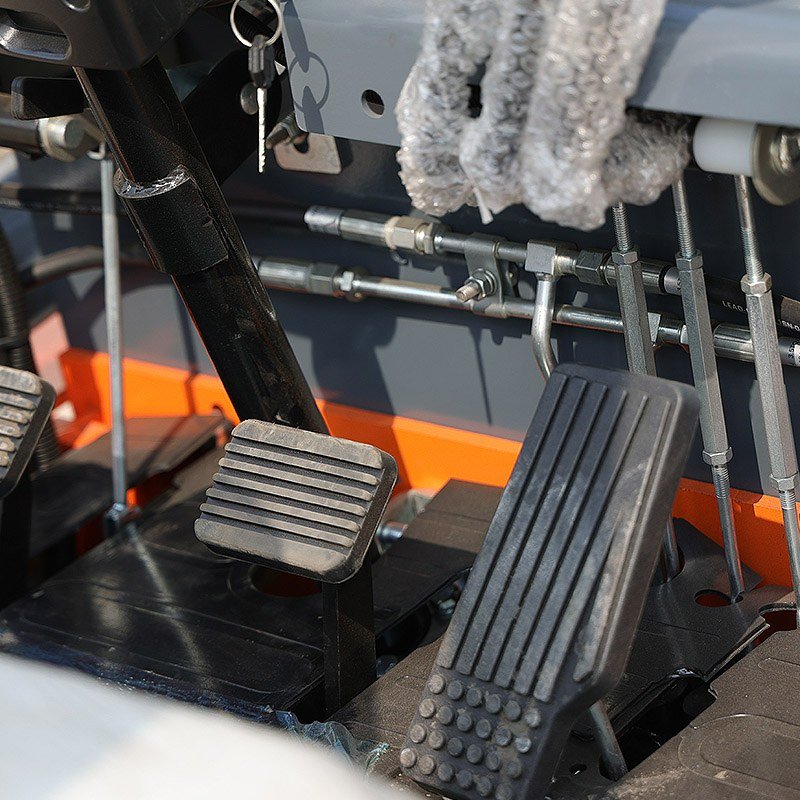

1.The new steering wheel adjustment mechanism improves the operating comfort and adjustment reliability
2.The design of the high-roof large-diameter air intake system can keep the engine away from dust, effectively exert the engineperformance and prolong the service life

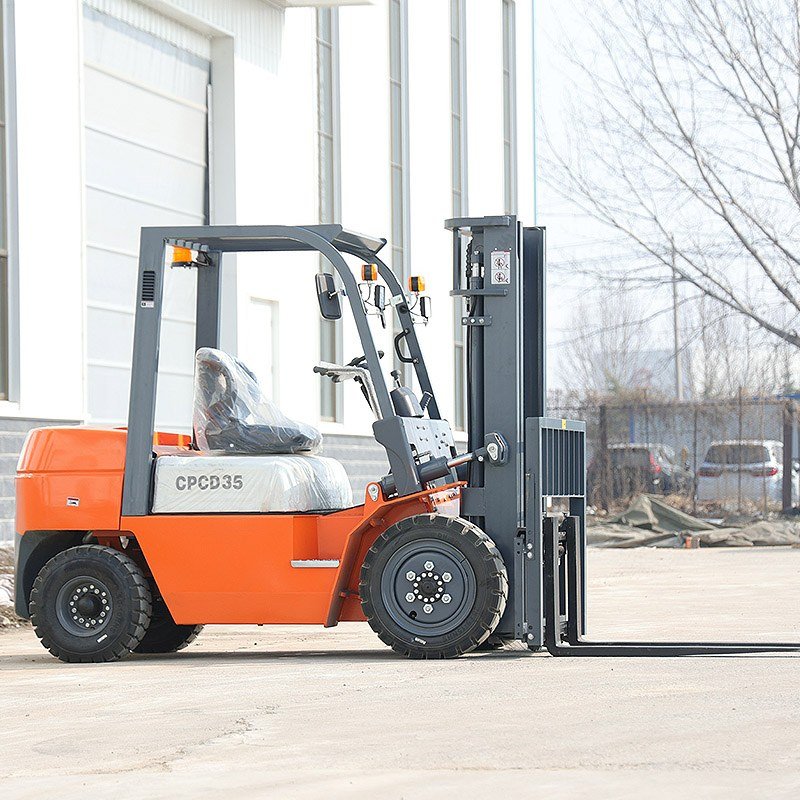

3.Reliable liquid crystal digital special instruments and friendly man-machine interface make it easy for the driver to accurately controlthe vehicle status.
4.Casting steering axle is optional, and the later maintenance cost is low.
5.The new steering wheel adjustment mechanism improves the operating comfort and adjustment reliability.

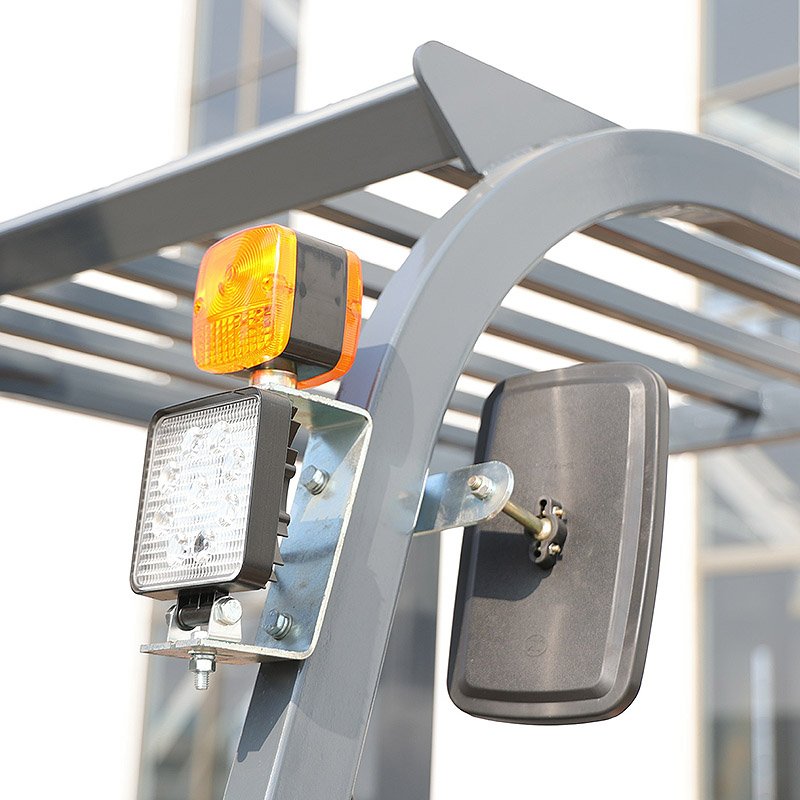

6.Excellent visibility for improved situational and job site awareness

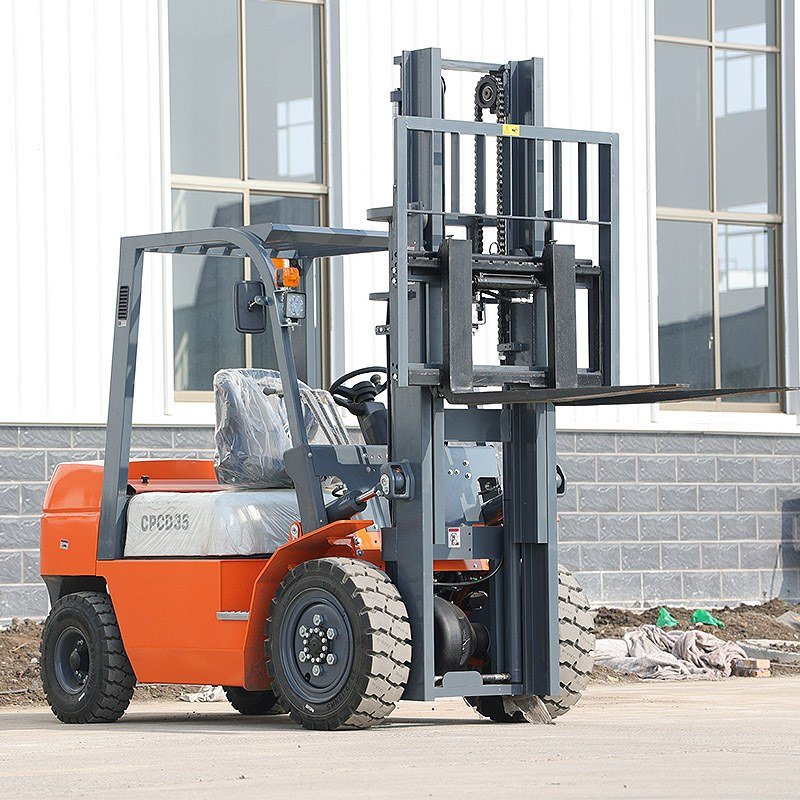

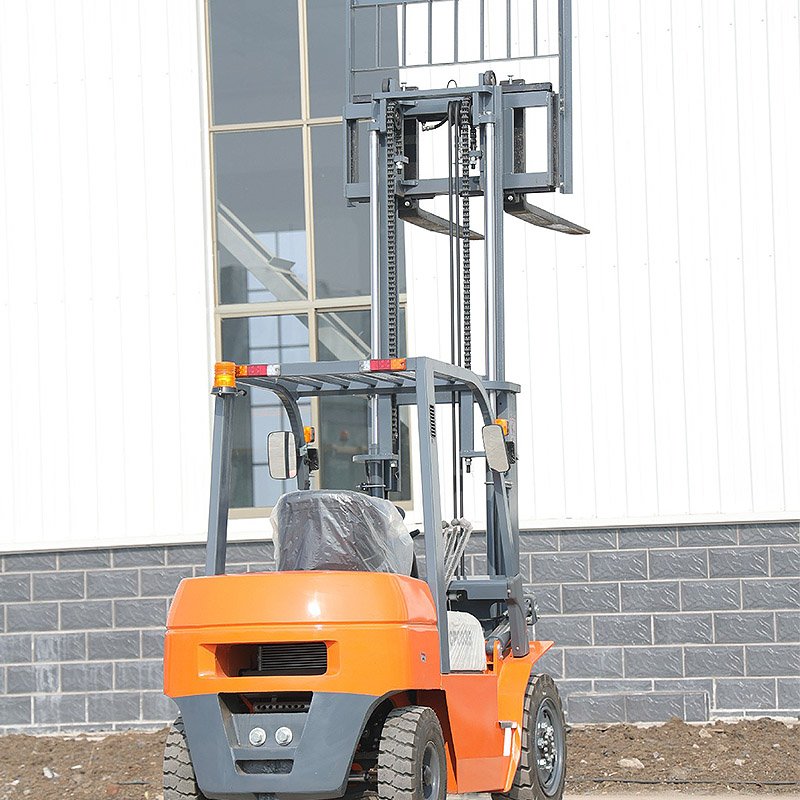

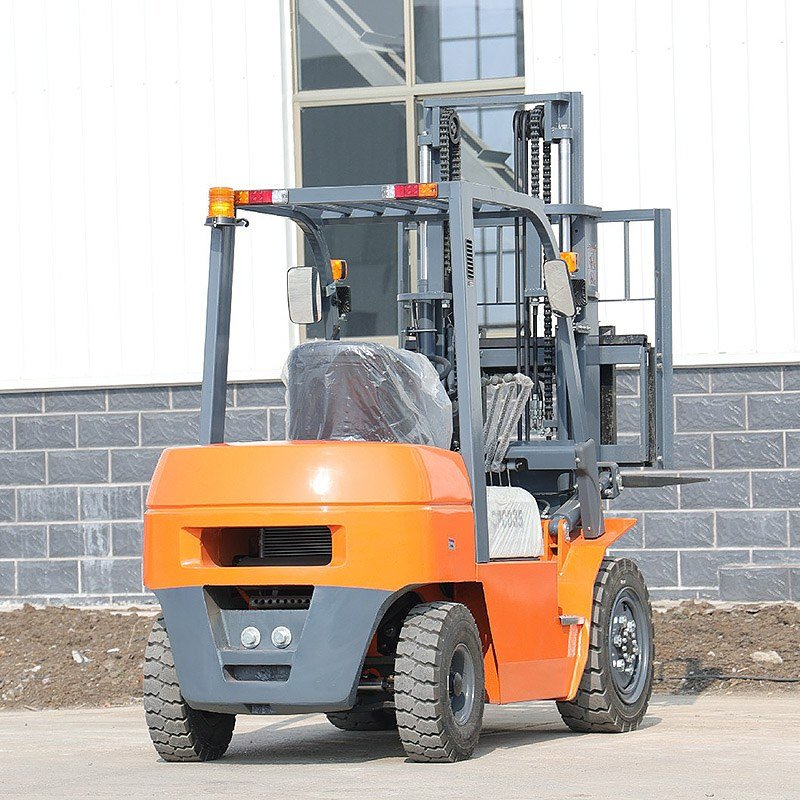

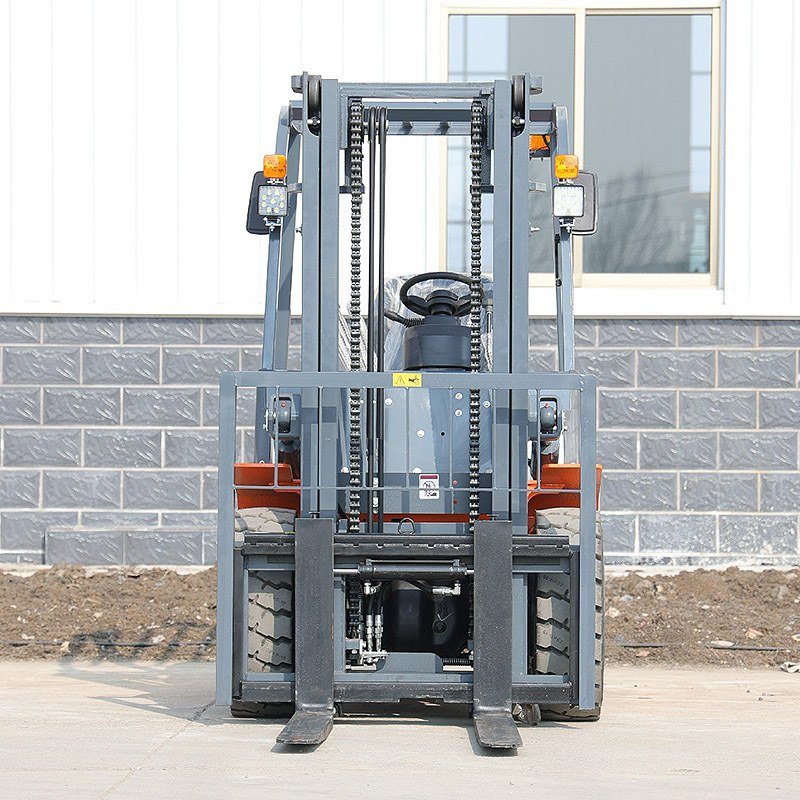

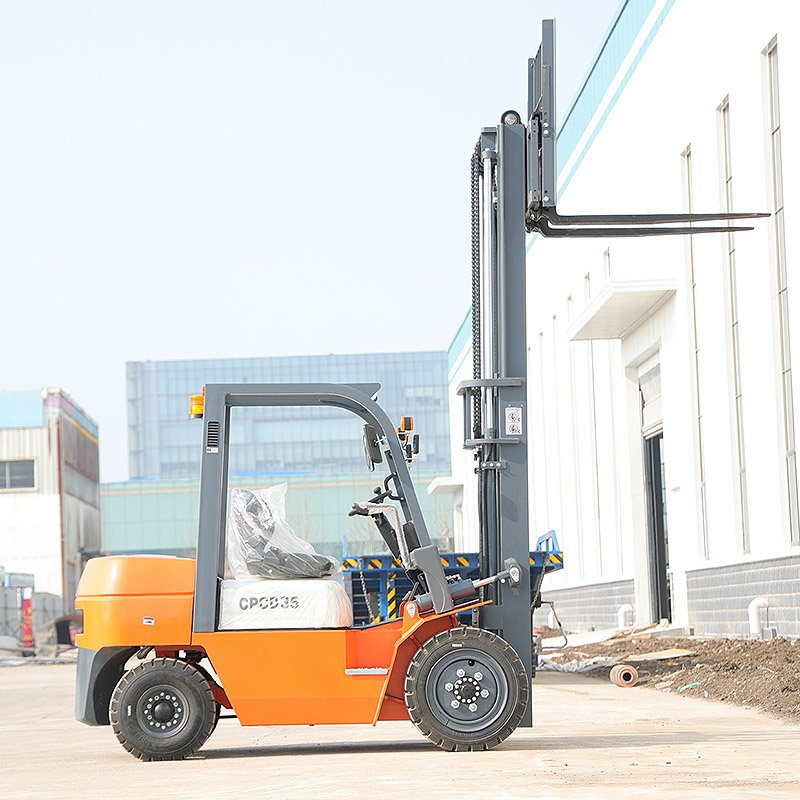

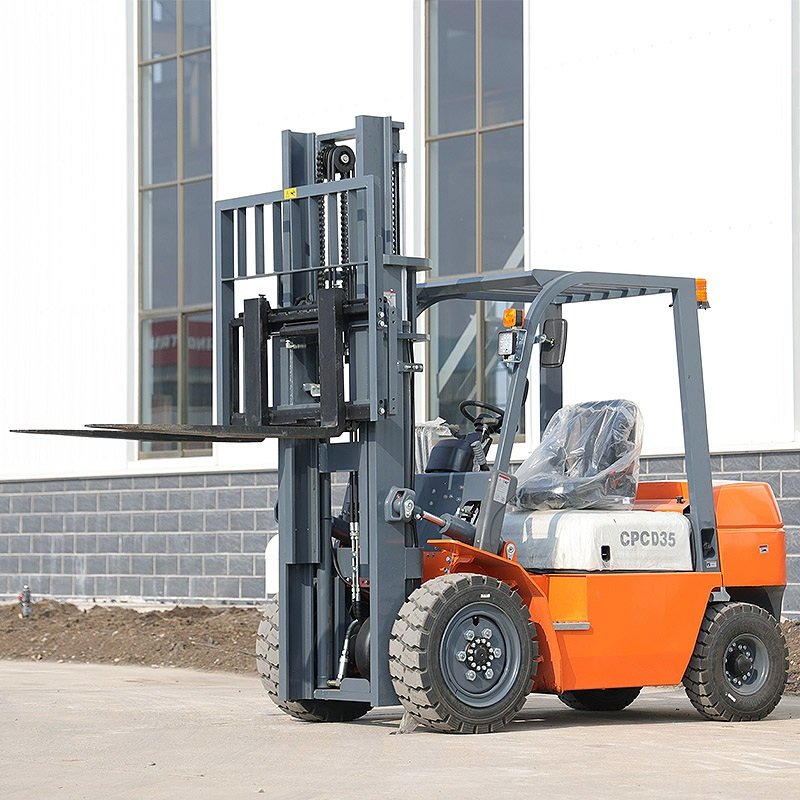

Our TDF-35 diesel forklift is a heavy-duty work platform designed for the most demanding material handling applications. With a rated payload of 3500 kg and a free lift height of 160 mm, it excels in container handling, yard operations, and industrial environments. Whether fully loaded or unloaded, its travel speed remains consistently at 19 km/h, with lift speeds of 330 mm/s (fully loaded) and 370 mm/s (unloaded), ensuring efficient workflows. The mast can tilt forward and backward, enhancing cargo safety and facilitating pallet handling. It easily handles ramps and uneven terrain. Durable pneumatic tires provide excellent traction and abrasion resistance. A compact turning radius of 2420 mm and a minimum right-angle aisle width of 4260 mm ensure excellent maneuverability in tight spaces. Whether in logistics centers, construction sites, ports, or heavy manufacturing, the TDF-35 delivers reliable, efficient, and economical performance day after day.
Small and flexible , large carrying capacity , long-lasting battery life , to meetthe handling needs of different places .
Large-scale cargo loading and unloading at logistics centers and freight stations; heavy raw material and finished product handling in manufacturing plants; material turnover of steel, cement, timber, etc. at construction sites; outdoor operations at ports, docks, and freight yards; internal container loading and unloading (thanks to a 160mm free-lift height); working environments requiring climbing or uneven ground (15° slope when fully loaded); industrial environments with long-term continuous operation and no charging facilities.
| Main Product Parameters | ||||
| Model | CPC30 | CPC35 | CPC38 | |
| Rated lifing load | kg | 3000 | 3500 | 3800 |
| Load center distance | mm | 500 | ||
| Free lifting height | mm | 160 | ||
| overall length(With forkWithout fork) | mm | 3752/2682 | 3763/2693 | 3963/2893 |
| Width | mm | 1225 | ||
| Overhead guard height | mm | 2090 | ||
| Wheelbase | mm | 1700 | ||
| Minimum ground clearance | mm | 135 | ||
| Mast ilt angle (front/rear) | % | 6°/12° | ||
| Tire no. (before) | 28×9-15-14PR | |||
| Tire no. (after) | 6.5-10-10PR | |||
| Minimum turning radius(outer side) | mm | 2400 | 2420 | 2710 |
| Minimum right angle aisle width | mm | 4260 | 4260 | 4720 |
| Fork size | mm | 1070X125X45 | 1070X125X50 | 1070×150×50 |
| maximum working speed(Full-load/No-load) | km/h | 18/19 | 19/19 | |
| maximum lifting speed(Full-load/No-load) | mm/s | 440/480 | 330/370 | 340/380 |
| maximum gradeability(Full-load/No-load) | % | 15/20 | ||
| Forklift weight | kg | 4250 | 4500 | 4800 |
| Engine model | Quanchai 4C2-50V32 (National III Emission Standard) / Quanchai 4C2-50C41 (Beijing IV Emission Standard) | |||
Q1: How fast is the travel speed?
A: The travel speed is 19 km/h both fully loaded and unloaded, which is excellent among diesel forklifts in the same class, resulting in high operational efficiency.
Q2: How is the climbing ability?
A: The maximum climbing gradient is 15% when fully loaded and up to 20% when unloaded. It is very suitable for working sites with slopes, yard ramps, or uneven ground.
Q3: How flexible is the turning? Can it be used in narrow spaces?
A: The minimum turning radius is 2420mm, and the minimum right-angle passage width is 4260mm, providing good maneuverability in confined spaces such as warehouses and yards.
Q4: What is the purpose of the 160mm free lift height?
A: The free lift height refers to the height the forks can be raised without the mast tilting backward. A 160mm free lift height is particularly suitable for entering and exiting containers, truck beds, or low doorways, allowing for picking up goods without raising the mast.
Q5: What is the purpose of the mast tilt angle?
A: A 6° forward tilt facilitates forklifting and unloading, while a 12° backward tilt prevents goods from slipping forward during transport, improving handling safety.
Q6: What type of tires are used?
A: Front tires are 28×9-15-14PR, and rear tires are 6.5-10-10PR. Both are pneumatic industrial tires, wear-resistant, durable, and with strong grip, suitable for various indoor and outdoor surfaces.
Q7: Is it suitable for outdoor use?
A: Absolutely. Its diesel engine, large-diameter wear-resistant tires, 15% full-load gradeability, and 135mm ground clearance make it perform excellently in outdoor hardened areas, dirt roads, slopes, and freight yards.
