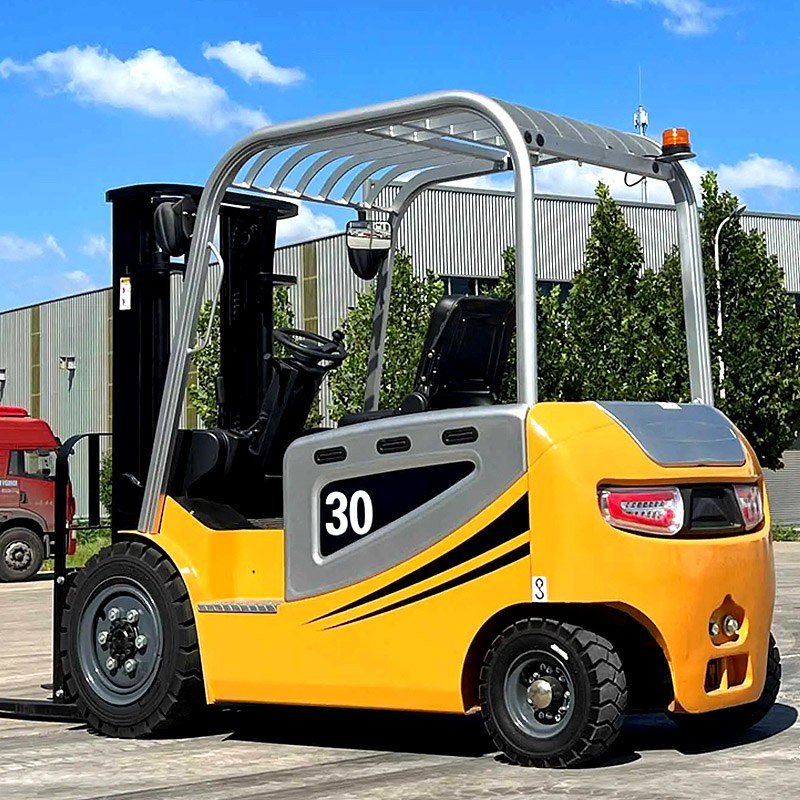

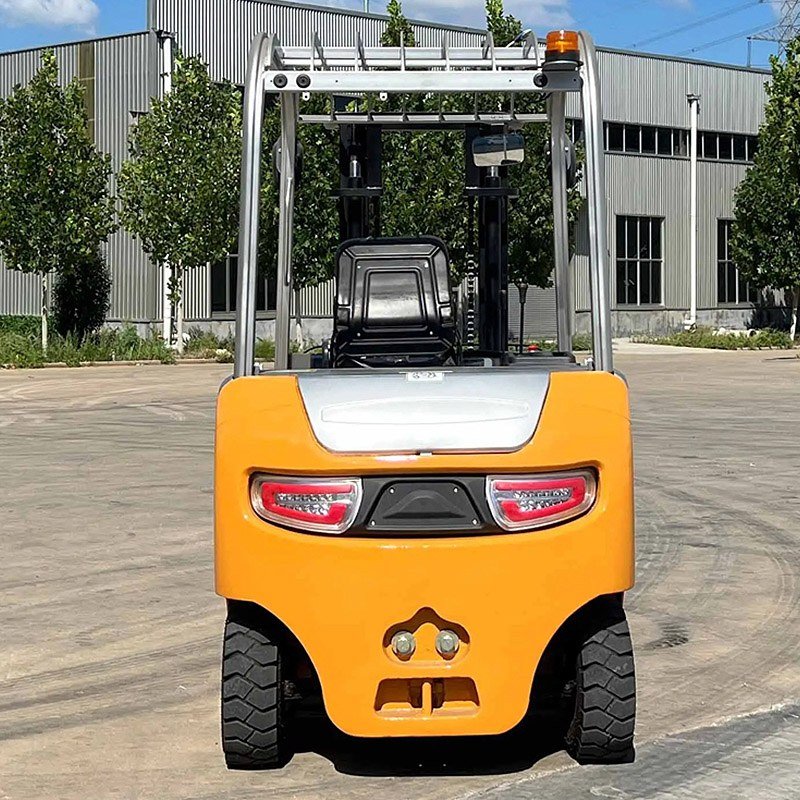

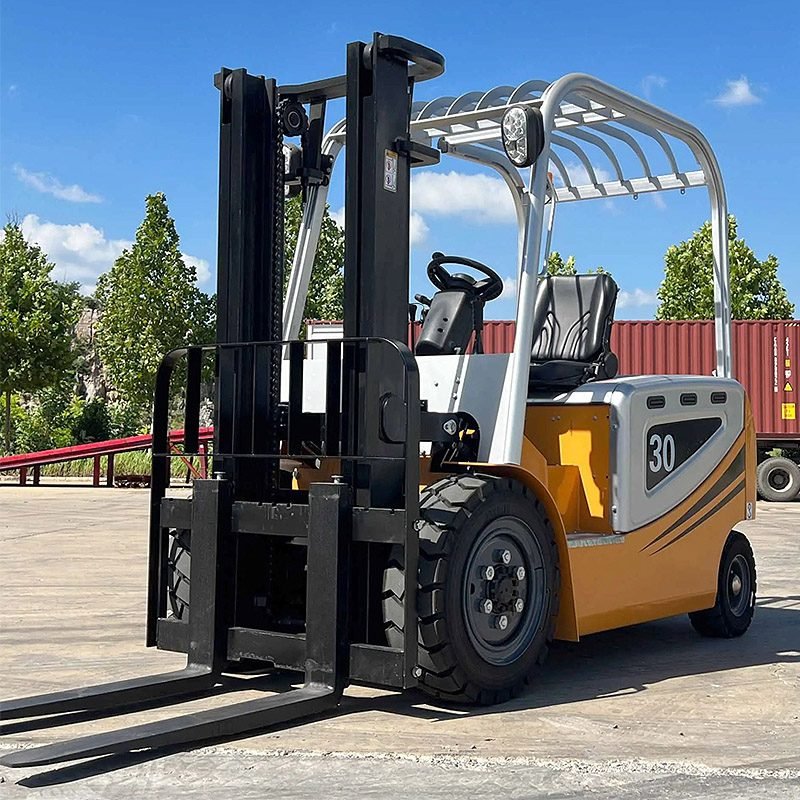

The 3 TON Mini Electric Forklift is designed for efficient and stable material handling in warehouses, industrial sites, and logistics centers. Its compact structure ensures smooth operation even in tight spaces while maintaining a high load-bearing capacity.
Long-lasting range, powerful engine, and stronger load capacity
Spot turning for flexible and easy operation
High-wear-resistant solid tires, maintenance-free and explosion-proof
Thickened one-piece stamped body + forklift-specific thickened G-type steel mast, robust and durable
Fully floating single-layer heavy-duty low-speed drive axle + heavy-duty forklift-specific rear axle, stable and reliable
Hydraulic explosion-proof device + regenerative braking anti-slip slope + anti-slip slope high-power controller, enhanced safety
Customizable body size, lifting height, and other configurations.

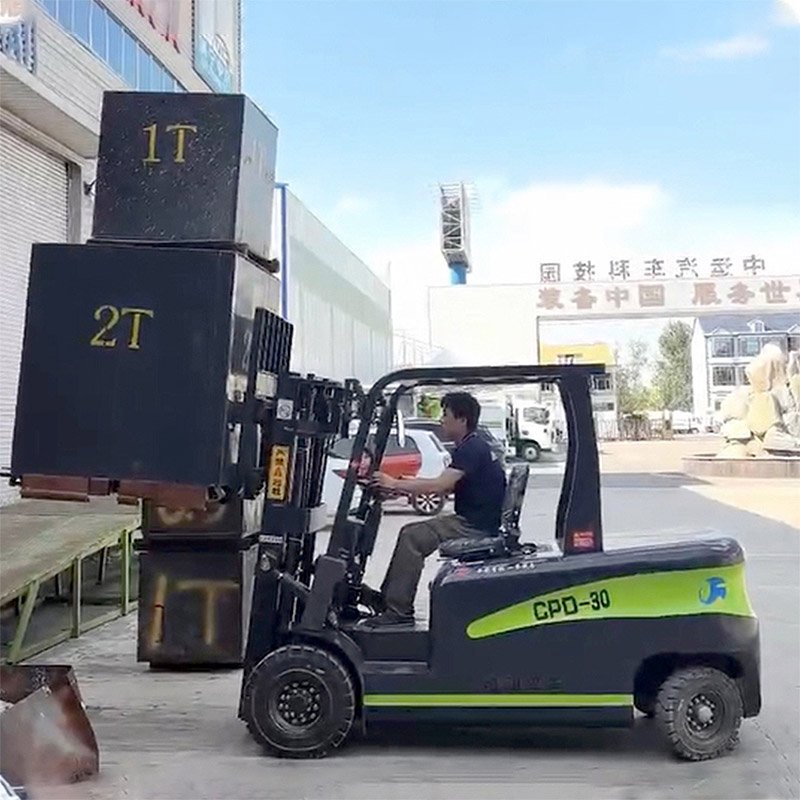

Our heavy-duty electric forklift is designed for the most demanding material handling operations, boasting a maximum lifting capacity of 3200 kg and a maximum lifting height of 3 meters. Powered by a 72V system comprised of 12 maintenance-free Chaowei dry-cell batteries, it features a 9500W brushless AC drive motor and a 7500W brushless hydraulic lifting motor, delivering powerful performance, high efficiency, and the ability to operate continuously for extended periods. A unibody stamped reinforced chassis and heavy-duty G-frame mast ensure exceptional structural strength and durability. A fully floating heavy-duty drive axle and a dedicated heavy-duty rear steering axle, paired with highly durable solid tires, provide superior stability and puncture-resistant reliability. A hydraulic power steering system and a 90° zero-turn radius allow for agile maneuverability even in confined spaces. Safety features include dual lifting cylinders (for enhanced sealing), a hydraulic explosion-proof device, a regenerative braking anti-slip system, and an anti-slip heavy-duty controller. 1220mm forged thickened forks and cast iron counterweights further enhance load stability. With its handbrake and hydraulic brake systems, fast charging, and 15° climbing ability, this forklift is a powerful, safe, and customizable solution for your heavy-duty operations.
Small and flexible , large carrying capacity , long-lasting battery life , to meetthe handling needs of different places .
Heavy-duty warehouses, steel markets, building materials logistics centers
Manufacturing plants (machinery, equipment, molds, and other heavy materials)
Container loading and unloading and yard operations
Outdoor hardened areas such as ports, docks, and freight yards
Industrial environments requiring long-term continuous operation
Work areas with slopes or gradients (maximum 15°)
| Product details | ||
 |  |  |

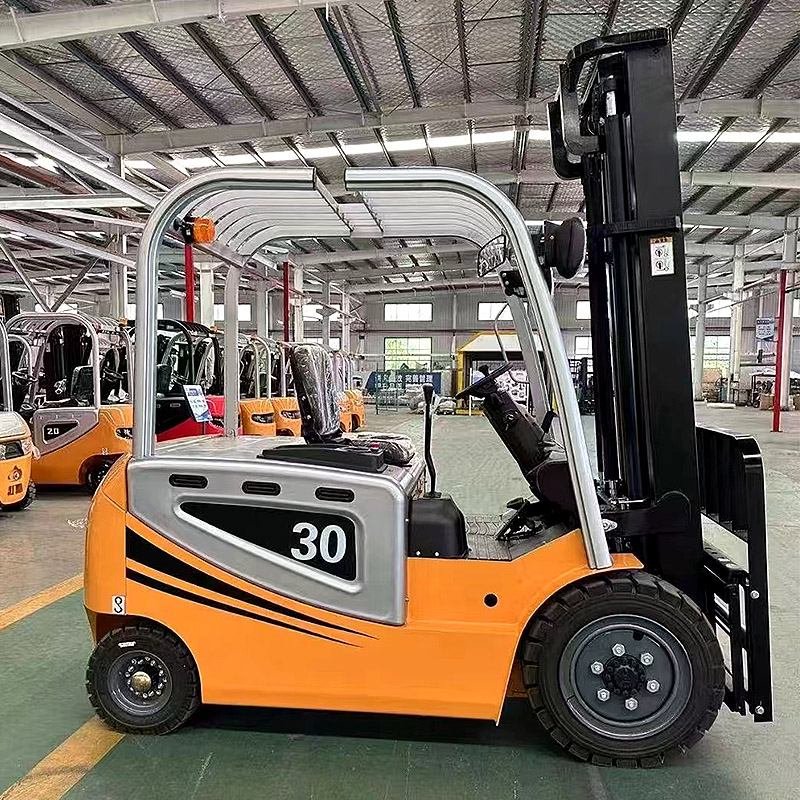

| High-end seats providecomfortable driving The seat can be adjusted forwardand backward by 150 millimeterssimultaneously, and the operatorcan choose a comfortable drivingposition. | Large capacity battery High-powered high-quality batteries,fast charging, lasting batteries,strong power, long continuous use,no maintenance, energy saving andefficiency, strong power | Strengthen the multi-piececomposite plate chain It has a strong load-bearing capacityand smooth transmission, which is"N" times that of ordinary decorativestrips, load capacity is increased,refusing to deformation after a longperiod of time under tension,increasing the life of the vehicle |
 |  |  |
| Hydraulic steering system easy to operate, high stability, powersaving.High temperature and highpressure resistance, more stableperformance | Manganese steel material Thicker "C" door frame steel, thechoice of thicker steel to extend thelife of the door frame | Compact structure,flexible 180 degree steering handle, smallturning radius, flexible steering,good operability in tight spaces |
| 3T Economy Model National Standard Electric Forklift Configuration Table | |||
| Vehicle parameters | |||
| Technical parameters | Maximum lifting weight | 3200kg | |
| long | 2550mm excluding forks | ||
| long | 3770mm including forks | ||
| Width | 1200mm | ||
| high | 2300mm | ||
| Vehicle weight | 4000kg | ||
| Lifting height | 3 meters | ||
| Body material | Thickened one-piece stamped body | ||
| Electrical system | Walking motor | 9500W brushless AC motor | |
| Voltage | 72V | ||
| controller | High-power anti-slope controller | ||
| Battery | Chaowei maintenance-free dry-cell batteries (12 units) | ||
| Lights and signals | Headlights, left and right turn signals, brake lights, daytime running lights, instrument panels, electric horn, etc. | Vehicle dimensions, lift height, and other configurations can be customized according to customer needs. | |
| Chassis system | drive axle | Fully floating single heavy-duty low-speed drive axle | |
| tire | Front tires: 700-10 (high wear-resistant solid tires); Rear tires: 500-8 (high wear-resistant solid tires) | ||
| steering bridge | Heavy-duty forklift rear axle | ||
| Braking method | Handbrake, hydraulic brake | ||
| Other configurations | Lifting cylinder | Enhanced sealing dual hydraulic cylinder | |
| Fork length | 1220mm extra-thick forked forks | ||
| Hydraulic lifting motor | 7500W brushless | ||
| Gantry material | Forklift-specific thickened G-type steel mast | ||
| Steering method | Hydraulic power steering | ||
| Turning radius | 90° can turn on the spot | ||
| Charging time | 7 hours | ||
| Continuous working time | 6 hours | ||
| Climbing angle | 15° | ||
| Vehicle accessories | Vehicle tools/fire extinguisher | ||
| Remark | This vehicle is equipped with a pure iron sand counterweight hydraulic explosion-proof device and regenerative braking to prevent slippage. | ||
| Machine Parameters | |||||||
| Overall dimensions | 2550*1200*2300mm | Braking method | Handbrake,hydraulic brake | ||||
| Vehicle weight | 4000kg | Lifting cylinder | Enhanced sealing dual hydraulic cylinder | ||||
| Lifting height | 3m | Steering method | Hydraulic power steering | ||||
| Body material | Thickened one-piece stamped body | Turning radius | 90°can turn on the spot | ||||
| Walking motor | 9500W brushless AC motor | Continuous working time | 6 hours | ||||
| Voltage | 72V | Climbing angle | 15° | ||||
| controller | High-power anti-slope controller | Gantry material | Forklift-specific thickened G- type steel mast | ||||
| Battery | Chaowei maintenance-free dry battery(12 pieces) | Vehicle accessories | Vehicle tools/fire extinguisher | ||||
Q1: What are the maximum lifting weight and height?
A: The maximum lifting weight is 3200kg, and the lifting height is 3 meters. Higher lifting heights can be customized according to customer needs.
Q2: Is the motor AC or DC? What are the advantages?
A: Both the travel motor and the lifting motor are brushless AC motors (9500W + 7500W). Brushless AC motors are highly efficient, have a low failure rate, require no maintenance, are quiet, and have a long lifespan.
Q3: Are the tires pneumatic?
A: No. The front tires (700-10) and rear tires (500-8) are high-wear-resistant solid tires, which will never burst, require no inflation, are wear-resistant and durable, and suitable for heavy loads and harsh terrain.
Q4: Will it slip on slopes?
A: No. The vehicle is equipped with a high-power anti-slip controller, a regenerative braking anti-slip system, and a hydraulic explosion-proof device. It automatically prevents slippage when parking or starting on slopes, ensuring safety and reliability.
Q5: Is it maneuverable when turning? Q6: Can it be used in confined spaces?
A: Very flexible. It uses hydraulic power steering, supports 90° turning on the spot, and has a very small turning radius, making it ideal for narrow warehouses, aisles, or crowded work environments.
Q7: Can it be customized?
A: Yes. We support customization of vehicle size, lifting height, and other configurations according to customer needs. Please feel free to inquire.
Q8: What material is the counterweight made of?
A: This vehicle is equipped with pure iron sand counterweight, which has a higher density, smaller size, and better stability compared to ordinary counterweights.
Q9: What is the braking system like?
A: It uses a handbrake + hydraulic brake system, which is sensitive and reliable, ensuring safety during heavy-duty operations.
Q9: Is it suitable for outdoor use?
A: Yes. Solid tires, G-type steel mast, anti-slip system, high-power controller, and other features make it perform excellently in outdoor hardened areas, slopes, and freight yards.
