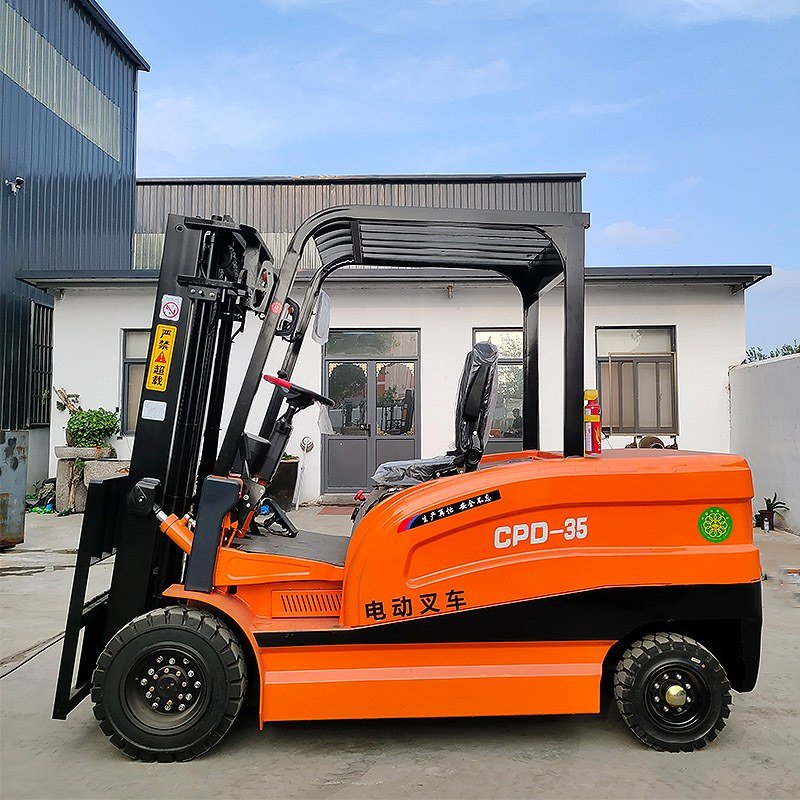

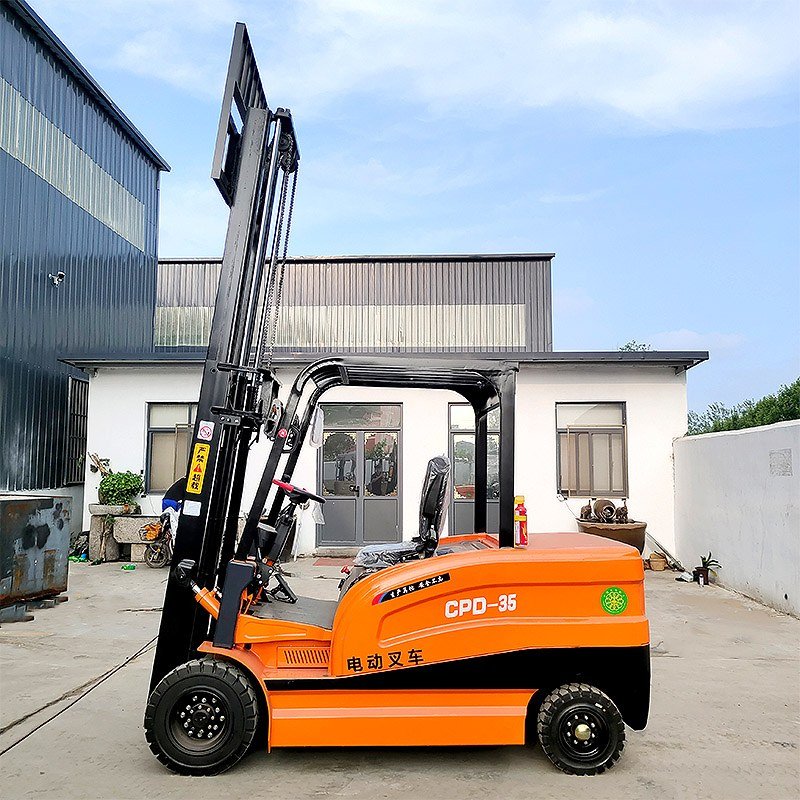

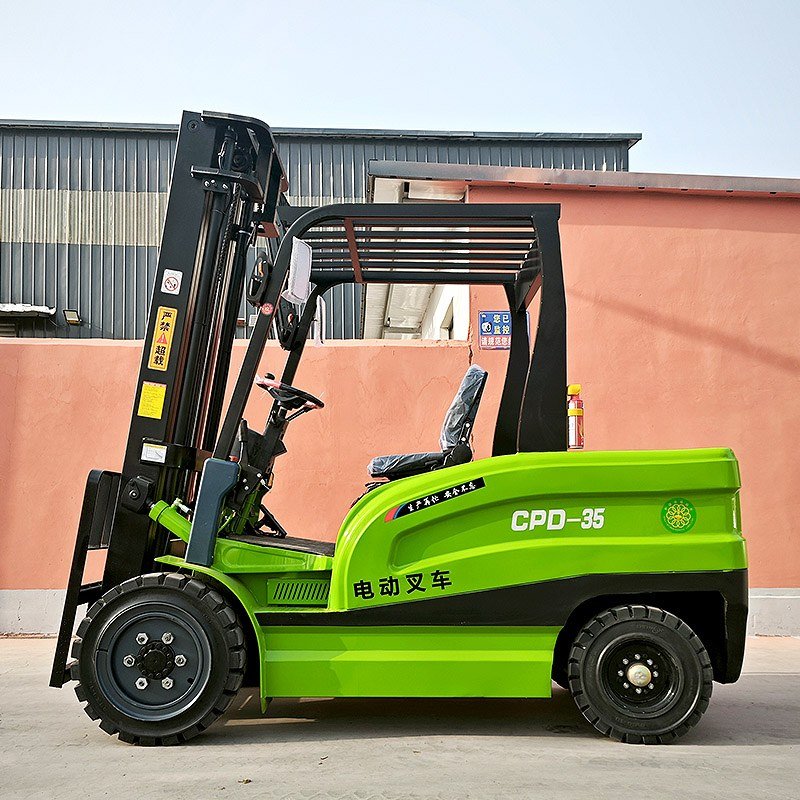

The 3.5 TON Mini Electric Forklift is built for efficient and stable material handling in warehouses, logistics centers, and industrial environments. Its compact and flexible design allows smooth operation in narrow spaces while supporting heavy loads.
Rated load capacity 3500kg, stable and reliable for heavy-duty operations
Powerful and durable
High-speed travel, efficient and fast
Maximum gradeability, adaptable to complex terrain
Maintenance tilt angle for safe loading and unloading
Turning radius 2420mm, flexible and maneuverable
Durable and wear-resistant tires
Our TDF-35 diesel forklift is a heavy-duty work platform designed for the most demanding material handling applications. With a rated payload of 3500 kg and a free lift height of 160 mm, it excels in container handling, yard operations, and industrial environments. Whether fully loaded or unloaded, its travel speed remains consistently at 19 km/h, with lift speeds of 330 mm/s (fully loaded) and 370 mm/s (unloaded), ensuring efficient workflows. The mast can tilt forward and backward, enhancing cargo safety and facilitating pallet handling. It easily handles ramps and uneven terrain. Durable pneumatic tires provide excellent traction and abrasion resistance. A compact turning radius of 2420 mm and a minimum right-angle aisle width of 4260 mm ensure excellent maneuverability in tight spaces. Whether in logistics centers, construction sites, ports, or heavy manufacturing, the TDF-35 delivers reliable, efficient, and economical performance day after day.
SMALL AND FLEXIBLE , LARGE CARRYING CAPACITY , LONG-LASTING BATTERY LIFE , TO MEETTHE HANDLING NEEDS OF DIFFERENT PLACES .
Large-scale cargo loading and unloading at logistics centers and freight stations; heavy raw material and finished product handling in manufacturing plants; material turnover of steel, cement, timber, etc. at construction sites; outdoor operations at ports, docks, and freight yards; internal container loading and unloading (thanks to a 160mm free-lift height); working environments requiring climbing or uneven ground (15° slope when fully loaded); industrial environments with long-term continuous operation and no charging facilities.
| Product details | ||
 |  |  |

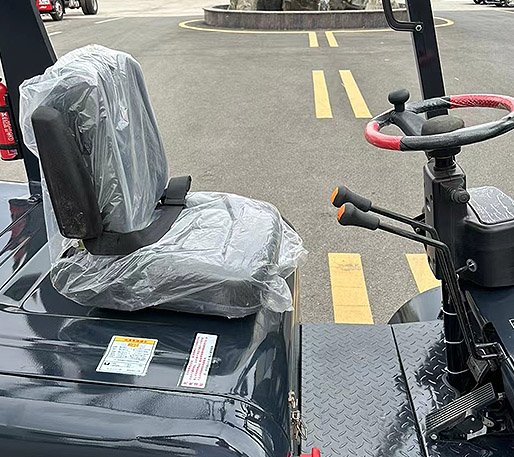

| High-end seats providecomfortable driving The seat can be adjusted forwardand backward by 150 millimeterssimultaneously, and the operatorcan choose a comfortable drivingposition. | Large capacity battery High-powered high-quality batteries,fast charging, lasting batteries,strong power, long continuous use,no maintenance, energy saving andefficiency, strong power | Strengthen the multi-piececomposite plate chain It has a strong load-bearing capacityand smooth transmission, which is"N" times that of ordinary decorativestrips, load capacity is increased,refusing to deformation after a longperiod of time under tension,increasing the life of the vehicle |
 |  |  |

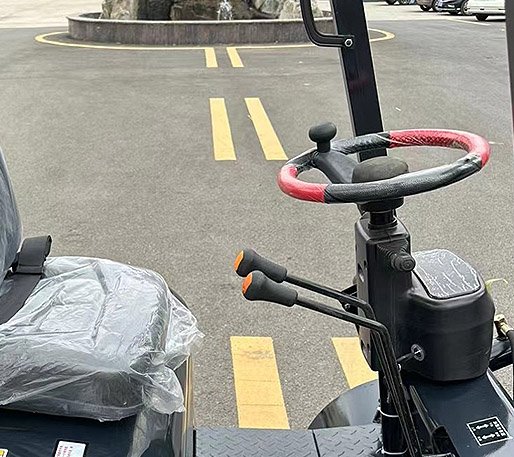

| Hydraulic steering system easy to operate, high stability, powersaving.High temperature and highpressure resistance, more stableperformance | Manganese steel material Thicker "C" door frame steel, thechoice of thicker steel to extend thelife of the door frame | Compact structure,flexible 180 degree steering handle, smallturning radius, flexible steering,good operability in tight spaces |
| 3.5TElectric forklift configuration list | |||
| Vehicle parameters | |||
| Technical parameters | Lifting weight | 3500kg | |
| long | 2700mm excluding forks | ||
| Forklift | 1200mm | ||
| Width | 1200mm | ||
| high | 2150mm | ||
| Vehicle weight | 4400kg | ||
| Lifting height | 3 meters (customizable) | ||
| Body material | Thickened one-piece stamped body | ||
| Electrical system | Walking motor | 16kW brushless AC motor | |
| Voltage | 60V | ||
| Vehicle power | pure electric | ||
| Battery | 12 packs of Chaowei maintenance-free dry cell batteries | ||
| Lights and signals | Headlights, left and right turn signals, brake lights,Daylights, instrument panel, horn, etc. | ||
| Cassis system | Front axle | Fully floating single-load bridge | |
| tire | High wear-resistant solid tires: front 23*9-10, rear 18*7 | ||
| Rear axle | Heavy-duty forklift rear axle | ||
| Braking method | Handbrake, hydraulic brake, electronic auto hold | ||
| Other configurations | Lifting cylinder | Reinforced and thickened sealed dual hydraulic cylinders for forklifts | |
| Fork length | 1220mm forged forks | ||
| Hydraulic lifting motor | 16kW brushless AC motor | ||
| Gantry material | Special thickened steel door frame 15cm*2.2cm | ||
| Steering method | Hydraulic power steering | ||
| Turning radius | 3 meters | ||
| Charging time | Fast charging for 4 hours | ||
| Continuous working time | 5-6 hours | ||
| Climbing angle | 15° | ||
| Vehicle accessories | Rain tarpaulin, fire extinguisher, tools, etc. | ||
| Machine Parameters | ||||||
| Overall dimensions | 2700*1200*2150mm | Steering method | Hydraulic power steering | |||
| Lifting weight | 3500kg | turning radius | 3m | |||
| Vehicle weight | 4400kg | Charging time | Fast charging 4 hours | |||
| Lifting height | 3 meters(customizable) | Continuous working time | 5-6 hours | |||
| Travel motor | 16kW brushless AC motor | Gantry material | Special thickened steel door frame 15cm*2.2cm | |||
| Voltage | 60V | Climbing angle | 15° | |||
| Vehicle power | Pure electric | Fork length | 1220mm forged goods | |||
| Battery | Chaowei maintenance-free dry battery 12 pieces | Braking method | Handbrake,oil brake,electronic automatic parking | |||
Q1: How fast is the travel speed?
A: The travel speed is 19 km/h both fully loaded and unloaded, which is excellent among diesel forklifts in the same class, resulting in high operational efficiency.
Q2: How is the climbing ability?
A: The maximum climbing gradient is 15% when fully loaded and up to 20% when unloaded. It is very suitable for working sites with slopes, yard ramps, or uneven ground.
Q3: How flexible is the turning? Can it be used in narrow spaces?
A: The minimum turning radius is 2420mm, and the minimum right-angle passage width is 4260mm, providing good maneuverability in confined spaces such as warehouses and yards.
Q4: What is the purpose of the 160mm free lift height?
A: The free lift height refers to the height the forks can be raised without the mast tilting backward. A 160mm free lift height is particularly suitable for entering and exiting containers, truck beds, or low doorways, allowing for picking up goods without raising the mast.
Q5: What is the purpose of the mast tilt angle?
A: A 6° forward tilt facilitates forklifting and unloading, while a 12° backward tilt prevents goods from slipping forward during transport, improving handling safety.
Q6: What type of tires are used?
A: Front tires are 28×9-15-14PR, and rear tires are 6.5-10-10PR. Both are pneumatic industrial tires, wear-resistant, durable, and with strong grip, suitable for various indoor and outdoor surfaces.
Q7: Is it suitable for outdoor use?
A: Absolutely. Its diesel engine, large-diameter wear-resistant tires, 15% full-load gradeability, and 135mm ground clearance make it perform excellently in outdoor hardened areas, dirt roads, slopes, and freight yards.
