The 1 TON Mini Electric Forklift is designed for high-efficiency operations in warehouses, workshops, and industrial environments. Its high-capacity battery provides long working hours, fast charging, and reliable power without frequent maintenance.
Fully electric drive, energy-saving and environmentally friendly
Maximum lifting height 3000mm
Manganese steel "C" shaped mast, stronger and more durable
Hydraulic steering system, easy operation and high stability
180° steering handle, small turning radius, suitable for tight spaces
Adjustable comfortable seat
Maintenance-free large-capacity battery, long battery life and fast charging
Our TPF-10 electric forklift is designed for light to medium load operations, with a rated load capacity of 1000 kg and a maximum load capacity of 1500 kg. It utilizes a high-quality 60V maintenance-free battery and a 3KW motor, providing powerful performance, rapid charging, and long operating time. The manganese steel-reinforced "C" mast structure and multi-plate composite chain significantly enhance load-bearing capacity and resistance to deformation, extending the forklift's lifespan. The hydraulic steering system ensures easy, stable, and energy-efficient operation, while the 180° steering handle provides a small turning radius, allowing for maneuverability even in confined spaces. A high-end adjustable seat ensures operator comfort, making this forklift a reliable, efficient, and economical choice for warehouses, workshops, and light industrial environments.
Small and flexible , large carrying capacity , long-lasting battery life , to meetthe handling needs of different places .
Warehouse internal goods handling
Small factory, assembly line material turnover
Retail stores, cold storage, packaging workshops
Loading and unloading inside containers or trucks (on level ground)
Narrow aisles or confined space working environments
| Product description | ||
 |  |  |

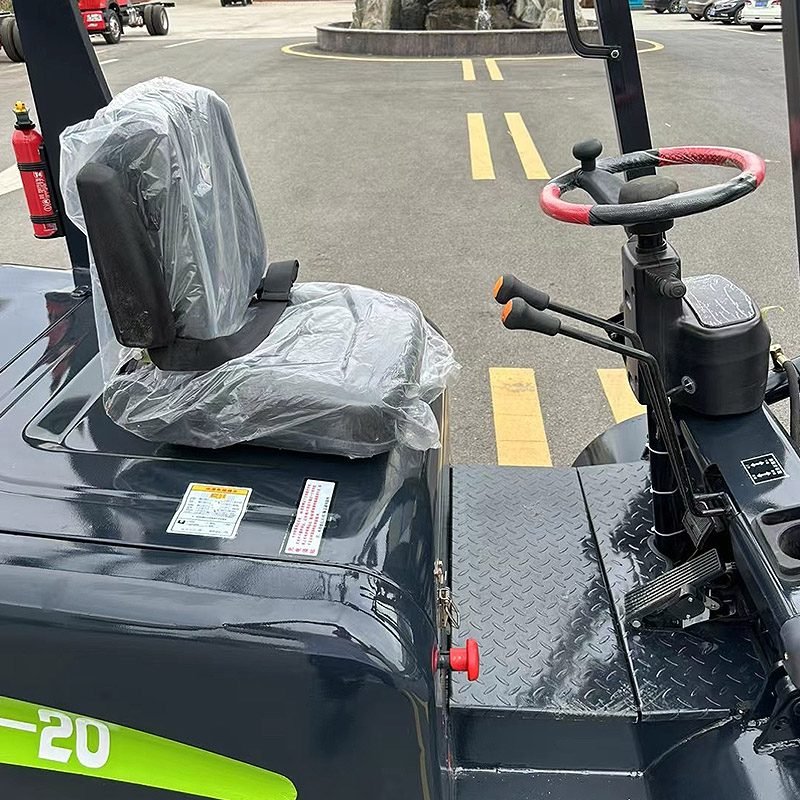

| High-end seats providecomfortable driving The seat can be adjusted forwand backward by 150 millimetsimultaneously, and the operatcan choose a comfortable drivposition. | Large capacity battery High-powered high-quality batteries,fast charging, lasting batteries,strong power, long continuous use,no maintenance, energy saving andefficiency, strong power | Strengthen the multicomposite plate chain It has a strong load-bearing caand smooth transmission, whi"N" times that of ordinary deccstrips, load capacity is increarefusing to deformation after aperiod of time under tension,increasing the life of the vehicl |
 |  |  |
| Hydraulic steering system easy to operate, high stability, powersaving.High temperature and highpressure resistance, more stableperformance | Manganese steel mate Thicker "C" door frame steel, the choice of thicker steel to exten life of the door frame | Compact structure,flexible 180 degree steering handle, smallturning radius, flexible steering,good operability in tight spaces |
| Machine Parameters | ||||
| Rated lifting capacity | 1000kg | Max lifting capacity | 1500kg | |
| Power mode | Electric | Machine Weight | 1600kg | |
| Standard load center distance | 500mm | Rated voltage | 60V | |
| Rated Power | 3KW | Maximum lifting height | 3000mm | |
| Frame form | Level 2 | Travel speed | 10km/h | |
| Maximum lifting speed | 200mm/s | Maximum descent speed | 300mm/s | |
| Fork inclination(front) | 2° | Fork inclination(rear) | 18° | |
Q1: What is the maximum lifting height?
A: The maximum lifting height is 3000mm, suitable for general shelving and stacking operations.
Q2: Does the battery require maintenance?
A: No. We use maintenance-free, high-capacity rechargeable batteries that are energy-efficient, environmentally friendly, and have a long service life.
Q3: Can it be operated flexibly in confined spaces?
A: Yes. The 180° steering handle, combined with a small turning radius design, is ideal for working in narrow aisles or compact areas.
Q4: Is the seat adjustable?
A: Yes. The seat can be adjusted forward and backward by 150mm to accommodate operators of different body types, improving comfort during long working hours.
Q5: How is the mast deformation problem solved?
A: We use a thickened manganese steel "C"-shaped mast + multi-layer composite plate chain, whose tensile strength is several times that of ordinary chains, making it less prone to deformation over long-term use.
