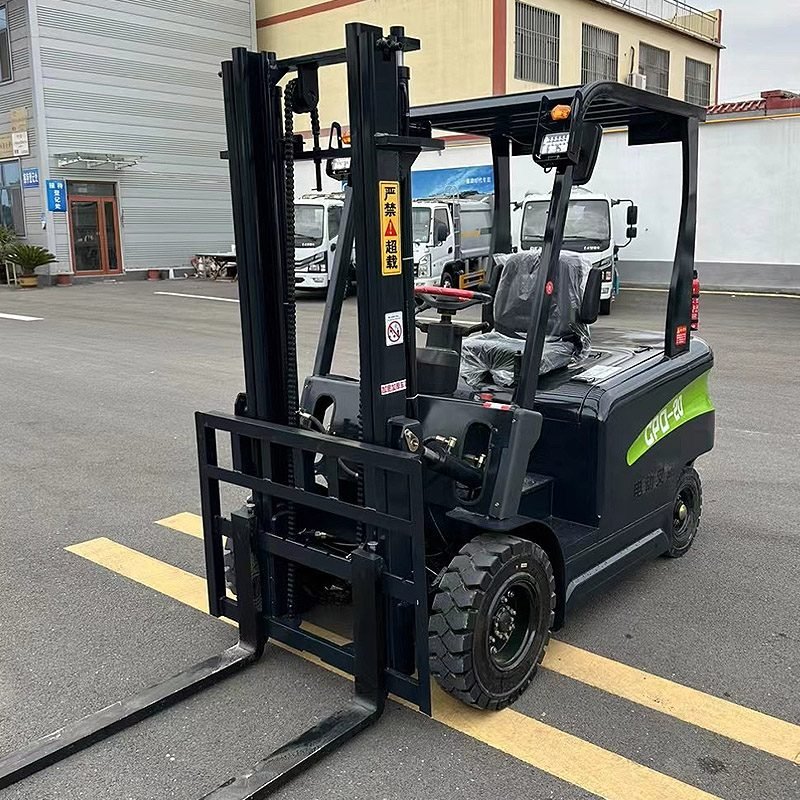

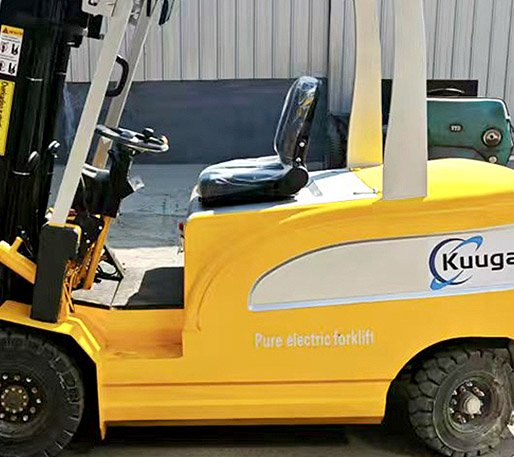

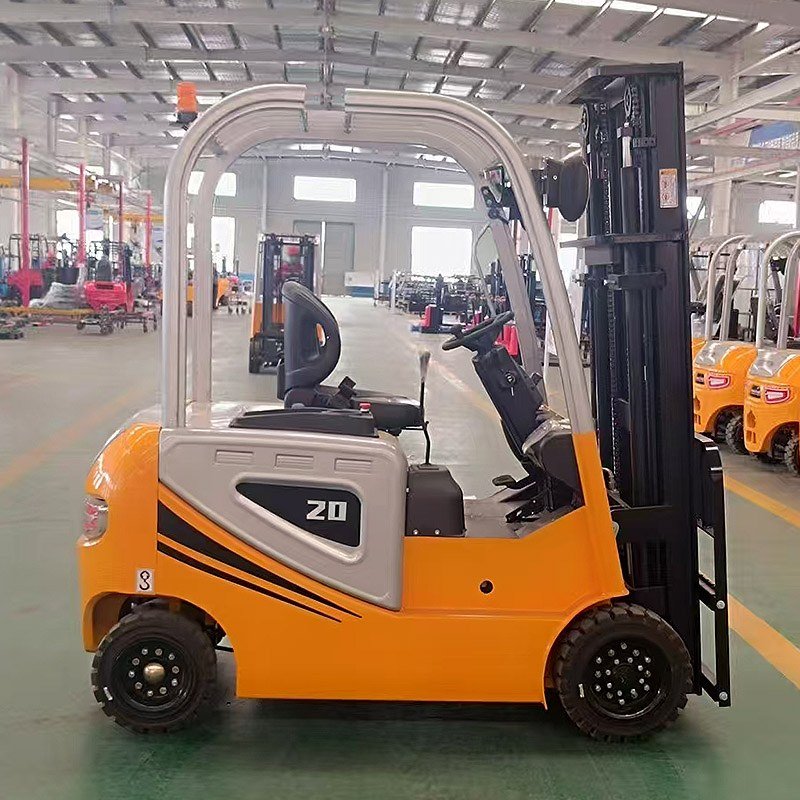

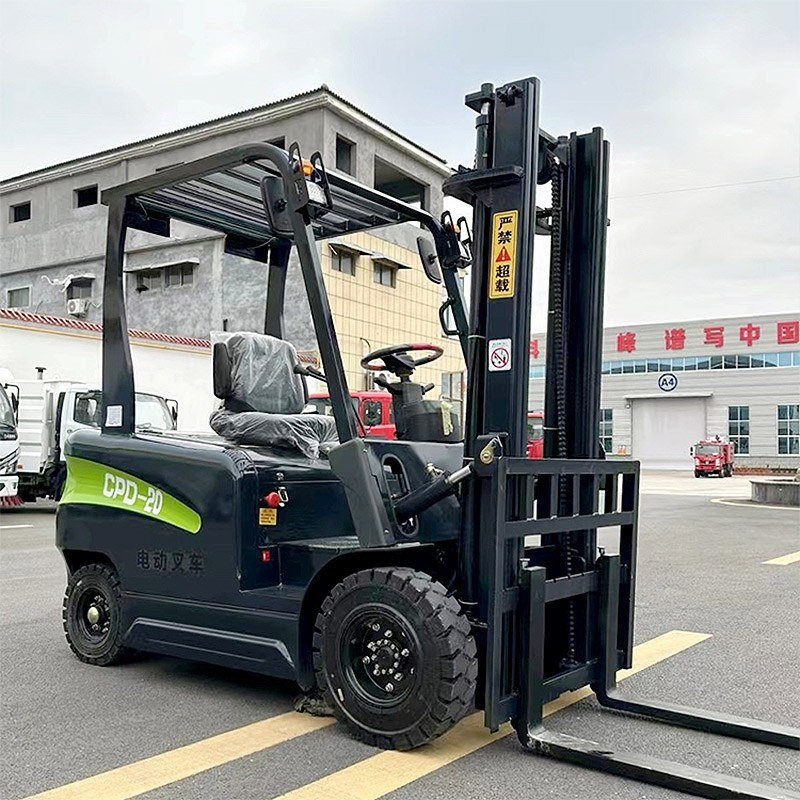

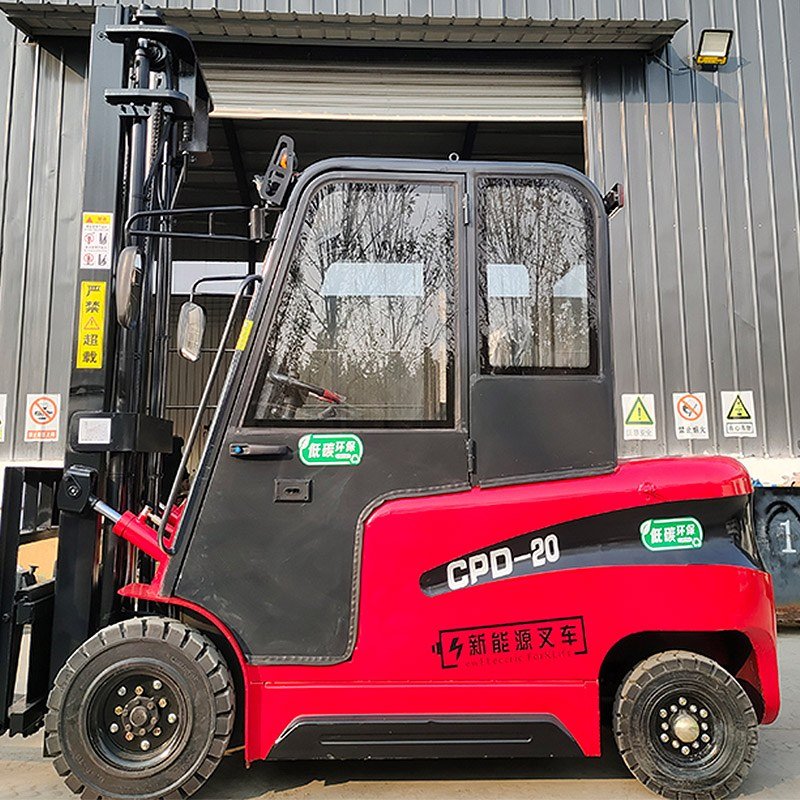

The 2 TON Mini Electric Forklift is engineered for efficient and stable material handling in warehouses, factories, and logistics environments. Its compact and flexible structure ensures smooth operation even in narrow working aisles.
All-electric drive, zero emissions, low noise, energy saving and environmentally friendly
High-power motor, strong performance
Large-capacity battery, long-lasting range
Balancing efficiency and safety
Maintenance tilt angle, safer loading and unloading

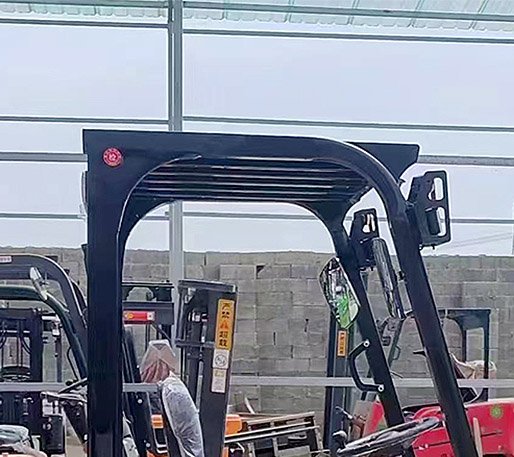

Secondary gantry design, stable and reliable structure

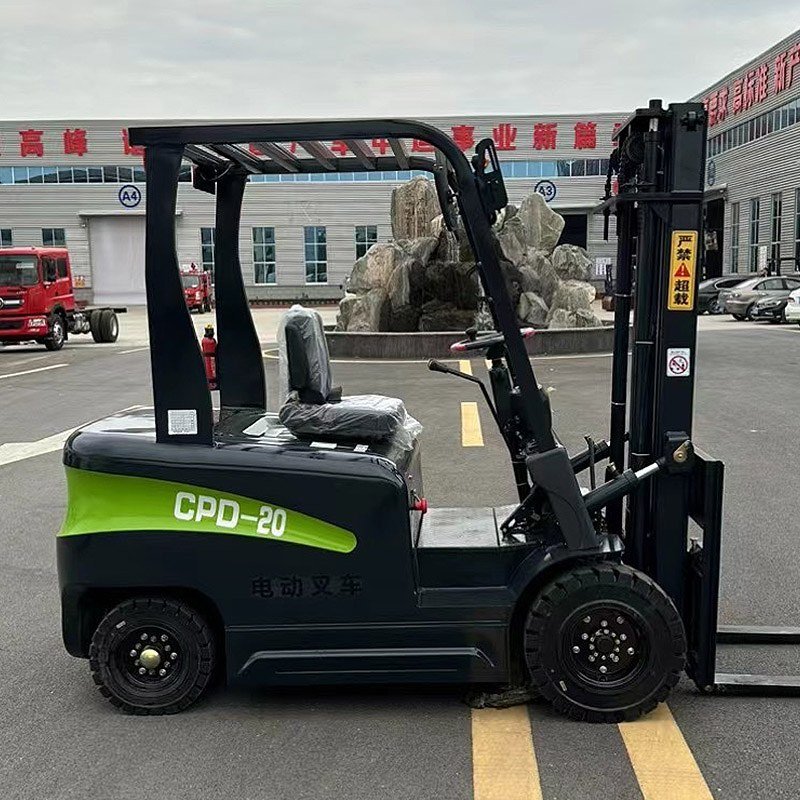

Our TPF-20 electric forklift is a powerful and reliable heavy-duty material handling solution. With a rated load capacity of 2000 kg and a maximum load capacity of 2200 kg, it easily handles heavier loads. Equipped with a 60V high-capacity battery and a 5kW motor, it maintains strong and stable performance even during extended operation. A maximum lifting height of 3000 mm meets the needs of standard warehouse stacking operations. The machine travels at 10 km/h, balancing efficiency and operational safety. The mast tilts forward by 2° and backward by 18°, effectively preventing goods from slipping and making pallet handling easier. The two-stage frame structure ensures structural stability and durability. The TPF-20 has a lifting speed of 200 mm/s and a controllable lowering speed of 300 mm/s, ensuring smooth, safe, and energy-efficient operation. Whether for heavy-duty warehouse operations, logistics centers, or industrial sites, this forklift is capable.
Small and flexible , large carrying capacity , long-lasting battery life , to meetthe handling needs of different places .
Heavy-duty warehouse cargo stacking and handling; loading and unloading operations at logistics transit centers; transportation of raw materials and finished products in manufacturing plants; large retail distribution centers; container loading and unloading (on leveled and hardened surfaces); industrial environments requiring long-term continuous operation.
| Product details | ||
 |  |  |

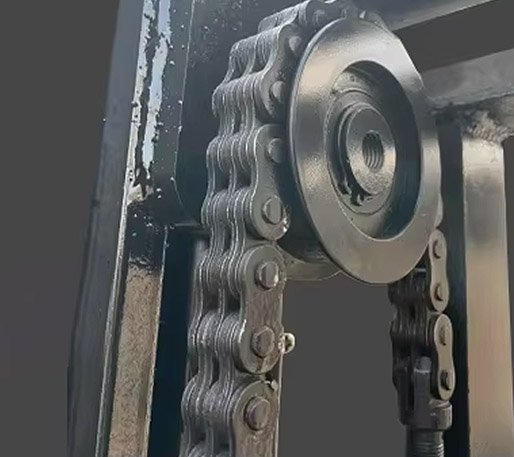

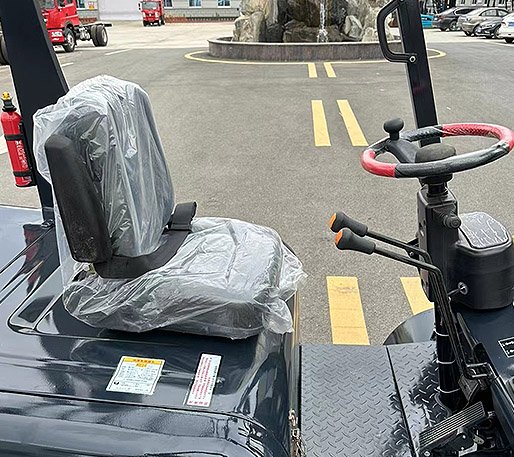

| High-end seats providecomfortable driving The seat can be adjusted forwardand backward by 150 millimeterssimultaneously, and the operatorcan choose a comfortable drivingposition. | Large capacity battery High-powered high-quality batteries,fast charging, lasting batteries,strong power, long continuous use,no maintenance, energy saving andefficiency, strong power | Strengthen the multi-piececomposite plate chain It has a strong load-bearing capacityand smooth transmission, which is"N" times that of ordinary decorativestrips, load capacity is increased,refusing to deformation after a longperiod of time under tension,increasing the life of the vehicle |
 |  |  |

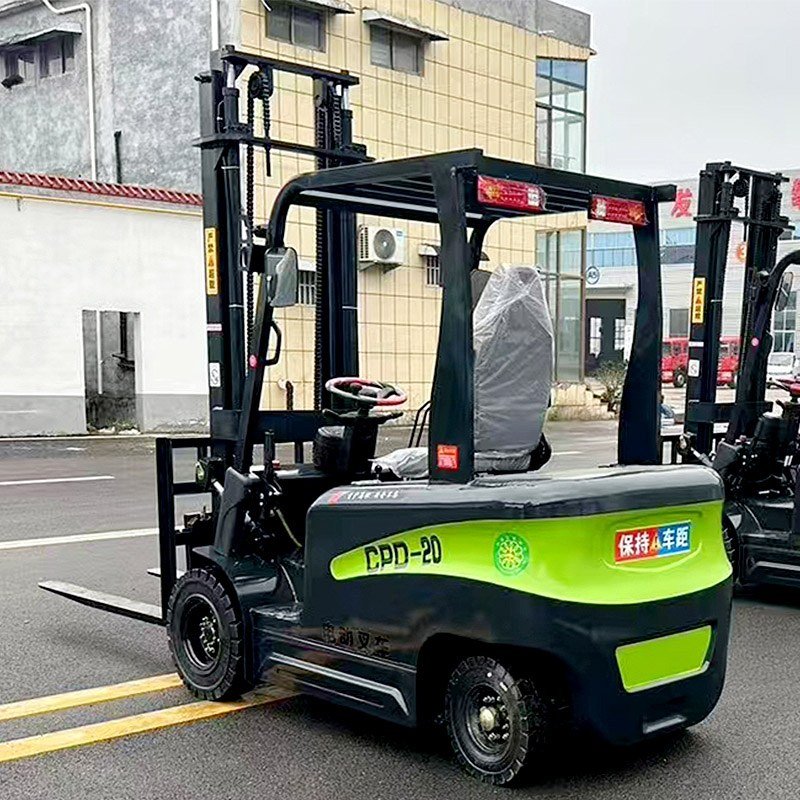

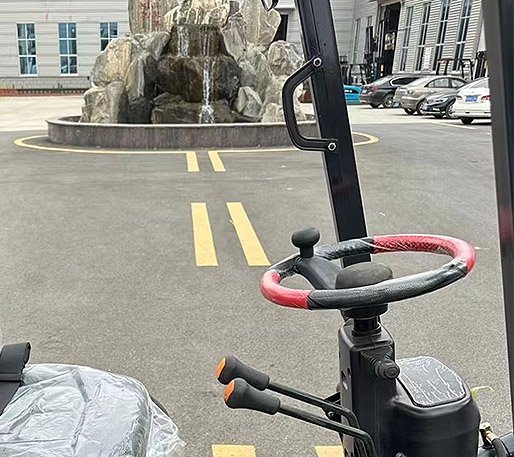

| Hydraulic steering system easy to operate, high stability, powersaving.High temperature and highpressure resistance, more stableperformance | Manganese steel material Thicker "C" door frame steel, thechoice of thicker steel to extend thelife of the door frame | Compact structure,flexible 180 degree steering handle, smallturning radius, flexible steering,good operability in tight spaces |
| Machine Parameters | ||||
| Rated Ifing capacity | 2000kg | Max liuing capacny | 2200kg | |
| Power mode | Electne | Machine Weight | 2800kg | |
| Standard load center distance | 500mm | Rated voltage | 60V | |
| Rated Power | 5KW | Maximum lifing height | 3000mm | |
| Frame focm | Level 2 | Travel speed | 10kmh | |
| Maxdmum liting spoed | 200mmis | Maximum descent speed | 300mmis | |
| Fork inclinabion (tront) | 2° | Fork incination (rear) | 18° | |
Q1: How long does a fully charged battery last?
A: The runtime depends on the load and operating conditions. Generally, a 60V high-capacity battery can support 4-6 hours of continuous heavy-duty operation. For longer runtime, an upgraded battery is available.
Q2: How long does it take to charge?
A: A full charge with the standard charger takes approximately 6-8 hours. It supports intelligent charging and automatically cuts off power when fully charged to protect battery life.
Q3: Is maintenance complicated?
A: Not complicated. The electric forklift has a simple structure and does not require oil or filter changes. Routine checks mainly involve the tires, hydraulic fluid, and battery status.
Q4: What is the purpose of the 18° tilt?
A: A large tilt angle effectively prevents goods from slipping forward during transport, improving handling safety, especially suitable for loading unstable or irregular goods.
