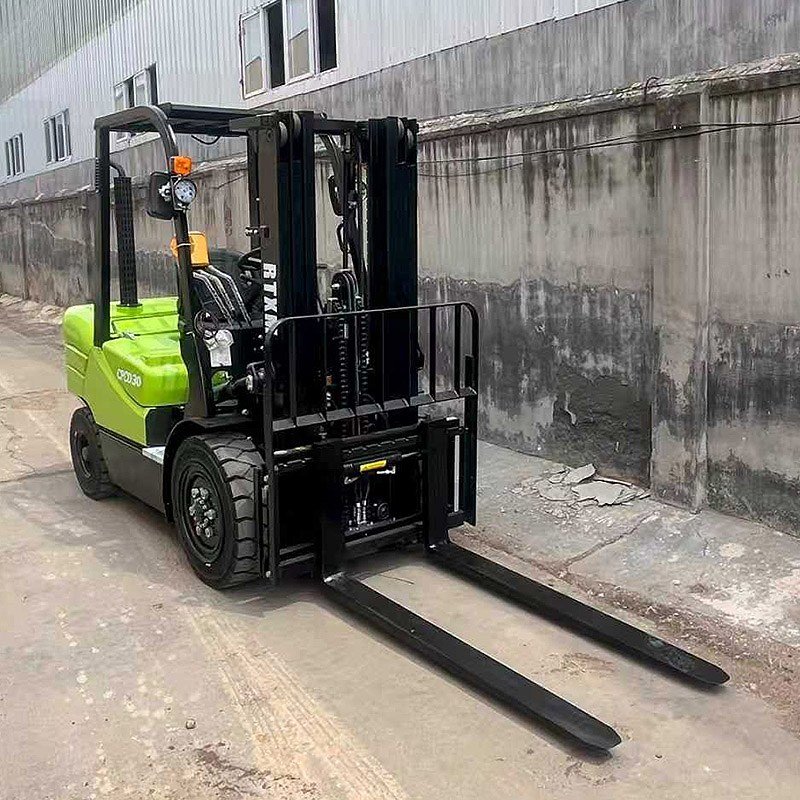

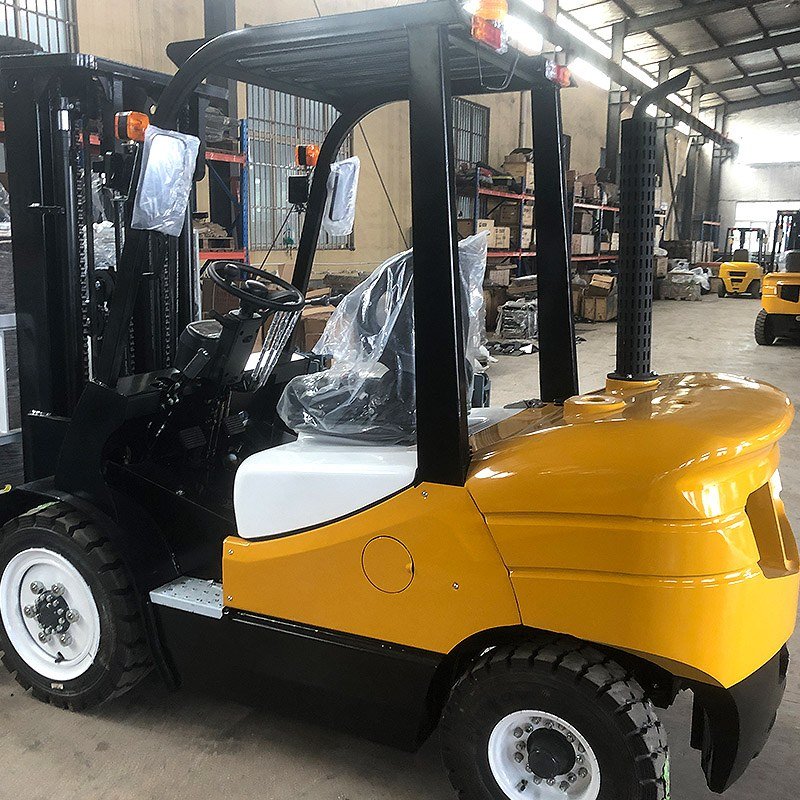

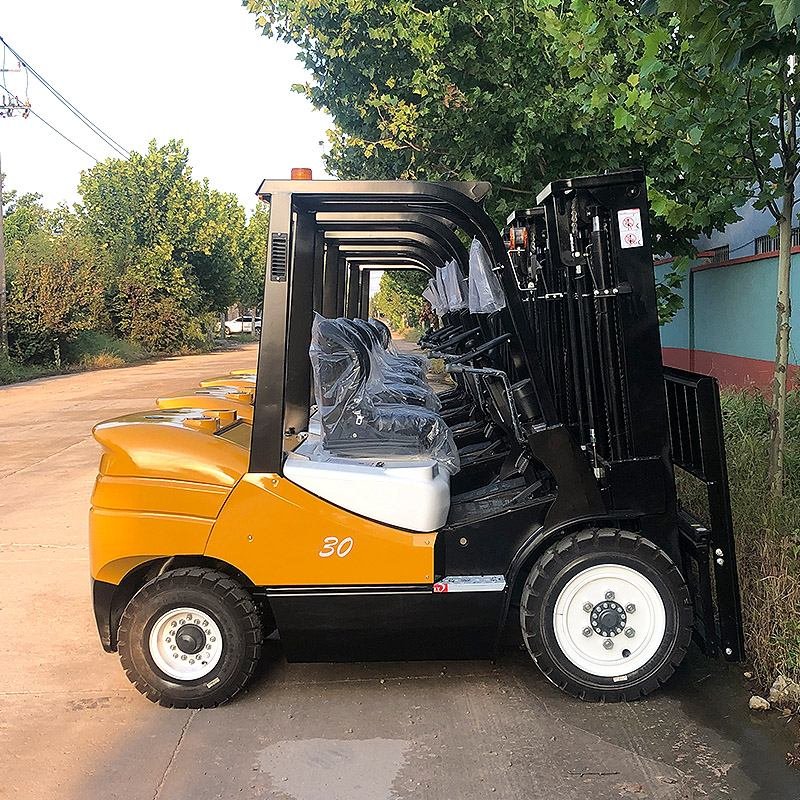

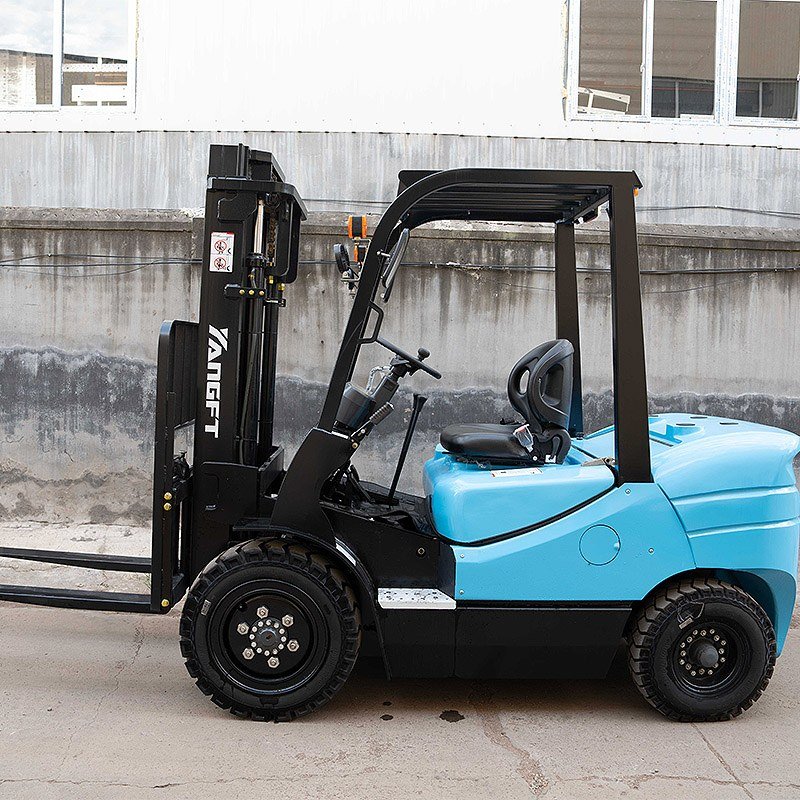

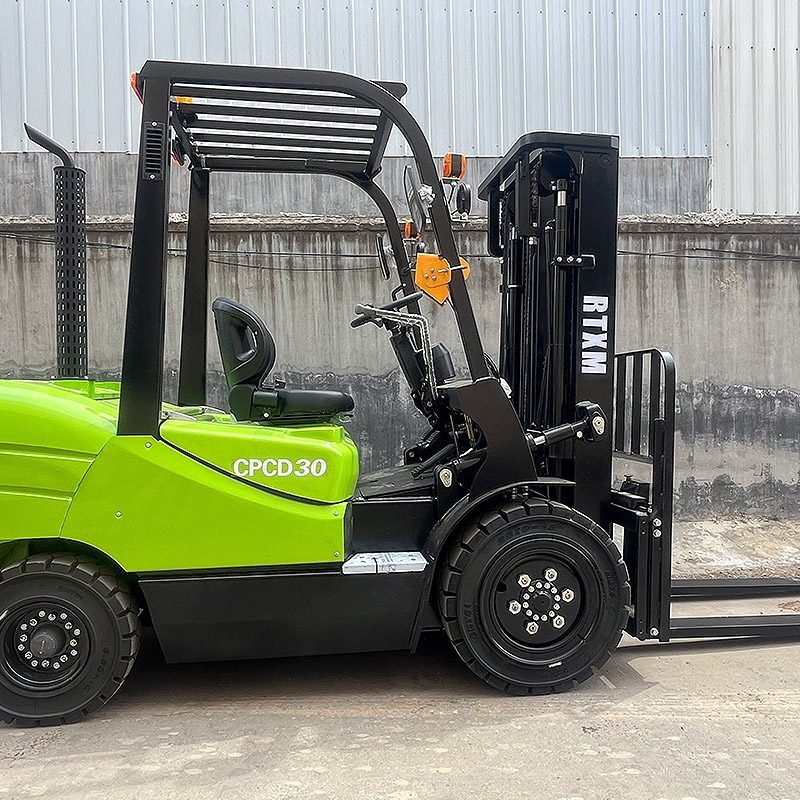

The 3 TON Mini Diesel Forklift is designed for stable and efficient material handling in industrial, warehouse, and construction environments. Its upgraded steering adjustment mechanism significantly improves driving comfort and operational reliability.
Rated load 3000kg, stable and reliable
Powerful, durable, efficient and fast
Maximum gradeability: 15% full load / 20% unload, adaptable to complex terrain

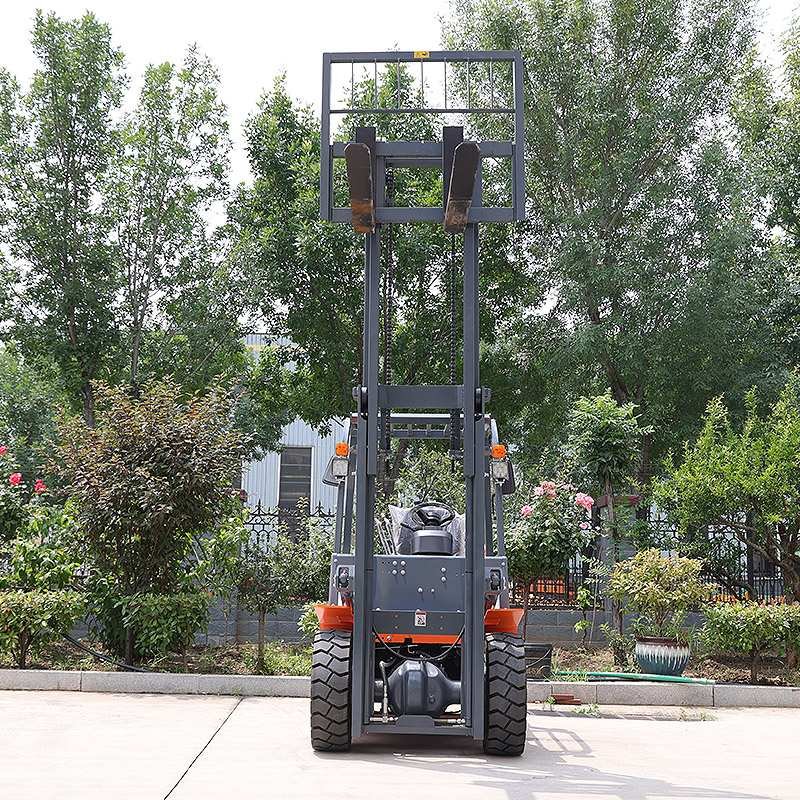

Mass tilt angle: 6° forward tilt / 12° backward tilt, safer loading and unloading
Turning radius only 2400mm, flexible and maneuverable
Tires, wear-resistant and durable
1.The new steering wheel adjustment mechanism improves the operating comfort and adjustment reliability

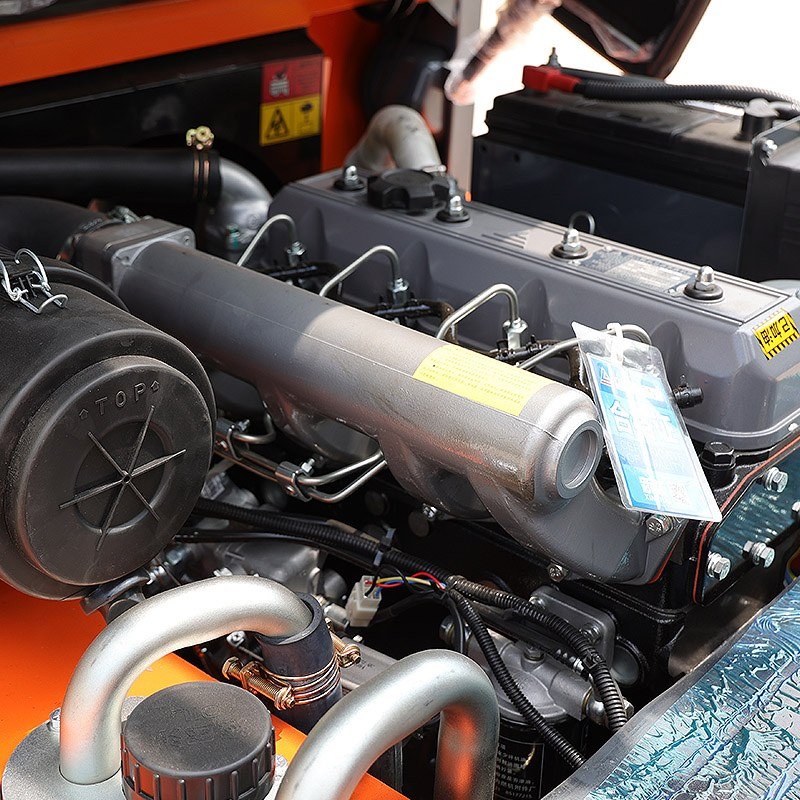

2.The design of the high-roof large-diameter air intake system can keep the engine away from dust, effectively exert the engineperformance and prolong the service life.

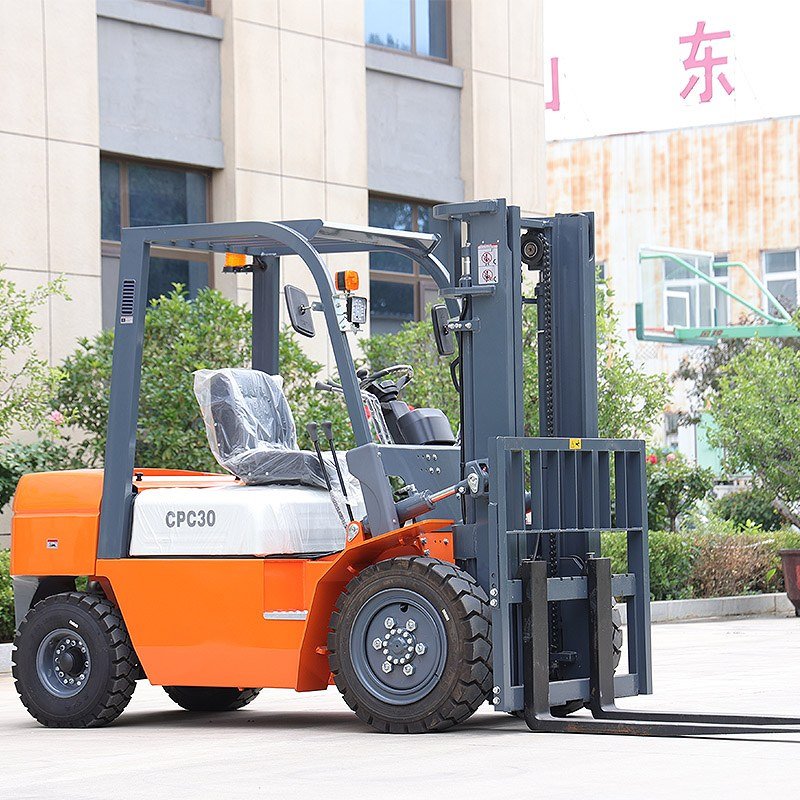

3.Reliable liquid crystal digital special instruments and friendy man-machine interface make t easy for the driver to accurately controlthe vehicle status.
4.Casting steering axle is optional, and the later maintenance cost is low.
5.The new steering wheel adjustment mechanism improves the operating comfort and adjustment reliability
6.Excellent visibility for improved situational and job site awareness

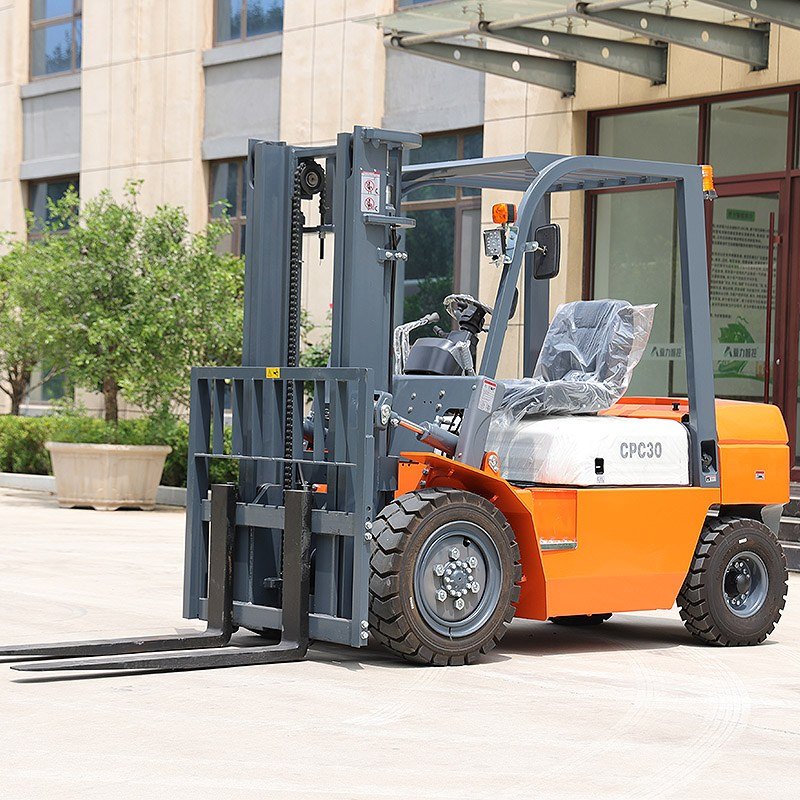

Our TDF-30 diesel forklift is a rugged and reliable heavy-duty work machine designed for heavy material handling in harsh environments. With a rated payload of 3000 kg and a turning radius of only 2400 mm, it demonstrates exceptional mobility in warehouses, storage yards, and construction sites. It offers high operational efficiency. The mast can tilt forward and backward, enhancing cargo safety during transport and facilitating pallet loading and unloading. Its strong climbing ability allows it to easily handle slopes and uneven terrain. Durable tires provide excellent traction and abrasion resistance. Ideal for both indoor and outdoor applications. Whether in logistics centers, manufacturing plants, or outdoor sites, the TDF-30 delivers reliable, efficient, and economical performance.
Small and flexible , large carrying capacity , long-lasting battery life , to meetthe handling needs of different places .
Cargo loading and unloading at logistics centers and freight stations
Raw material and finished product handling in manufacturing plants
Material turnover at construction sites
Outdoor operations at ports, docks, and freight yards
Handling of heavy materials such as timber, steel, and building materials
Working environments requiring inclines or uneven ground (15° slope when fully loaded)
Long-term continuous industrial environments
| Main Product Parameters | ||||

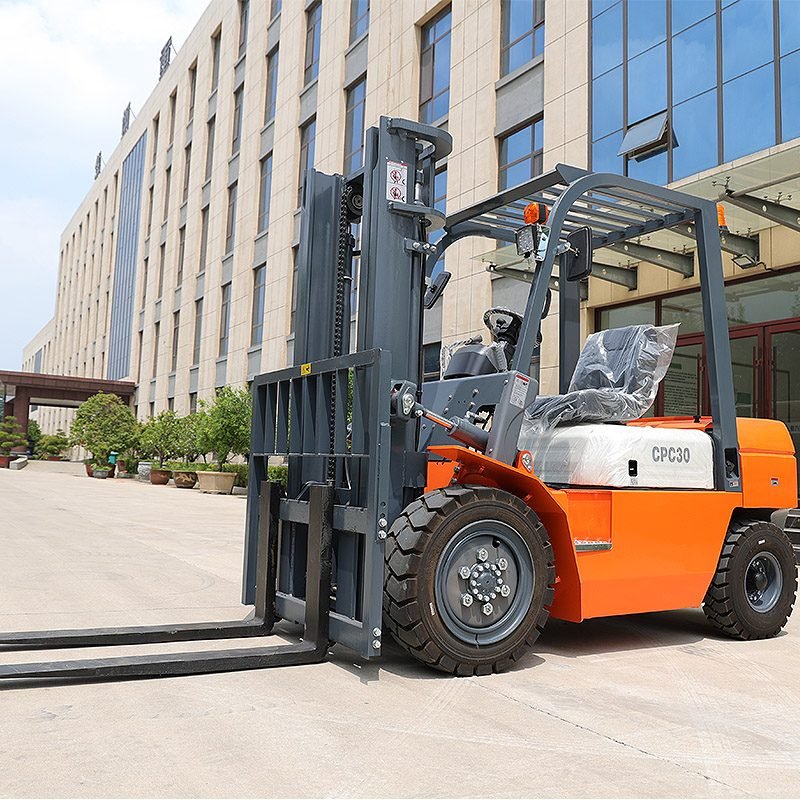

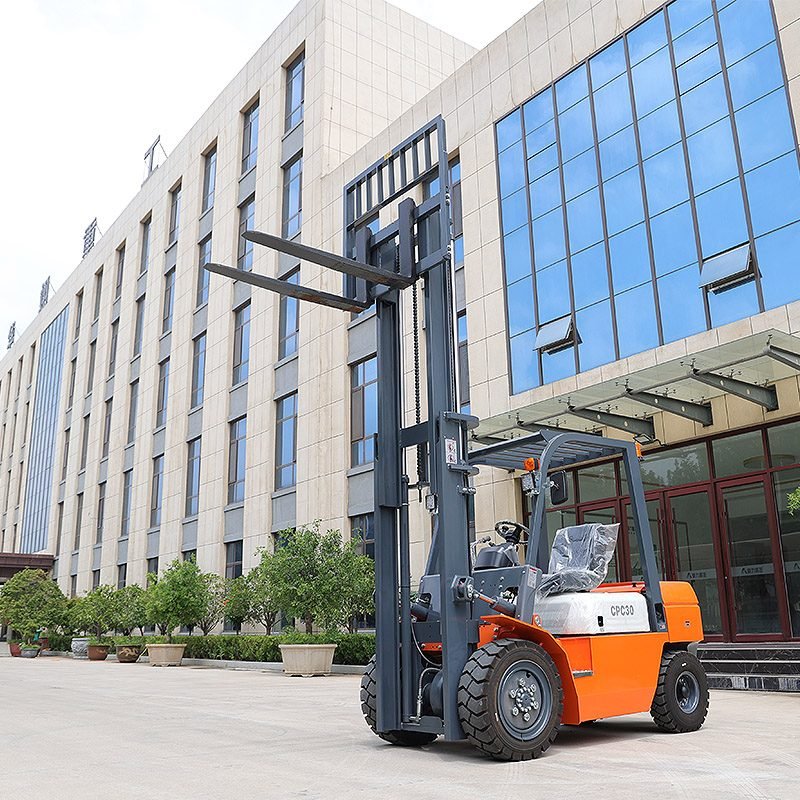

| Model | CPC30 | CPC35 | CPC38 | |
| Rated lifing load | kg | 3000 | 3500 | 3800 |
| Load center distance | mm | 500 | ||
| Free lifting height | mm | 160 | ||
| overall length(With forkWithout fork) | mm | 3752/2682 | 3763/2693 | 3963/2893 |
| Width | mm | 1225 | ||
| Overhead guard height | mm | 2090 | ||
| Wheelbase | mm | 1700 | ||
| Minimum ground clearance | mm | 135 | ||
| Mast ilt angle (front/rear) | % | 6°/12° | ||
| Tire no. (before) | 28×9-15-14PR | |||
| Tire no. (after) | 6.5-10-10PR | |||
| Minimum turning radius(outer side) | mm | 2400 | 2420 | 2710 |
| Minimum right angle aisle width | mm | 4260 | 4260 | 4720 |
| Fork size | mm | 1070X125X45 | 1070X125X50 | 1070×150×50 |
| maximum working speed(Full-load/No-load) | km/h | 18/19 | 19/19 | |
| maximum lifting speed(Full-load/No-load) | mm/s | 440/480 | 330/370 | 340/380 |
| maximum gradeability(Full-load/No-load) | % | 15/20 | ||
| Forklift weight | kg | 4250 | 4500 | 4800 |
| Engine model | Quanchai 4C2-50V32 (National III Emission Standard) / Quanchai 4C2-50C41 (Beijing IV Emission Standard) | |||
Q1: How fast are the travel and lifting speeds?
A: Travel speed: 18 km/h fully loaded, 19 km/h unloaded; Lifting speed: 440 mm/s fully loaded, 480 mm/s unloaded. This is considered high efficiency among diesel forklifts in its class.
Q2: How is its climbing ability?
A: Maximum climbing gradient of 15% fully loaded, up to 20% unloaded. Ideal for work sites with slopes or uneven ground.
Q3: Is it maneuverable? Can it be used in narrow spaces?
A: The minimum turning radius is only 2400 mm, and the minimum right-angle passage width is 4260 mm, providing good maneuverability in confined spaces such as warehouses and freight yards.
Q4: What is the purpose of the mast tilt angle?
A: A 6° forward tilt facilitates picking up and unloading goods, while a 12° backward tilt prevents goods from slipping forward during travel, improving handling safety.
Q5: What type of tires are used?
A: The front tires are 28×9–15–14PR, and the rear tires are 6.5–10–10PR, both pneumatic industrial tires. They are wear-resistant, durable, and have strong grip, suitable for various indoor and outdoor surfaces.
Q6: Is it suitable for outdoor use?
A: Absolutely. Its diesel power, large-size wear-resistant tires, 15% full-load gradeability, and 135mm ground clearance make it perform excellently in outdoor hardened areas, dirt roads, slopes, and freight yards.
Q7: What are the advantages of this vehicle compared to an electric forklift?
A: Diesel forklifts have stronger power, their range is not limited by batteries, refueling is quick, and they are suitable for continuous all-weather operation, especially suitable for outdoor, heavy-duty, long-duration, and uncharging scenarios.
