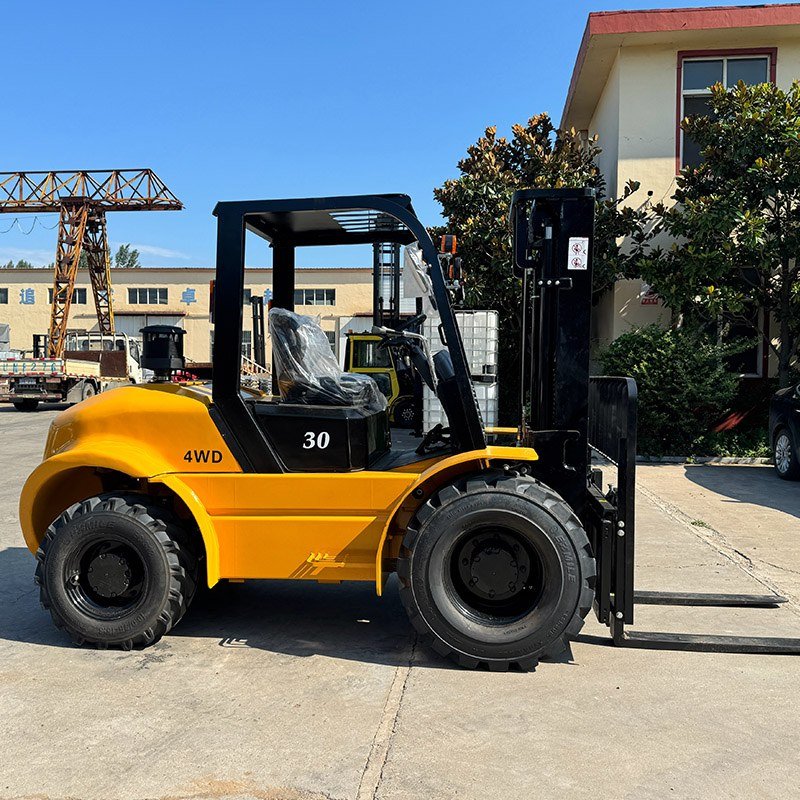

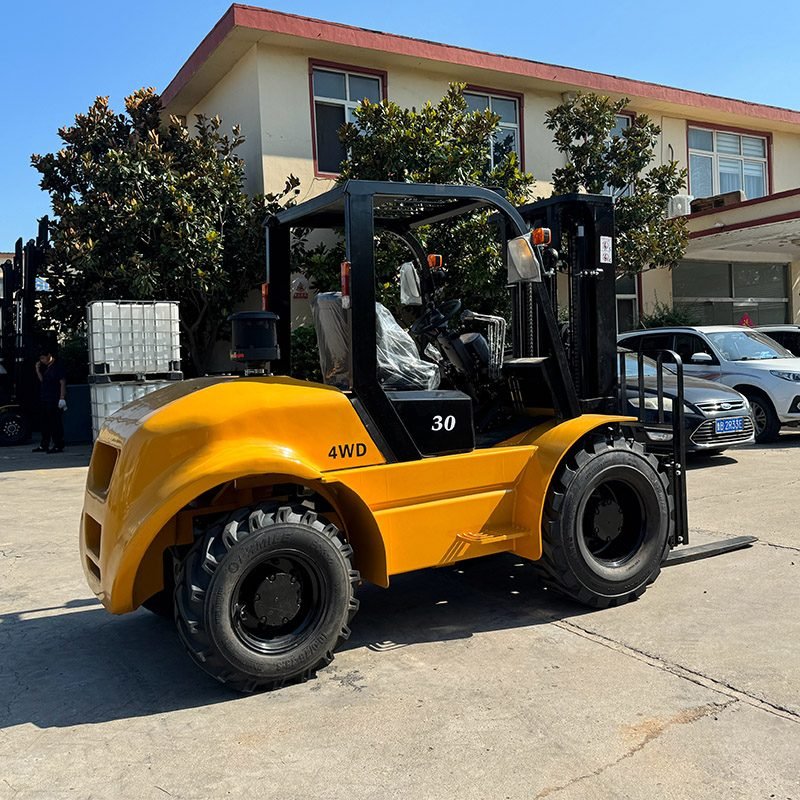

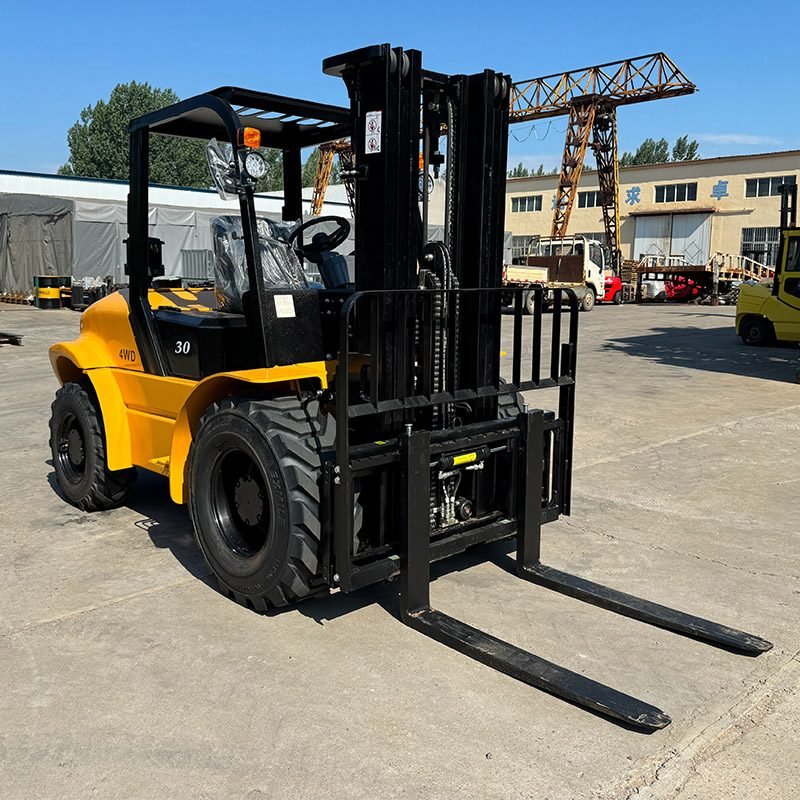

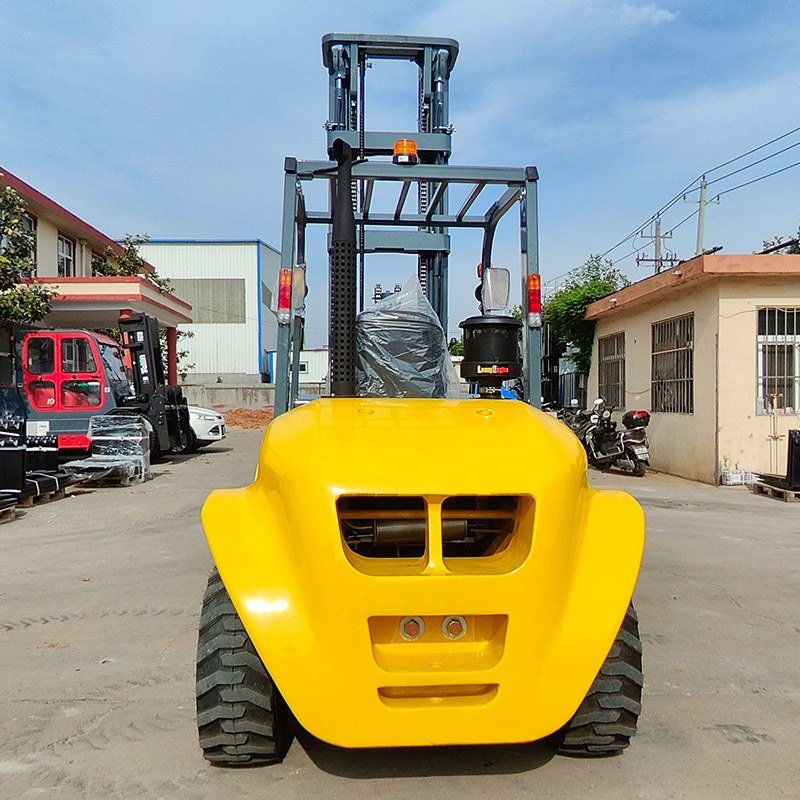

3 TON Rough Terrain Forklift is engineered for demanding outdoor working environments where stability, traction, and durability are essential. Equipped with large deep-pattern off-road vacuum tires, the forklift provides outstanding shock absorption and strong off-road performance on muddy, uneven, and rugged terrain.
Two-wheel drive/four-wheel drive options (30/35) to suit different working conditions. New Diesel engine, powerful, fuel-efficient, and durable. Fastest operating speed for efficient site transfer. Maximum gradeability of 16%, adaptable to complex terrain. Minimum ground clearance of 310mm for excellent passability. Turning radius of 2910-3120mm for agile maneuverability.

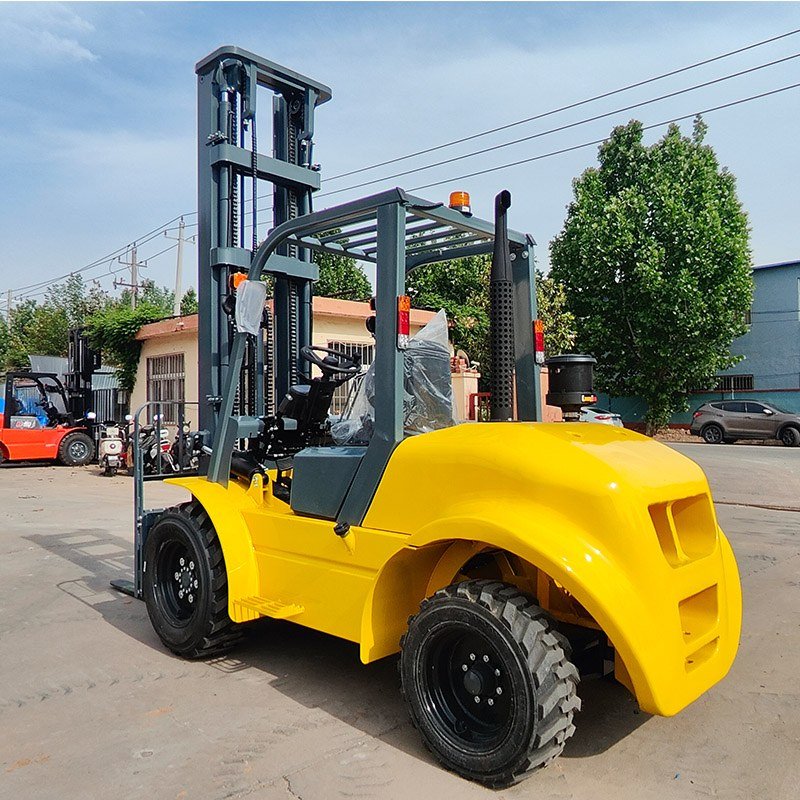

Large size deep pattern off-road vacuum tirewith excellent off-road capability and shockabsorption performance.
Generous ground clearance and optimized dimension provide excellent manoeuvring and stability under the terrain.
Fully opening up of bonnet revels the conve-nient access to mechanical components for simplified maintenance.
Integrated suspension chassis design, adopting four anti-vibration pads below, it effectively reduce vibration and improve operator's comfort.

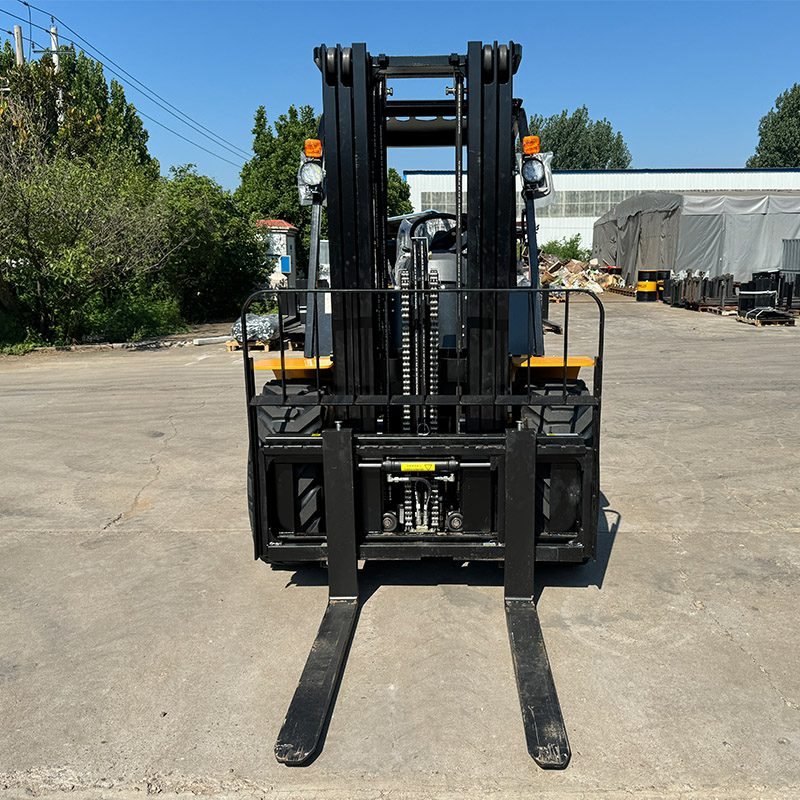

Wide view mast design provide a better vision and increase working stability and safety, which is more suitable for outdoor working and easy entrance of the pallet.
The cooling system is designed with upgraded technology, reliability, better heat dissipation effect. Satisfied with continuous working condition upon +43 degree temperature.
Our TYF-30 off-road forklifts are designed for harsh outdoor environments where standard forklifts struggle. This series is available in both two-wheel drive and four-wheel drive configurations, with rated load capacities of 3000 kg and 3500 kg respectively, demonstrating superior performance on rough terrain, gravel roads, muddy surfaces, and slopes. Powered by a reliable Xinchai engine, this series combines powerful performance, fuel efficiency, and a long service life.
The four-wheel drive models offer high speed and efficiency. With a maximum gradeability of 16% and a minimum ground clearance of 310 mm, this series easily handles various rugged terrains. The mast height reaches 4350 mm, and the standard lifting height is 3 meters. Operating weight ranges from 4800 kg to 5545 kg, providing excellent stability during heavy lifting operations. The two-wheel drive model has a turning radius of 2910 mm, while the four-wheel drive model has a turning radius of 3120 mm, offering excellent handling in its class. Whether you choose the economical two-wheel drive version or the more powerful four-wheel drive version, the TYF-30 all-in-one forklift is your reliable partner in farms, construction sites, lumber yards, and any outdoor material handling application.
| Machine Parameters | ||||||||
| 2WD-30 | 2WD-35 | 4WD-30 | 4WD-35 | |||||
| Overall dimensions(MM) | 2960*1550*4350 | 2960*1550*4350 | 4135/3065*1600*4350 | 4135/3065*1600*4350 | ||||
| Engine Model | Xinchai(36.8kw) | Xinchai(36.8kw) | Xinchai(36.8kw) | Xinchai(36.8kw) | ||||
| Mahine weight | 4800KG | 4950KG | 5250KG | 5545KG | ||||
| Rated lifting weight | 3000KG | 3500KG | 3000KG | 3500KG | ||||
| Rated lifting height | 3m | 3m | 3m | 3m | ||||
| Minimum turning radius | 2910mm | 2910mm | 3120mm | 3120mm | ||||
| Maximum climbing angle | 16% | 16% | 16% | 16% | ||||
| Minimum ground clearance | 310mm | 310mm | 310mm | 310mm | ||||
| Lift speed | 440mm/s | 420mm/s | 530mm/s | 480mm/s | ||||
| Travel speed | 22km/h | 22km/h | 20km/h | 20km/h | ||||

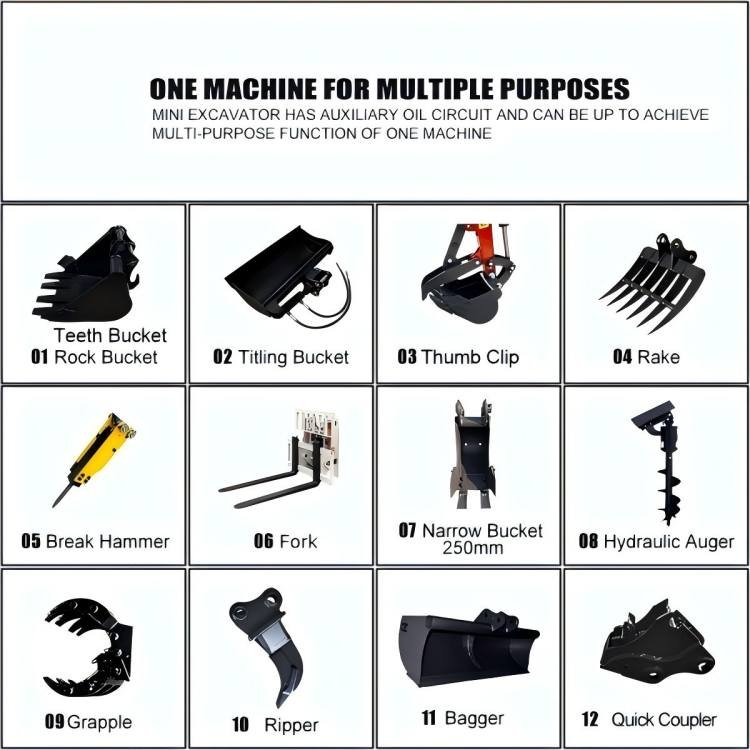

All the accessories can be bought here. It supports multi-functional operation. Functions such as cabin, air conditioning, rocker arm, track, and telescopic track are available for selection, which can quickly improve work efficiency Use our quick coupler (Quick Coupler) to add accessory tools such as dryers, hydraulic hammers, trailers, 20 cm and 100 cm buckets, rakes, grippers,wood grabbers, etc.
If you need custom-made accessories, you can tell us. We have a professional team to make them and you can use them with confidence
Agriculture/Farms: Handling of feed, fertilizer, bales, and agricultural products
Construction Sites: Turnover of steel, bricks, cement, and timber
Forestry/Timber Processing: Handling of logs and planks
Freight Yards/Storage Yards: Outdoor cargo stacking and loading/unloading
Ports/Docks: Container handling support operations
Mines/Quarries: Handling of stones and gravel
Operations in complex terrains such as mud, gravel, grassland, and slopes
FAQ
Q1: What is the ground clearance? How is its off-road capability?
A: The minimum ground clearance is 310mm, significantly higher than ordinary forklifts, allowing it to easily overcome obstacles such as rocks, tree roots, and ditches.
Q2: Is the turning radius large? Is it maneuverable?
A: The 2WD turning radius is 2910mm, and the 4WD turning radius is 3120mm. As an off-road forklift, this turning radius is within the normal range and performs well in open areas or construction sites.
Q3: What brand of engine is used?
A: It uses a Xinchai engine with a power output of 36.6-36.8kW. It is powerful, fuel-efficient, has readily available parts, and is easy to maintain.
Q4: Can the lifting height be customized?
A: The standard lifting height is 3 meters. For higher lifting heights (such as 4 meters, 5 meters, or 6 meters), please contact us for customization.
Q5: Is it suitable for operation in snow or mud?
A: Yes. With a ground clearance of 310mm and optional four-wheel drive, it performs well on low-traction surfaces such as snow, mud, sand, and grass.
Q6: Is maintenance complicated?
A: Not complicated. Xinchai engine parts are highly interchangeable; routine checks mainly involve engine oil, hydraulic oil, tires, and air filter.
