Tank-based mixing design prevents concrete/asphalt aggregate segregation.

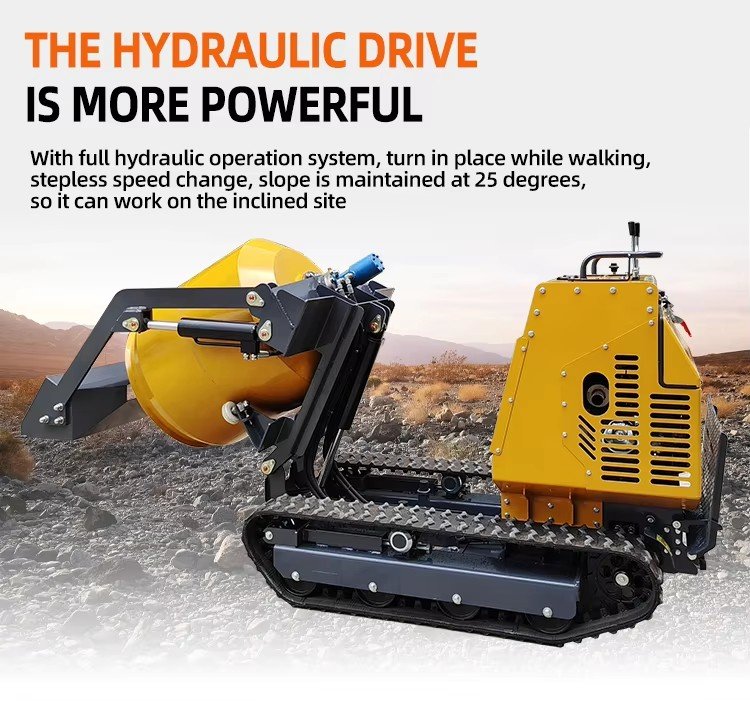

Fully hydraulic self-unloading for precise and controllable operation.
Powerful climbing ability to adapt to complex terrain.
Compact and flexible, easy to operate.
EPA/Euro 5/Tier 4 emission standards, exportable to Europe and America.

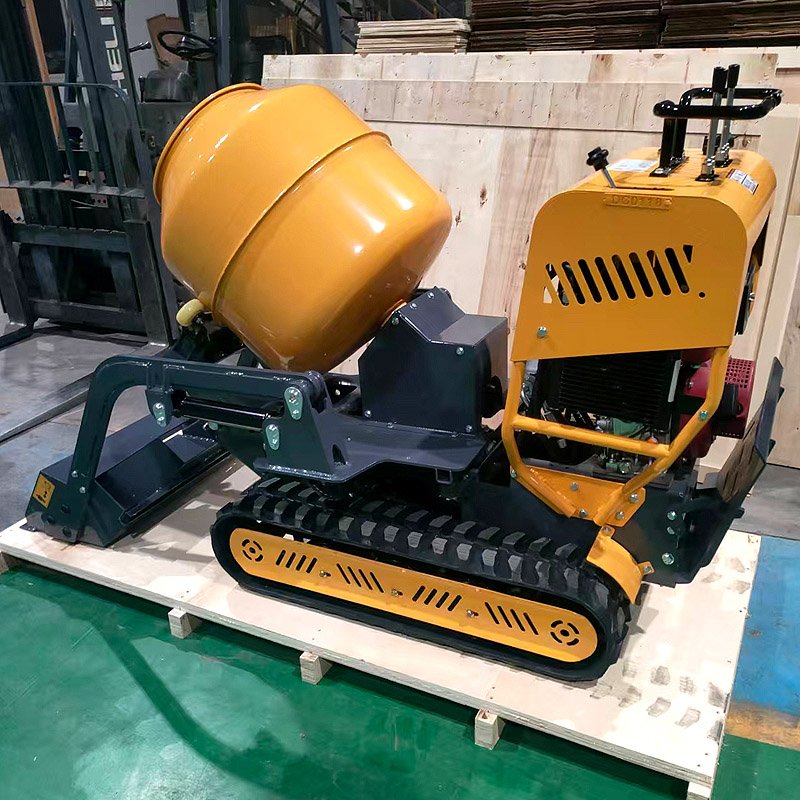

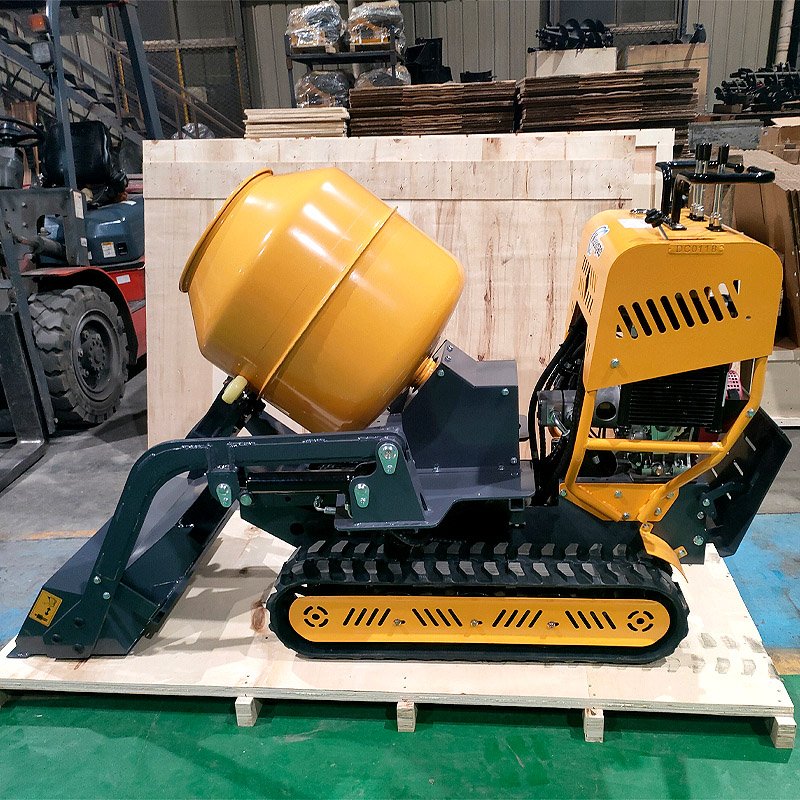

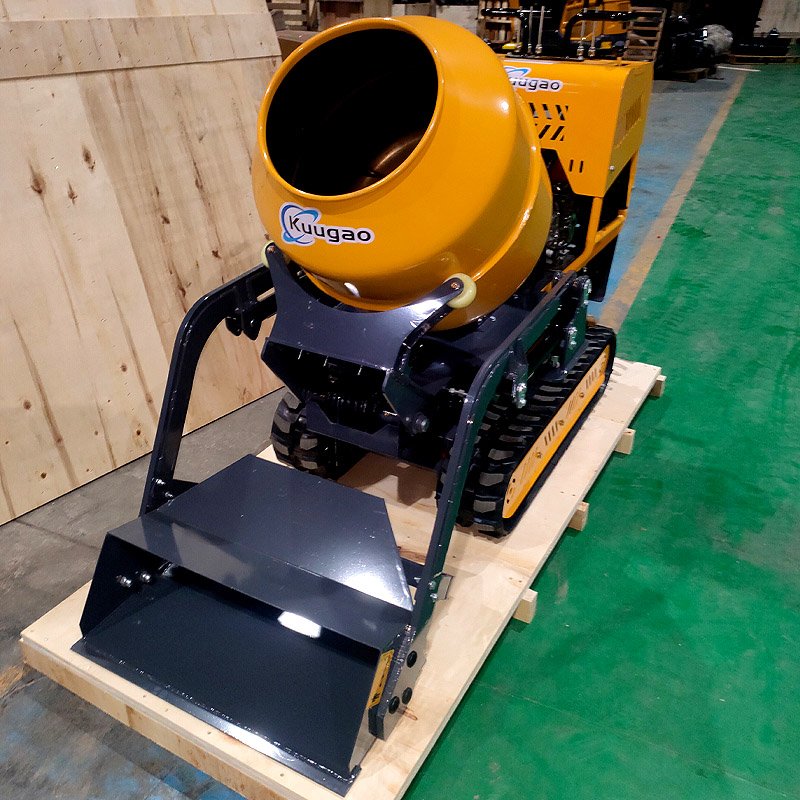

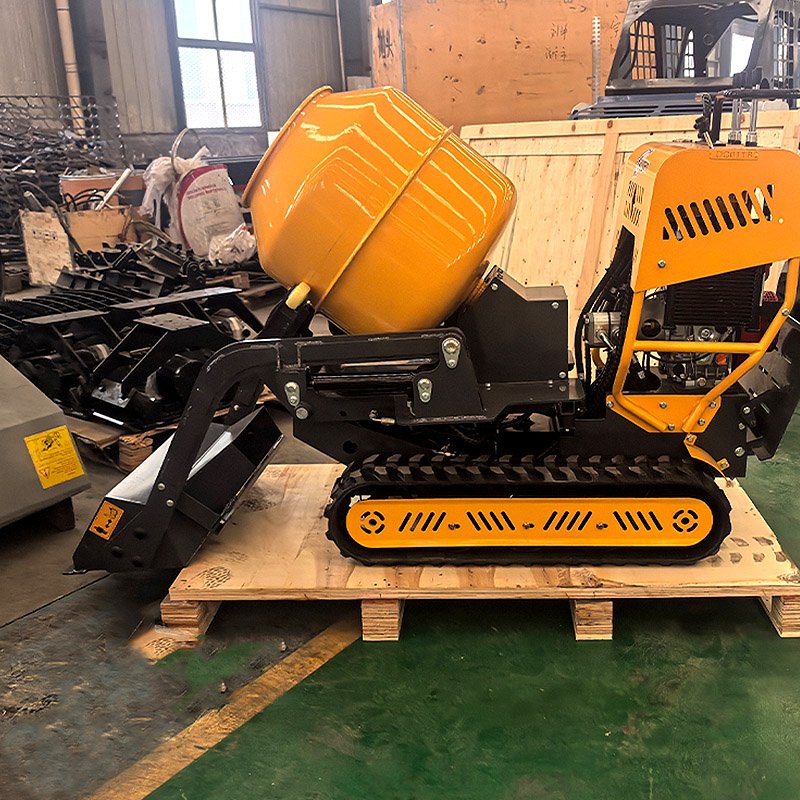

This small tracked dump truck is specifically designed for concrete and asphalt transportation. Unlike traditional dump trucks, it is equipped with auxiliary rollers and a tank mixing device, continuously agitating the material during transportation. This effectively prevents aggregate segregation, sedimentation, and hardening in concrete or asphalt, ensuring uniform and usable material upon arrival at the unloading point. The entire vehicle uses a fully hydraulic self-unloading system, flexibly adapting to unloading platforms or mixing plant inlets of varying heights, with precise control over the unloading angle and height. Powered by a KEP/Runtong/Bailitong engine, its emissions meet EPA, Euro 5, and Tier 4 standards, satisfying the stringent environmental requirements of the European and American markets. With a width of only 800mm, a weight of 450kg, a load capacity of 500kg, a climbing ability of 25°, and a minimum turning radius of 1420mm, it can easily navigate narrow indoor construction sites, rural roads, and sloping construction sites. Operation is extremely simple; one person can complete the entire loading, transportation, and unloading process, making it an ideal choice for small-scale concrete construction, road maintenance, and interior decoration.
Suited for narrow job sites, complex terrains (e.g. rural roads, indoor construction areas), and variable unloading scenarios - tankmxing keeps concrete/asphalt uniform during transport to prevent aggregate segregation; hydraulic tipping adapts to various discharge heights and angles for precise unloading.
| model | TV-T500 |
| Basic performance parameters | |
| Total vehicle weight | 400KG |
| Maximum load | 500kg |
| Climbing ability | 25° |
| Minimum ground clearance | 85mm |
| Minimum turning radius | 950mm |
| Track center distance | 520mm |
| fuel tank | 3.5L |
| Engine oil capacity | 0.6L |
| Cargo container volume | 0.22m³ |
| size | |
| long | 1517mm |
| Width | 870mm |
| high | 1278mm |
| engine | |
| brand | Popular Science/Runtong/Bailitong |
| model | 178F/R210/RX6.5 |
| Rated power | 4.2/4.8/4.78 |
| MODEL | TV-T500 |
| Basic performance parameters | |
| Vehicle curb weight | 400KG |
| Maximum payload | 500kg |
| Gradeability | 25° |
| Minimum ground clearance | 85mm |
| Minimum turning radius | 950mm |
| Track center distance | 520mm |
| Fuel tank capacity | 3.5L |
| Engine oil | 0.6L |
| Height | 0.22m³ |
| Size | |
| Length | 1517mm |
| Width | 870mm |
| Does not include bucket length | 1278mm |
| Engine | |
| Brand | KOOP/Rato/B&S |
| Model | 178F/R210/RX6.5 |
| Rated power | 4.2]4.8/4.78 |
| model | TV-T550G |
| Basic performance parameters | |
| Total vehicle weight | 450KG |
| Maximum load | 500kg |
| Climbing ability | 25° |
| Minimum ground clearance | 70mm |
| Minimum turning radius | 1420mm |
| Track center distance | 825mm |
| fuel tank | 3.1L |
| Engine oil capacity | 0.6L |
| Cargo container volume | 0.15m³ |
| size | |
| long | 2155mm |
| Width | 800mm |
| high | 1228mm |
| engine | |
| brand | Popular Science/Runtong/Bailitong |
| model | 178F/R210/XR6.5 |
| Rated power | 4.2/4.8/4.78 |
| MODEL | TV-T550G |
| Basic performance parameters | |
| Vehicle curb weight | 450KG |
| Maximum payload | 500kg |
| Gradeability | 25° |
| Minimum ground clearance | 70mm |
| Minimum turning radius | 1420mm |
| Track center distance | 825mm |
| Fuel tank capacity | 3.1L |
| Engine oil | 0.6L |
| Height | 0.15m³ |
| Size | |
| Length | 2155mm |
| Width | 800mm |
| Does not include bucket length | 1228mm |
| Engine | |
| Brand | KOOP/Rato/B&S |
| Model | 178F/R210/XR6.5 |
| Rated power | 4.2/4.8]4.78 |
Small-scale concrete pouring: Transporting concrete to narrow construction sites; mixing in the container to prevent segregation.
Road repair and asphalt paving: Transporting hot-mix asphalt, maintaining material uniformity.
Interior decoration construction: 800mm wide, can fit elevators and narrow doorways.
Rural and mountainous construction sites: 25° climbing ability, adaptable to undulating terrain.
Small-scale mixing plant support: Transferring finished materials from the mixer to various unloading points.
Landscape and farmland construction: Transporting mortar, gravel, and other building materials.
Q1: What's the difference between this truck and a regular tracked dump truck?
A: The core difference is the inclusion of auxiliary rollers and a mixing function in the tank. When transporting concrete in a regular dump truck, aggregates tend to settle and separate; however, this model continuously mixes the aggregates during transport, ensuring uniform material distribution, allowing for direct use after unloading.
Q2: Does it meet emission standards? Can it be exported to Europe and America?
A: Yes. Optional engine configurations meet EPA, Euro 5, and Tier 4 emission standards, complying with import requirements in the US, EU, Japan, and other markets.
Q3: What are the unloading methods and height?
A: It uses a fully hydraulic self-unloading system, which can be freely adjusted according to the unloading platform height, precisely controlling the unloading angle and position to prevent material spillage.
Q4: Can it be used indoors?
A: Yes. With a body width of only 800mm and a minimum turning radius of 1420mm, it can fit through standard interior doors and elevators, making it suitable for multi-story construction or basement operations.
Q5: What engine brands are available?
A: Options include Koop, Runtong, and Briggs & Stratton, with power ranging from 4.2-4.78kW to meet different customer preferences.
Q6: Is it difficult to operate?
A: Very simple. One person can operate it. The hydraulic system controls lifting and unloading, eliminating the need for manual tipping.
