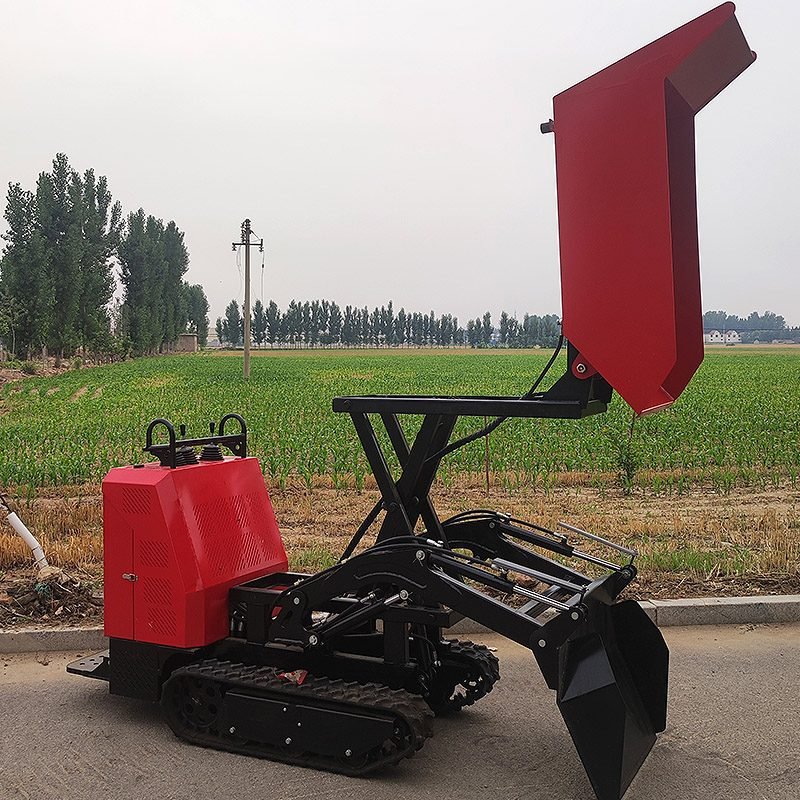

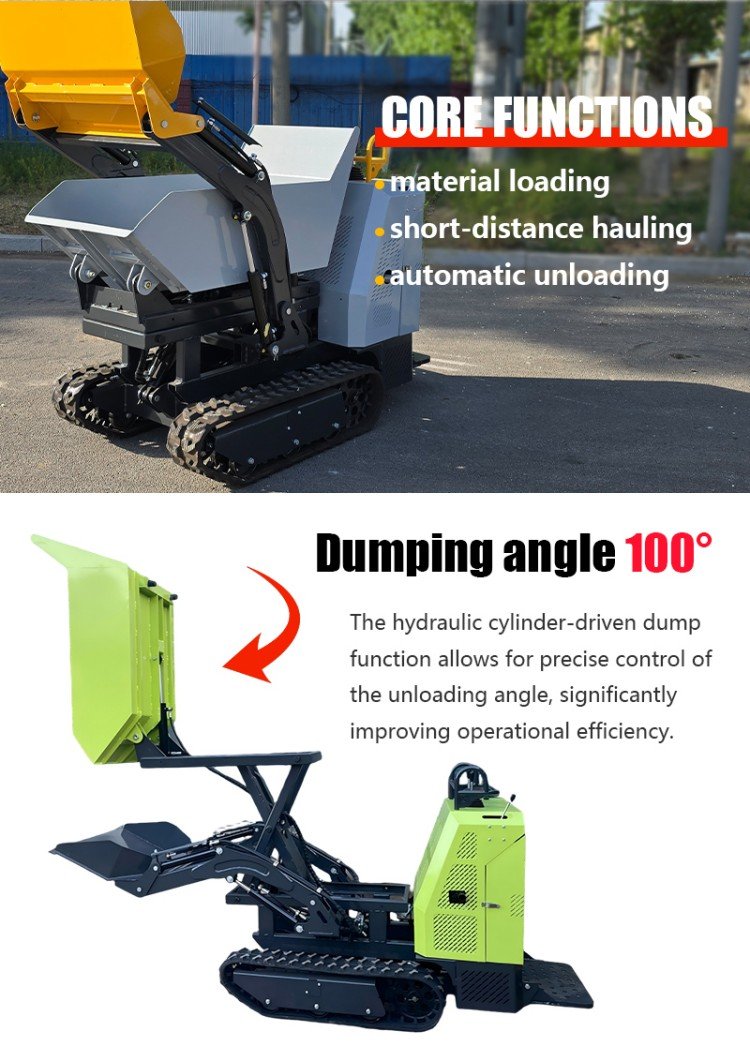

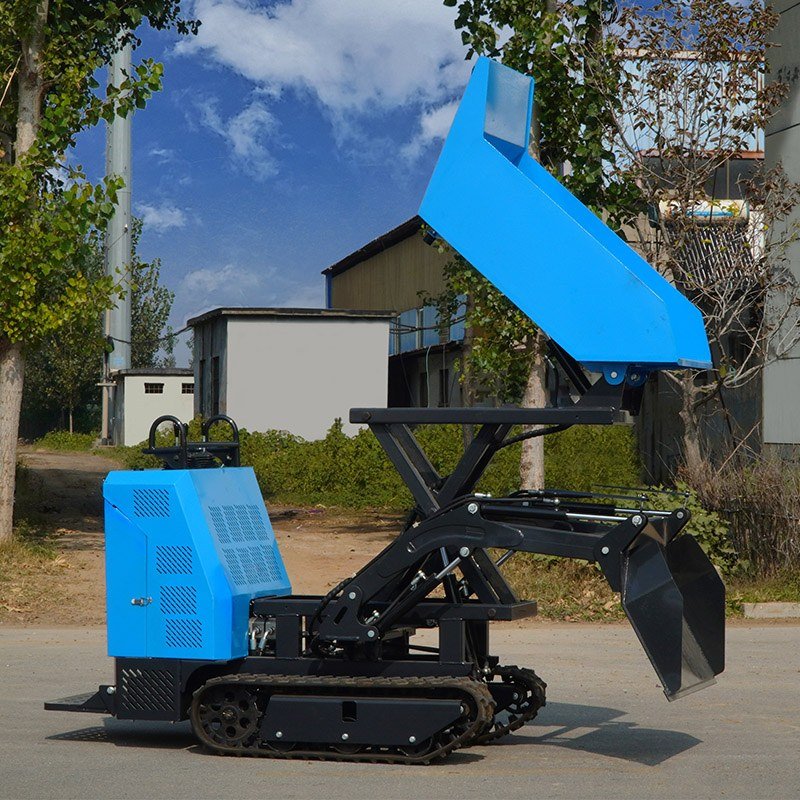

100° large-angle unloading, hydraulic tipping bucket for cleaner and more thorough unloading

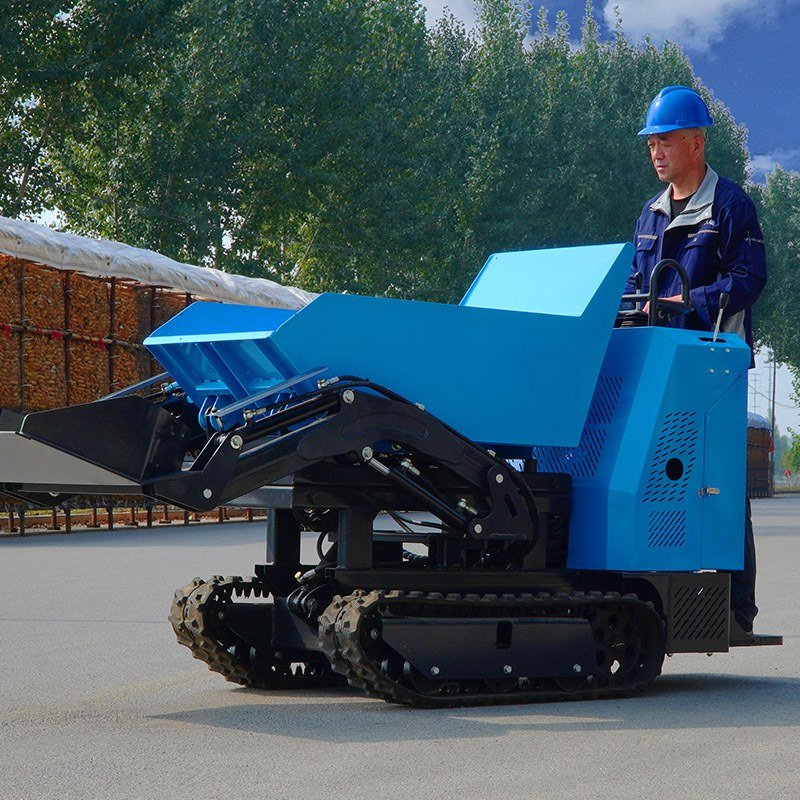

Standing operation provides a wide field of vision and reduces labor intensity

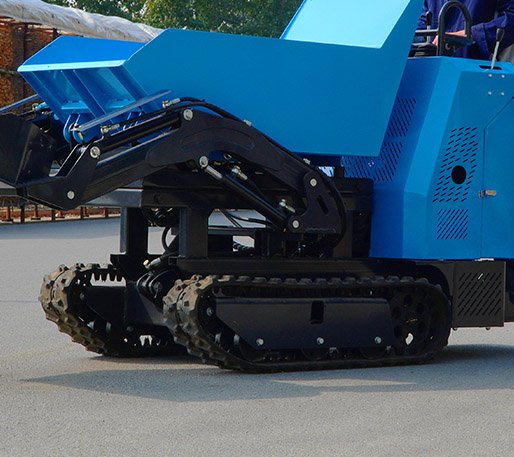

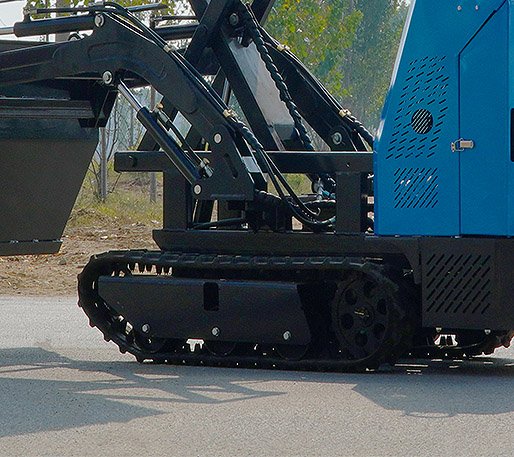

Rubber track walking provides strong grip, climbing ability, and wear resistance
One-button electric start ensures stable power

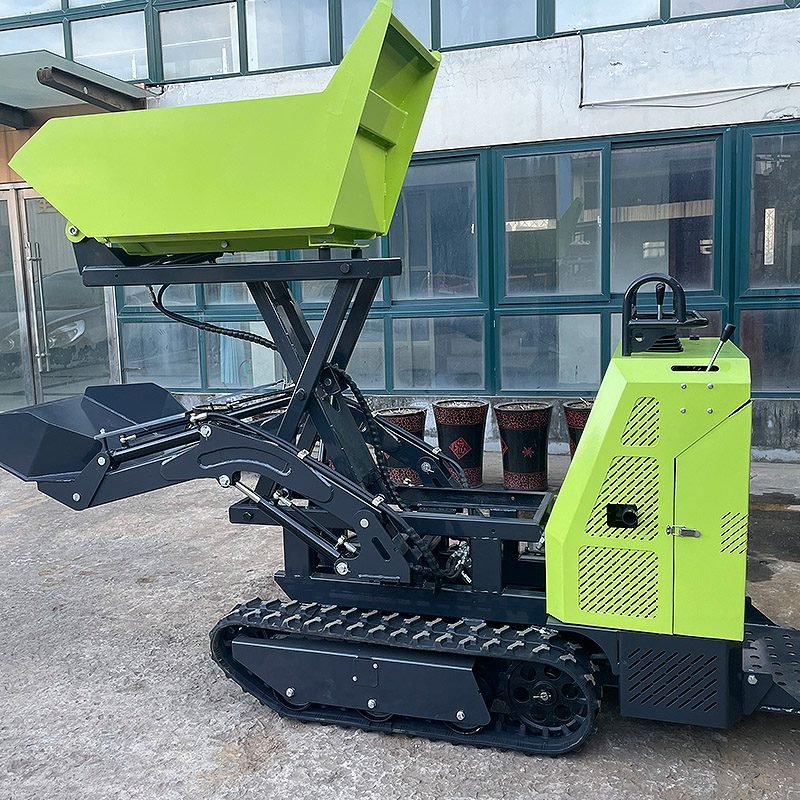

Narrow body allows for flexible maneuvering

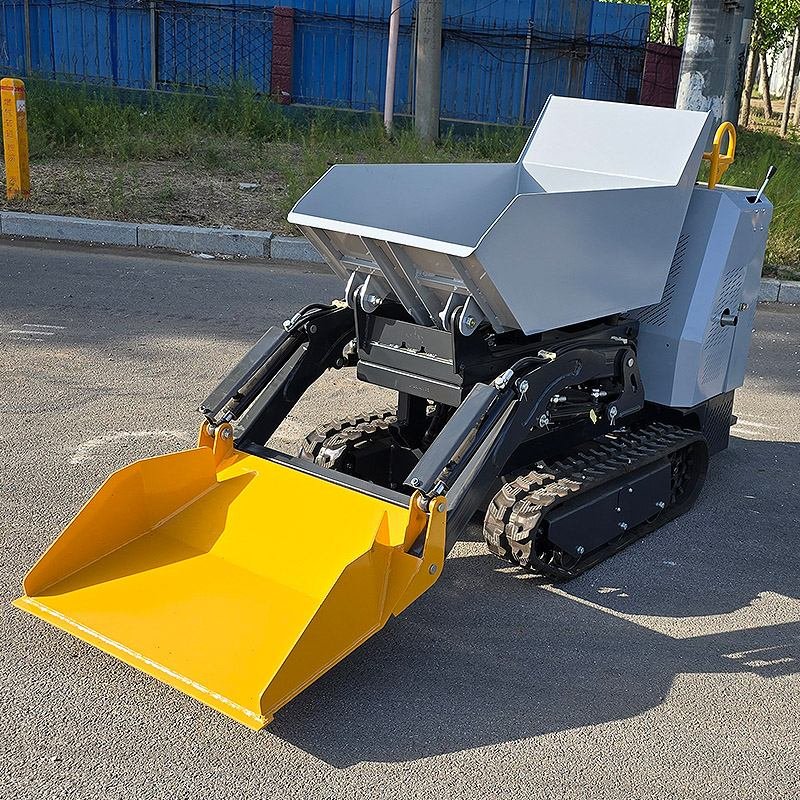

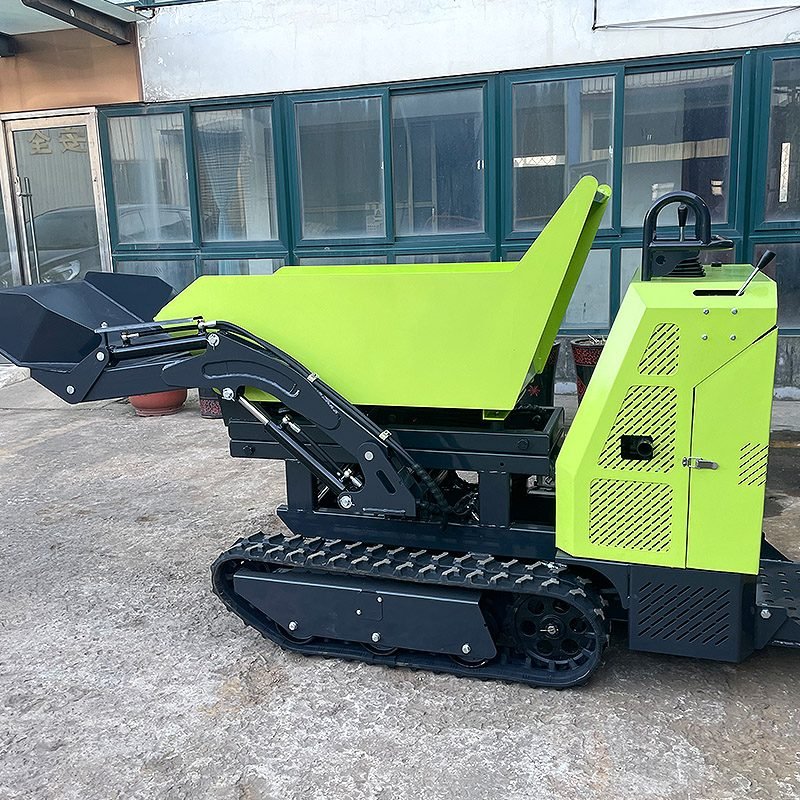

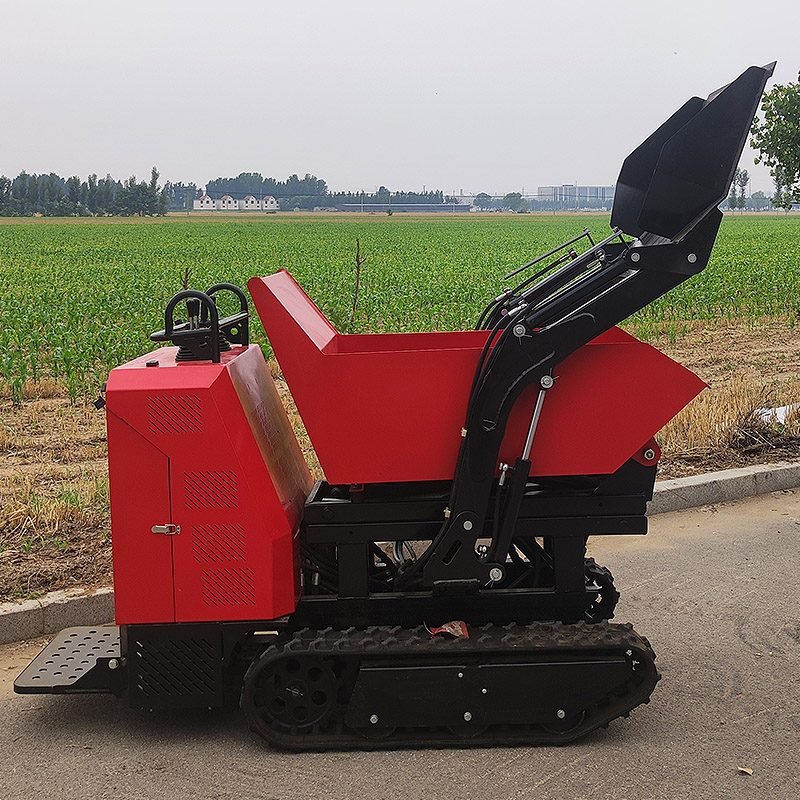

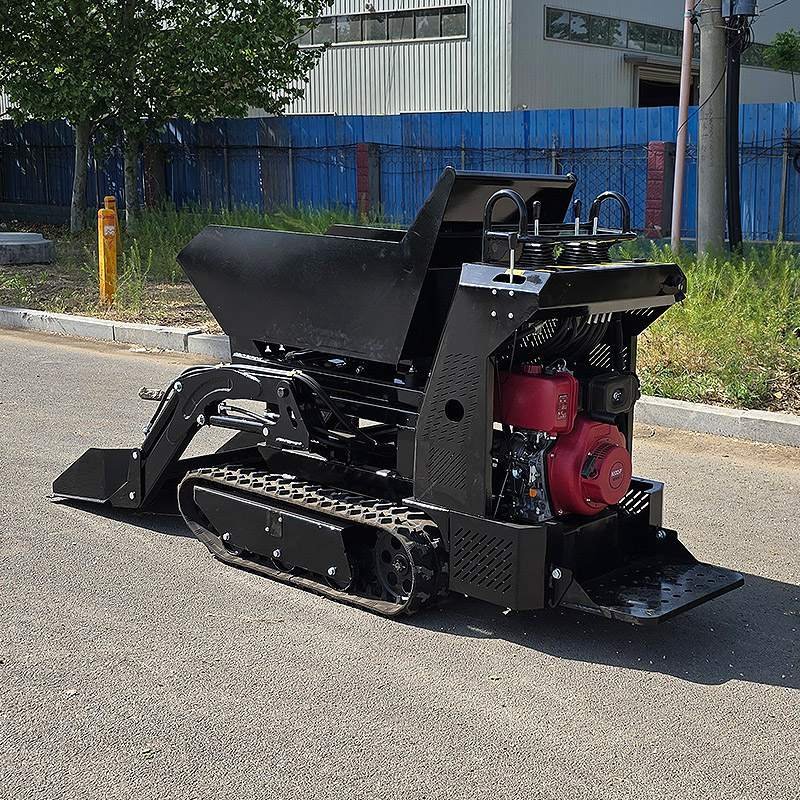

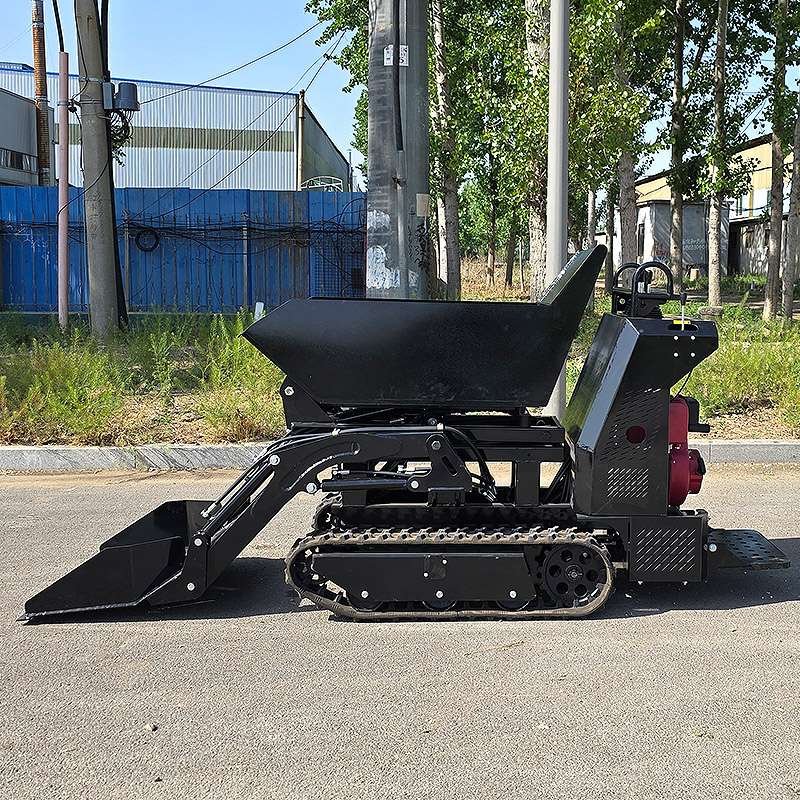

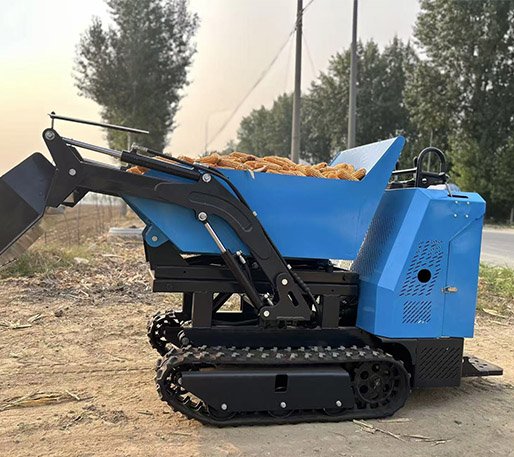

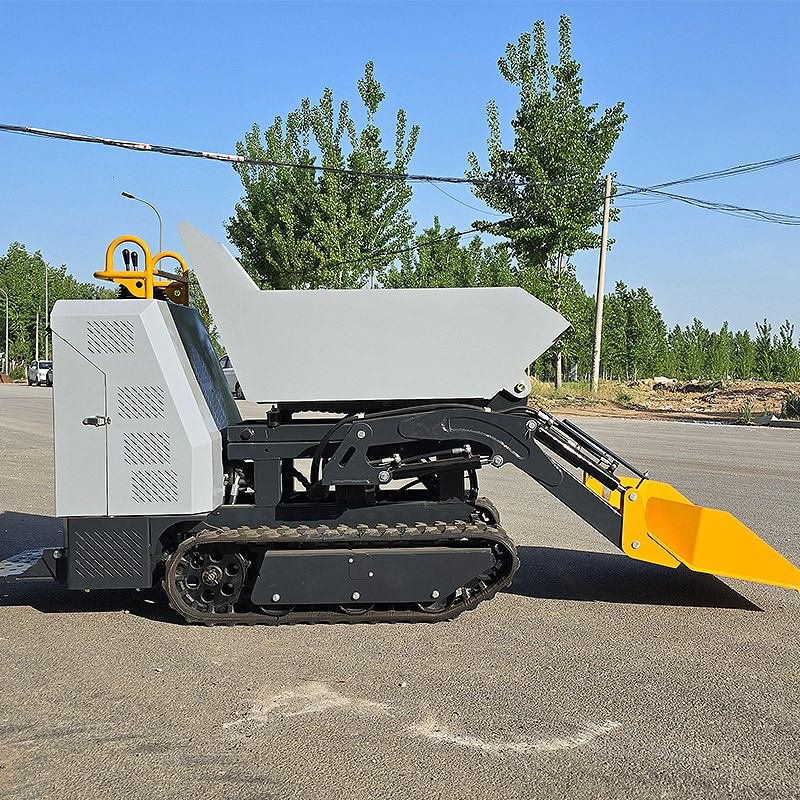

This tracked dump truck is a highly efficient heavy-duty transportation device that replaces manual labor. Its core functions encompass material loading, short-distance transportation, and automatic unloading, achieving fully mechanized operation. Powered by a Runtong R500 gasoline engine (19.5 horsepower, 500cc displacement) and equipped with a one-button electric start system, it offers strong power and convenient starting. The vehicle features a standing operating platform, providing the driver with a wide field of vision, allowing clear observation of road conditions and bucket status, while significantly reducing the labor intensity of prolonged walking. The dumping system is hydraulically driven, achieving a 100° unloading angle, superior to the ordinary 90° design, resulting in cleaner and more thorough unloading with extremely low residue. Equipped with engineering rubber tracks (180mm wide, 1200mm ground contact length), it offers strong grip, good climbing performance, and wear resistance. With a 110mm ground clearance, it adapts to complex terrain. It can easily enter narrow alleys, indoor construction sites, and orchard rows, making it an ideal choice for replacing manual handling.
| Product details | ||
 |  |  |
| STAND-UP OPERAT The stand-up operator's platformensures a clear view and safety,making it an ideal machine forreplacing manual labor and reducinglabor intensity. | RUBBER TRACK Engineering rubber trackStrong gripGood climbing performancewear-resistant | OPERATION IS SIMPLE Equipped with a brand-name engineand a push-button start system, itoffers stable power and easy starting. |
| Parameters of crawler dump truck 1000 | |
| Engine Model： | RATO R500 |
| Engine Type： | Gasoline single-cylinder four-stroke 19.5 hp |
| Displacement(cc)： | 500 |
| Rated Power(kw/rpm)： | 11/3600 |
| Fuel type： | 92 # Gasoline |
| Fuel Tank capacity（L）： | 6.9 |
| Engine oil capacity(L)： | 1.2 |
| Total Weight(kg): | 690 |
| Upper limit of horizontal transportation load capacity(kg): | 1000 |
| Maximum lifting capacity（kg）： | 800 |
| Bucket size with foot pedal（mm）: | 2000*900*2000 |
| Container size（mm）： | 1450*650*400 |
| Chassis width（mm）： | 700 |
| Track width（mm）： | 180 |
| Track grounding length（mm）： | 1200 |
| Chassis ground clearance（mm）： | 110 |
| Bucket dimensions（mm）： | 700*800*220 |
| Dumping method: | Hydraulic lift bucket |
| Dumping angle (°): | 100 |
| Hydraulic oil model： | 46#Anti-wearHydraulic Oil |
| Hydraulic tank capacity （L）： | 20 |
Small construction sites: Transporting bricks, mortar, and concrete; 1000kg load capacity replaces the work of multiple people.
Orchards and farmland: Transporting fertilizer and harvesting baskets; standing operation provides good visibility and avoids frequent getting on and off the vehicle.
Livestock farms: Cleaning and transporting manure to collection points.
Interior decoration and demolition: Narrow body allows entry into elevator doors; removes construction waste.
Municipal and landscaping: Collection and short-distance transport of fallen leaves and sand.
Slope construction: Rubber tracks provide strong grip and adapt to undulating terrain.
Q1: What are the advantages of a 100° tipping angle?
A: Ordinary tipper trucks typically unload at 90°, while this model reaches 100°. The bucket tilts more thoroughly, making it less likely for sticky materials (such as wet concrete, clay, and manure) to remain, resulting in cleaner unloading.
Q2: Isn't standing operation tiring?
A: Compared to walking-following operation, the standing operating platform allows the driver to stand on the vehicle and move with it, eliminating the need for walking and reducing fatigue. It also provides a higher and wider field of vision, improving safety.
Q3: Are the rubber tracks durable? Are they easy to replace?
A: The engineering-grade rubber tracks are wear-resistant and anti-aging, suitable for various road surfaces such as cement, brick, and mud. Replacement is simple in design and can be done by a local mechanic; we can also provide replacement instruction videos.
