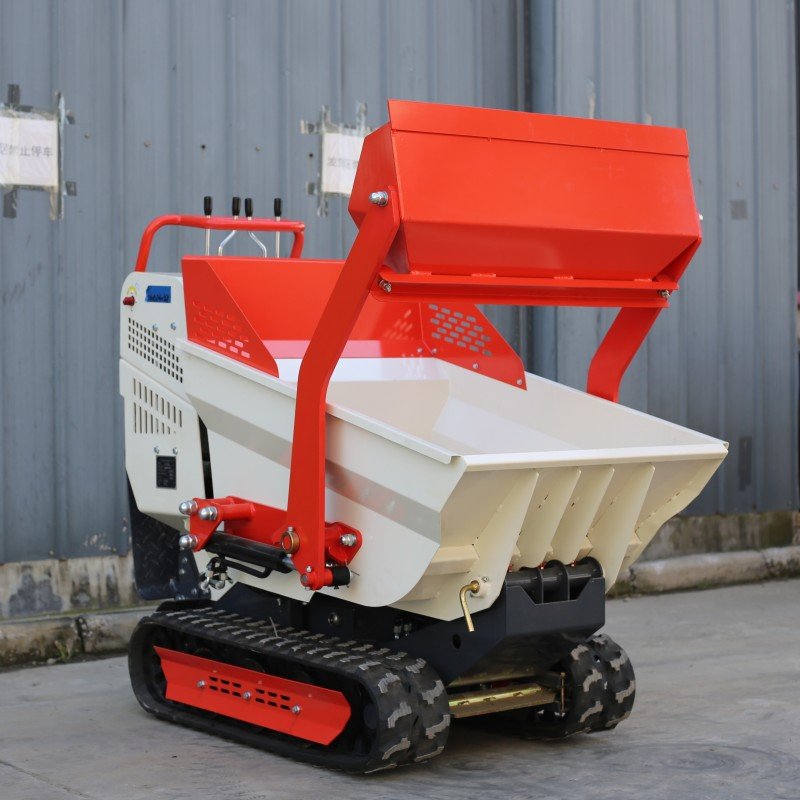

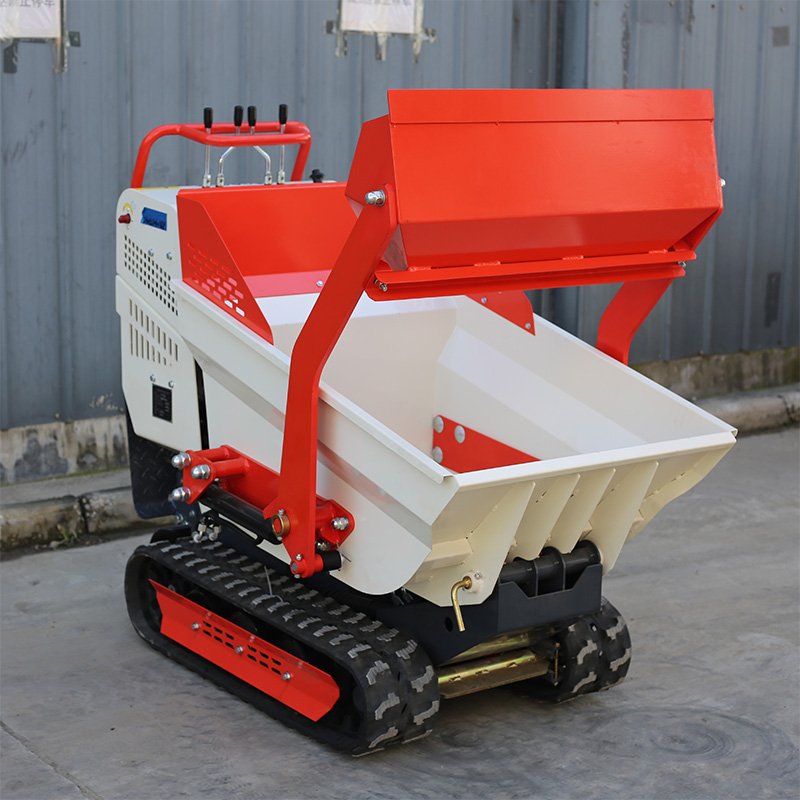

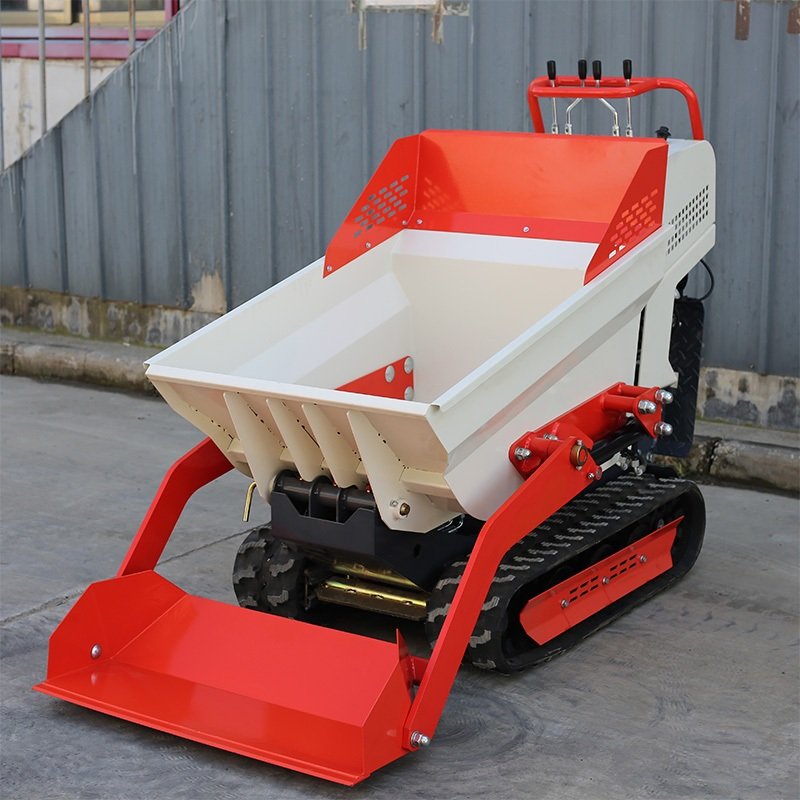

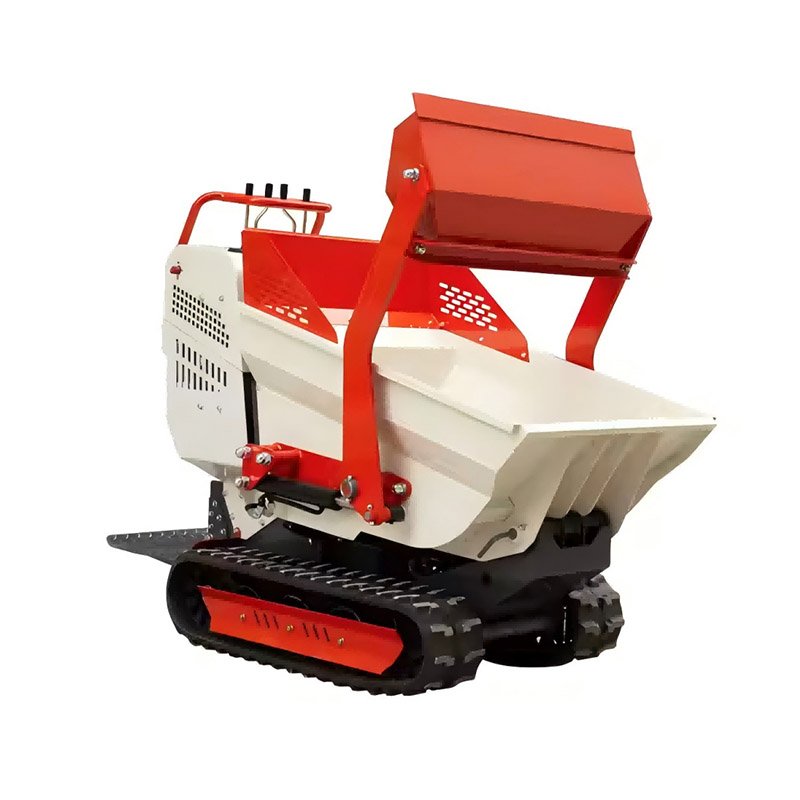

Compact and flexible, suitable for narrow construction environments. 90° right-angle hydraulic self-unloading for labor-saving and efficient unloading. Tracked for strong climbing ability. Gasoline engine optional. 500kg load capacity, over 20% more efficient than ordinary hand-pushed dump trucks.
This compact tracked dump truck is designed for construction sites, small-scale earthmoving projects, farms, and environmental cleanup. Its compact design allows for easy access to narrow passages. Featuring a 90° right-angle hydraulic lifting system, it offers a wide unloading angle, enabling quick and clean dumping of sand, cement, concrete, earthwork, household waste, and livestock manure. It boasts over 20% higher work efficiency than ordinary hand-operated dump trucks. Customization to your specific needs is also available.

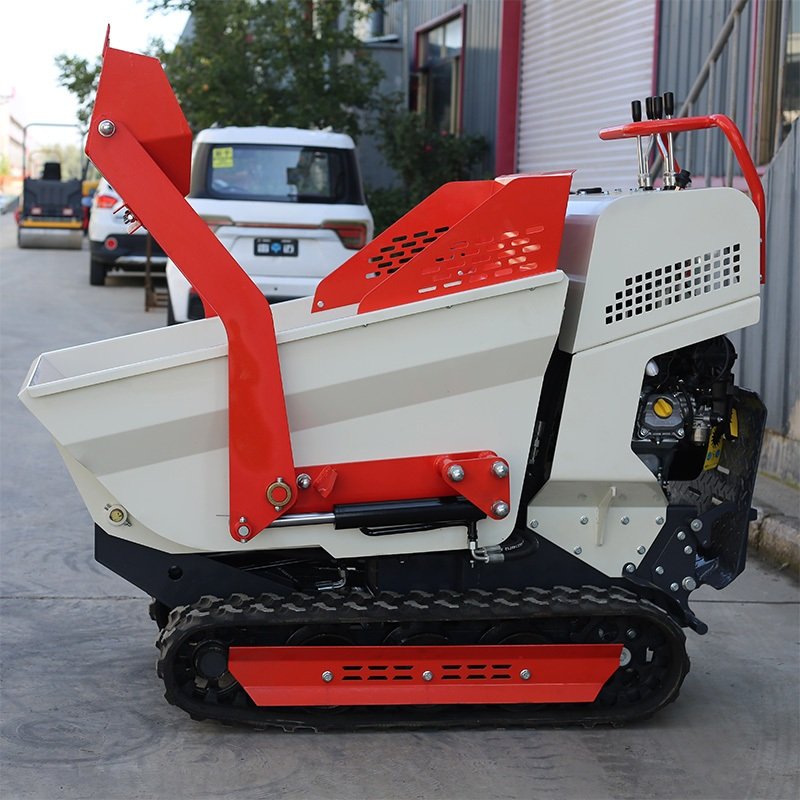

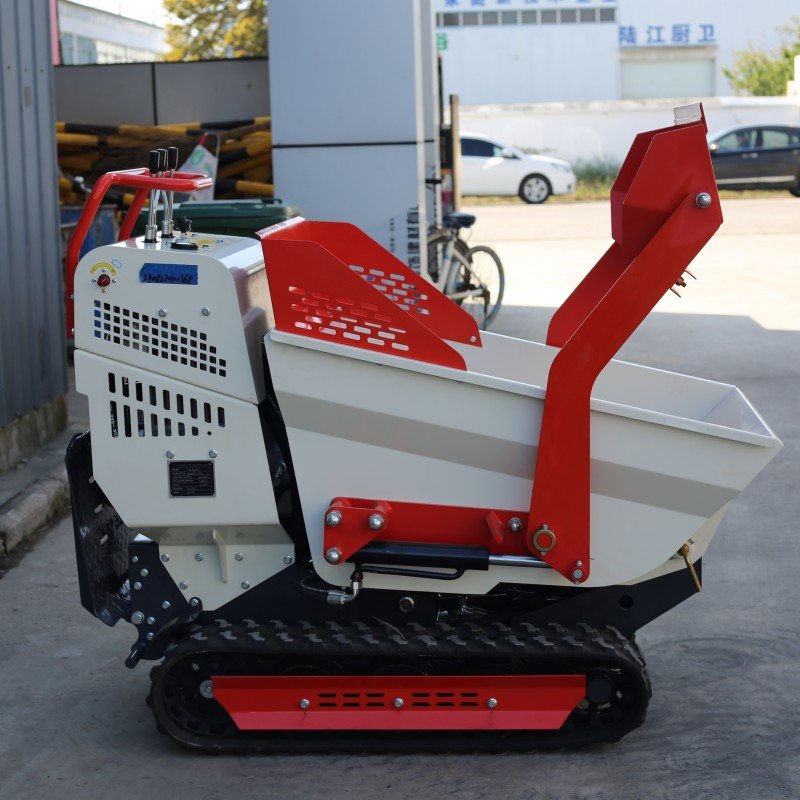

The mini dump truck is designed according to the character-istics of construction transportation. It is small in size,flexible in movement, and can enter small places for conve-nient operation.
This mini dump truck adopts a 90-degree right-angle dumpdesign, which makes unloading stress-free and saves timeand effort. It can transport sand, cement, earthwork,concrete, domestic waste, breeding manure, etc. withoutworries. Its load capacity is three times that of ordinarymanned bucket trucks, and its efficiency has been improvedby more than 20%. It has become an indispensable transpor-tation and loading equipment at construction sites.

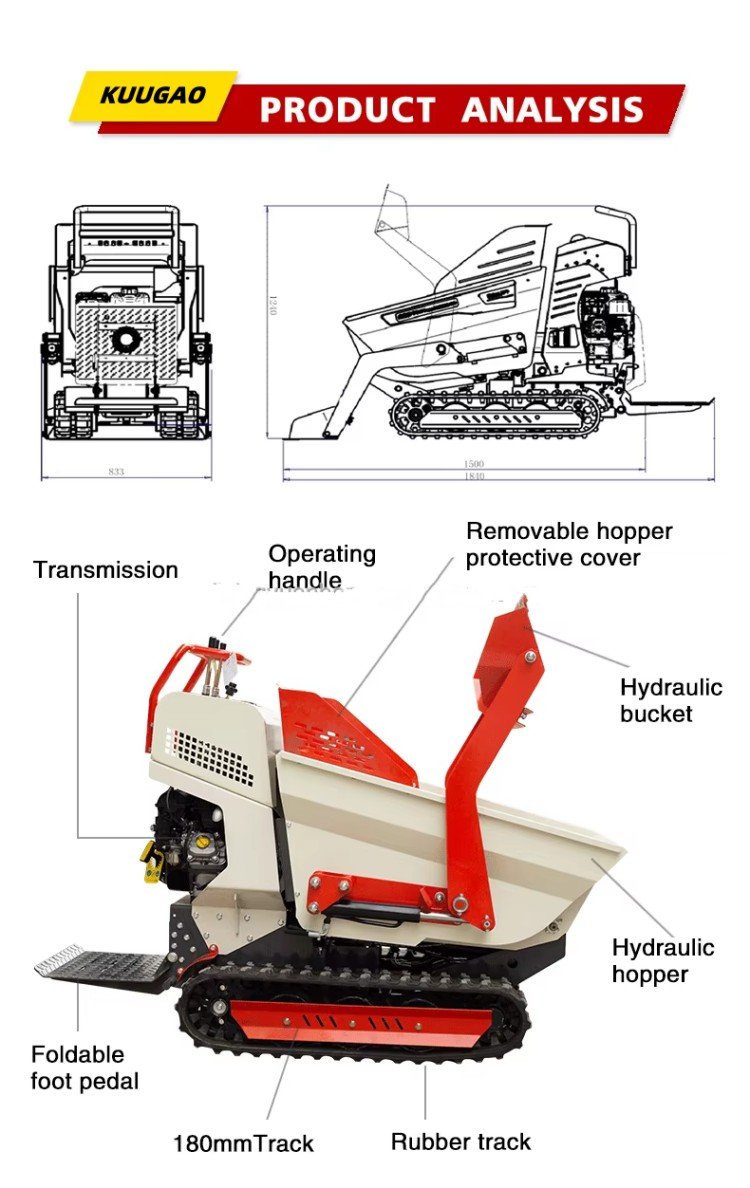

| Machine Parameters | |||||||
| Overall dimensions | 2050*880*1300mm | track width | 180mm | ||||
| Engine Model | Briggs&StrattonPioneer | Cargo box Capacity | 200dm³ | ||||
| Engine Type | Single cylinder,OHV,4-stroke, air cooling | walk Chassis ground clearance | 100mm | ||||
| Rated Power | 6.5HP/3600rpm | Tipping Systme | Hydraulic Tipper | ||||
| Fuel Type | 92#Gasoline | Tilting Angle | 90° | ||||
| Fuel Consumption | ≤0.395g/kw ·h | Unloading height above ground | 260mm | ||||
| Fuel Tank capacity | 3.6L | Walking Speed | 2.88km/h | ||||
| Engine oil capacity | 0.6L | Climbing abillty | 20° | ||||
| Total Weight | 414KG | Hydraulic tank capacity | 8.2L | ||||
| Max loading weigh | 500KG | Engine options | koop/Runtong | ||||
Small construction sites (short-distance transportation of sand, gravel, cement, and concrete)
Farmland, orchards, and nurseries (transportation of fertilizer, soil, and crops)
Livestock farms (manure and feed cleaning and transfer)
Municipal sanitation (collection of household waste and garden waste)
Narrow alleyways and interior decoration sites (areas inaccessible to large vehicles)
Q1: Is it complicated to operate?
A: Very simple. It features a folding foot pedal and operating handles, allowing one person to easily drive and unload.
Q2: Are the rubber tracks prone to damage? What types of surfaces are they suitable for?
A: The rubber tracks do not damage cement, asphalt, or brick surfaces, making them suitable for hardened roads, soft soil, and mud. They have good wear resistance and a long lifespan under normal use.
Q3: What is the steepest slope it can climb?
A: The maximum climbing angle is 20°, suitable for general construction site slopes and farmland slopes.
Q4: What is the unloading height above the ground?
A: The lowest point of the hopper is approximately 260mm above the ground during unloading, facilitating receiving or direct unloading into collection containers.
Q5: Can it be used for concrete transportation?
A: Yes. The hopper has a 200-liter capacity and a large hydraulic self-unloading angle, ensuring smooth concrete pouring. However, timely cleaning is recommended to prevent solidification.
Q6: How is it transported? What is the delivery time?
A:Shipped from the nearest port, securely packaged. Delivery time depends on the destination; detailed shipping plans and tracking information will be provided after you place your order.
