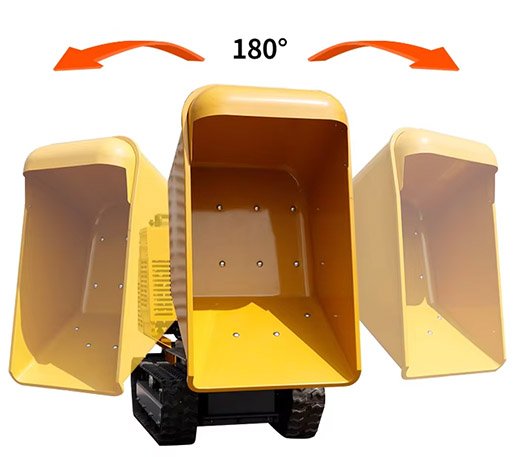

360° fully hydraulic rotation, hopper rotates 180° left and right + 90° up and down, ensuring no blind spots during unloading.
Extra-large load capacity, simple operation, one-button start.
High travel speed, significantly improving efficiency.
Strong climbing ability, adaptable to complex terrain.
Powder-coated for rust prevention, aesthetically pleasing, durable, and corrosion-resistant.

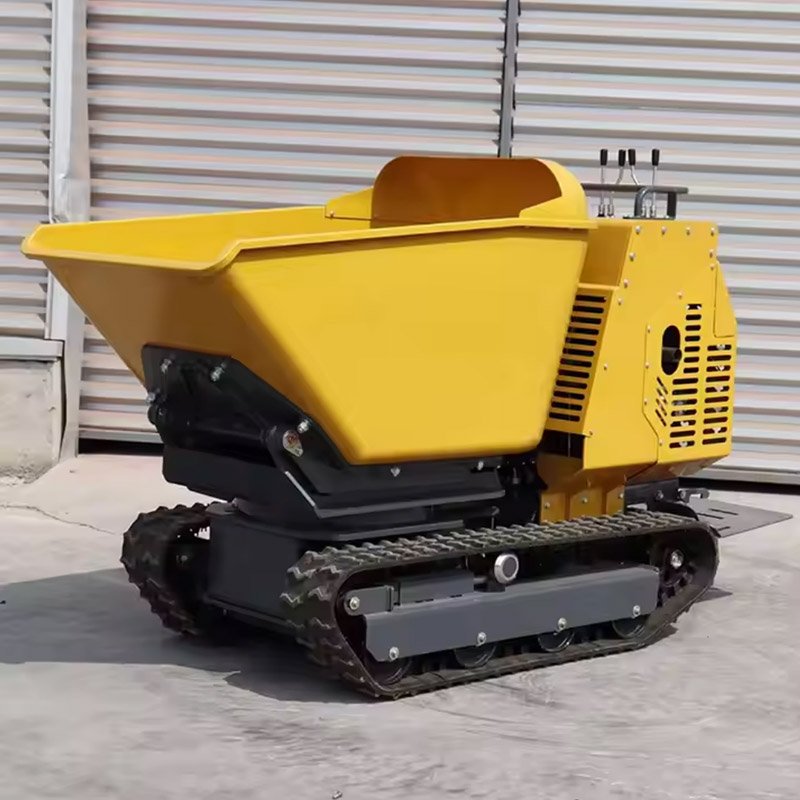

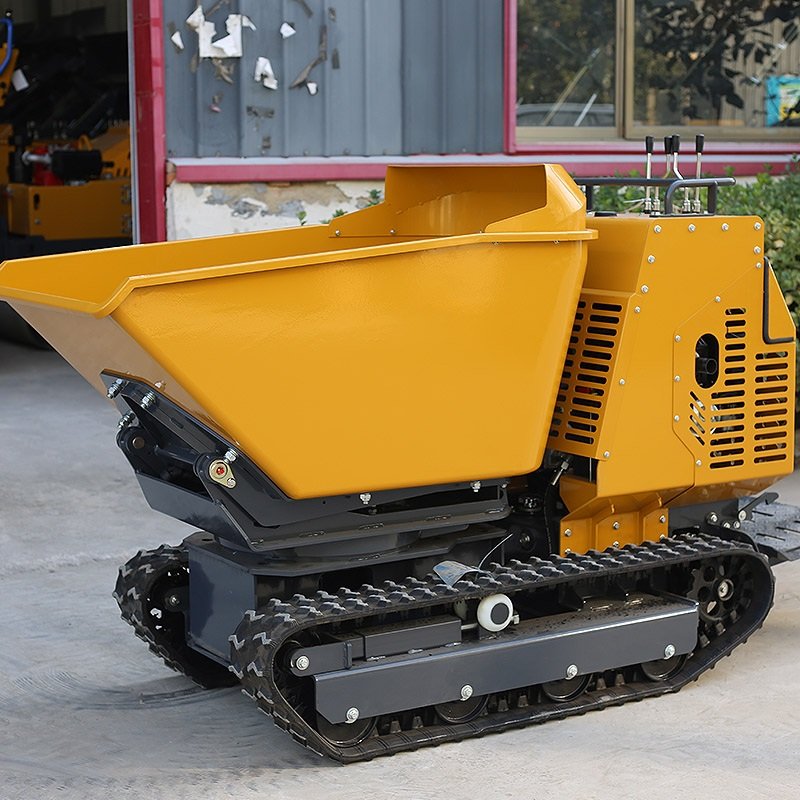

This tracked dump truck is a fully hydraulic, omnidirectional rotating heavy-duty transport device, designed to efficiently replace manual labor. Its core advantage lies in the fact that the bucket can independently complete a 90° vertical tilt for unloading and a 180° horizontal rotation (maximum combined angle 260°), with simultaneous rotation and tilting. Whether the unloading point is on the left, right, or directly in front of the vehicle, the driver can precisely position and unload without moving the vehicle, significantly improving efficiency in confined spaces. It is equipped with a reputable gasoline engine (standard configuration: Brita 420CC/13.5HP, optional Honda GX390, Runtong 420, Changchai 192 diesel engines, etc.), all meeting EPA/Euro 5 emission standards. It features one-button electric start and strong, stable power. The entire vehicle uses hydraulic drive and a tracked walking mechanism, providing strong traction, a walking speed of up to 5km/h, and a climbing ability of 25°, far surpassing similar products on the market. Constructed with thickened steel plates, it boasts high load-bearing capacity. With a chassis width of 850mm and a ground clearance of 140mm, it is adaptable to various complex working conditions such as mud, slopes, and narrow alleys. The control panel features a centralized control design with clear functions, allowing one person to easily complete the entire process of loading, transporting, rotating, and unloading. The entire machine surface is powder-coated, making it aesthetically pleasing, rust-proof, and corrosion-resistant, suitable for long-term outdoor use.

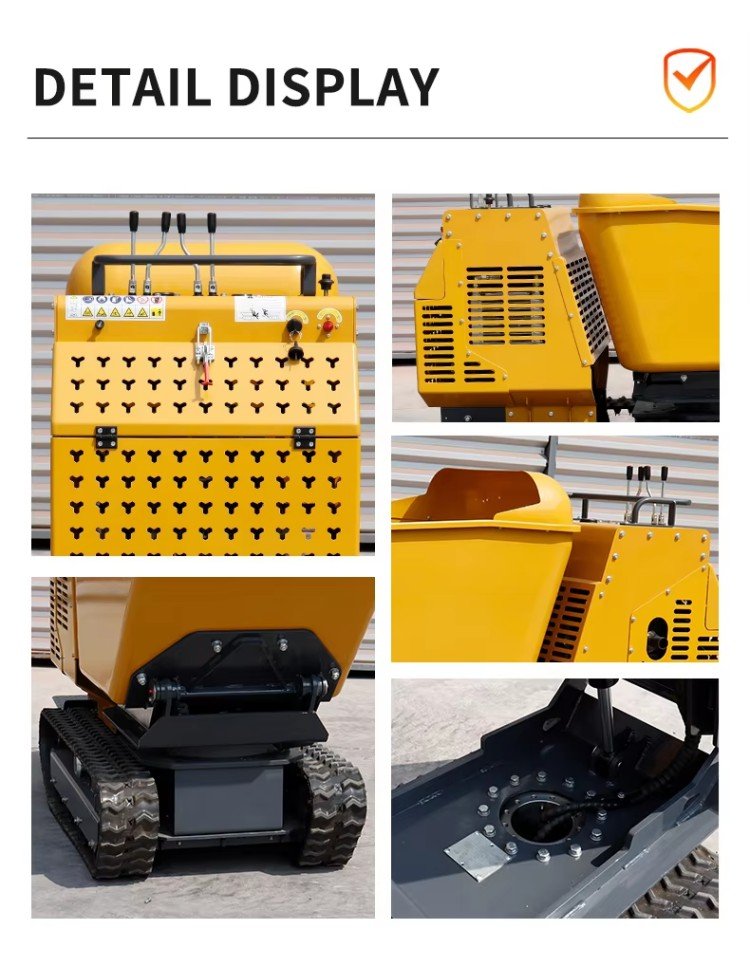

| Product details | ||
 |  |  |

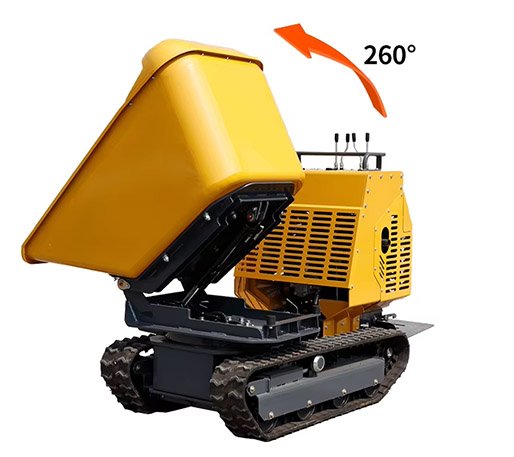

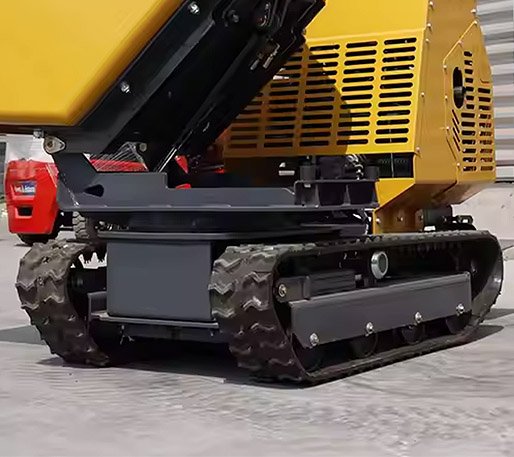

| The hopper can be rotated 180°left and right | Separate tipping and rotation controlscan be operated simultaneously Maximum rotation Angleupto 260° | RUBBER TRACK Engineering rubber trackStrong gripGood climbing performancewear-resistant |
 |  |  |

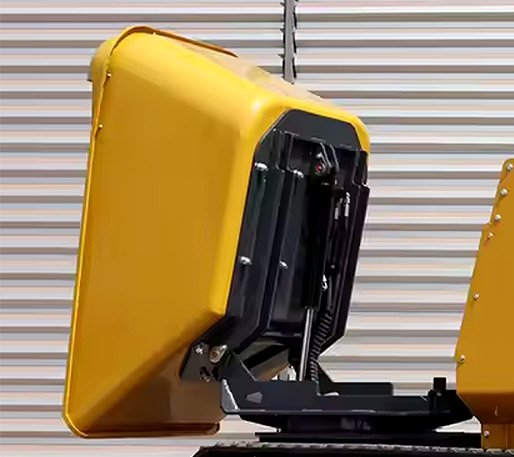

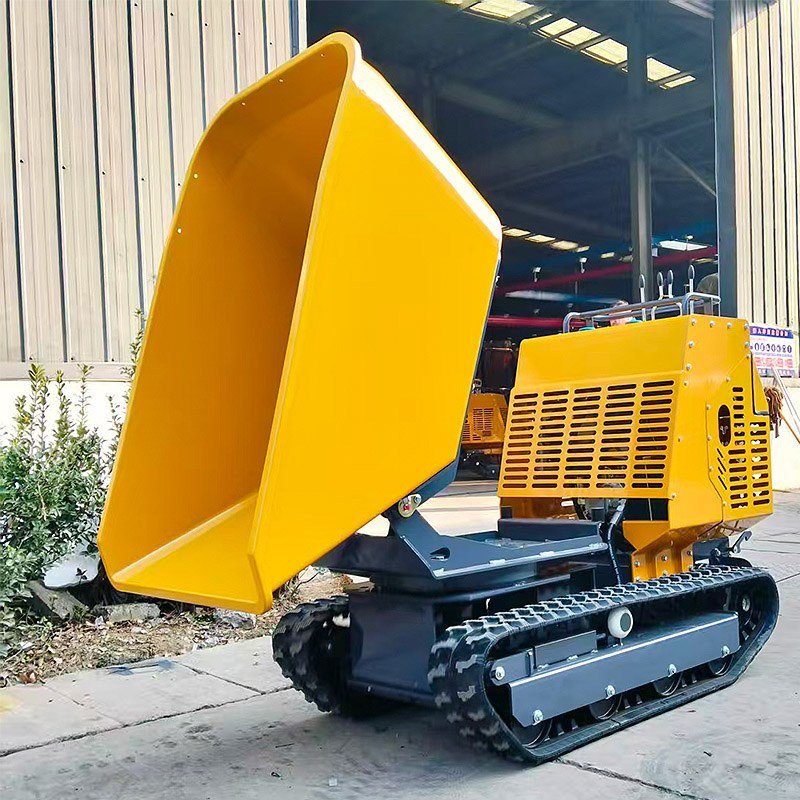

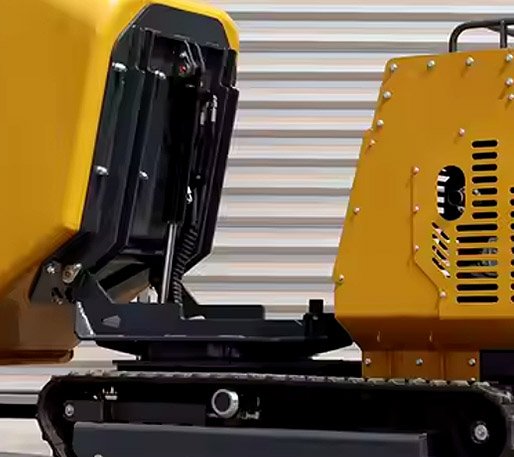

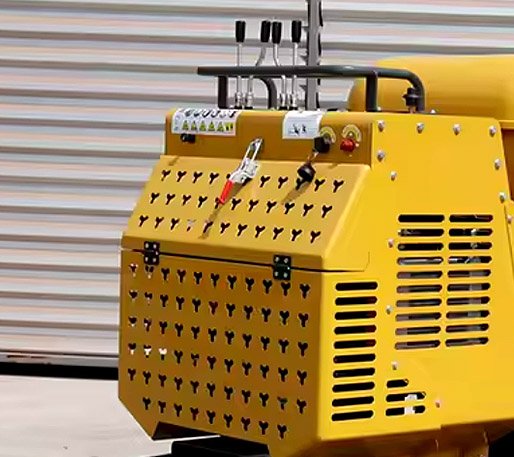

| HYDRAULIC SELF-DISCHARGE Hydraulic liftingNot easy to rustOne-click startEasy loading and unloading | A THICKENED CARRIAGE Made of thick steel plateStrong bearing capacity | CENTRALIZED CONTROL The function of theoperation panel is clear,Centralized controlEasy operation |
| Shandong Kuugao Machinery Co.,Ltd. | ||
| Rated Power | 13.5HP/3600rpm | |
| Fuel Type | 92#Gasoline | |
| Fuel Tank capacity | 6.5 | |
| Weight data | ||
| Net weight: | 850 | |
| Maximum load capacity | 1200 | |
| Body size: (Footboard not included) | 2060*900*1400 | |
| Pedal machine size included | 2470*900*1400 | |
| Container size: | 1400*800*600 | |
| Chassis width: | 850 | |
| Rotating data | ||
| Maximum rotation Angle | 180 | |
| Rotation mode: | Hydraulic rotation | |
| Tipping interva l | 320mm | |
| Track data | ||
| track width: | 180 | |
| Track grounding length: | 1000 | |
| Chassis ground clearance: | 140 | |
| Hopper data | ||
| Cargo box Capacity | 594 | |
| Tipping Systme | Hydraulic Tipper | |
| Tilting Angle | 90 | |
| Clearance after tipping container | 400 | |
| Walk data | ||
| Walking Speed | 5 | |
| Climbing abillty | 25 | |
| Engine options | ||
| Engine model: | emission | Horsepower/rpm |
| Changchai 192 | Second grade | 11HP/3600 |
| Popular Science 192 | Euro 5 | 11HP/3600 |
| Runtong 420 | EPA Euro 5 | 15HP/3600 |

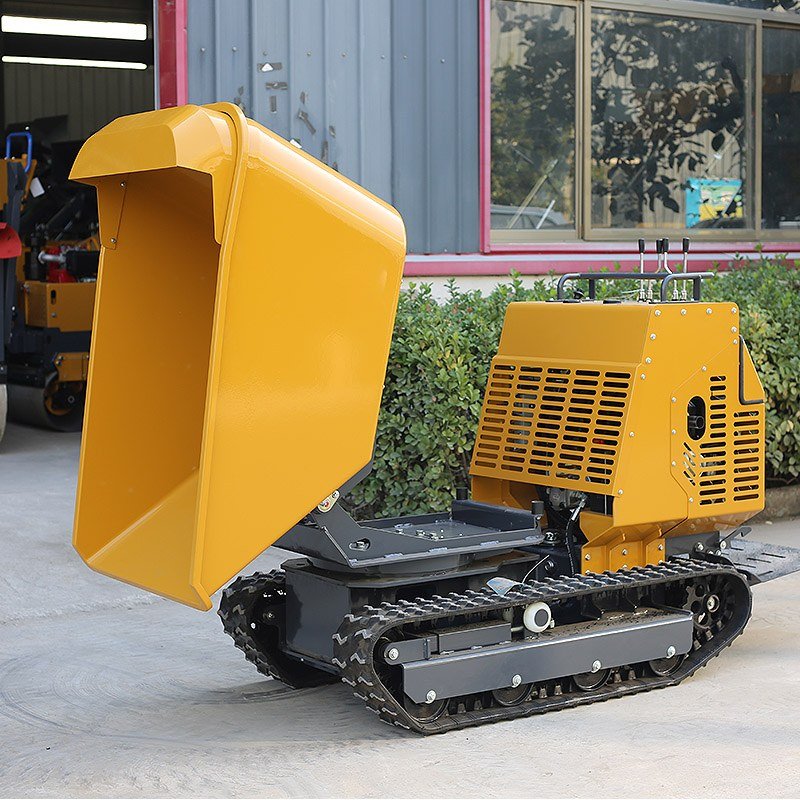

| Honda GX390 | EPA | 13HP/3600 |
Small construction sites: transporting cement, sand, gravel, and bricks
Orchards and farmland: moving fruit, timber, and fertilizer
Livestock farms: cleaning and transporting manure
Interior decoration and demolition: narrow body allows entry through standard doors; clearing construction waste
Municipal and landscaping: collecting and short-distance transport of fallen leaves and sand.
Q1: What is the exact rotation angle of the cargo bucket? Can they be operated simultaneously?
A: The cargo bucket can tilt vertically by 90° and rotate horizontally by 180°, with a maximum combined angle of 260°. Rotation and tilting are independently hydraulically controlled and can be operated simultaneously. Unloading does not require moving the vehicle body; it can be directly aligned with the unloading point on the left, right, or front.
Q2: What is the maximum load capacity? Can it climb slopes?
A: The maximum load capacity for flat road transport is 1200kg. The climbing ability is 25°. When fully loaded, it is recommended to reduce the load appropriately according to the slope to ensure safety.
Q3: What is the travel speed?
A: The travel speed is 5km/h, significantly higher than ordinary tracked dump trucks (usually 2-3km/h), suitable for long-distance short-distance transport, with a significant improvement in efficiency.
Q4: What engine options are available? Do they meet emission standards?
A: The following engines are available, all meeting European and American emission standards:
Briggs & Stratton 420: 13.5HP, EPA
Honda GX390: 13HP, EPA
Runtong 420: 15HP, EPA/Euro V
Changchai 192 (Diesel): 11HP, Euro II (Suitable for regions with less stringent emission requirements)
Cruze 192 (Diesel): 11HP, Euro V (Recommended for European and American markets)
Q5: How high is the cargo box off the ground when unloading?
A: After tipping, the cargo box bottom clearance is 400mm, facilitating direct unloading into collection trucks, mixers, or hoppers.
Q6: Do I need to add hydraulic oil myself?
A: The hydraulic system is pre-filled with hydraulic oil at the factory and can be used directly upon receipt. For subsequent maintenance, please use 46# anti-wear hydraulic oil.
Q7: Are the rubber tracks durable? What types of road surfaces are they suitable for?
A: Engineering-grade rubber tracks offer strong grip, wear resistance, and anti-aging properties, suitable for various road surfaces including cement, asphalt, brick, mud, and gravel, without damaging hardened surfaces.
Q8: Is operation complicated?
A: Operation is very simple. It uses a centralized control panel with clearly labeled function buttons, one-button electric start, and hydraulic knobs controlling rotation and tipping. One person can easily operate it.
Q9: How is the machine's rust resistance? Is it suitable for humid environments?
A: The entire machine surface is powder-coated, providing superior rust and corrosion resistance compared to ordinary paint, making it suitable for humid construction sites, farms, and rainy areas.
Q10: Can the engine or color be customized?
A: Yes. Engines are optional, and colors can be customized according to order quantities (please inquire for minimum order quantity).
