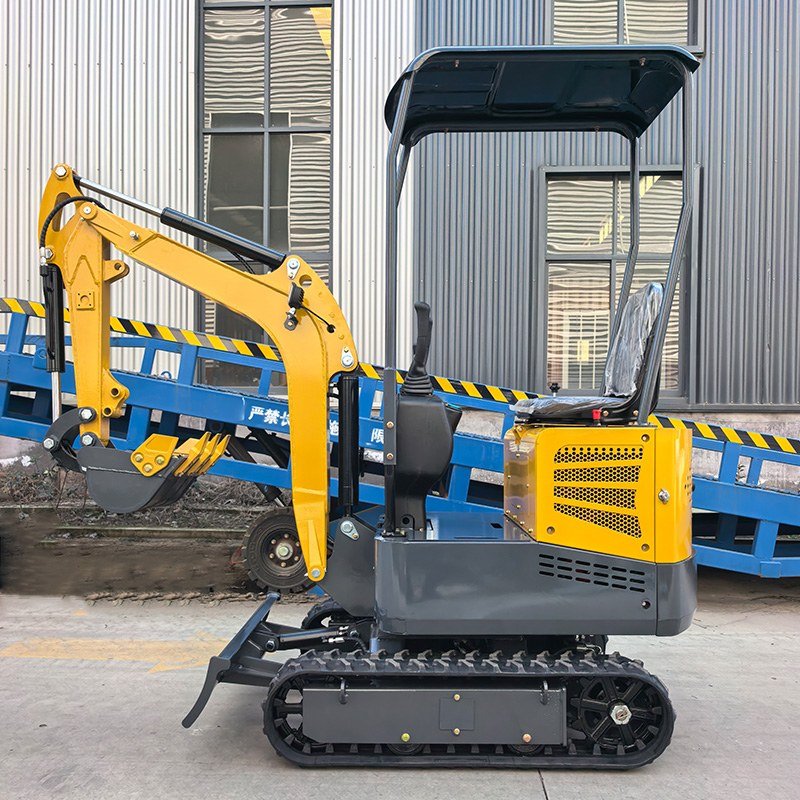

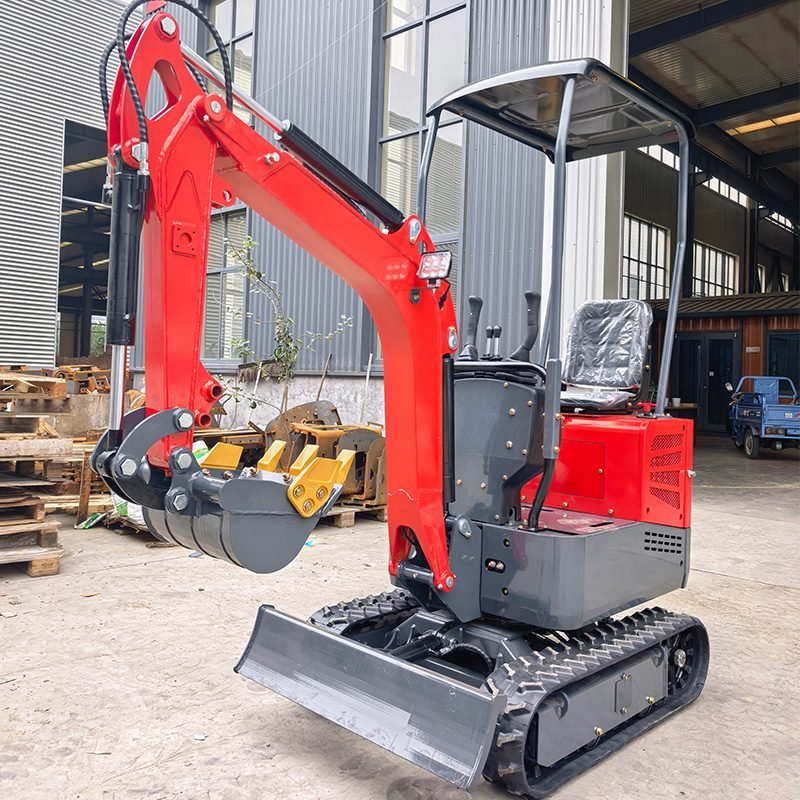

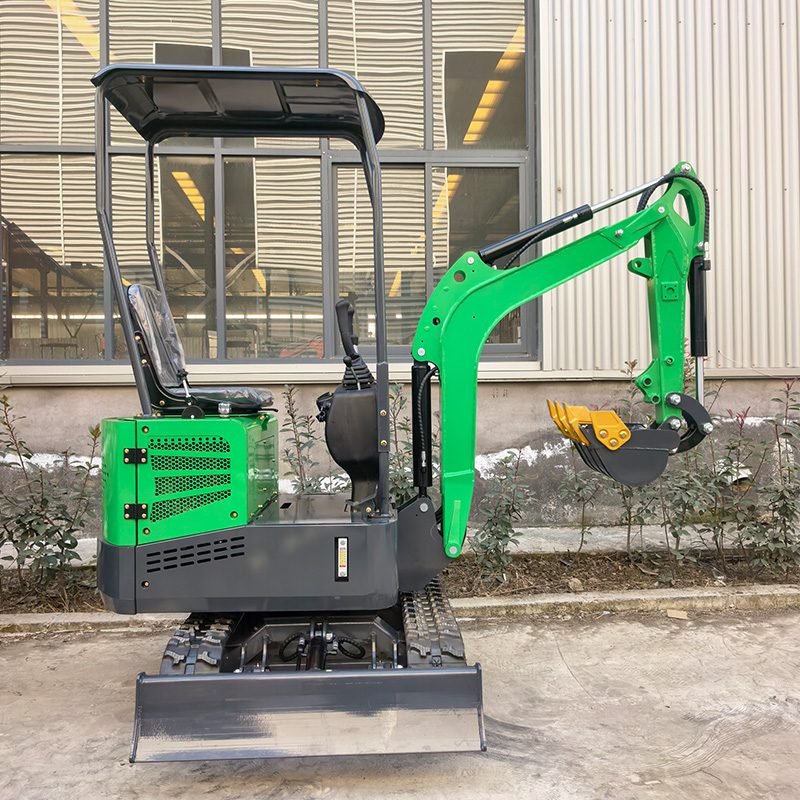

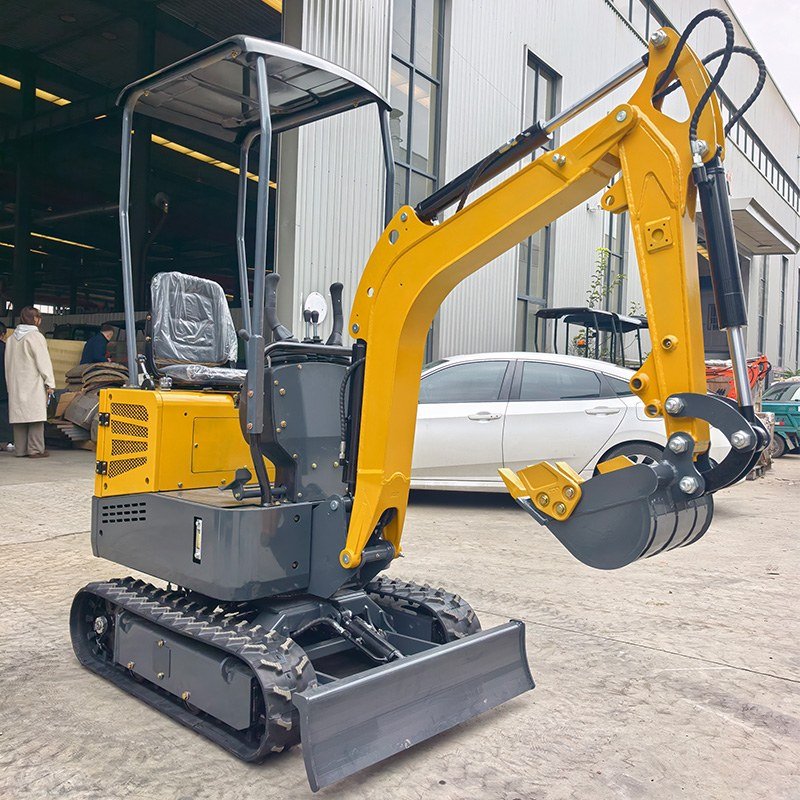

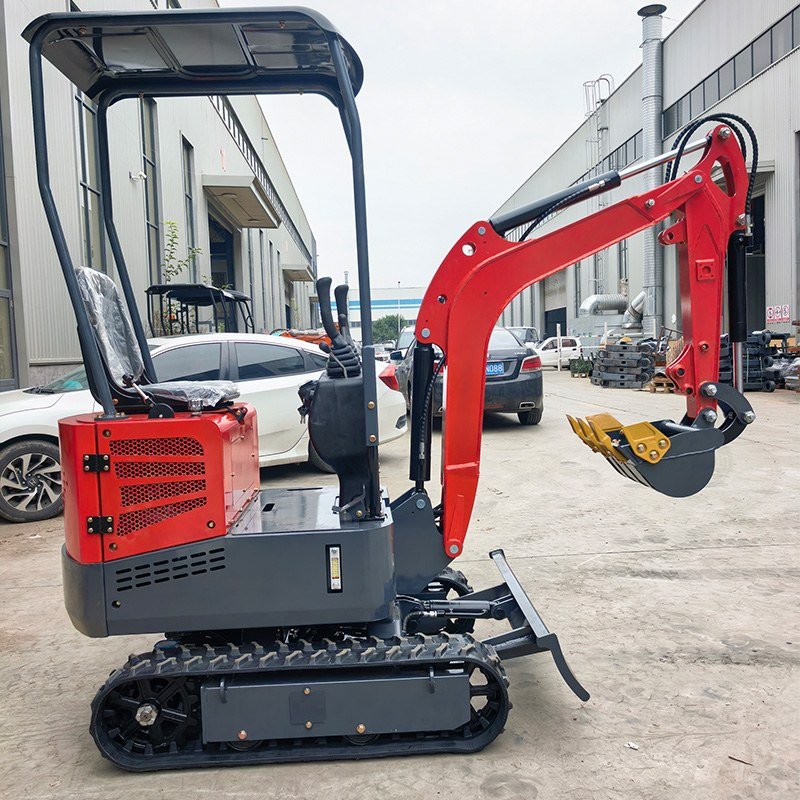

1.3 Ton Mini Excavator All-cast core structure, rigid and durable; reliable welds, long fatigue life, no cracking under long-term heavy loads; reinforced chassis and running system design; extremely convenient maintenance; intelligent monitoring to protect the machine; comfortable operation, allowing for both hand and foot use; safe field of vision, ultra-small slewing angle; sturdy canopy, suitable for all-weather operation.
1.3 Ton Mini Excavator, while maintaining its compact and flexible design, has undergone a comprehensive upgrade focusing on durability, maintainability, and operational comfort.

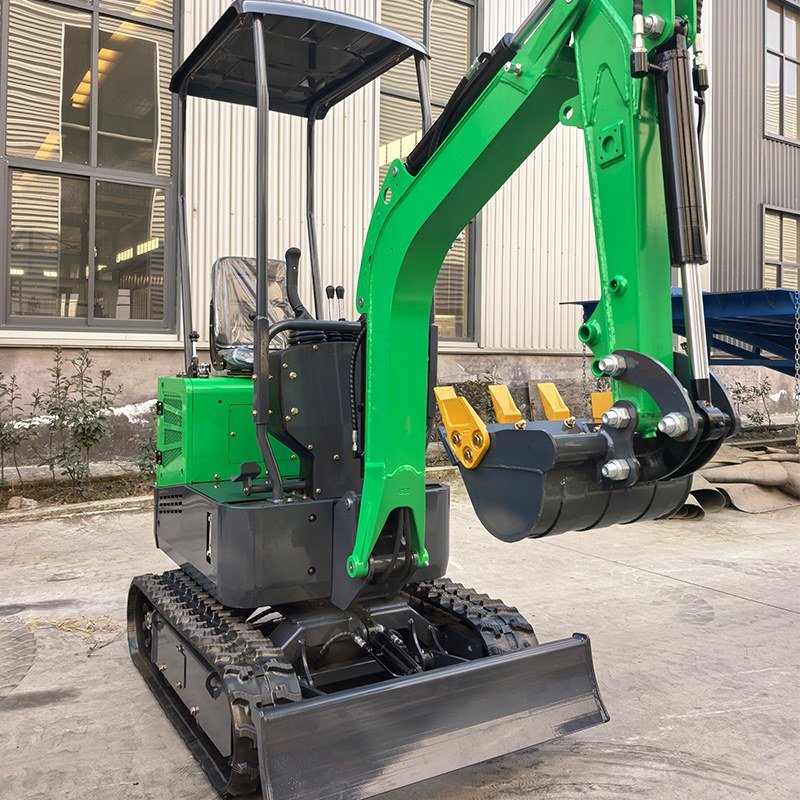

Core structural components are all manufactured using high-strength casting and robotic welding processes: the one-piece cast chain rod boasts high hardness and wear resistance, efficiently transmitting hydraulic cylinder power; the cast boom support and one-piece cast front and rear forks offer high precision and strong support, preventing deformation over long-term use. The boom and arm are robotically welded, resulting in robust welds and significantly extending service life. The track rollers feature added retaining rings to protect the frame from lateral forces; the one-piece bulldozer blade cylinder offers high strength and greater reliability.
Maintenance is extremely convenient: the foot pedal can be removed for easy inspection of hydraulic components; the rear guard can be opened for a clear view of the internal structure; the hydraulic oil filler port is external, allowing for oil level monitoring and filling without opening the cap.

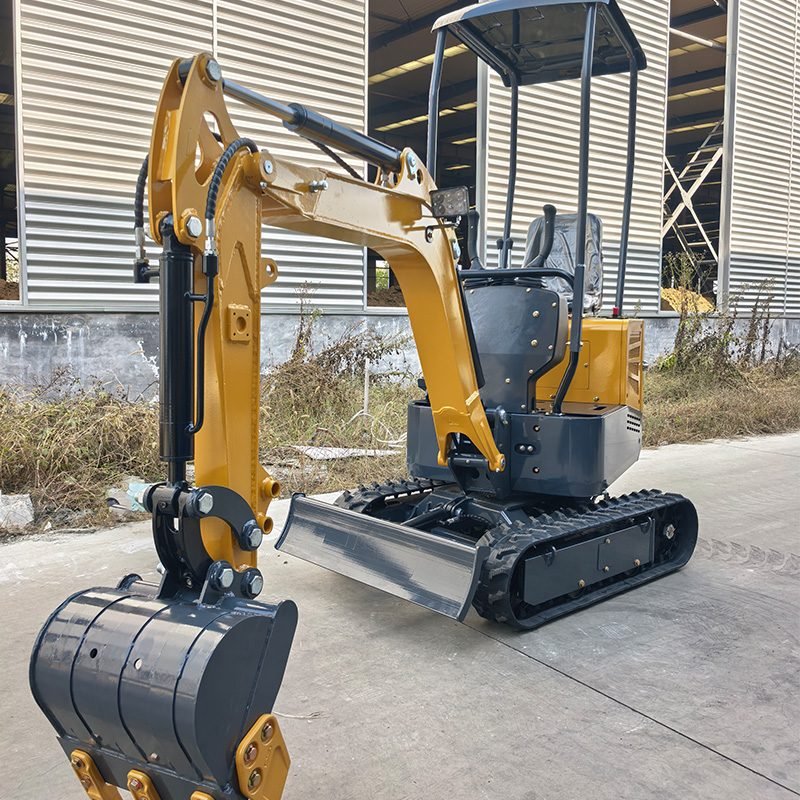

In terms of operating experience, a new one-piece rotationally cast handrail allows for one-handed operation, and the lowered foot pedal enables simultaneous hand and foot use, improving work efficiency. The adjustable suspension seat adapts to different driver body types and preferences, while the intelligent display monitors the machine's operating status in real time, automatically alerting drivers to any abnormalities and preventing damage due to negligence.
Safety and maneuverability are equally outstanding: a wide rear view reduces blind spots and prevents injuries during turns; the ultra-small turning radius ensures the turning radius is essentially no wider than the track width, allowing for safe maneuvering even in extremely narrow environments such as corners and between rows in greenhouses. An optional stamped metal four-post canopy is available, offering durability, sun and rain protection, and excellent visibility.
Multiple power options, combined with features such as boom side swing and chassis telescopic, can easily handle various working conditions, including mountain clearing, indoor crushing, orchard ditching, greenhouse tilling, and rural dredging.

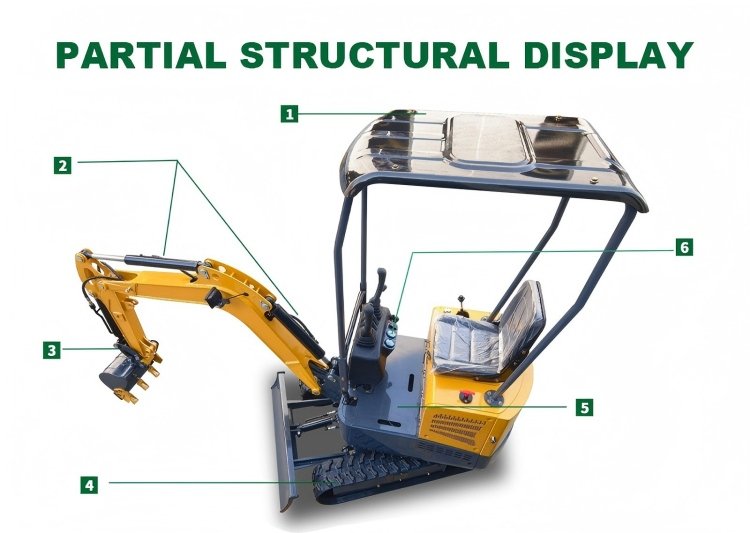

| Product details | ||
 |  |  |

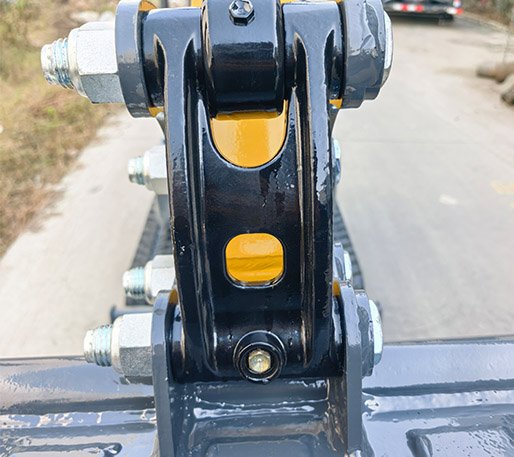

| 1.Canopy can be added; made of stamped metal, sturdy and durable. | 2.The robotic arms and arms are welded together, resulting in strongweld fusion and a long service life. | 3.The one-piece cast chain rod ishighly durable, non-deformable,and wear-resistant, effectivelytransmitting the pressure fromthe hydraulic cylinder to thebucket. |
 |  |  |

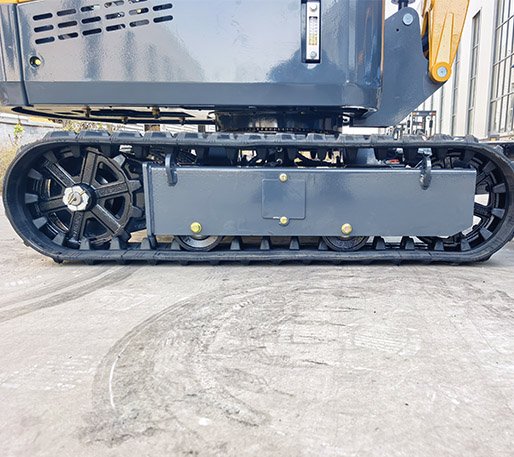

| 4.The addition of retaining rings to the track rollers reduces stress on the frame, making it more durable. | 5.The foot pedal can be removed foreasy maintenance. | 6.The bulldozer blade comes standard with a length of 950mm, making itsuitable for various working environments. |
 |  |  |

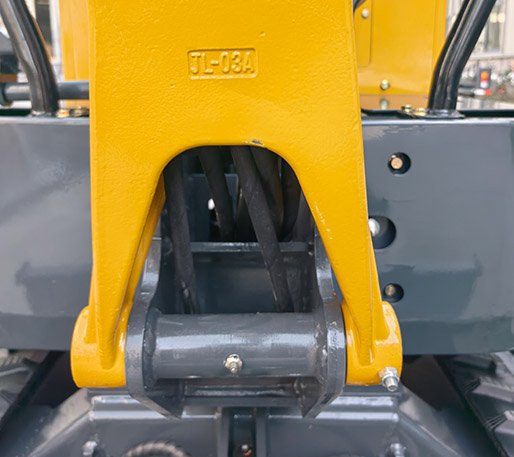

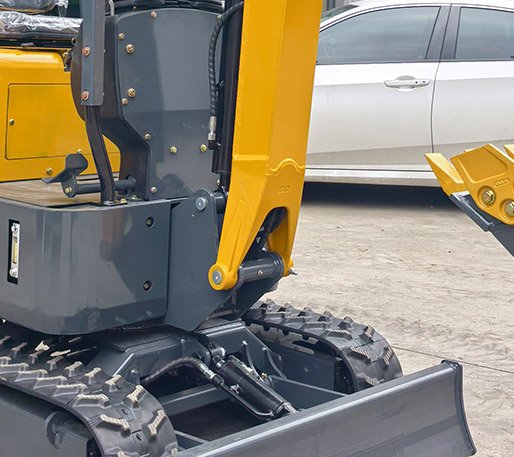

| 7.Multifunctional control panel. Moreflexible operation, easier one-handedoperation, and a lower foot pedal forimproved efficiency by using bothhands and feet. Includes an intelligentdisplay. | 8.The dynamic rear fork is acast iron rear fork with highhardness and strong stability,preventing breakage and weldfailure. | 9.Boom and Front Fork:One-piece cast front forkfor enhanced stability,resistance to deformation,and wear resistance. |
| Machine Parameters | |||||||
| Dimensions(L*WH) | 2970*950*2250mm | Max.Grade ability | 30° | ||||
| Weight | 1300kg | Work Pressure | 17Mpa | ||||
| Engine Model | Koop192/Briggs &Stratton | Max.digging radius on ground | 3050mm | ||||
| Engine Power | 7.6kw/10.1kw | Max.digging radius | 3100mm | ||||
| Bucket capacity | 0.03m³ | Max.digging depth | 1750mm | ||||
| Bucket width | 400mm | Max.digging height | 2430mm | ||||
| Working device form | Backhoe | Max.dumping height | 1800mm | ||||
| Fuel tank capacity | 7.5L | Maximum vertical digging depth | 1950mm | ||||
| Maximum walking speed | 2.5km/h | Minimum turning radius | 1470mm | ||||
| Maximum Lift Of Dozer blade | 140mm | Maximum depth Of Dozer blade | 240mm | ||||
Mountain reclamation: Clearing shrubs and tree roots, leveling slopes, and excavating terrace foundations
Interior decoration demolition: Wall removal, floor tile removal, bathroom backfilling, and basement renovation
Orchard management: Ditching and fertilizing, digging tree pits, weeding, and burying vines and covering with soil
Greenhouse agriculture: Turning soil and ridging, transporting materials, and clearing away crop residues
Rural sewer dredging: Dredging ditches, cleaning septic tanks, and excavating sewage pipes
Municipal and landscaping: Community greening, tree pit excavation, and laying of small pipelines
Q1: What's the difference between a one-piece cast chain link and a regular chain link?
A: Regular chain links are mostly welded or screwed together, which may loosen and deform under long-term stress. A one-piece cast chain link is integrally formed, with high hardness and torsion resistance, enabling more efficient transmission of hydraulic cylinder pressure to the bucket, resulting in more powerful digging, and it will not deform throughout its lifespan.
Q2: What is the purpose of opening the rear cover?

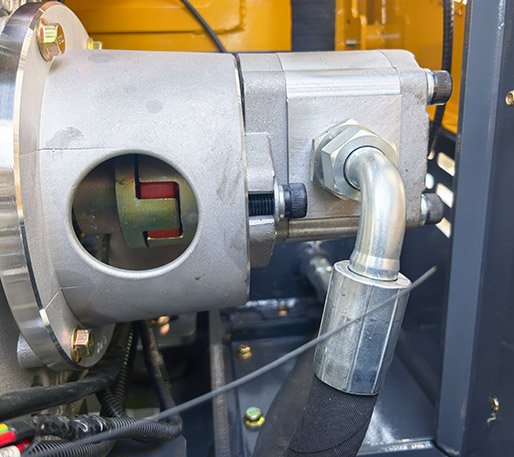

A: It facilitates the inspection of core components such as the engine, hydraulic pump, and radiator. Routine maintenance such as cleaning the radiator fins, replacing belts, and checking for oil leaks can be performed without disassembling the entire cover, reducing maintenance time by more than 50%.
Q3: What damage can the intelligent display prevent?
A: It can monitor and alarm in real time: engine high temperature, low oil pressure, hydraulic oil overheating, abnormal battery voltage, etc. It avoids common human oversights such as cylinder scoring due to lack of water, pump and valve wear due to lack of oil, and seal aging due to overheating.
Q4: What is the practical significance of ultra-small swing radius?
A: When a regular mini excavator swings, the tail section will swing off the tracks, easily hitting walls, trees, or causing injury. The TE10A's turning radius generally does not exceed the width of its tracks, allowing for safe 360° turns in spaces such as greenhouses, narrow alleys, and indoors, eliminating the need for frequent maneuvering.
Q5: How much does the improved rear visibility reduce blind spots?

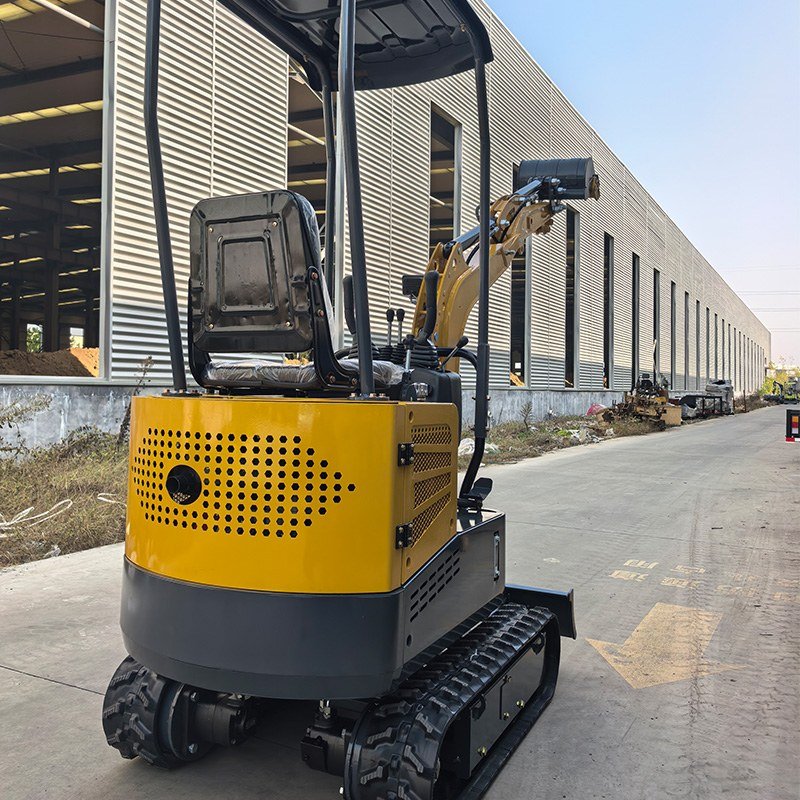

A: Traditional models suffer from severe obstruction by the rear engine compartment, resulting in blind spots exceeding 1.5 meters. The TE10A's optimized rear guard design allows the operator to directly see obstacles or people within approximately 0.5 meters of the ground when looking back, significantly reducing the risk of injury during turning.
Q6: Is it really easy to operate? Can someone who has never operated an excavator learn?
A: Yes, it is designed for ease of use. The controls are intuitive, similar to a standard excavator, making it easy to learn. To ensure a smooth start, we provide:
Detailed operating instructions from our technical team.
A user manual with easy-to-follow step-by-step instructions.
Optional video tutorials and remote guidance for your first use.
Whether you are an experienced operator or a first-time user, you will find it easy to operate.

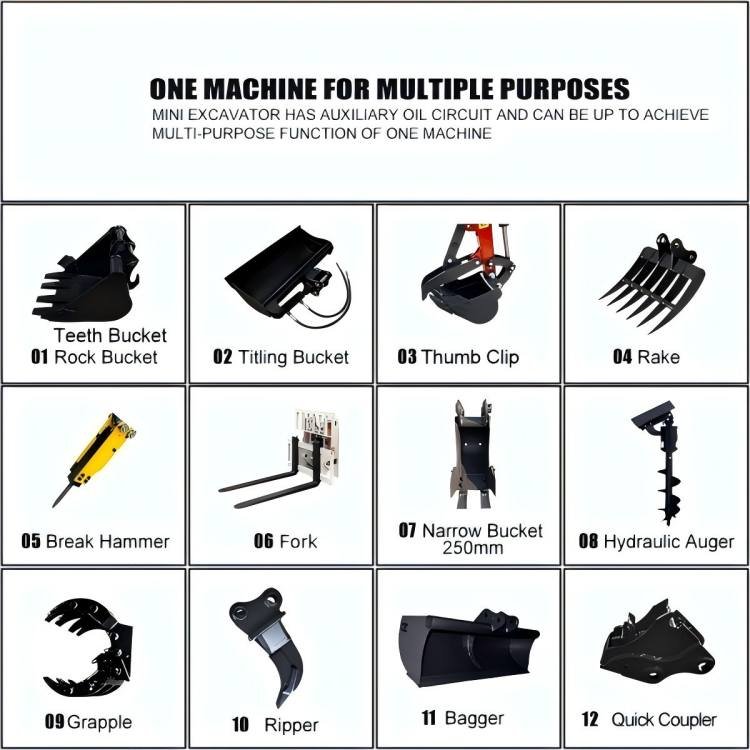

All the accessories can be bought here. It supports multi-functional operation. Functions such as cabin, air conditioning, rocker arm, track, and telescopic track are available for selection, which can quickly improve work efficiency Use our quick coupler (Quick Coupler) to add accessory tools such as dryers, hydraulic hammers, trailers, 20 cm and 100 cm buckets, rakes, grippers,wood grabbers, etc.
If you need custom-made accessories, you can tell us. We have a professional team to make them and you can use them with confidence
