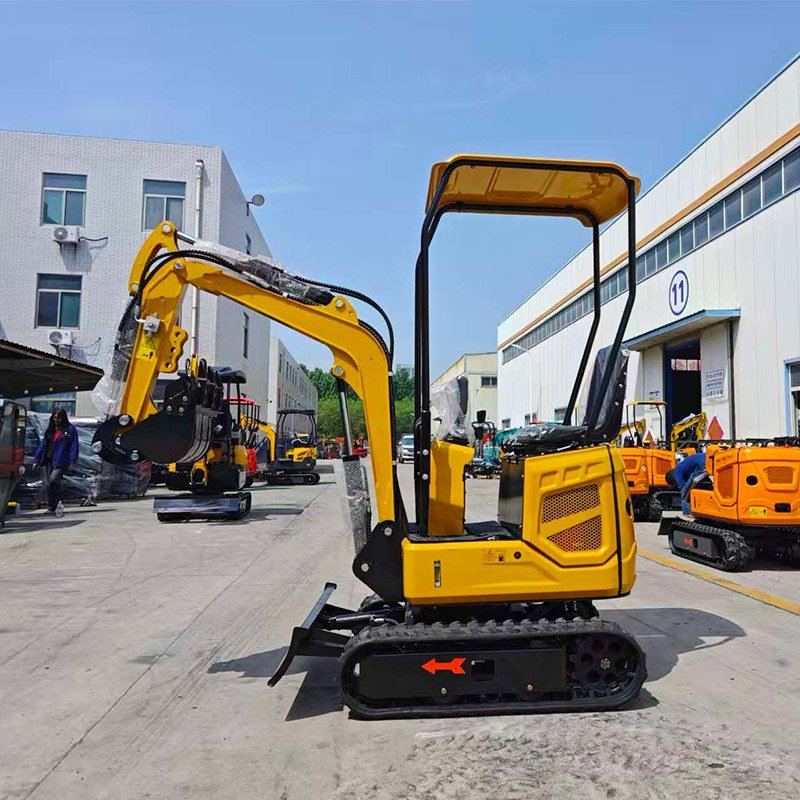

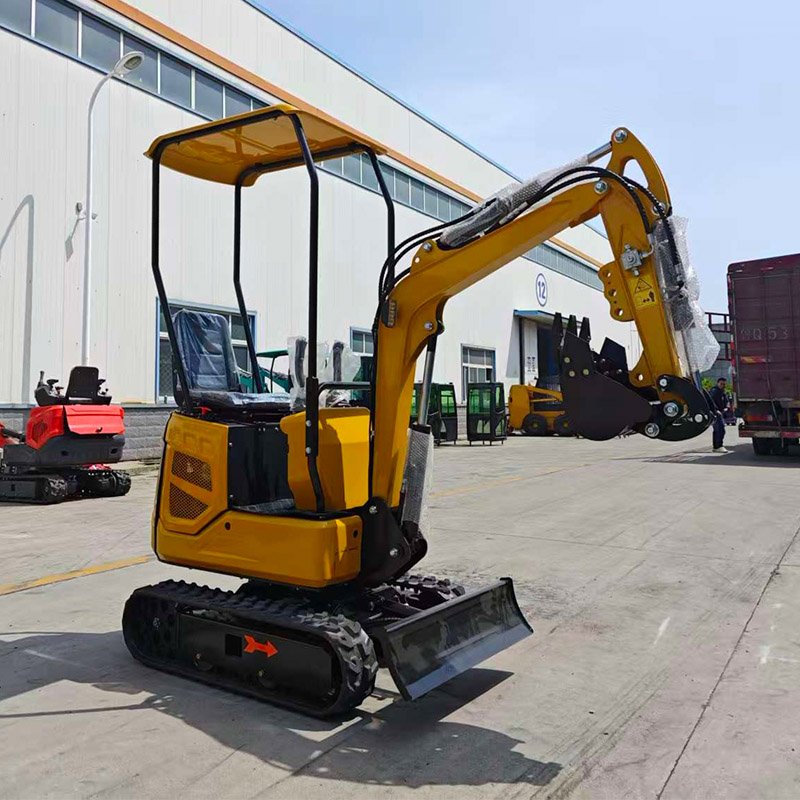

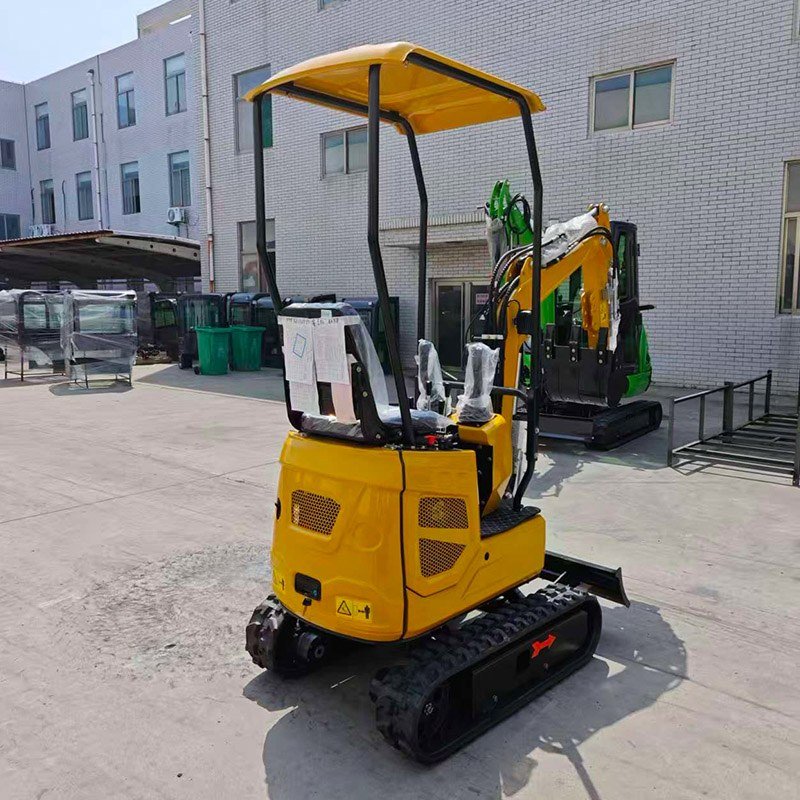

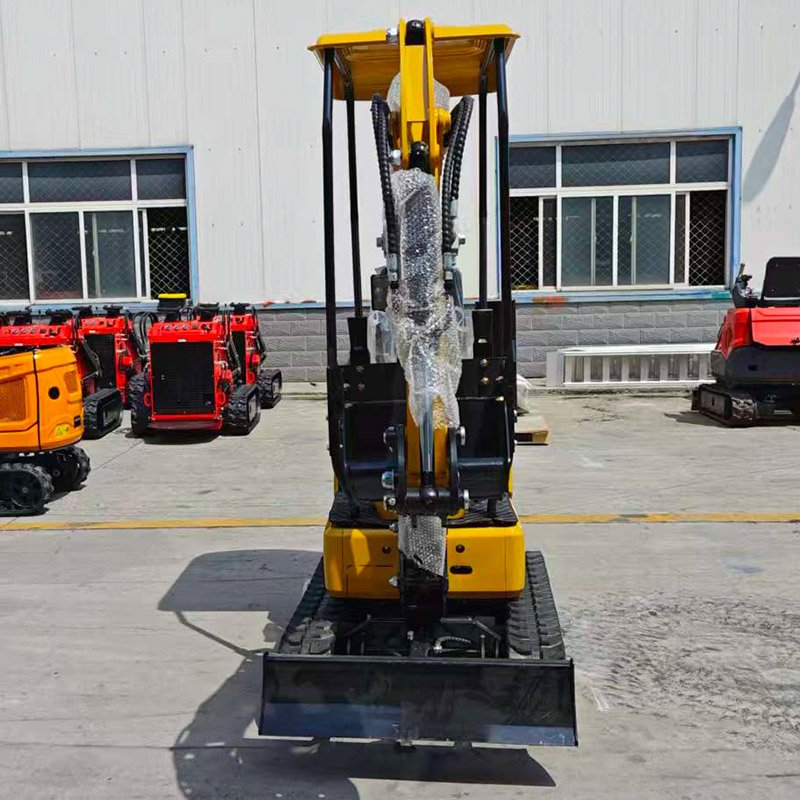

1 Ton Mini Excavator for Farm Use Extremely compact and highly maneuverable; powerful air-cooled diesel engine; robust and durable, easy to operate; rubber tracks prevent damage to the ground; suitable for home gardens, agricultural planting, landscaping, etc.
1 Ton Mini Excavator for Farm Use an air-cooled diesel engine, requiring no water tank, is unaffected by extreme cold, and is simple and reliable to maintain. The hydraulic system employs a Tianjin Tianji single-gear pump, coupled with an 8-way mechanical multi-port valve, providing direct control and sensitive response. With an overall width of only 920mm and equipped with 180×72×37 rubber tracks, it is maneuverable and does not damage the ground. In terms of working capacity, it has a maximum digging depth of 1.7 meters, a maximum digging radius of 2.9 meters, a maximum unloading height of 1.15 meters, and a bucket capacity of 0.025m³, easily handling tasks such as orchard ditching, greenhouse tilling, indoor demolition, and small-scale earthmoving projects. The fuel tank is available in 5.5L or 8L configurations to meet different range requirements.
High quality engine, excellent configuration, export quality
Hand guided operating system, simple and easy to operate, easy to pick up
The shaft comes with a grease fitting for better lubrication
The bulldozer blade is widened and thickened, making it durable and long-lasting
Integrated mold appearance, neat and elegant
The upper arm can be recycled to the shortest distance for easy access to the elevator
The pin shaft is equipped with an oil nipple, which serves to provide even better lubrication.
The ergonomic design of the seat, which can provide the driver with good waist and back support, and the driver will not feel tired even after long driving.
Built-in steel core, wear-resistant and durable, easy toreplace,and also can choose to replace the steel track

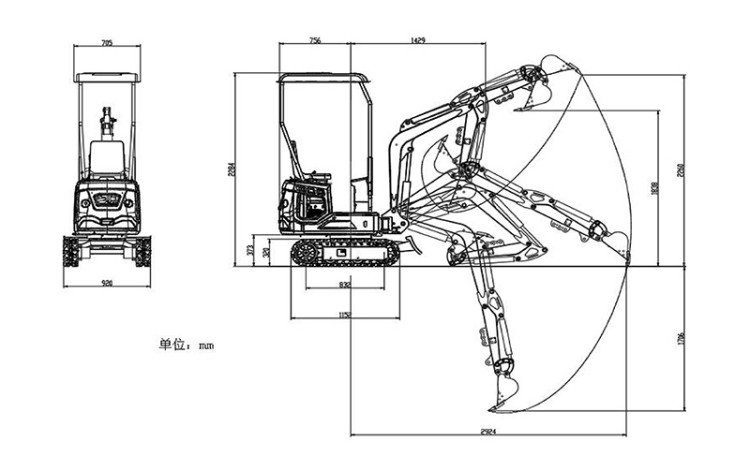

| Machine Parameters | |||||
| gross weight | 1000KG | Engine maximum power | 7.6/kw | ||
| walking speed | 0-2km/h | maximum engine speed | 3000/rpm | ||
| Bucket capacity | 0.025m³ | Main pump type/model | Single gear pump/Flow rate 21L/min | ||
| Maximum digging height | 2260mm | Main pump brand | Tianjin Tianji | ||
| Maximum unloading height | 1150mm | Multi-way valve | 8-way mechanical valve | ||
| Maximum digging depth | 1700mm | Machine Dimension | 2924*920*2284mm | ||
Maximum excavation radius | 2900mm | rubber tracks | 180*72*37 | ||
| bulldozer blade width | 920mm | Fuel tank | 5.5L | ||
| Engine Model | KP192/Diesel/Air-cooled | Hydraulic oil tank | 8L | ||

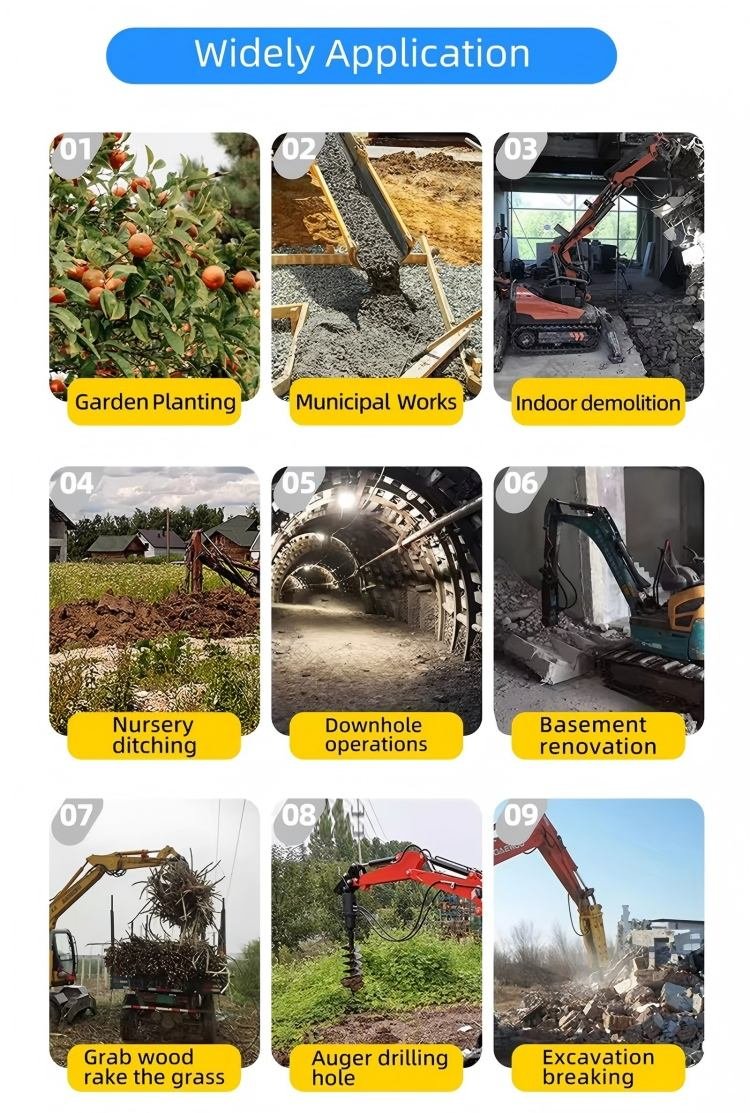

Orchard/Greenhouse Agriculture: Ditching, fertilizing, digging tree pits, turning the soil without compacting it or damaging the mulch.
Indoor Demolition and Renovation: Narrow doorways, wall demolition, tile removal, construction waste removal.
Municipal and Landscaping: Construction of greenbelts in residential areas, tree pit excavation, pipe laying, curb repair.
Small-scale Earthwork and Agricultural Irrigation: Drainage ditch digging, field embankment repair, fishpond dredging assistance.
Emergency Rescue: Narrow streets, basements, slopes, and other areas inaccessible to large machinery.
Q1: How deep can this excavator dig?
A: Maximum digging depth 1.7 meters, maximum digging radius 2.9 meters, suitable for digging small foundations, pipe trenches, and tree pits.
Q2: Is it complicated to operate for a beginner who has never operated an excavator before?
A: Not at all. Operation is very simple. Typically, a completely inexperienced operator can master the basic operations within 15 minutes and become proficient within an hour.
Q3: Is changing attachments troublesome? How many people are needed?
A: Our quick-change coupling design allows one person to complete the process. Whether changing from a bucket to a breaker or an auger, it only requires pulling the pin and connecting the hydraulic hose, taking less than 2 minutes in total.
Q4: Will a tracked excavator damage my lawn?
A: We offer a rubber track option. Rubber tracks have extremely low ground pressure, effectively protecting the ground and avoiding deep indentations like wheeled machines, making them ideal for landscaping in upscale residential areas.
Q5: If the machine malfunctions, are after-sales parts easy to find?
A: Kuugo uses core components with high global compatibility (such as the engine and hydraulic pump). We offer a warranty on core components and provide lifetime technical support. Most wear parts can be easily obtained from local agricultural machinery markets or through our global fast logistics network.

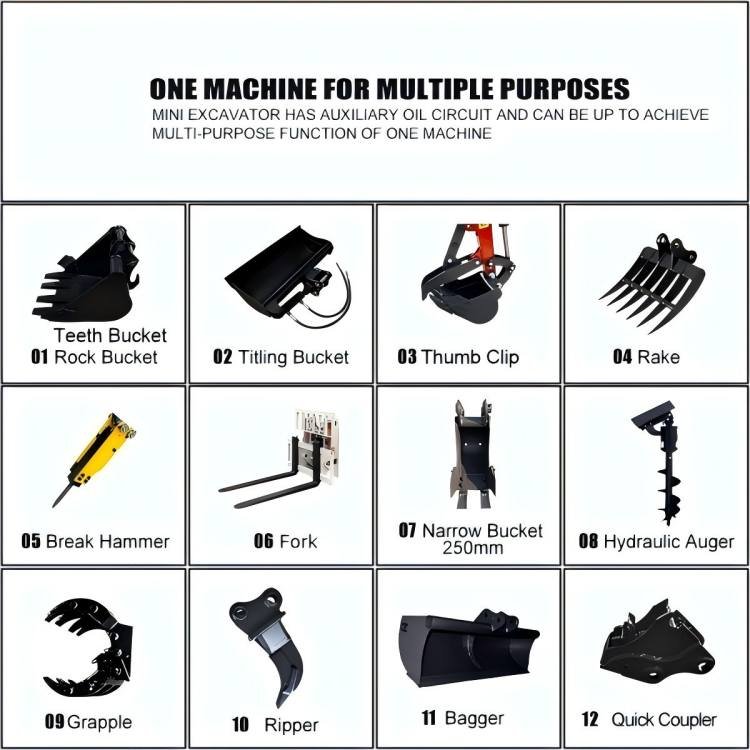

All the accessories can be bought here. It supports multi-functional operation. Functions such as cabin, air conditioning, rocker arm, track, and telescopic track are available for selection, which can quickly improve work efficiency Use our quick coupler (Quick Coupler) to add accessory tools such as dryers, hydraulic hammers, trailers, 20 cm and 100 cm buckets, rakes, grippers,wood grabbers, etc.
If you need custom-made accessories, you can tell us. We have a professional team to make them and you can use them with confidence
