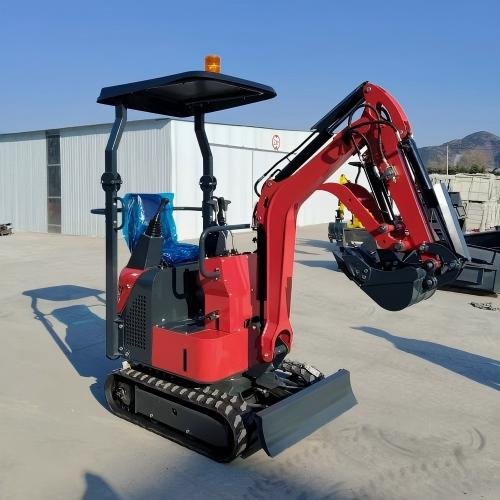

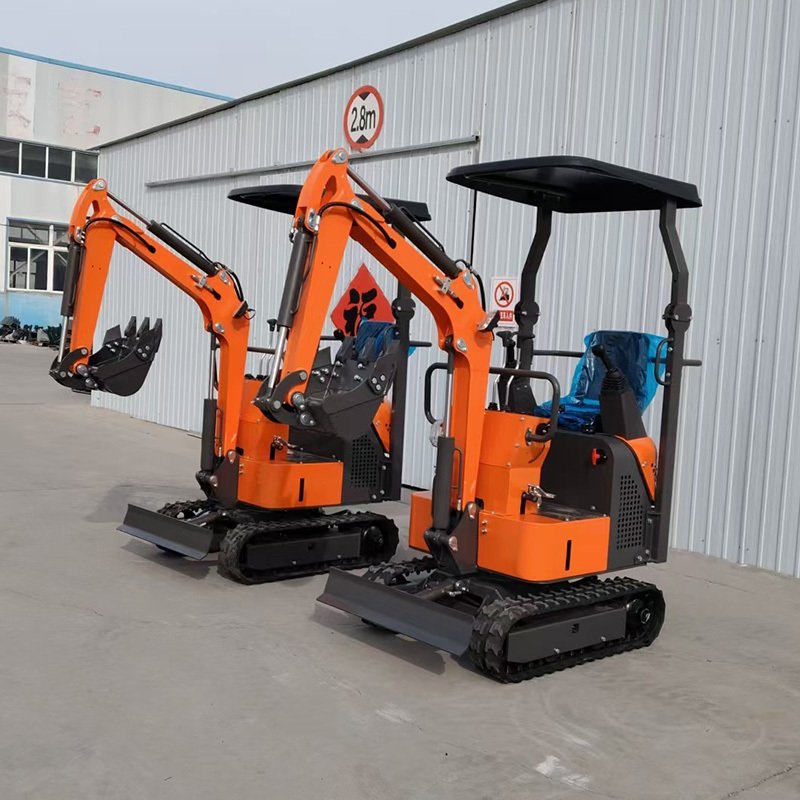

1.2 Ton Mini Excavator Powerful engine, Euro 5 emission standard optional, export guaranteed.
Reinforced chassis with rubber tracks, gentle on the ground, excellent off-road capability.
Pilot-operated hydraulic control, easy and precise operation.
Mechanical quick-change hook for rapid bucket/attachment swapping.

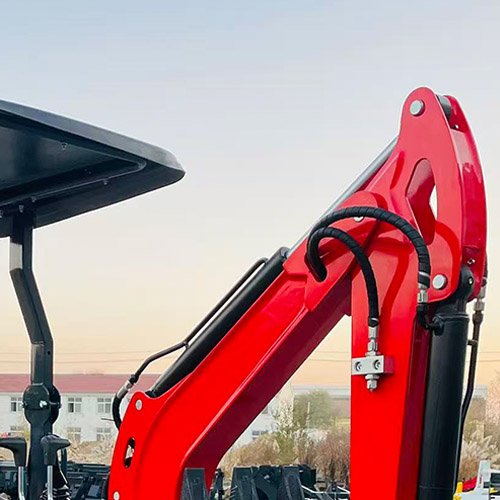

1.2 Ton Mini Excavator Equipped with a standard boom auxiliary hydraulic line, it can quickly connect attachments such as hydraulic breakers, augers, and log grapples, making it versatile. The swing boom function allows the boom to swing left and right, easily enabling wall-hugging digging and ditch-following operations. The pilot hydraulic function provides easy and precise control, reducing hand fatigue during extended operation.
The heavy-duty reinforced chassis, combined with rubber tracks, ensures smooth movement without damaging lawns or ground surfaces. A mechanical quick-change hook (1/2 Hitch) allows for tool-free bucket and attachment changes, improving relocation efficiency. The standard 300mm toothed bucket provides concentrated digging force, suitable for clay, gravel, and hard soil conditions.
The machine's compact structure, combined with the swing boom and pilot control, allows for flexible and efficient completion of tasks such as orchard ditching, greenhouse tilling, indoor crushing, and rural sewer dredging.
MINI EXCAVATOR
EASY TO OPERATE AND TRANSPORT HIGH PERFORMANCE
Small and flexible, suitable for occasionswith narrowterrain and limited space

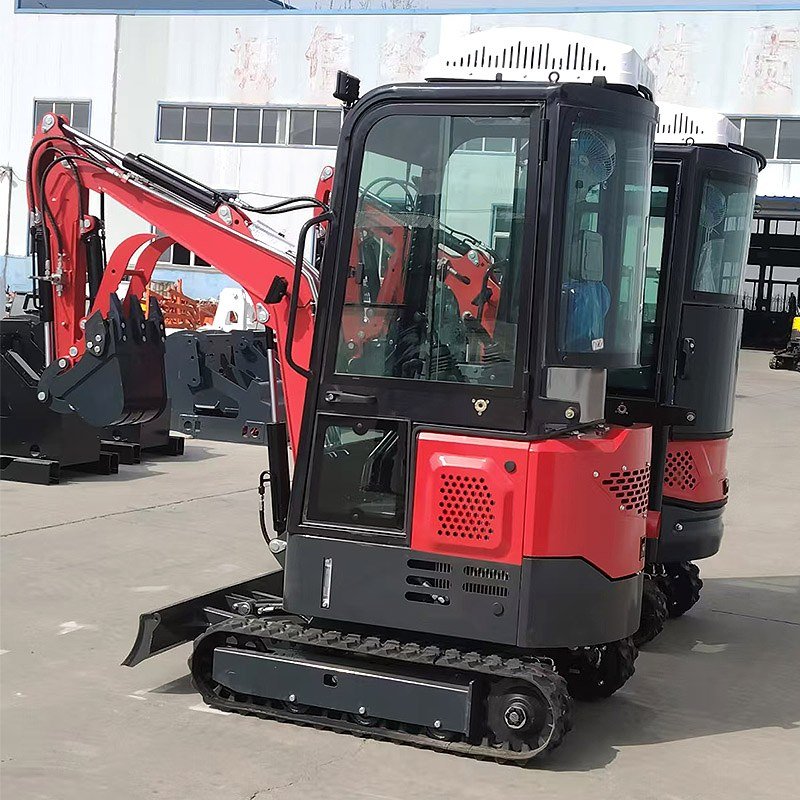

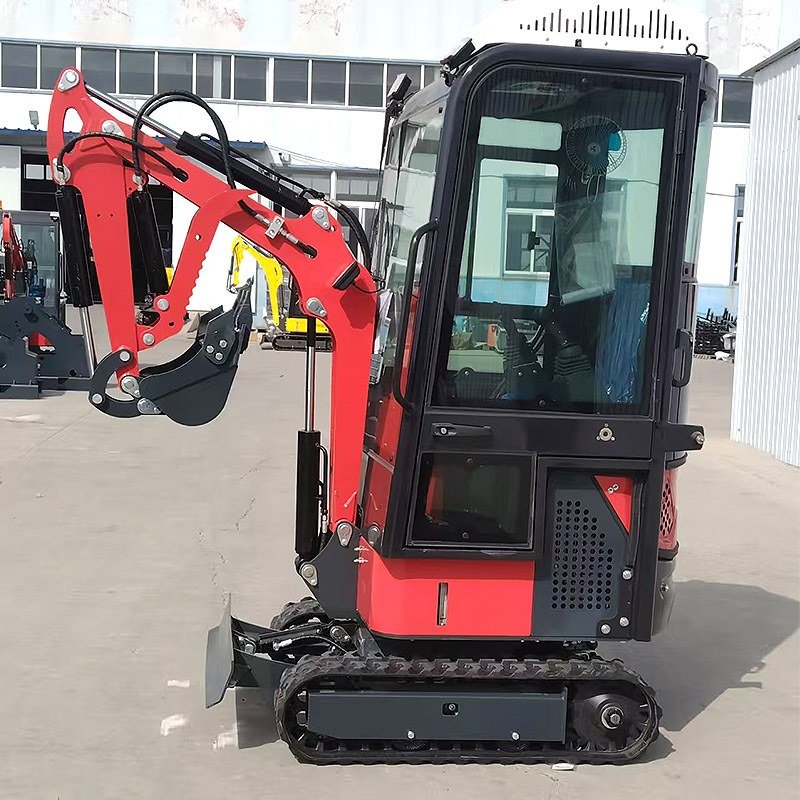

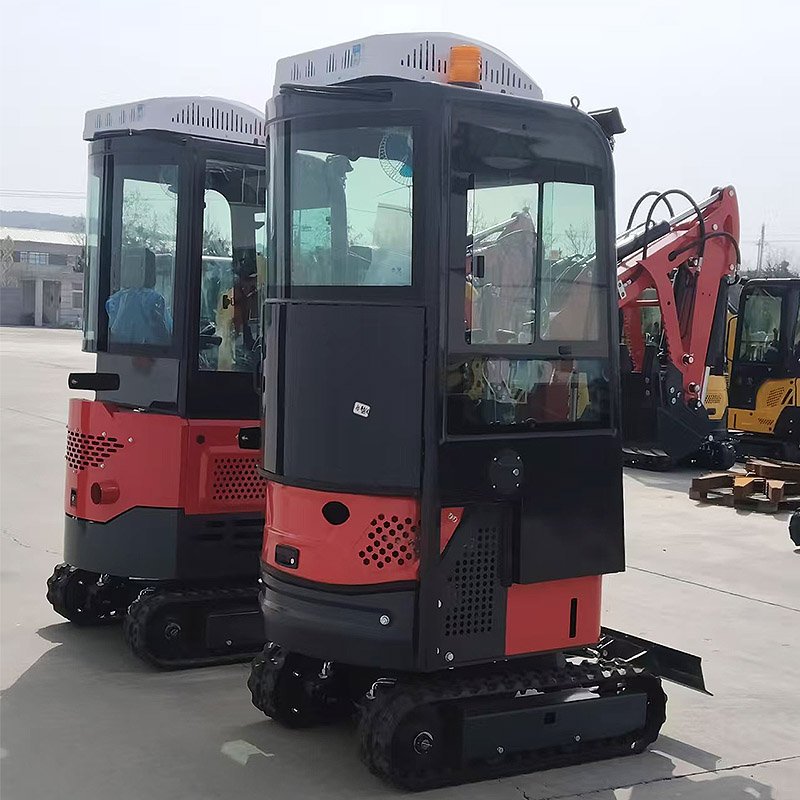

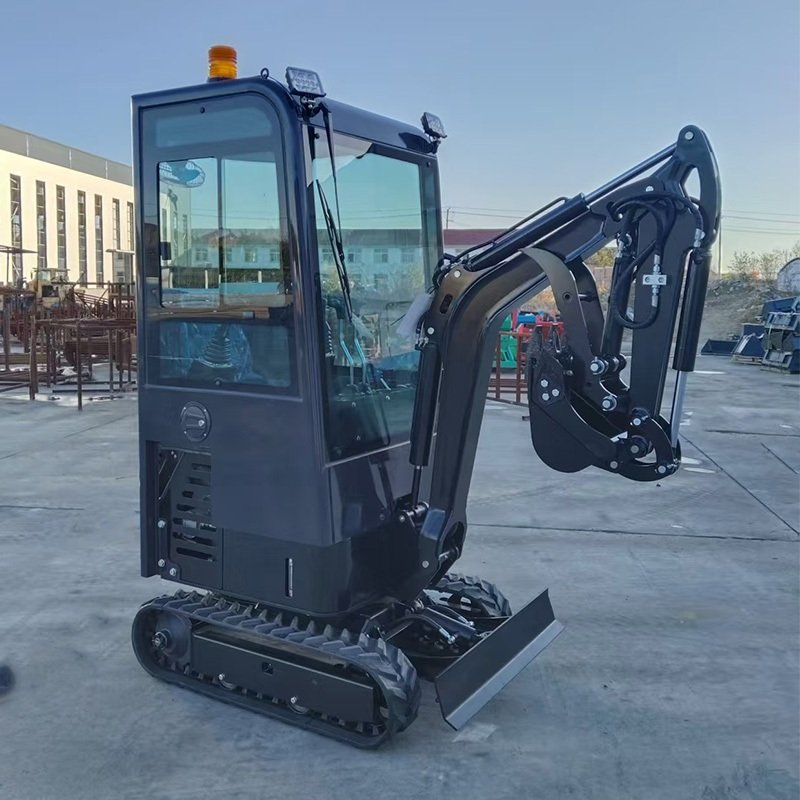

CLOSED CABIN
INTEGRATED STEEL STRUCTURE DESIGNWHICH IS SAFE AND RELIABLE
IT IS EQUIPPED WITH AIR CONDITIONING. IN ORDER TO FURTHER IMPROVE THE COMFORT,THE SPACE IS INCREASED TO THE MAXIMUM
EXCAVATOR
Our advantages
Brand engine、Hydraulic oil radiator、Hydraulic system、Comfortable seats
Hydraulic pump
The hydraulic pump selects the well-known brand Tianjin walking aluminum alloy gear pump.
Rotary motor
The slewing motor uses the same Eaton standard BM2 motor with overflow function.
Control the main valve
The main control valve selects thewell-known brand North Hydraulic.

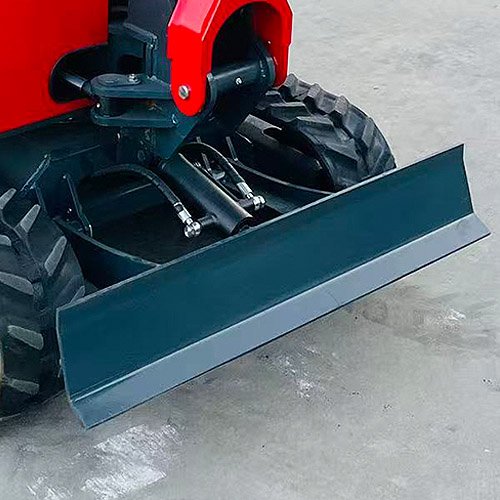

BULLDOZER SHOVEL
Thick, high quality, long service life. Suitable for site leveling, stacking, backfilling and other operations. It is safer to stabilize the body during climbing/uphill/lifting/rotation.
PEDAL BOARD
Foldable foot pedal provides a larger and more comfortable operating space, is durable and wear-resistant, easy to dry and wash, anti slip and flame-retardant.

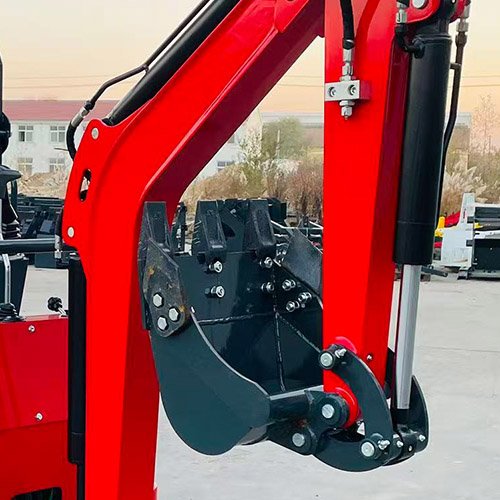

THICKENED BUCKET
High quality steel, more efficient and durable.

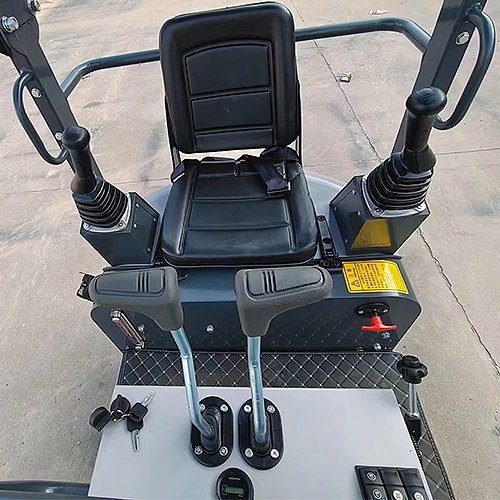

HIGH END SEATS
Spacious and comfortable, ergonomically designed, equipped with an auxiliary control lever.
HYDRAULIC CYLINDER
Pull up the hydraulic cylinder on the rubber track to prevent collision, ensure service life and safety.

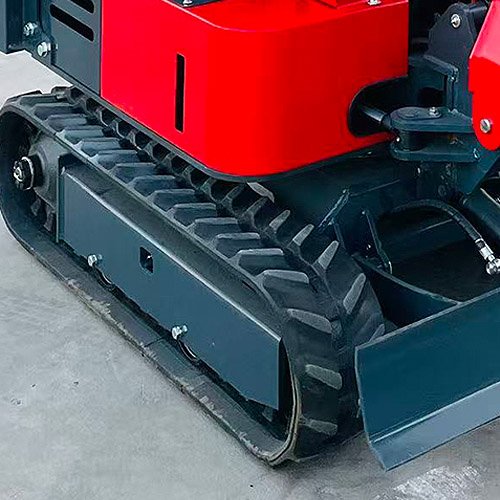

RUBBER TRACK
Lightweight, low vibration, strong adhesion, good adaptability, and does not damage the road surface.
| Product details | ||
 |  |  |
| 01.BULLDOZER SHOVELThick, high quality, long service life.Suitable for site leveling, stacking,backfilling and other operations. It is saferto stabilize the body during climbing/uphill/lifting/rotation. | 02.PEDAL BOARDFoldable foot pedal provides a larger andmore comfortable operating space, isdurable and wear-resistant, easy to dryand wash, anti slip and flame-retardant. | 03.THICKENED BUCKETHigh quality steel, more efficient anddurable. |
 |  |  |
| 04.HIGH END SEATSSpacious and comfortable, ergonomicallydesigned, equipped with an auxiliarycontrol lever. | 05.HYDRAULIC CYLINDERPull up the hydraulic cylinder on therubber track to prevent collision, ensureservice life and safety. | 06.RUBBER TRACKLightweight, low vibration, strongadhesion, good adaptability, and does notdamage the road surface. |
| Machine Parameters | |||||
| Dimensions(L*W*H) | 2200*930*2250mm | Hydraulic Tank | 16L | ||
| Weight | 1200kg | Control System | Mechanical Control | ||
| Engine Options | RATO/Briggs &Stratton /KOOP/ Kubota | Max Digging Depth | 1730mm | ||
| Engine Power | 10.1/10.1/7.6/10.2KW | Max Digging Height | 2750mm | ||
| Engine Speed | 3600rpm/3600rpm/3000rpm/2500rpm | Max Digging Radius | 2900mm | ||
| Fuel Consumption | 1-1.6 L/h | Min Swing Radius | 1300mm | ||
| Gradeability | 30° | Dozer Lift Height | 180mm | ||
| Fuel Tank | 10L | Dozer Lowering Depth | 210mm | ||
Agricultural Planting: Orchard ditching and fertilization, greenhouse soil turning and ridging, tree pit excavation
Interior Demolition and Renovation: Wall breaking, floor tile removal, basement renovation
Municipal and Landscaping: Community greening, tree pit excavation, small pipeline laying
Small-scale Earthwork: House foundations, septic tanks, drainage ditch excavation
Rural Dredging: Ditch dredging, sewer cleaning
Attachments: Concrete breaking, auger drilling, log grappling
Q1: Is the swing boom really practical?
A: Extremely practical. Traditional excavators rely on body steering to adjust the bucket position, making maneuvering in tight spaces difficult. The swing boom function allows the boom to swing independently to the side, increasing efficiency by over 50% when digging close to walls or working along ditches.
Q2: What's the difference between pilot hydraulic control and mechanical lever control?
A: Pilot control uses a hydraulic pilot valve to control the main valve, requiring very little effort, offering higher precision, and reducing hand fatigue during extended operation.
Q3: Are rubber tracks durable? Are they prone to wear?
A: Rubber tracks have a lifespan of approximately 1500–2000 hours on hard surfaces (cement, asphalt, paving stones). Avoiding high-speed travel and sharp turns on sharp gravel or scrap metal can significantly extend their lifespan. Worn rubber tracks can be replaced individually without replacing the undercarriage.
Q4: Is maintenance convenient?

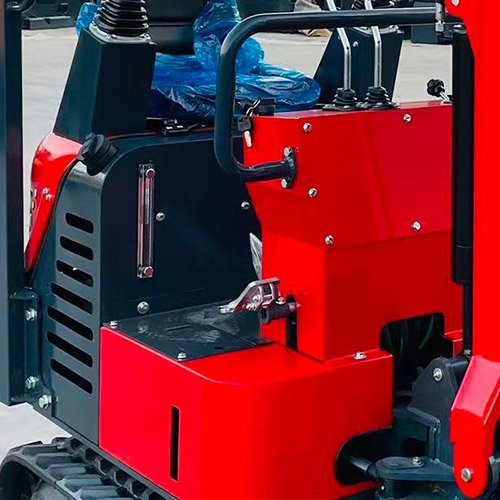

A: Yes. Both models feature an external hydraulic oil filler port, an openable rear guard, and a removable foot pedal, allowing for quick and easy routine tasks such as checking oil levels, changing filters, and cleaning the radiator.
Q5: Can the mini excavator be customized to my work needs?
Absolutely! We offer a variety of customization options, including color, markings, bucket size, cab, and auxiliary hydraulic kits. Please tell us your specific requirements, and we will tailor a solution for you.
Q6: Do you provide after-sales support and warranty?
A: Yes, we provide reliable after-sales support, including a one-year warranty with free replacement parts and lifetime technical support. Our goal is to ensure your machine operates stably for a long time after purchase.
All the accessories can be bought here. It supports multi-functional operation. Functions such as cabin, air conditioning, rocker arm, track, and telescopic track are available for selection, which can quickly improve work efficiency Use our quick coupler (Quick Coupler) to add accessory tools such as dryers, hydraulic hammers, trailers, 20 cm and 100 cm buckets, rakes, grippers,wood grabbers, etc.
If you need custom-made accessories, you can tell us. We have a professional team to make them and you can use them with confidence
