Compact and flexible, easily navigating narrow spaces and convenient for transport.
Customizable configurations, with optional accessories and functions to suit different working conditions.
Rubber tracks prevent road damage and minimize noise.

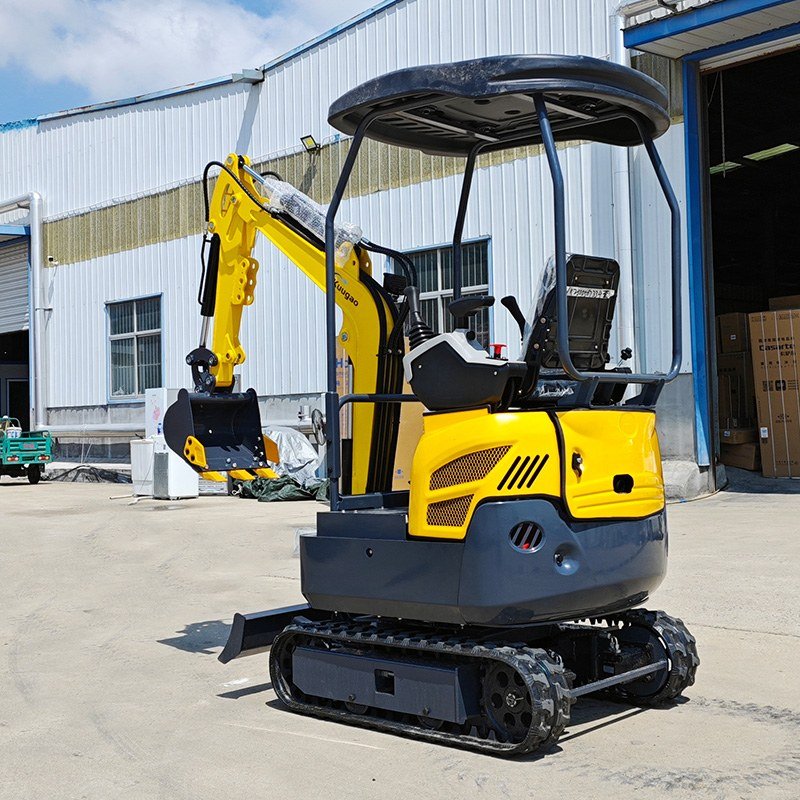

Hydraulic control system ensures precise, smooth operation and effortless effort.

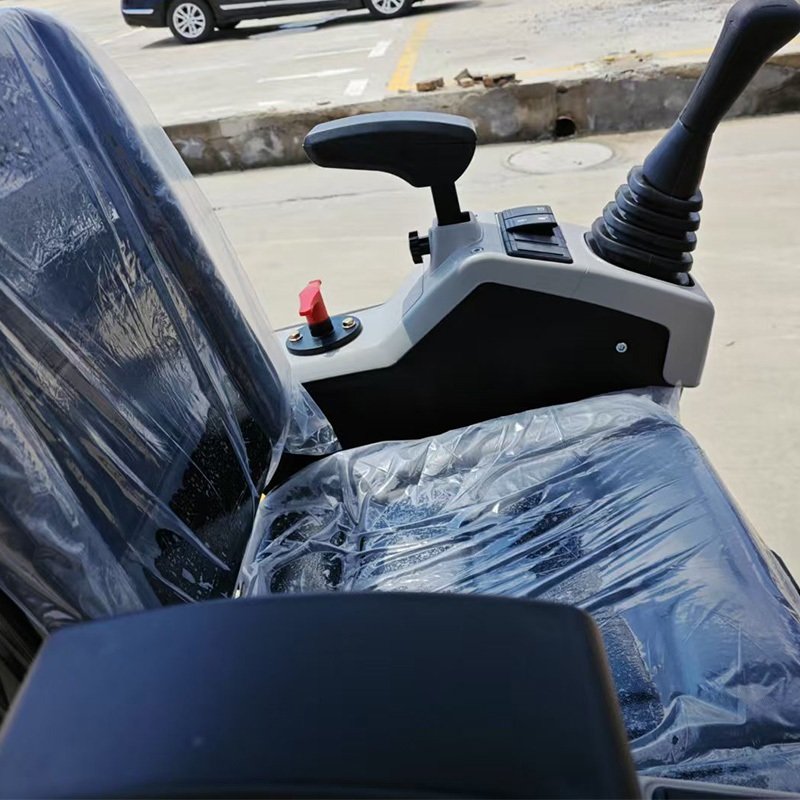

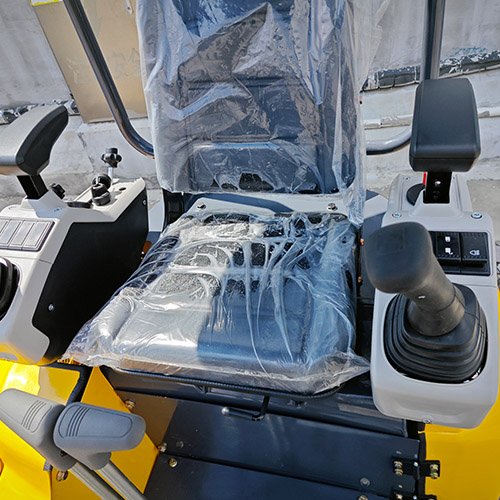

Comfortable seat reduces fatigue during long work hours.
Multi-functional, allowing quick switching between different work tools.

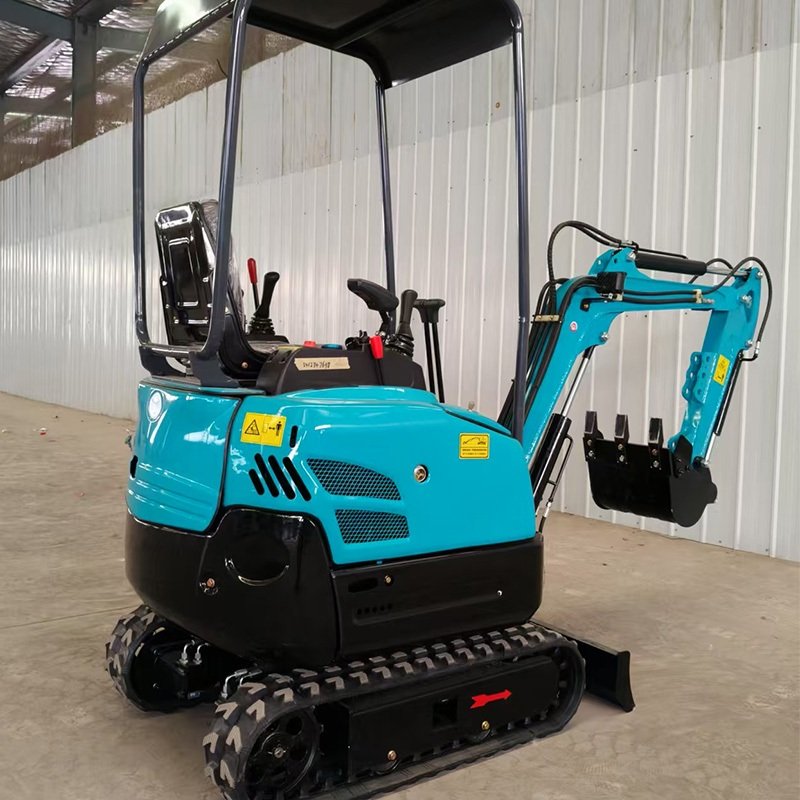

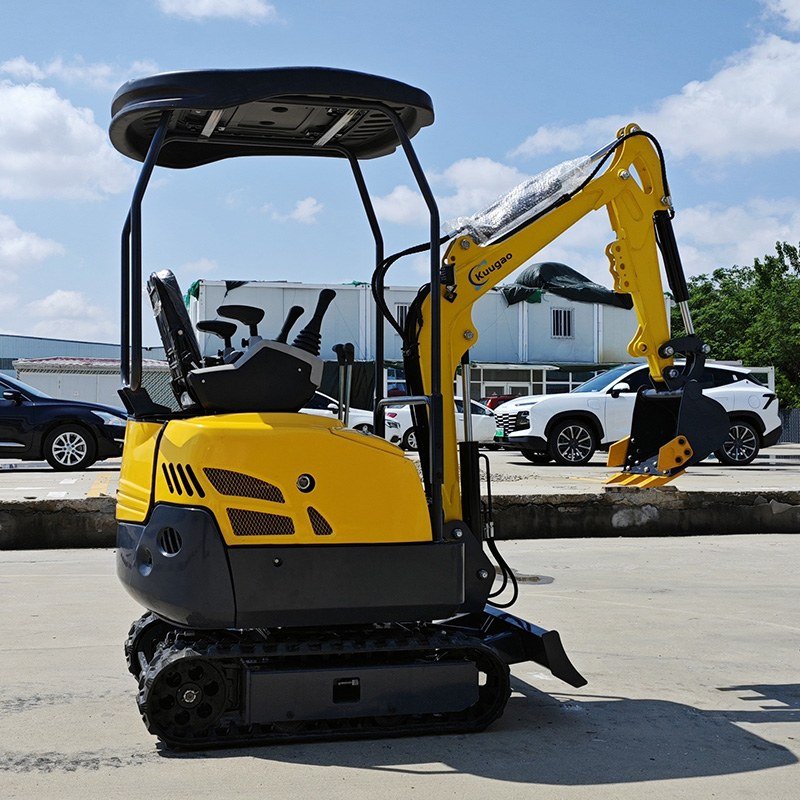

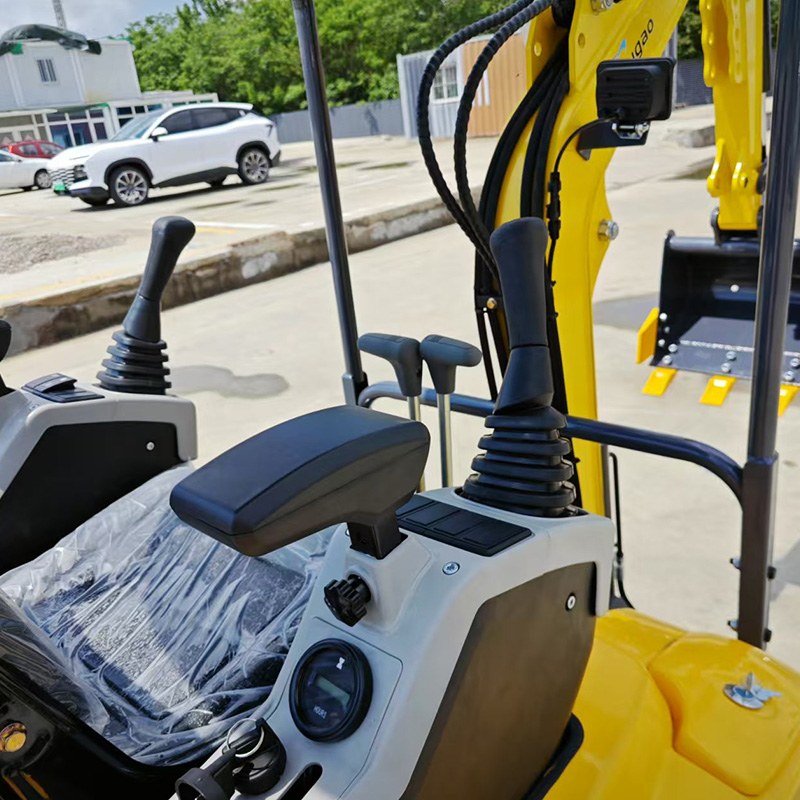

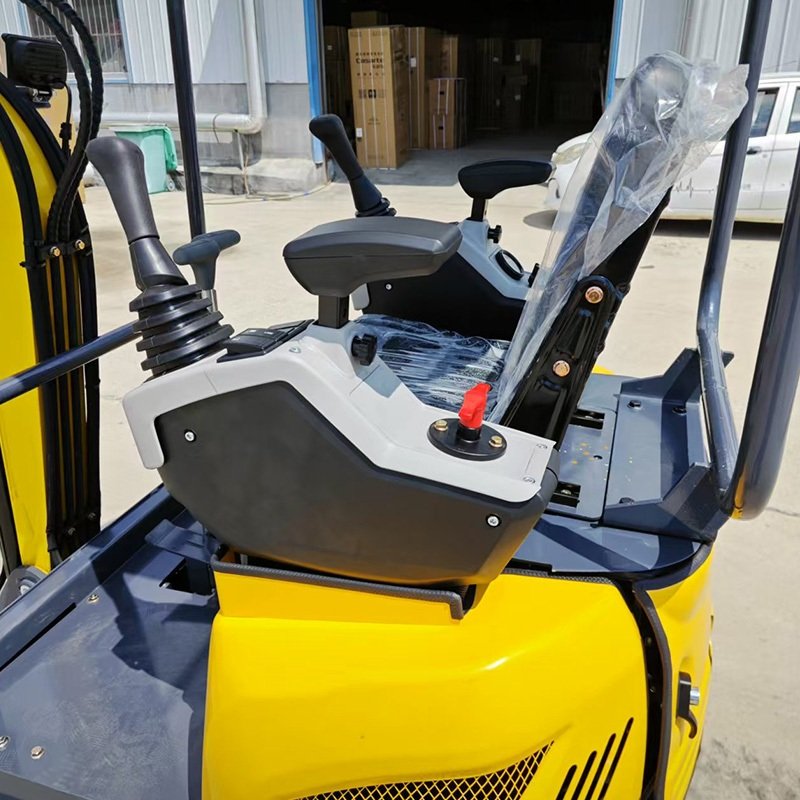

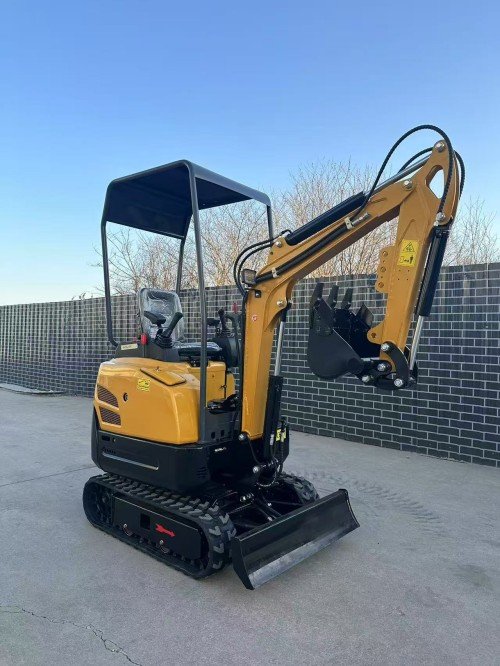

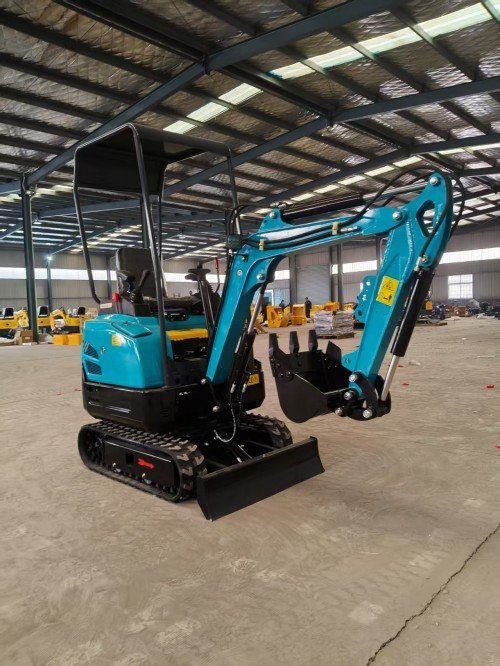

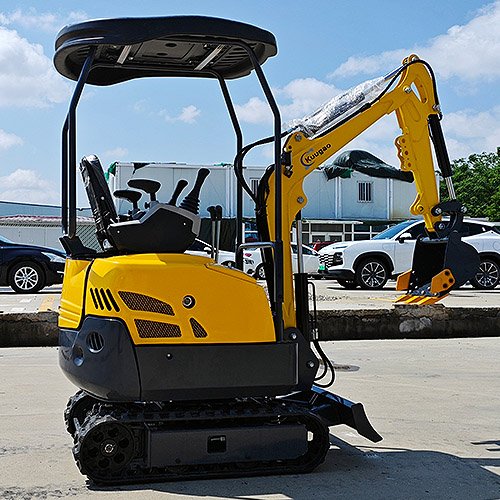

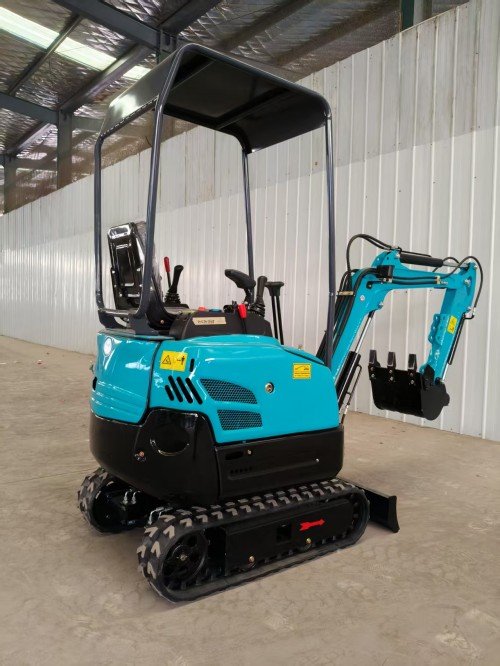

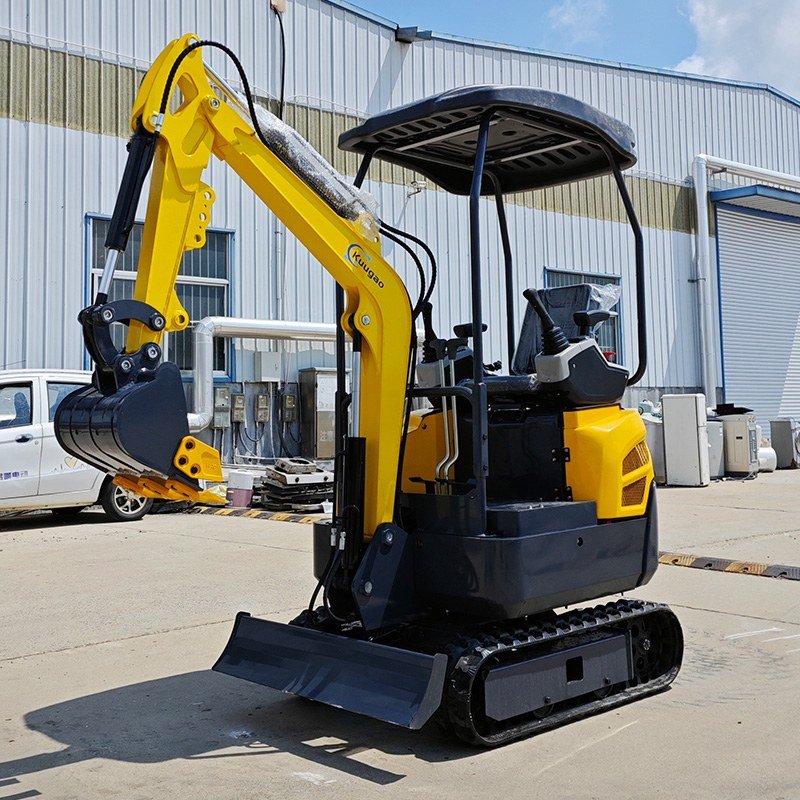

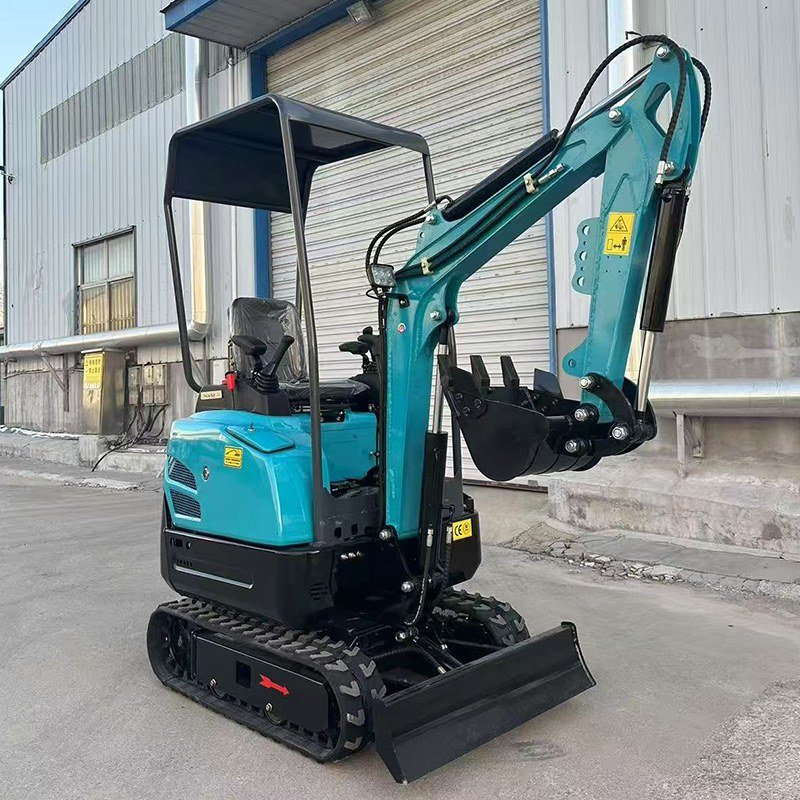

1.6 Ton Mini Excavator a small tracked excavator with a working weight of approximately 1.6 tons. It uses rubber tracks for walking (steel tracks can also be customized upon request), and comes standard with a sunshade (an enclosed cab is optional). The machine is equipped with a high-performance diesel engine and a hydraulic control system with a dual-pump or variable-pump design, providing smooth and coordinated operation. The joystick layout is ergonomic and responsive. The machine body can be customized to meet specific needs, including track material, cab type, and pre-installed hydraulic breaker piping. Key structural components are made of thickened steel for robustness and durability. The standard rubber tracks effectively protect asphalt, sidewalks, lawns, and other ground surfaces, with low ground pressure and low risk of sinking. Optional steel tracks are available to handle muddy, gravel, and other harsh terrain. Operationally, the sunshade provides shade and protection from light rain, and the machine features a high-back, shock-absorbing, adjustable, comfortable seat, and lightweight control levers (foot-operated breaker control is optional). It also supports quick replacement of various attachments, such as standard bucket, enlarged bucket, mud bucket, breaker, ripper, log grabber, rake, rotary drill, hydraulic shears, etc., to achieve multi-functionality.

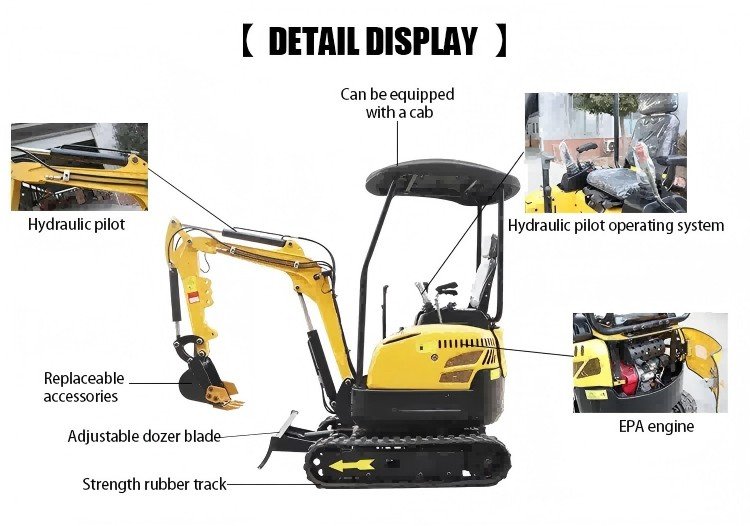

| Product details | ||
 |  |  |

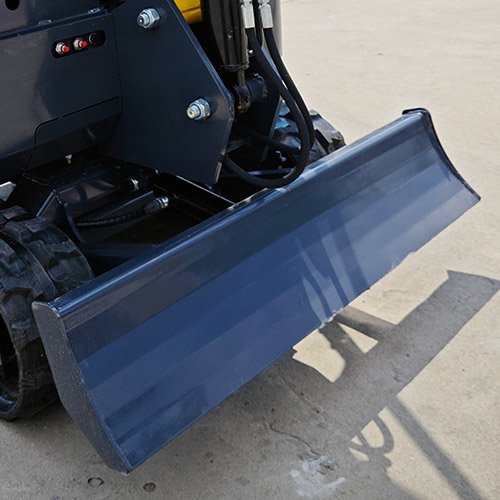

BULLDOZER SHOVEL Thick, high quality, long service life. Suitablefor site leveling, stacking, backfilling and otheroperations. It is safer to stabilize the bodyduring climbing/uphill/lifting/rotation. | USE Flexible and comfortable operationSpacious ergonomically designed, equippedwith an auxiliary control lever. | THICKENED BUCKETTHICKENED BUCKET High quality steel, more efficient and durable. |
 |  |  |
BRAND ENGINE Pull up the hydraulic cylinder on the rubbertrack to prevent collision, ensure service life and safety. | RUBBER TRACK Lightweight, low vibration, strong adhesion,good adaptability, and does not damage theroad surface. | CUSTOMIZATION SUPPORTED Superior performance to meet diverse needs; simple operation; robust and durable. |
| Machine Parameters | |||||
| Overall dimensions(mm) | 3100*1100x2300 | Machine weight(kg) | 1600 | ||
| Engine Model | B&S/Koop192/Kubota722 | Power(KW) | 10.1/7.6/10.2 | ||
| Bucket capacity | 0.025m³ | Hydraulic system press | 16MPa | ||
| Minimum ground clearance | 140mm | Crawler grounding length | 1350mm | ||
| Max digging height | 2700mm | Crawler width | 180mm | ||
| Max unloading height | 1850mm | Climbing gradient | 30° | ||
| Max digging depth | 1900mm | Walking speed | 3km/h | ||
| Max digging radius | 3150mm | Bucket digging force | 14.5KN | ||
Municipal landscaping: excavation of green belts, laying of lawn pipes, tree transplantation
Urban maintenance: minor road surface repair, sidewalk repair, cable trench excavation
Agriculture and irrigation: dredging of small irrigation ditches, loosening of soil in orchards, greenhouse operations
Rural construction: septic tank excavation, foundation preparation, small-scale bulldozing
Interior demolition: widening of doorways, basement renovation (note low emission requirements)
1: Is the hydraulic control system suitable for beginners?
A: Absolutely. Hydraulic control is effortless and linear, making it easier to control precisely than mechanical lever systems. Combined with our video tutorials and remote guidance, beginners can master the basics in 1-2 days.
Q2: Can I change attachments myself later?
A: Yes. The machine uses a quick-change coupling design (some are optional), allowing for quick changes to buckets, breakers, etc., without tools. Even without the quick-change device, it only takes a few minutes using ordinary tools.
Q3: Can the sunshade be removed for use in low-ceilinged spaces?
A: Yes. The sunshade is bolted in place. Removing it lowers the overall height by approximately 30-40 cm, making it suitable for working in basements, greenhouses, and other extremely low-ceilinged spaces. Removal tools are included.
Q4: Is maintenance complicated?
A: Not complicated. The engine hood is easy to open, key components are durable, the manual provides clear instructions, and we offer telephone/email/video technical support.
Q5: How is it shipped? What is the delivery time?
A: Shipped from the nearest port, securely packaged. Delivery time depends on the destination; detailed shipping plans and tracking information will be provided after ordering.
Q6: After-sales and warranty policy?
A: We offer a one-year free parts replacement warranty + lifetime technical support to ensure long-term stable operation of the machine.
All the accessories can be bought here. It supports multi-functional operation. Functions such as cabin, air conditioning, rocker arm, track, and telescopic track are available for selection, which can quickly improve work efficiency Use our quick coupler (Quick Coupler) to add accessory tools such as dryers, hydraulic hammers, trailers, 20 cm and 100 cm buckets, rakes, grippers,wood grabbers, etc.
If you need custom-made accessories, you can tell us. We have a professional team to make them and you can use them with confidence
