Yanmar/Kubota engine, powerful, fuel-efficient and durable. Fast transport, large-capacity bucket, steel tracks, hydraulic pilot operation, side-swing boom. Optional telescopic chassis, cab + air conditioning optional. LED work lights for nighttime operation. One-year free parts replacement warranty + lifetime technical support.

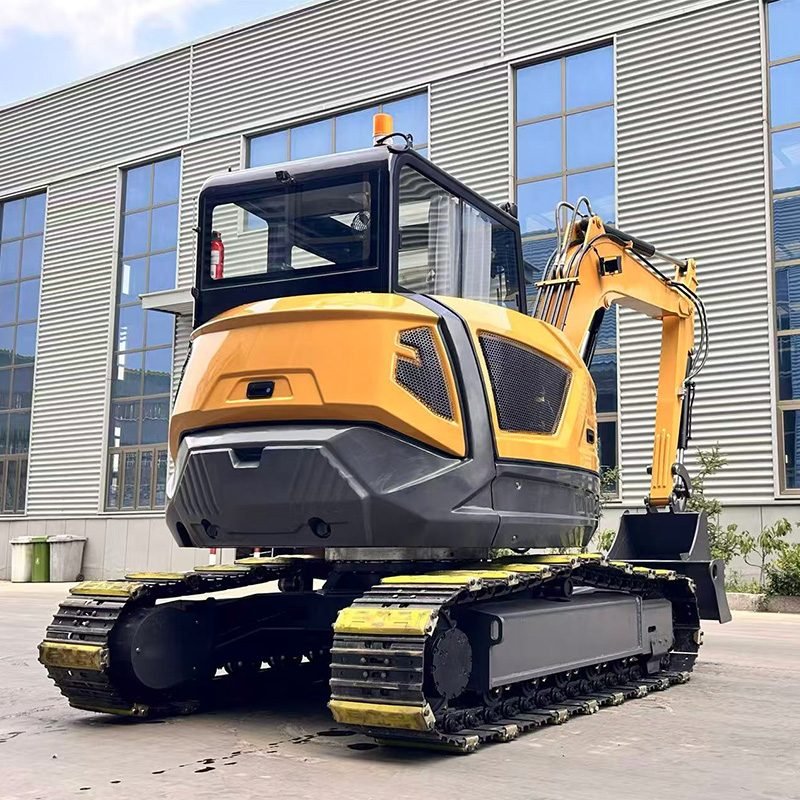

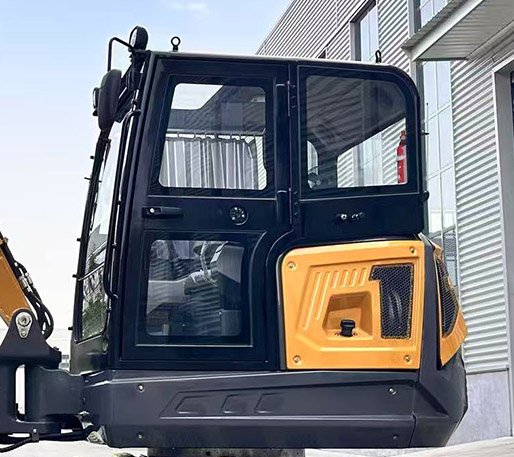

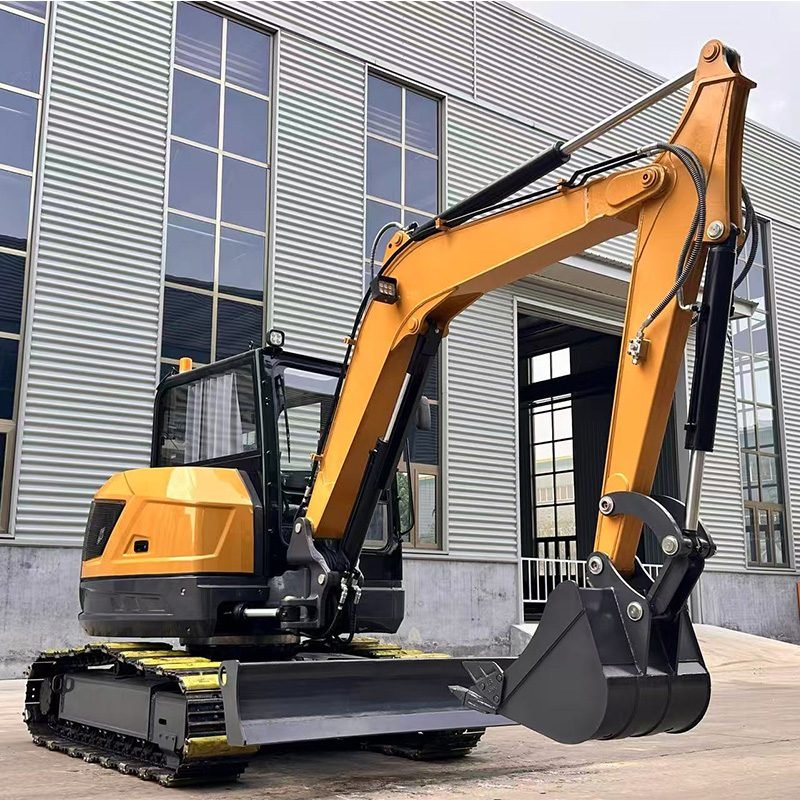

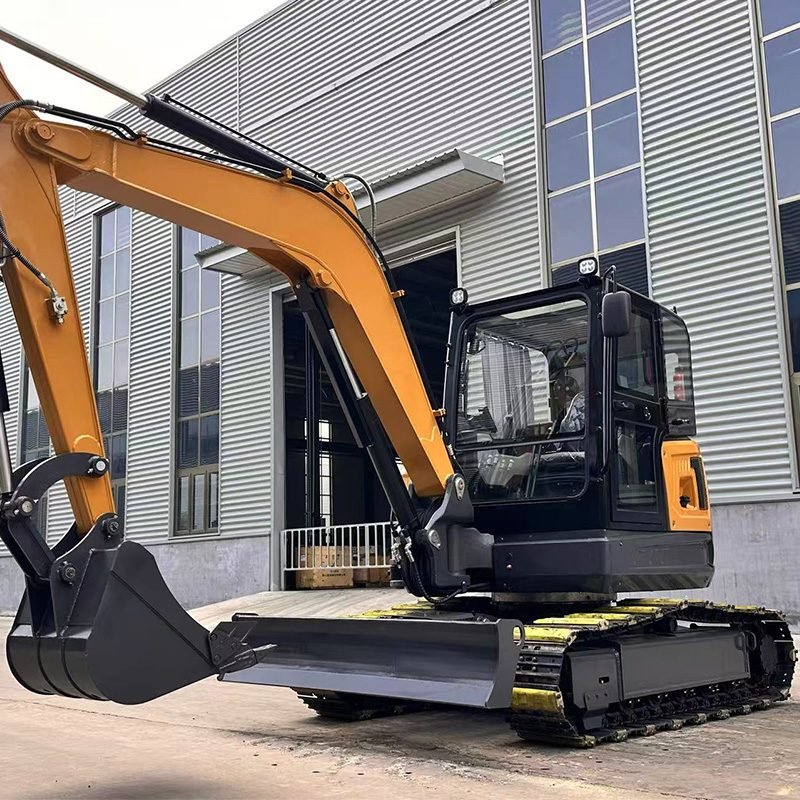

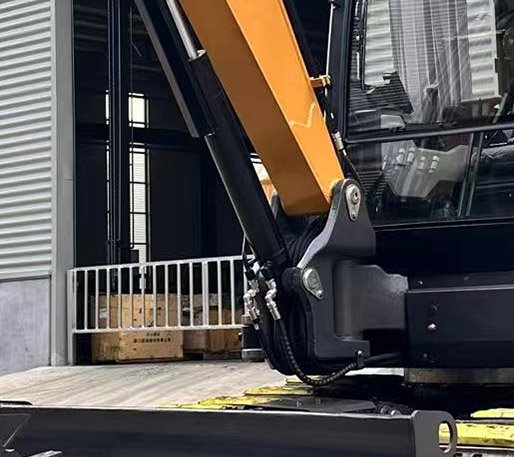

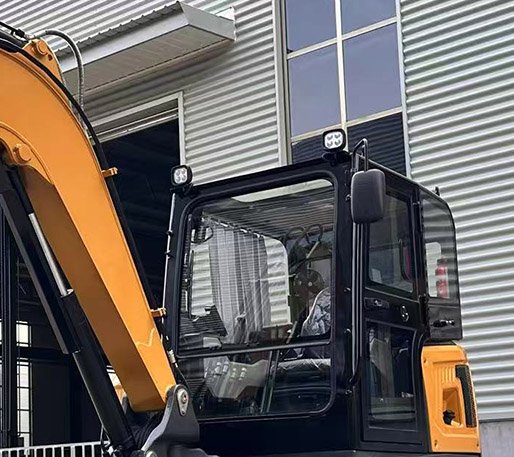

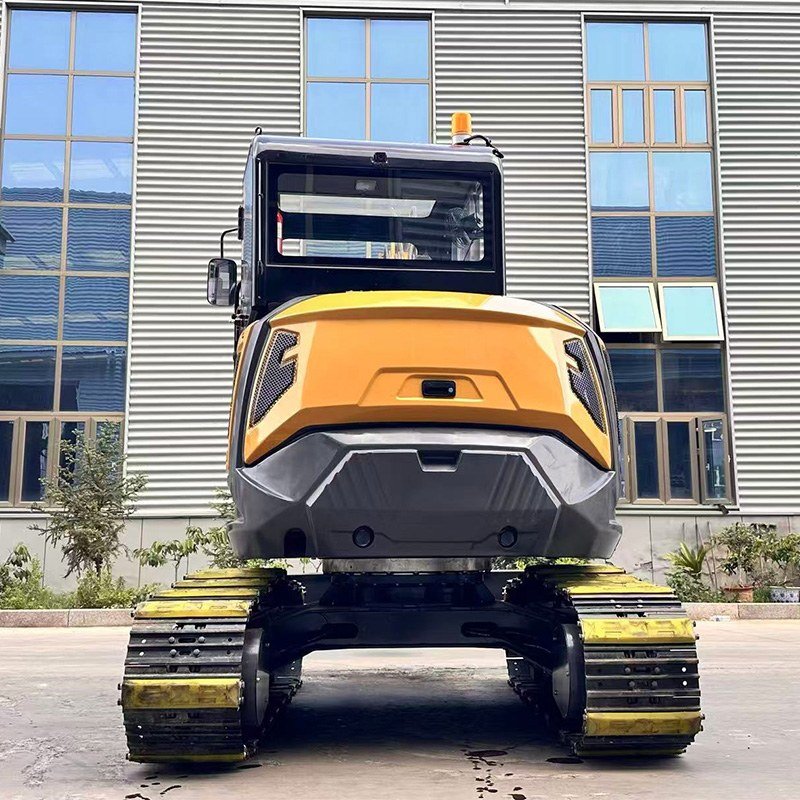

This 6.5-ton mini tracked excavator offers a choice of Yanmar or Kubota engines, providing ample power, low fuel consumption, and compliance with emission standards, ensuring smooth import clearance. With a 0.23 cubic meter bucket capacity and a fully hydraulic pilot-operated system, it boasts rapid movement and powerful loading, making it ideal for trenching, land leveling, and material stacking. Standard features include 400mm wide steel tracks that are wear-resistant and puncture-resistant. The boom can swing 45°/55° to the left and right, allowing for trenching close to walls without frequent machine movement. The travel system is equipped with high and low speed motors: a low speed of 2.2km/h for precise operations and a high speed of 4.2km/h for rapid site relocation. The rear turning radius is only 1180mm, and with the optional telescopic chassis (width adjustable), it can access narrower alleyways or courtyards. The cab and air conditioning are optional; recommended for tropical or cold regions for greater comfort. LED work lights are standard throughout the machine, ensuring safety during nighttime work. Maintenance is straightforward; checking the engine hood, filters, and oil levels is easy, and routine maintenance can be done without a professional mechanic. We offer a one-year warranty on free parts replacement and lifetime technical support—contact us anytime via WhatsApp or email.
| Product details | ||
 |  |  |

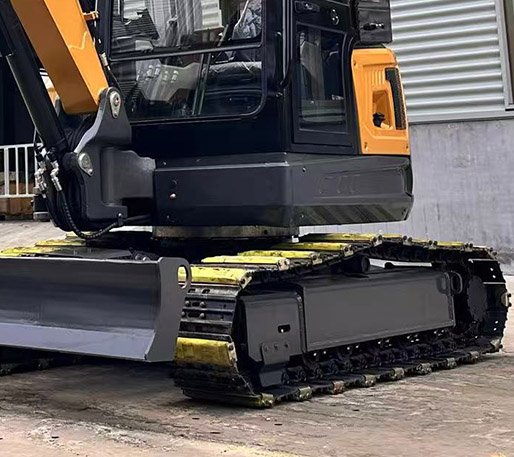

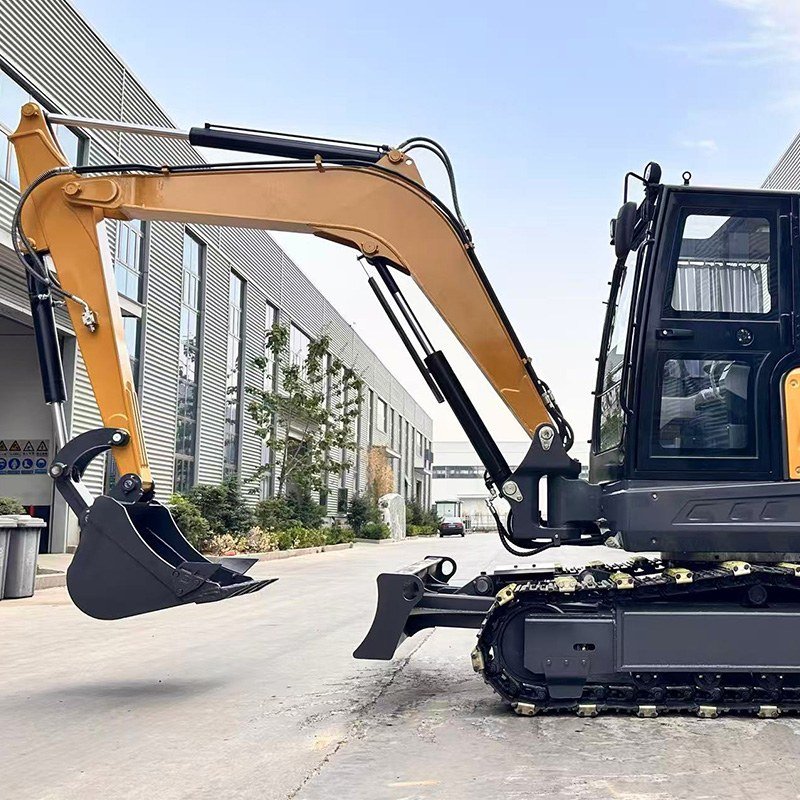

| EPA engine Original EPA engine,Kubota/Yanmar brands areoptional, environmentalprotection and more durable. | Versatile Tracks standard with steeltracksalong with an option forrubbertracks, allowing adapt-abilityto a wide range ofworkenvironments. | Hydraulic piloto perating system High precision, fast response,with long service life. |
 |  |  |

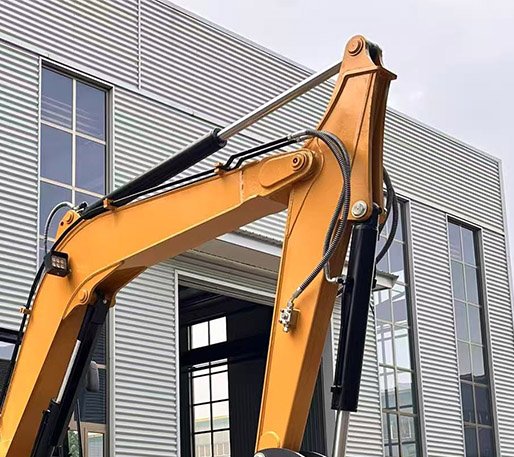

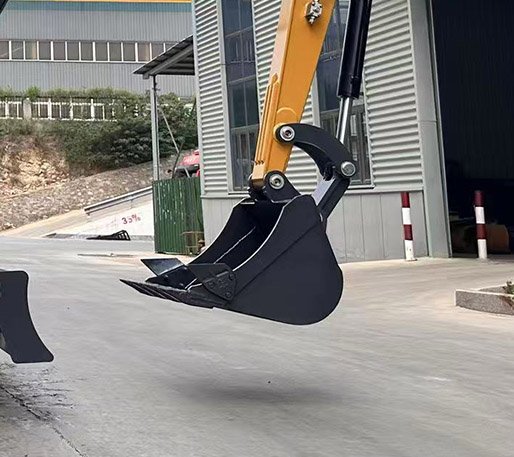

| Hydraulic Cylinder Well sealed and long life. | Thikcened bucket | Shut-off valve |
 |  |  |

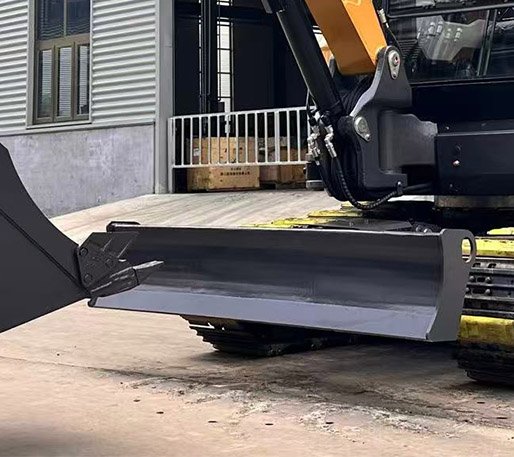

| LED lighting | Adjustable dozer blade | Customization supported Superior performance to meet diverse needs; simple operation; robust and durable. |
| Tracked Excavator Parameter Table | ||
| Model | 65 | |
| Feature | * Hydraulic control * Yanmar 494 36.3kW * Swing arm; * Cab * Steel tracks * Toolbox | |
| SPECIFICATION | Operation Weight（t） | 6.6ton |
| Engine Brand | Western Horse 494 / Western Horse 498 / Kubota V2607 | |
| Rated Power | 36.3KW/42.4KW/42.5KW | |
| Digging Bucket Capacity（m³）m³ | 0.23 | |
| Bucket Width | 700 | |
| Traveling Motor | High and low speed - Likchuan | |
| Travel Speed（km/h） | 2.2KM/H；4.2KM/H | |
| Swing Motor | Longgong | |
| Swing Speed | 12r/min | |
| Hydraulic system | Complete set: Longgong | |
| Body Swing Radius | 1180 | |
| Body Swing Angel | 360 | |
| Boom Swing Angel(L/R) | 45/55 | |
| Max. Grade Ability | 35 | |
| Fuel Tank（L) | 30L | |
| Hydraulic Oil Tank（L) | 41L | |
| MAIN DIMENSIONS | Overall Length | 5834 |
| Overall Width | 2000 | |
| Overall Height | 2570 | |
| Track Width | 400 | |
| Track Length | 2640 | |
| Body Width | 1780 | |
| WORKING RANGE | Max. Digging Radius（mm） | 6044 |
| Max Digging Depth（mm） | 3506 | |
| Max. Digging Height（mm） | 5157 | |
| Max. Unloading Height（mm） | 3692 | |
| Min. Swing Radius（mm） | 3022 | |
| Max. Digging Depth Of Dozer Blade（mm） | 369 | |
| Max. Lifting Height Of Dozer Blade（mm） | 253 | |
| OPTION | Engine, cab, tracks, telescopic chassis, air conditioning, high and low speed motors. | |
Small-scale construction/foundation excavation: Large bucket capacity, highly efficient for excavating foundations, ground beams, and septic tanks.
Farmland irrigation/drainage ditches: Maximum digging depth of 3.5 meters, sufficient for deep trenching.
Orchards/plantations: Optional telescopic chassis for narrow-lane operations.
Municipal pipelines/emergency repairs: Boom side-swing + small tail swing radius, digging trenches close to walls without damaging surrounding areas.
Gravel quarries/mining support: Wear-resistant steel tracks, optional Yanmar/Kubota high-power versions.
Small-scale demolition/recycling: Can be equipped with a breaker and thumb clamp for demolishing roads and factory interiors.
Rental services: Highly competitive 6.5-ton capacity, customizable configurations to meet different customer needs.
Q1: I've never operated an excavator before, is this one easy to learn?
A: Very easy to learn. Our system uses a hydraulic pilot-operated control handle, with the same operating logic as large excavators, but with less effort and a more linear response. Generally, you can quickly learn to work independently by practicing with our provided operation videos.
Q2: Is routine maintenance complicated?
A: Not complicated. We've specifically simplified the design with a large-angle engine hood, making routine maintenance very simple. We provide lifetime technical support; please contact us anytime if you have any questions.
Q3: Can I install a hydraulic breaker? Can it grab wood?
A: Yes, you can install a hydraulic breaker. We also offer an optional thumb clamp, which, when used with the bucket, can grab branches, rocks, and pipes, making it ideal for landscaping and demolition/recycling. You can order it together with your order if needed.
Q4: How is it shipped? Delivery time?
A:Shipped from the nearest port, securely packaged. Delivery time depends on the destination; detailed shipping plans and tracking information will be provided after you place your order.
Q5: After-sales and warranty policy?
A:We offer a one-year free parts replacement warranty and lifetime technical support to ensure long-term stable operation of the machine.
All the accessories can be bought here. It supports multi-functional operation. Functions such as cabin, air conditioning, rocker arm, track, and telescopic track are available for selection, which can quickly improve work efficiency Use our quick coupler (Quick Coupler) to add accessory tools such as dryers, hydraulic hammers, trailers, 20 cm and 100 cm buckets, rakes, grippers,wood grabbers, etc.
If you need custom-made accessories, you can tell us. We have a professional team to make them and you can use them with confidence
