Kubota engines are fuel-efficient, durable, and meet high emission standards. Features include a large-capacity bucket, rubber tracks, and fully hydraulic control. A comfortable seat with ergonomic design and excellent lumbar support ensures comfortable operation even on long journeys. Easy maintenance includes quick and easy inspections and repairs. LED work lights offer high brightness and low energy consumption, enhancing safety during nighttime operations. A one-year free parts replacement warranty plus lifetime technical support is included.

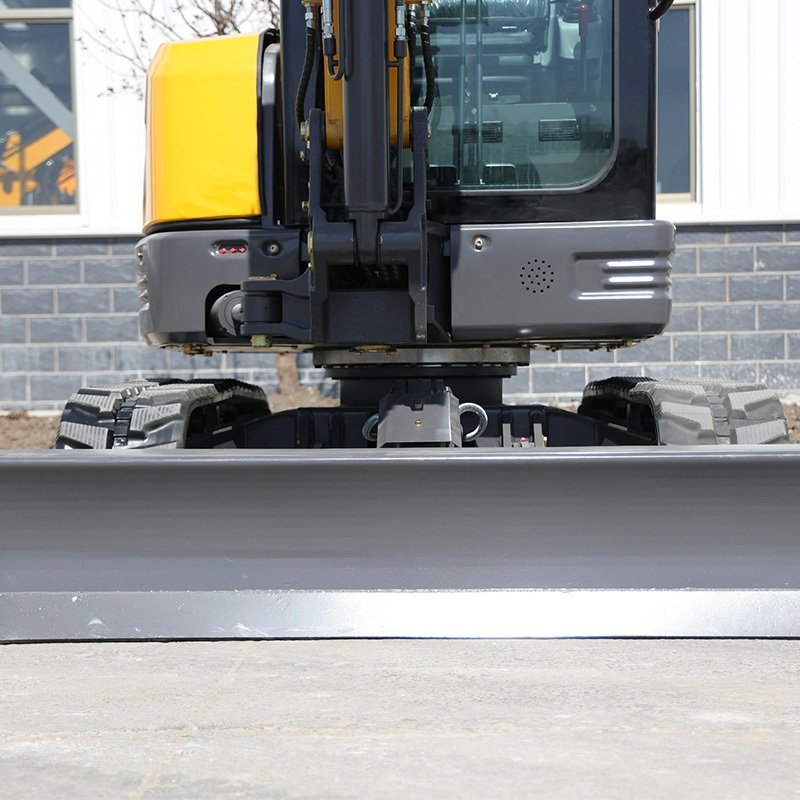

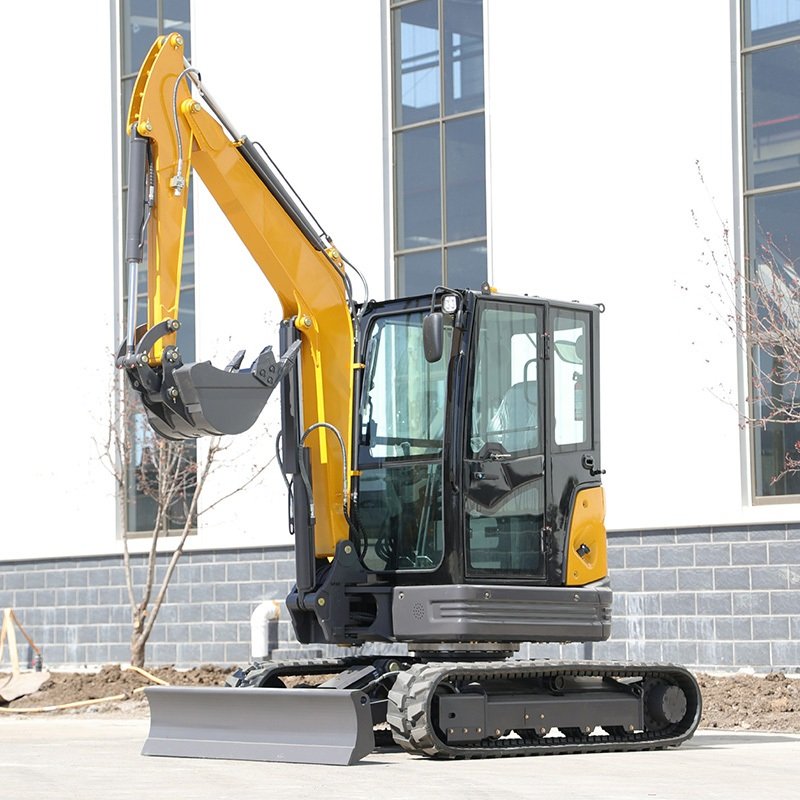

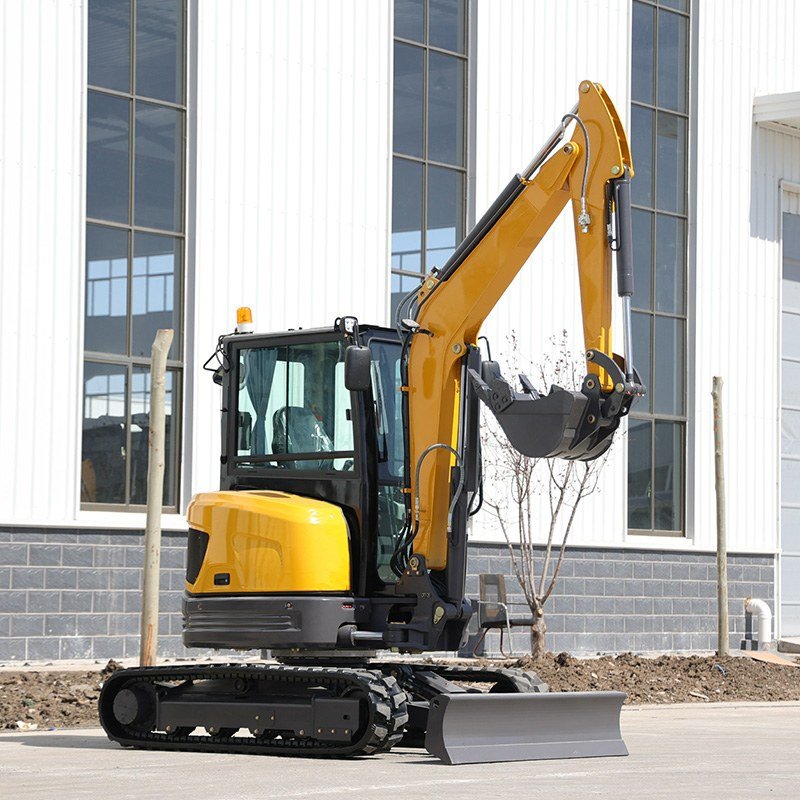

This 4-ton mini tracked excavator is equipped with a Kubota engine, which is fuel-efficient, durable, and meets emission standards, ensuring smooth import clearance. The large-capacity bucket significantly improves digging and loading efficiency. The entire machine is fully hydraulically controlled, providing smooth and precise movements. Combined with the standard bulldozer blade, it can handle trenching, backfilling, and leveling all in one machine. Wide rubber tracks minimize vibration, provide strong grip, and most importantly, prevent damage to road surfaces—no need to worry about damaging paving stones or lawns when working in residential areas, parks, or municipal roads. The ergonomic seat offers excellent lumbar support, reducing fatigue even after a full day's work. The LED work lights are bright and energy-efficient, ensuring safety during late-night work. Routine maintenance is convenient; checking the engine compartment, filters, and oil levels can be done quickly. We offer a one-year warranty on free replacement parts and lifetime technical support—contact us anytime via WhatsApp or email for any questions.
| Product Advantages | |
 |  |

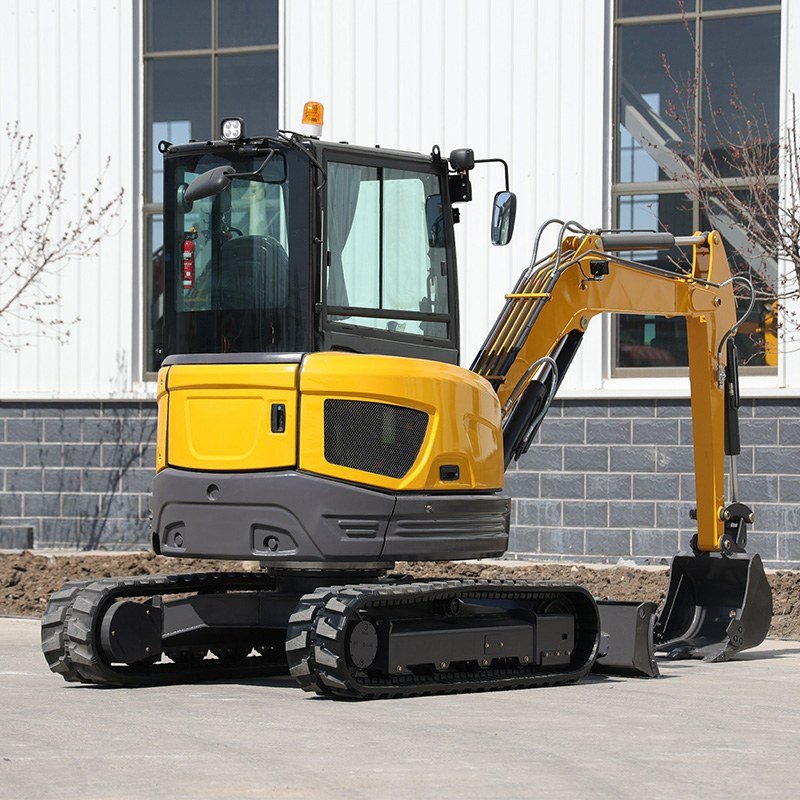

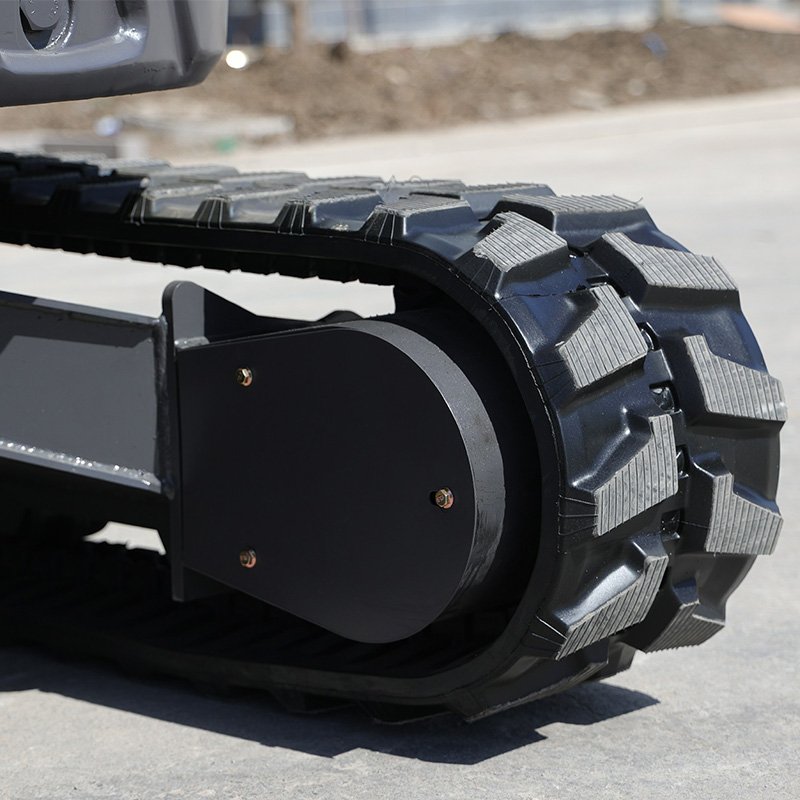

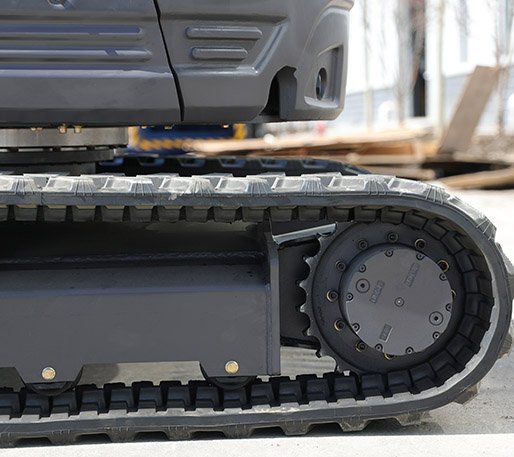

| RUBBER TRACK Light weight, low vibration, strong adhesion, good adaptability, and does not damagethe road surface. | MAINTENANCE AND SERVICING MADE EASY maintenance and inspections quickly and reliably |
 |  |

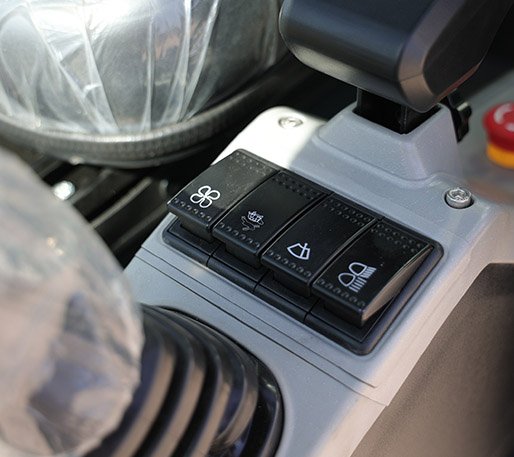

| USE The ergonomic design of the seat, which can provide the driver with good waist andback support, and the driver will not feel tired even after long driving.Flexible and comfortable operation Spacious ergonomically designed, equipped withan auxiliary control lever. | ASCENDANT PERFORMANCE OF COMPLETE APPLIANCE full hydraulic constrel, Configure bulldozer shovel, Sturdy chassis, Can bematched with a variety of accessories |
| Tracked Excavator Parameter Table | ||
| Model | 35U | |
| Feature | * Hydraulic control * Kubota 1703 18.2kW * Swing arm; * Sunshade * Steel tracks * Toolbox | |
| SPECIFICATION | Operation Weight t | 3.8ton |
| Engine Brand | Kubota1703 | |
| Rated Power | 18.2kw | |
| Digging Bucket Capacity(m³) | 0.11 | |
| Bucket Width | 530mm | |
| Traveling Motor | High and low speed - Likchuan | |
| Travel Speed（km/h） | 4.0/2.3 Km/h | |
| Swing Motor | Likchuan | |
| Swing Speed | 12r/min | |
| Hydraulic system | Piston pump / (Complete set: Longgong/Hengli) | |
| Body Swing Radius | 858 | |
| Body Swing Angel | 360 | |
| Boom Swing Angel(L/R) | 68/50 | |
| Max. Grade Ability | 35 | |
| Fuel Tank（L) | 40L | |
| Hydraulic Oil Tank（L) | 41L | |

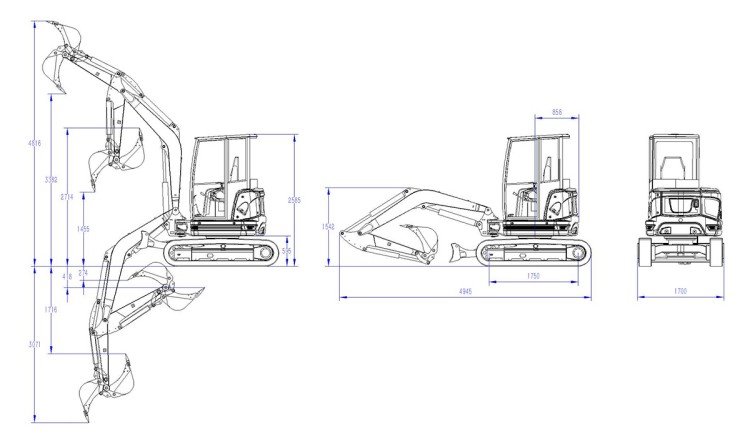

| MAIN DIMENSIONS | Overall Length | 4945 |
| Overall Width | 1700 | |
| Overall Height | 2585 | |
| Track Width | 300 | |
| Track Length | 2286 | |
| Body Width | 1500 | |
| WORKING RANG | Max. Digging Radius（mm） | 5251 |
| Max Digging Depth（mm） | 3071 | |
| Max. Digging Height（mm）mm | 4815 | |
| Max. Unloading Height（mm） | 3382 | |
| Min. Swing Radius（mm） | 2250 | |
| Max. Digging Depth Of Dozer Blade（mm） | 433 | |
| Max. Lifting Height Of Dozer Blade（mm） | 345 | |
| OPTION | Engine, cab, tracks, telescopic chassis, air conditioning, high and low speed motors. | |
Residential: Foundation excavation, septic tank installation, rainwater pipe installation
Municipal pipeline maintenance: Large bucket capacity improves emergency repair efficiency

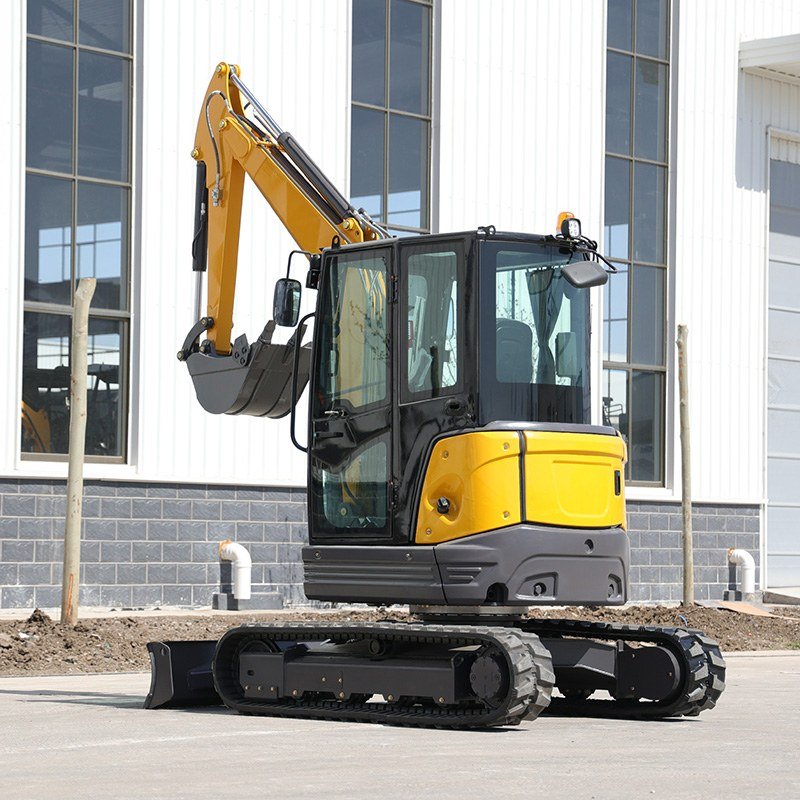

Farmland and orchards: Can enter orchard rows to dig drainage ditches and tree pits
Landscape: Rubber tracks do not damage lawns
Road and drainage maintenance: Standard bulldozer blade, excavation can be directly backfilled and leveled
Minor demolition: Can be equipped with a hydraulic breaker for demolishing roads and small walls
Rental business: Simple operation, anyone can rent; warranty reduces the risk for rental companies
Q1: I've never operated an excavator before, is this one easy to learn?
A: Very easy to learn. Our system uses a hydraulic pilot-operated control handle, with the same operating logic as large excavators, but with less effort and a more linear response. Generally, you can quickly learn to work independently by practicing with our provided operation videos.
Q2: Is routine maintenance complicated?

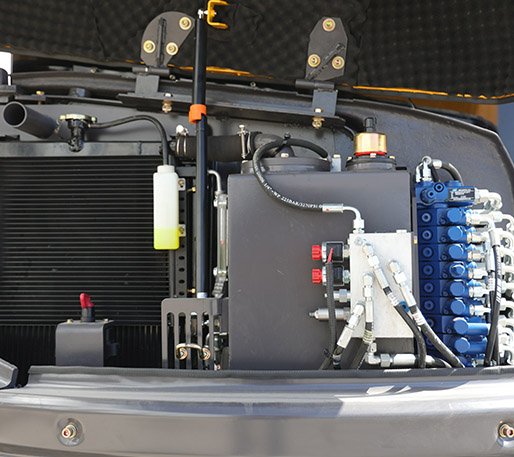

A: Not complicated. We've specifically simplified the design with a large-angle engine hood, making routine maintenance very simple. We provide lifetime technical support; please contact us anytime if you have any questions.
Q3: Can I install a hydraulic breaker? Can it grab wood?
A: Yes, you can install a hydraulic breaker. We also offer an optional thumb clamp, which, when used with the bucket, can grab branches, rocks, and pipes, making it ideal for landscaping and demolition/recycling. You can order it together with your order if needed.
Q4: How is it shipped? Delivery time?
A:Shipped from the nearest port, securely packaged. Delivery time depends on the destination; detailed shipping plans and tracking information will be provided after you place your order.
Q5: After-sales and warranty policy?
A:We offer a one-year free parts replacement warranty and lifetime technical support to ensure long-term stable operation of the machine.
All the accessories can be bought here. It supports multi-functional operation. Functions such as cabin, air conditioning, rocker arm, track, and telescopic track are available for selection, which can quickly improve work efficiency Use our quick coupler (Quick Coupler) to add accessory tools such as dryers, hydraulic hammers, trailers, 20 cm and 100 cm buckets, rakes, grippers,wood grabbers, etc.
If you need custom-made accessories, you can tell us. We have a professional team to make them and you can use them with confidence
