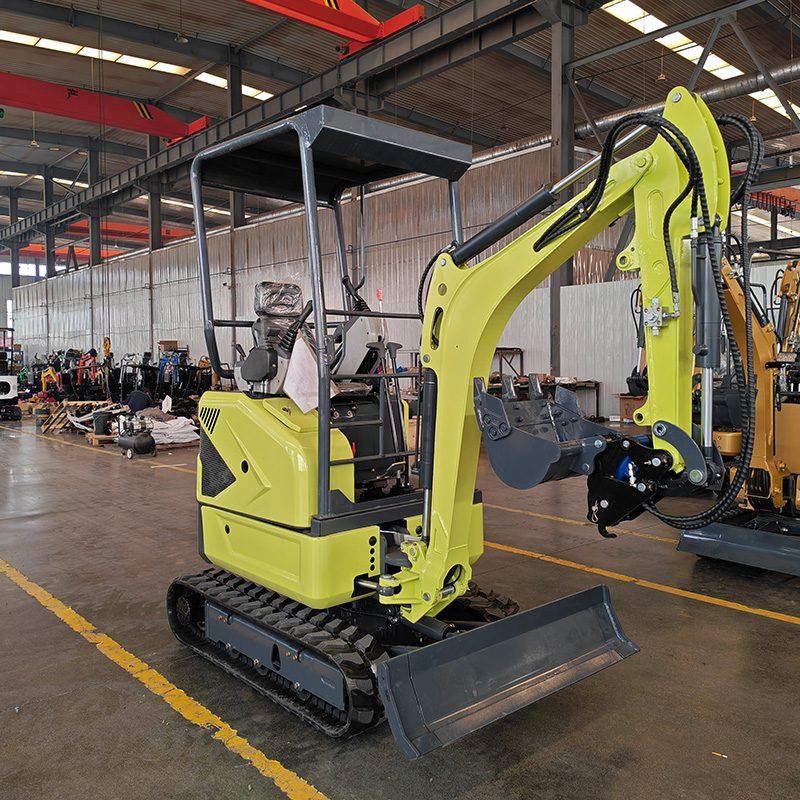

hydraulic mini excavator control system

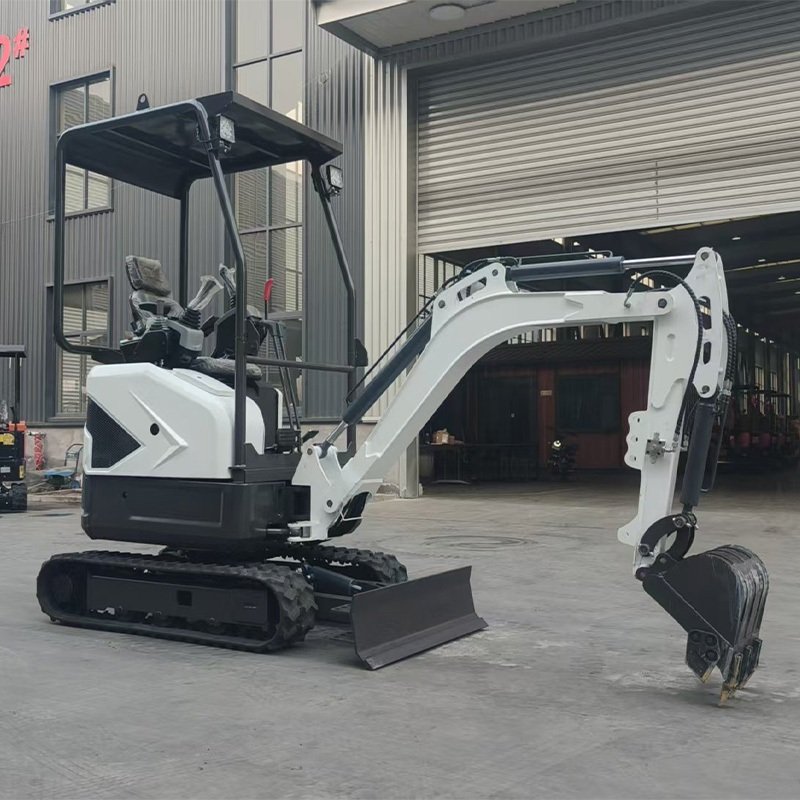

crawler mini excavator working site

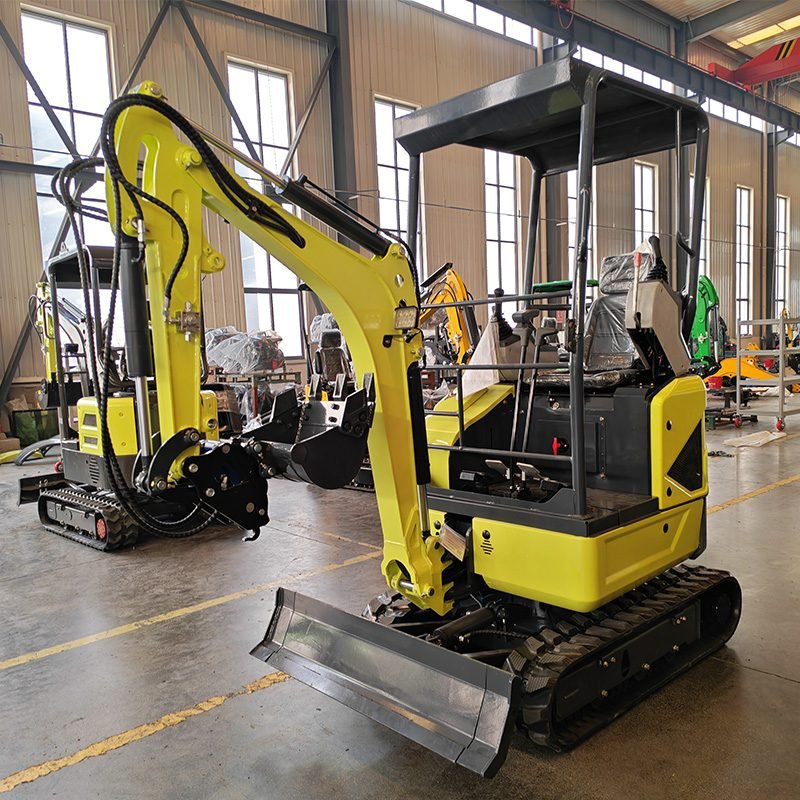

mini excavator reinforced chassis
compact excavator narrow space operation
mini excavator rubber tracks system
Excavator

2 Ton Mini Excavator with Cab

Ultra-compact body, highly maneuverable Reliable power, good fuel economy, and high durability. The slanted boom design allows for precise digging along obstacle edges without frequent machine repositioning.Excellent walking and towing performance, adaptable to complex terrain.Easy to transport


(0) Reviews

Share to:

Product Description

This small, tracked 2-ton excavator comes standard with a 0.04m³ bucket, suitable for operation in confined or narrow spaces. It has a maximum digging depth of 2200mm, capable of excavating trenches 1.8–2.0m deep. The maximum unloading height is 1950mm, allowing for loading with small dump trucks or tipper trucks. The bulldozer blade has soil-cutting capabilities and can be used for backfilling and shallow leveling. The hydraulic system uses a gear pump with rated flow, balancing operating speed and precision. The 19L fuel tank can support 6–8 hours of continuous operation under normal conditions. The 230mm wide tracks have low ground pressure, providing good traversal on soft ground. This excavator model is suitable for construction scenarios with limited space but requiring complete excavation, backfilling, and leveling functions.


TE-20-PRO海报

尺寸图

用途修改后(1)

可选择遮阳棚或驾驶室




Product Data
Dimensions (mm)
 Overall length3350
 Ground length (transportation)1510
 Overall height (to top of boom)1290
 Overall width1020/1270
 Overall height (to top of cab)3330
 Counterweight ground clearance420
 Minimum ground clearance150
 Tail swing radius650
 Wheelbase1180
 Standard track shoe width230
 Bucket width430
RS Boom right swing49.7°
LS Boom left swing62.7°

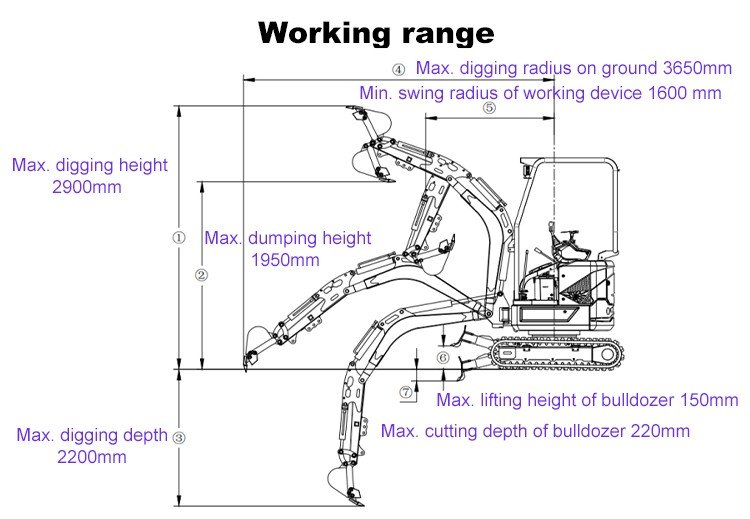

Working range (mm)
Max. digging height2900
Max. dumping height1950
Max. digging depth2200
Max. digging radius on ground3650
 Min. swing radius of working device1600
 Max. lifting height of bulldozer150
 Max. cutting depth of bulldozer220


Machine Parameters
Dimensions(L*W*H)3305*1270*3330mmBucket capacity0.04m³
Engine ModelKUBOTA D902Fuel tank capacity19L
EngineTypeThree-cylinder direct injectionEngine oil volume3.7L
Displacement0.898LHydraulic oil tank capacity20L
Rated Power11.8/2300(kw/rpm)Max.digging height2900mm
Travel speed2.2-4.3km/hMax.dumping height1950mm

Traction force

18kN
Max.digging depth
2200mm
Gradability30°Max.digging radius on ground3650mm
Brake typeMechanical brakeMax.lifting height of bulldozer150mm
Machine weight2000kgMax.cutting depth of bulldozer
220mm


Application Scenarios

  • Interior Renovation: Basement construction; can pass through standard doorways (width <1.2m); low noise, low emissions.

  • Landscaping: Lightly compact lawns; can be used with a slant boom for digging tree pits and laying pipes.

  • Agricultural Irrigation: Digging drainage ditches and small reservoirs; strong climbing ability.

  • Municipal Maintenance: Emergency repairs of water, electricity, and gas pipelines; does not damage surrounding roads.

  • Orchards: Nurseries; narrow body allows operation between fruit trees with narrow row spacing.

  • Small-scale Demolition: Equipped with a hydraulic breaker (hydraulic flow rate needs confirmation); demolishes walls, ground surfaces, and small foundations.

  • Tunnels: Utility tunnels; small tail-end turning radius prevents collision with side walls.


库高产品_0004_04c759b2f70a9fd94d42443182c872a9库高产品_0002_74fb3a78fb0cd0a420415c9f10de5696库高产品_0005_fb0172d94e8f7f46be63decbdf769433


FAQ

Q1: Is this excavator difficult to operate? Can a beginner operate it?

A: Very simple. The machine uses hydraulic pilot control; all movements can be controlled with just two levers, consistent with the logic of a standard excavator. We also provide detailed manuals, video tutorials, and remote guidance, allowing even inexperienced operators to quickly get started.


Q2: Is maintenance complicated?

A:Not complicated. The engine hood is easy to open, key components are durable, the manual provides clear guidance, and we offer telephone/email/video technical support.


Q3: How is it shipped? Delivery time?

A:Shipped from the nearest port, securely packaged. Delivery time depends on the destination; detailed shipping plans and tracking information are provided after ordering.


Q4: After-sales and warranty policy?

A:We offer a one-year free replacement parts warranty + lifetime technical support to ensure long-term stable operation of the machine.


Q5: Is this machine suitable for rental?
A: Absolutely. 2-ton models are popular in the rental market; they are easy to transport, adaptable to various scenarios, and have a short payback period.


Excavator accessories

All the accessories can be bought here. It supports multi-functional operation. Functions such as cabin, air conditioning, rocker arm, track, and telescopic track are available for selection, which can quickly improve work efficiency Use our quick coupler (Quick Coupler) to add accessory tools such as dryers, hydraulic hammers, trailers, 20 cm and 100 cm buckets, rakes, grippers,wood grabbers, etc.

If you need custom-made accessories, you can tell us. We have a professional team to make them and you can use them with confidence
