Changchai engine, economical and reliable; boom slewing, allowing for close-to-wall operation; hydraulic system, agile movements, large bucket capacity, and strong terrain adaptability; small tail-end turning radius, good maneuverability in narrow spaces.

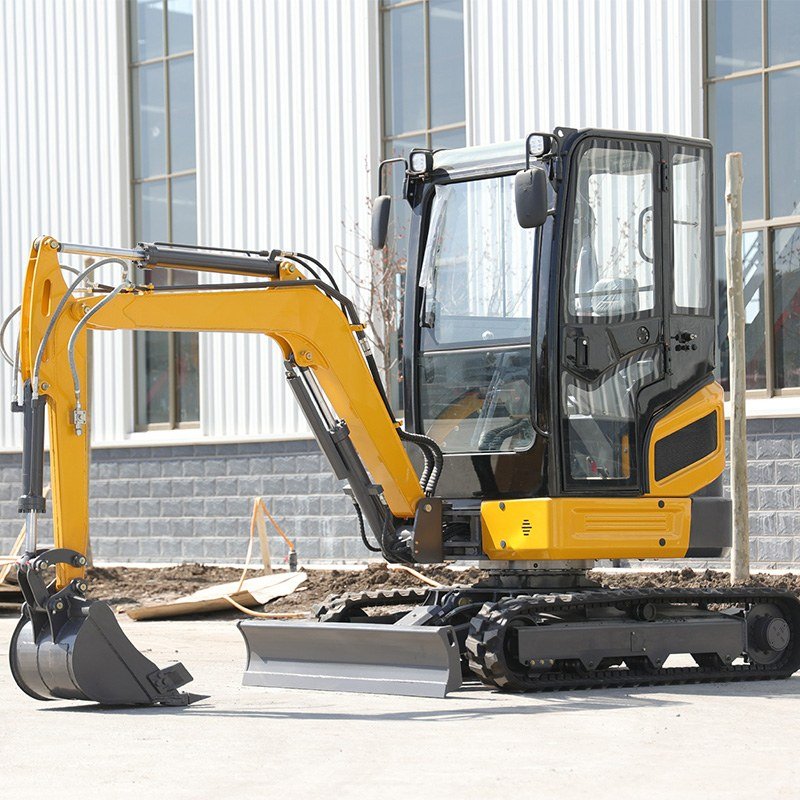

This 2.8-ton mini tracked excavator features a hydraulic system using piston pumps and load-sensitive multi-way valves from Lonking or Hengli, enabling on-demand oil supply for precise and energy-efficient operation. The boom can rotate left and right, allowing for digging along walls or obstacle edges without moving the entire machine. Combined with a tail swing radius of only 883mm, it performs flexibly in confined spaces. The travel system is equipped with Lexykawa high/low speed motors, providing travel speeds of 3.1/2 km/h and a climbing ability of up to 35°. It has a maximum digging radius of 4350mm, a maximum unloading height of 3467mm, and a dozer blade that can lift 191mm and cut 293mm, accommodating both backfilling and leveling functions. With a 16L fuel tank and a 26L hydraulic oil tank, it is suitable for continuous operations in small to medium-sized earthmoving, municipal, and agricultural fields.
ergonomically designed seat
The ergonomic design of the seat, which can provide the driver with good waist and back support, and the driver will not feel tired even after long driving. Flexible and comfortable operation Spacious ergonomically designed
Diversified functions suitable for multiple accessories
The bulldozer has been widened and thickened,making it durable and long-lasting.
Hydraulically piloted operation with safety lock
The design of the pilot operating handle conforms to the natural gripping posture of the human hand, making the operation easy and precise,operators can achieve smooth and precise grading control
Choose according to the requirements

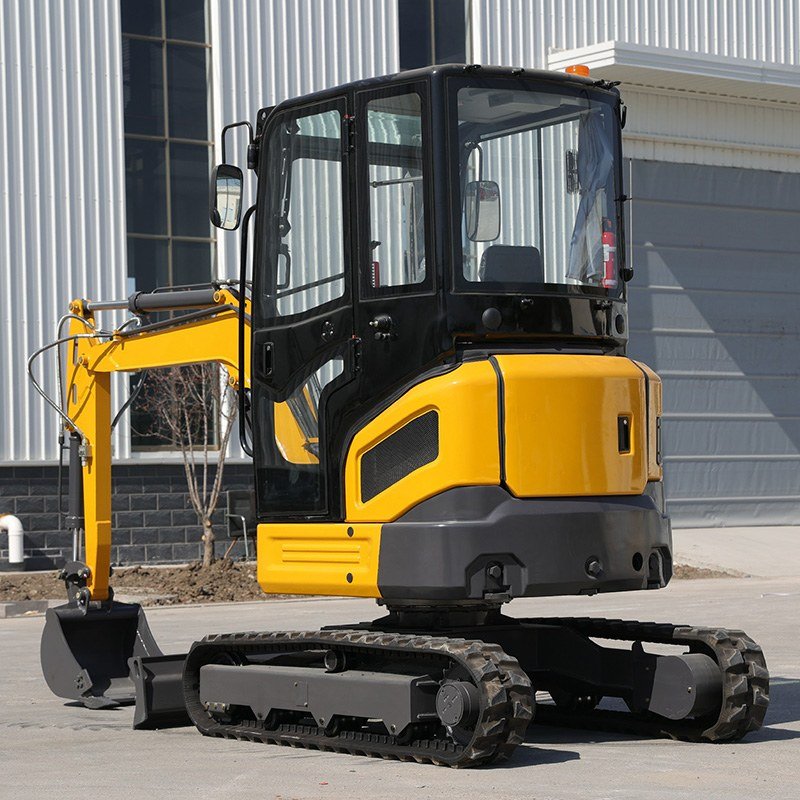

The cab has good sealing performance and can effectively isolate the external noise.You can also freely choose a sunshade canopy or a tent.
| Mechanical tracked excavator parameter table | ||
| Model | 26u | |
| Feature | Hydraulic control | |
| SPECIFICATION SPECIFICATION | Operation Weight(t) | 2.5ton |
| Engine Brand | Changchai 390 | |
| Rated Power | 20kw | |
| Digging Bucket Capacity(m³) | 0.075 | |
| Bucket Width | 500mm | |
| Traveling Motor | High and low speed - Likchuan | |
| Travel Speed（km/h） | 3.1/2 km/h | |
| Swing Motor | Rikkuri | |
| Swing Speed | 12r/min | |
| Hydraulic system | Piston pump/load-bearing multi-way valve (complete set: Longgong/Hengli) | |
| Body Swing Radius | 883 | |
| Body Swing Angel | 360 | |
| Boom Swing Angel(L/R) | 55/45 | |
| Max. Grade Ability | 35 | |
| Fuel Tank（L) | 16L | |
| Hydraulic Oil Tank（L) | 26L | |

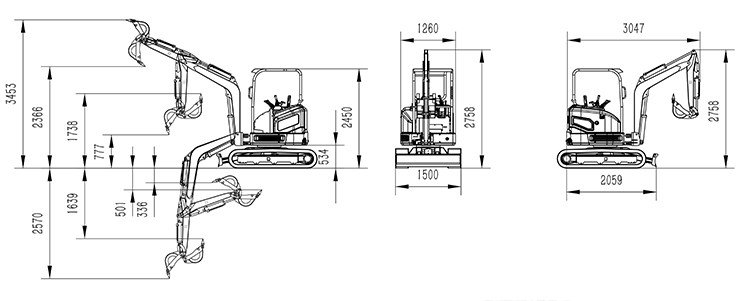

| MAIN DIMENSIONS | Overall Length | 4185 |
| Overall Width | 1500 | |
| Overall Height | 2280/2450 | |
| Track Width | 250 | |
| Track Length | 2044 | |
| Body Width | 1260 | |
| WORKING RANGE | Max. Digging Radius(mm) | 4350 |
| Max Digging Depth(mm) | 2745 | |
| Max. Digging Height(mm) | 3457 | |
| Max. Unloading Height（mm） | 2366 | |
| Min. Swing Radius（mm） | 2159 | |
| Max. Digging Depth Of Dozer Blade（mm） | 293 | |
| Max. Lifting Height Of Dozer Blade（mm） | 191 | |
| OPTION | Engine, cab, tracks, telescopic chassis, air conditioning, high and low speed motors. | |
Rural and Farmland Irrigation: Drainage ditch digging, small pond construction
Municipal Maintenance: Suitable for sidewalk and residential area pipe trench excavation
Small-scale Earthwork: Foundation excavation, site leveling
Landscaping: Tree pit digging, land preparation, pipe laying
Light Demolition: Partial demolition of concrete pavements and walls with a hydraulic breaker attached
Q1: Is this excavator difficult to operate? Can a beginner operate it?
A: It's very simple. We also provide detailed manuals, video tutorials, and remote guidance, so even inexperienced people can quickly get started.
Q2: What is the use of the 55°/45° boom swing angle?
A: Without moving the machine body, the boom can swing 55° to the left and 45° to the right, suitable for digging close to walls, working along the edge of ditches, or adjusting the digging position in narrow spaces. Compared to models without swing, it reduces the number of times the machine needs to move, improving efficiency.
Q3: Is a bucket capacity of 0.075m³ considered large?
A: For 2.5-ton excavators, the standard bucket capacity is usually between 0.06-0.07m³. 0.075m³ is considered a relatively large design, allowing for greater digging capacity per bucket, suitable for working with loose materials (such as soil and gravel).
Q4: What is the use of the small tail swing radius?
A: The small tail-end turning radius means that it is less likely to collide with the tail end when turning in narrow spaces (such as pipe trenches or between two walls), and the boom rotation further reduces space requirements.
Q5: Is maintenance convenient?
A: Relatively convenient. The engine hood can be fully lifted, exposing most components; hydraulic lines are centrally located for easy access.
Q6: How is it shipped? Delivery time?
A: Shipped from the nearest port, securely packaged. Delivery time depends on the destination; detailed shipping plans and tracking information will be provided after ordering.
All the accessories can be bought here. It supports multi-functional operation. Functions such as cabin, air conditioning, rocker arm, track, and telescopic track are available for selection, which can quickly improve work efficiency Use our quick coupler (Quick Coupler) to add accessory tools such as dryers, hydraulic hammers, trailers, 20 cm and 100 cm buckets, rakes, grippers,wood grabbers, etc.
If you need custom-made accessories, you can tell us. We have a professional team to make them and you can use them with confidence
