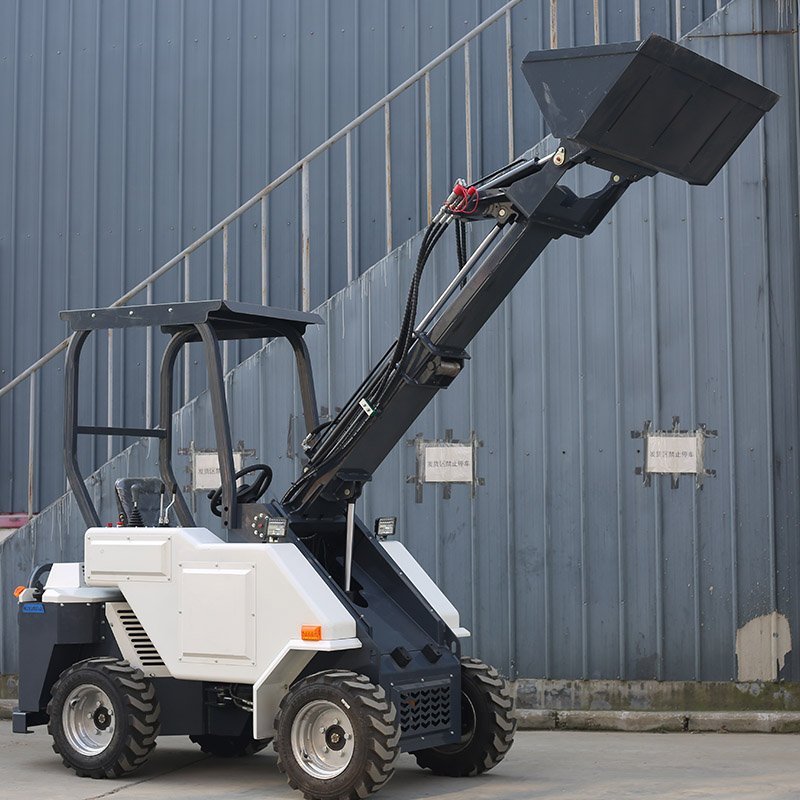

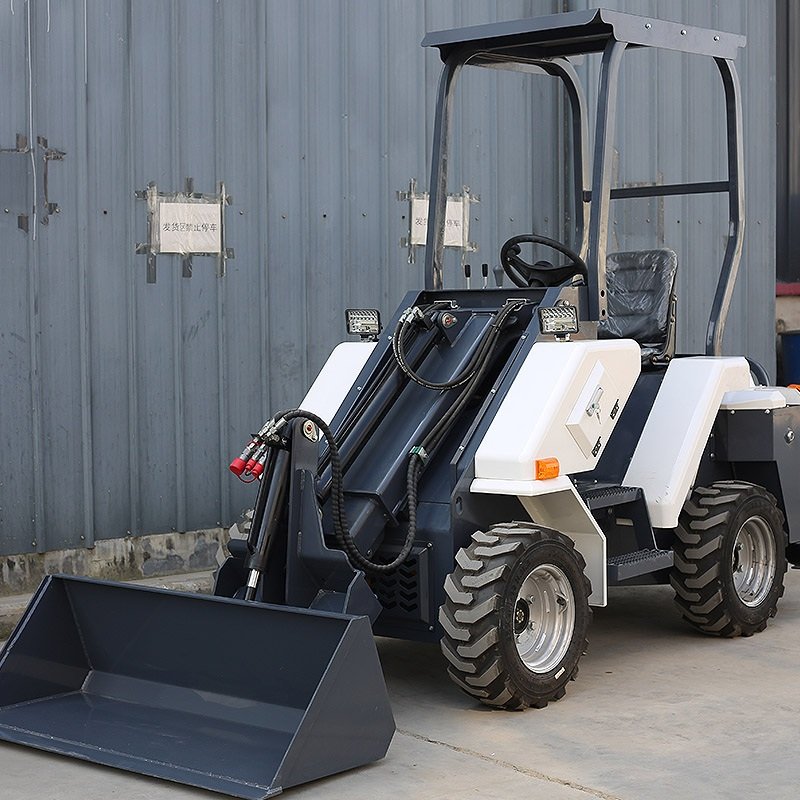

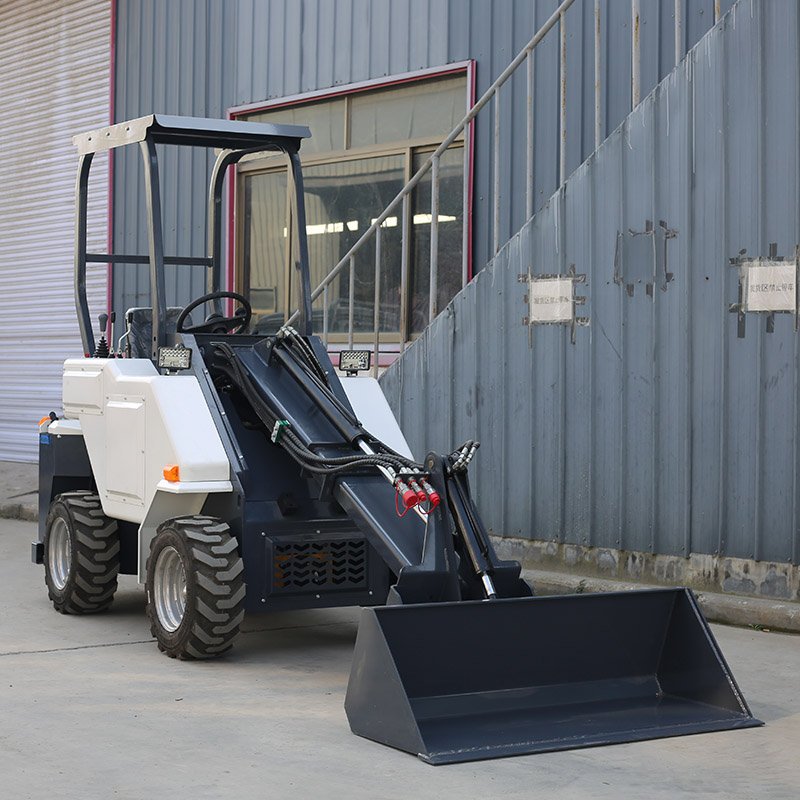

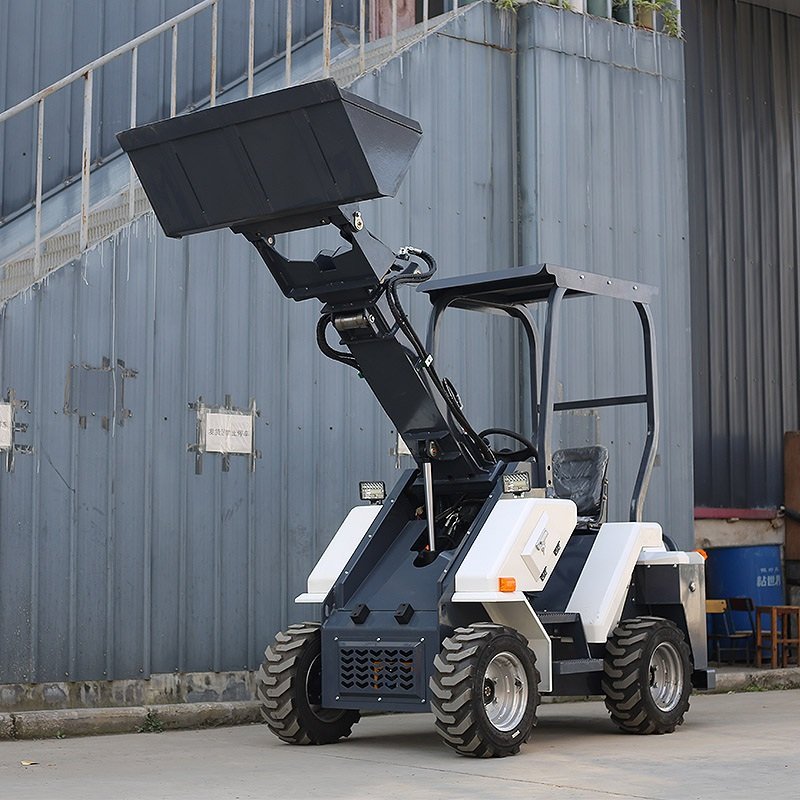

The Telescopic Arm Loader is designed for heavy-duty material handling and construction operations. Its reinforced boom structure significantly improves load capacity and working strength, making it suitable for demanding job site conditions.
Multiple engine options available; fuel-efficient and high-performance
Large capacity bucket
Four-wheel drive: fully hydraulic steering, travel speed 12km/h, highly maneuverable
Compact size: suitable for various working conditions
Tire specifications: good passability

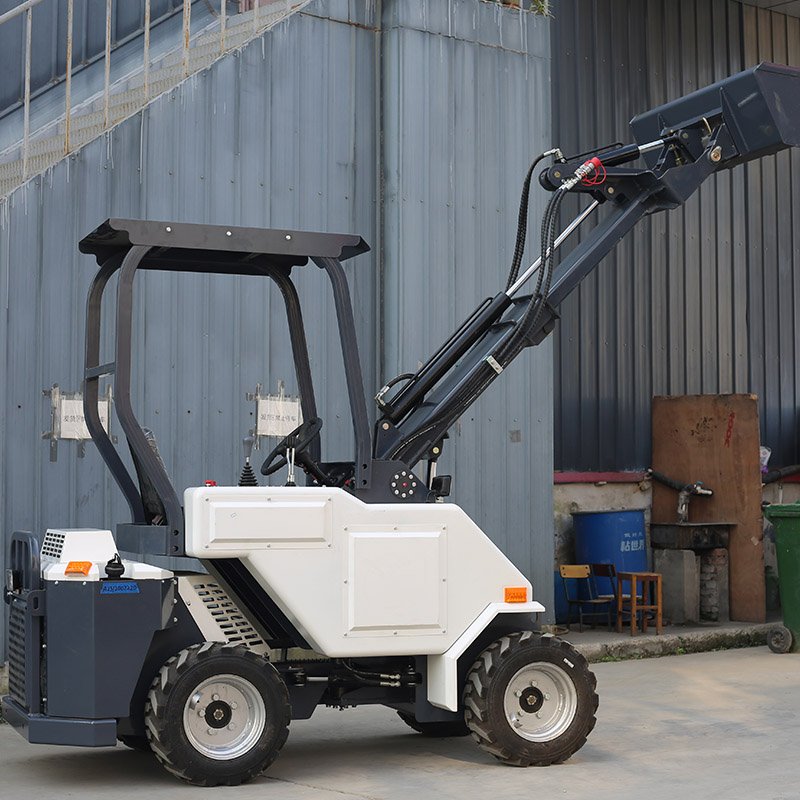

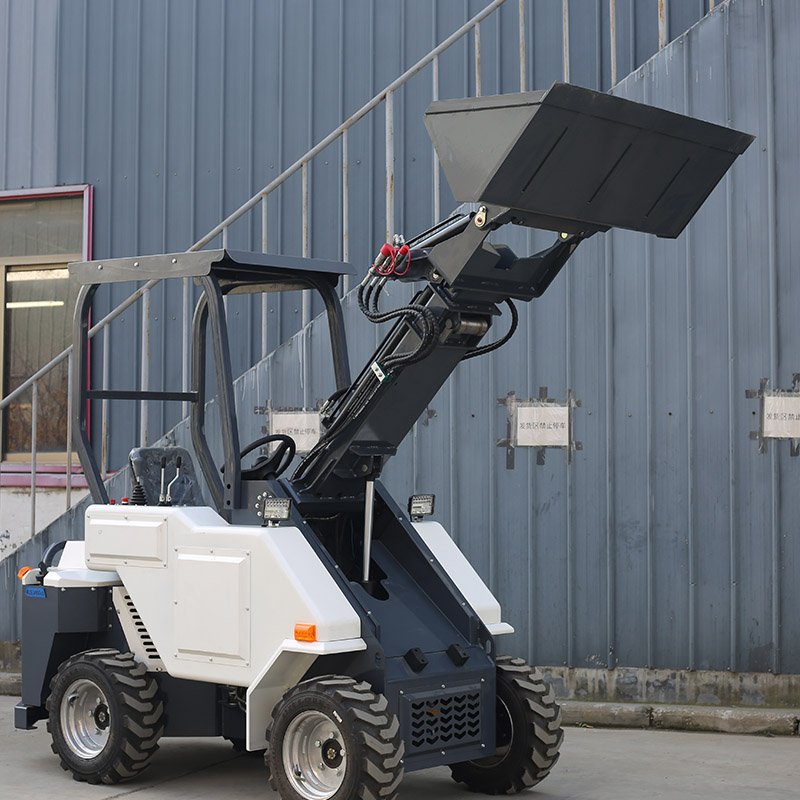

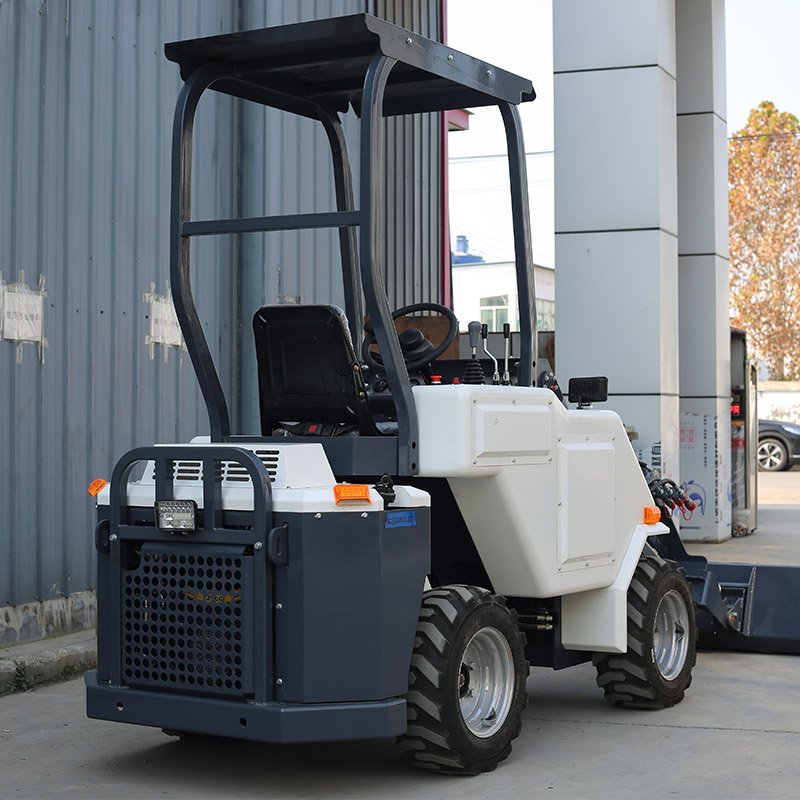

The H-180 loader is a compact wheel loader equipped with a RATO, Briggs & Stratton (B&S), or Kubota engine (23-25HP), offering reliable power and excellent fuel economy. It features full hydraulic steering and four-wheel drive, a top speed of 12km/h, and is highly maneuverable with easy steering. The bucket capacity is 0.3m³, the bucket width is 1000mm, the maximum load capacity is 800kg, the standard load capacity is 500kg, and the working weight is 2000kg. The maximum lifting height is 3350mm, and the unloading height is 2000mm, resulting in high loading and unloading efficiency. Its compact dimensions (3380×1240×2250mm) and 23×8.5-12 tires provide good maneuverability, making it suitable for space-constrained environments such as farms, warehouses, and construction sites. The robust structure facilitates maintenance, supports quick attachment changes, and offers versatility.
We support full customization:
Engine: RATO / Briggs & Stratton (B&S) / Kubota (optional)
Attachments: Bucket, grapple, breaker, sweeper, snowplow, forklift, etc.
Appearance: Machine color and logo can be customized according to customer requirements
Others: Lighting system, seat type, control panel, etc.
OEM/ODM supported, minimum order quantity is 1 unit.
| Product details | |
 |  |

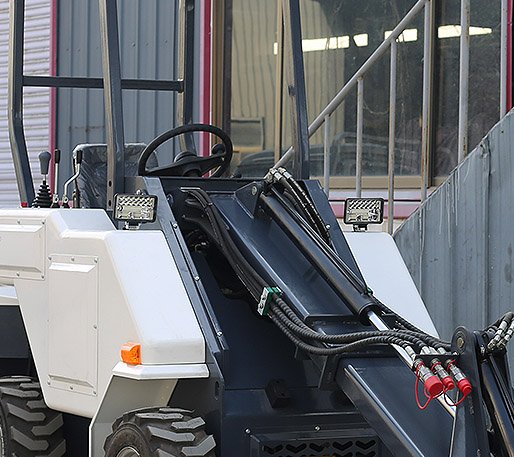

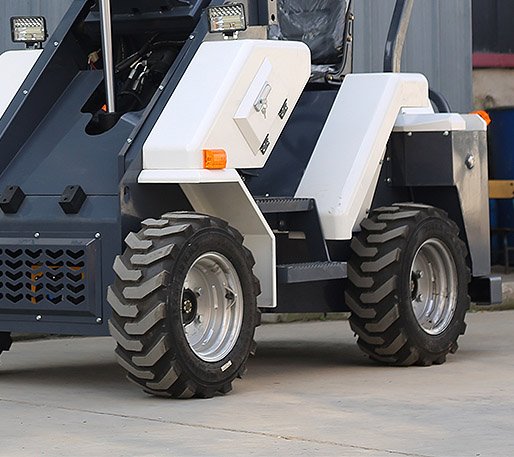

| Thickening the big arm greatly enhances the load capacity | Thickened wear-resistant tiresare non-slip and durable, withlong service life. |
 |  |

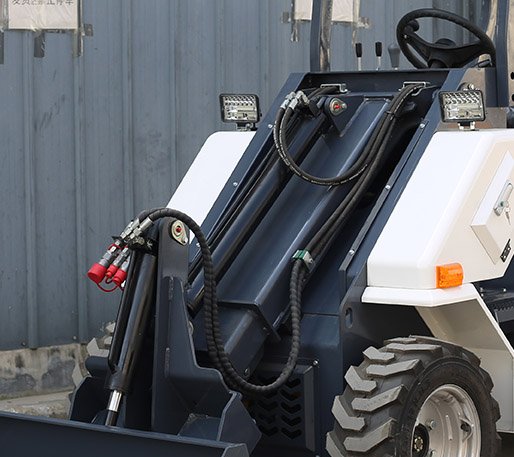

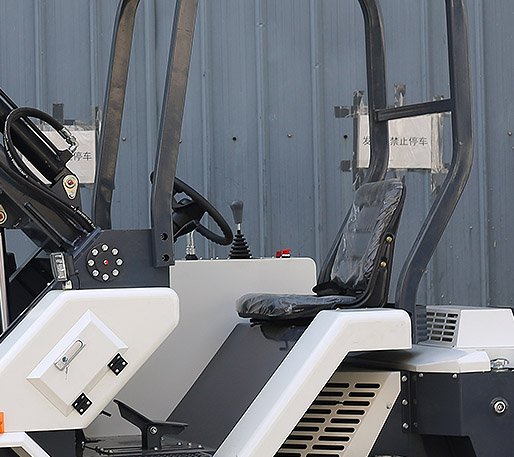

| LED lighting lamp, wide illumination range and high brightness | The precise operation panelissimple in design, clear at aglance and easy to operate |
Agriculture: Feed handling, manure cleaning, and silage loading and unloading at farms, ranches, and barns.
Construction Sites: Sand, gravel, cement, and brick handling; site clearing.
Warehouses and Logistics: Cargo loading and unloading, material handling, and stacking operations.
Municipal and Property Management: Street sweeping, snow removal, garbage collection, and landscaping maintenance.
Landscaping: Earthwork handling, sapling transplantation, and ground leveling.
| Machine Parameters | ||||
| Overall dimensions(mm) | 3380*1240*2250 | Working weight (kg) | 2000 | |
| Maximum loading weight | 800KG | Standard loading capacity | 500KG | |
| Engine Model | RATO/B&S/Kubota | Power | 23/23/25HP | |
| Bucket capacity | 0.3m³ | Tire model | 23*8.5-12 | |
| Driving | 4 wheel drive | Travel speed | 12km/h | |
| Max lifting height | 3350mm | Max Dumping Height | 2000mm | |
| Bucket width | 1000mm | Max.Torque | 71.5 | |
| Steering type | All hydraulic steering | Rated fuel consumption | 240g/kw-h | |
Q1: Do you support customized colors and logos?
Yes. Machine colors and logos can be customized according to customer requirements.
Q2: Do you support changing attachments?
Yes. Buckets, grapples, breakers, sweepers, etc., can be quickly changed, making it a multi-purpose machine.
Q3: What is the minimum order quantity (MOQ)?
Minimum order: 1 unit. Bulk purchases offer better pricing.
Q4: What about after-sales service?
We provide after-sales support for the entire machine and major components. We can provide remote maintenance guidance and stock key vulnerable parts to ensure the equipment operates normally.
Q5: How is it shipped? Delivery time?
Shipped from the nearest port, securely packaged. Delivery time depends on the destination. Detailed shipping plans and tracking information will be provided after ordering.
