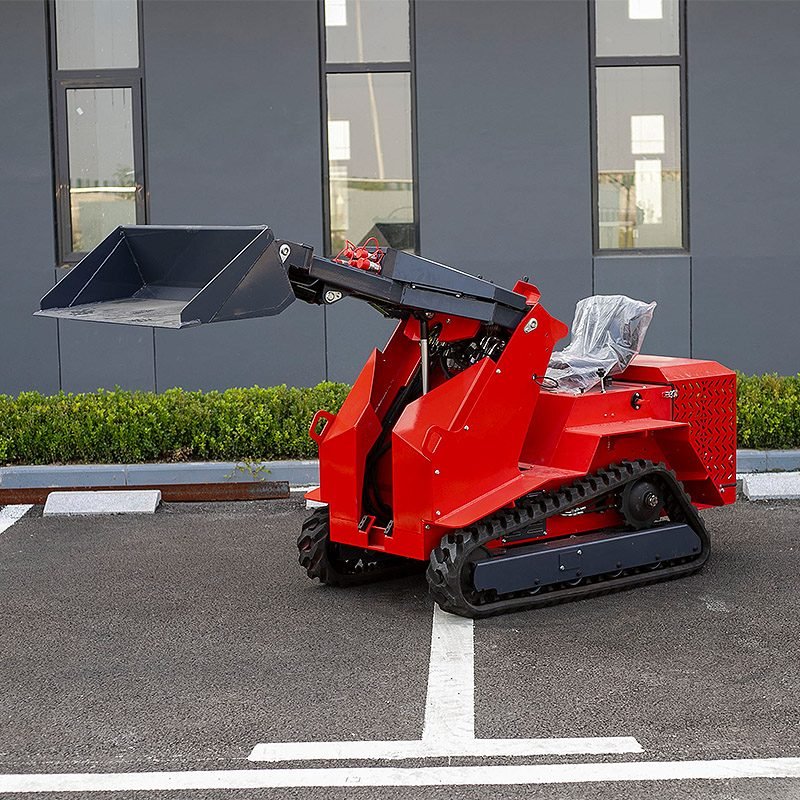

The Mini Skid Steer Track Loader is built for efficient material handling and construction work in confined spaces. Its compact size allows flexible movement in workshops, warehouses, roads, docks, ship decks, and urban infrastructure projects.
Multiple power options to suit various working conditions
Strong load capacity, compact and flexible, high passability
Easy to operate, ergonomic seat
Wheeled/tracked optional
High-strength steel body, wear-resistant and impact-resistant, extending service life
We support flexible customization based on customer needs, including but not limited to: engine brand (KOPE/RUNTONG/BILTO), bucket attachments (such as grapples, breakers, sweepers, etc.), body color, lighting system, seat type, and wooden crate packaging size compatibility. Adding attachments will require corresponding adjustments to the overall dimensions; we can provide customized packaging solutions. Minimum order quantities are flexible, and OEM/ODM are supported. Customers are welcome to provide specific usage scenarios, and we will match the most suitable configuration for you.
It is especially suitable for operations in narrow places such as urban infrastructure, roads or construction sites, workshops, warehouses, docks, ship decks and even cabins.
Farms/Ranches: Cleaning livestock sheds, transporting feed, shoveling and transporting fertilizer
Construction Sites: Moving bricks and stones, clearing waste, foundation excavation
Municipal/Road Maintenance: Snow removal, road repair, landscaping

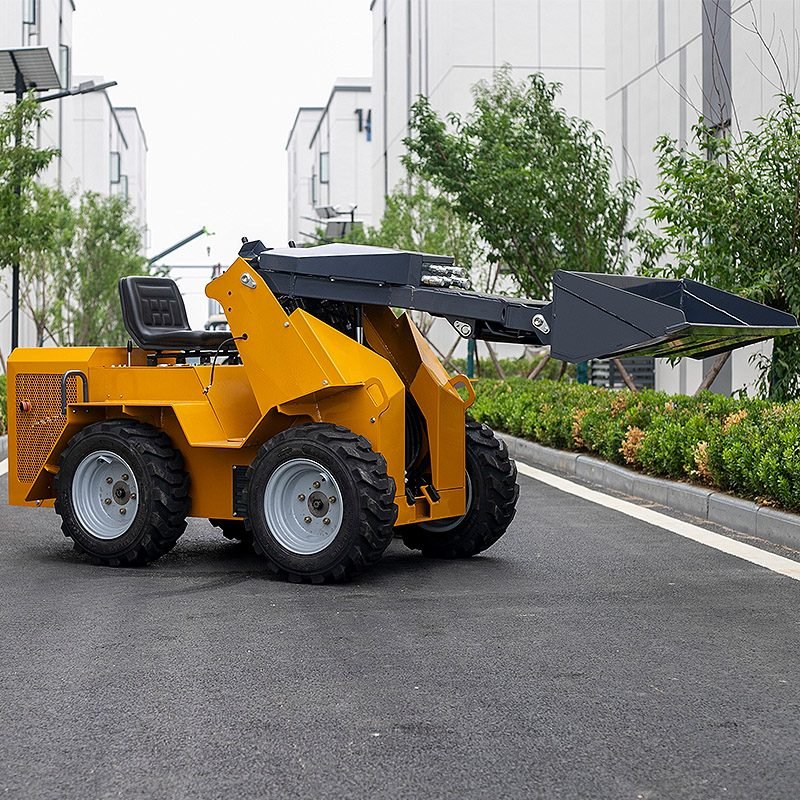

Warehouses/Factory Interiors: Material handling, cleaning, working in narrow passageways
Rental Market: Quick-change multi-functional attachments to meet the needs of different tenants
| Product details | ||
 |  |  |

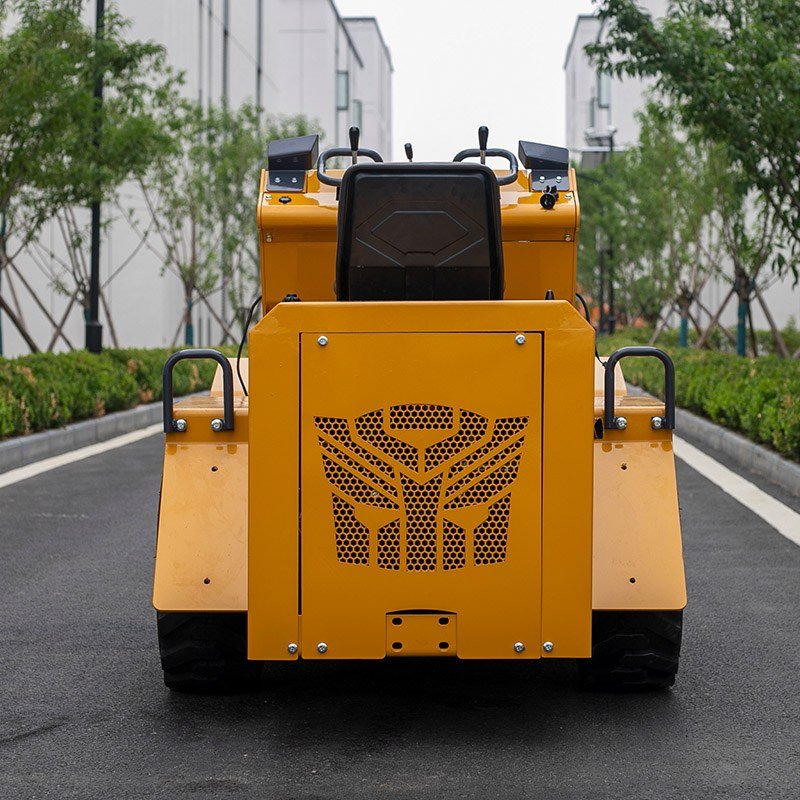

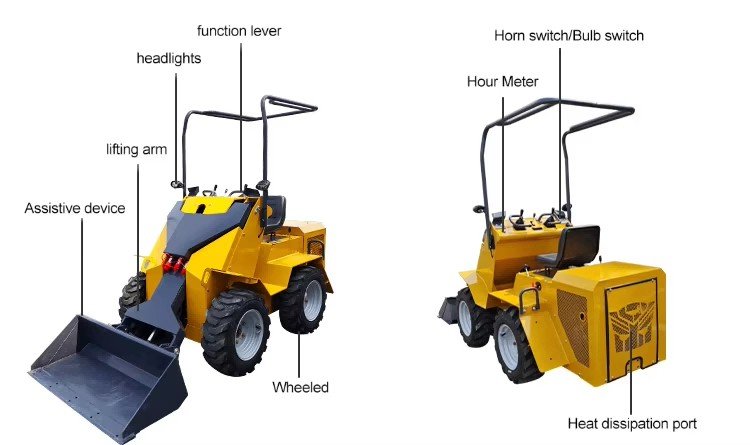

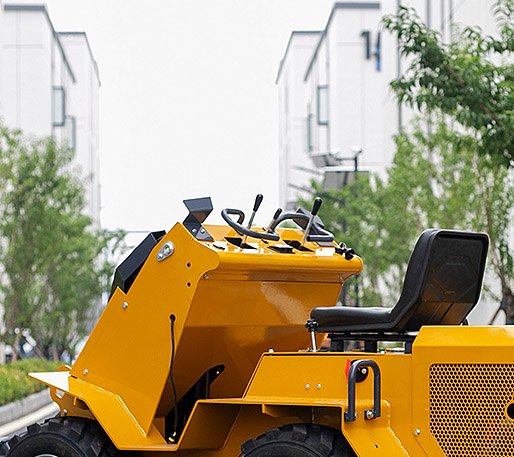

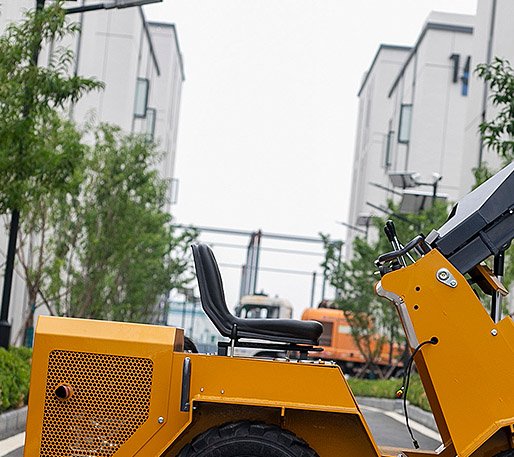

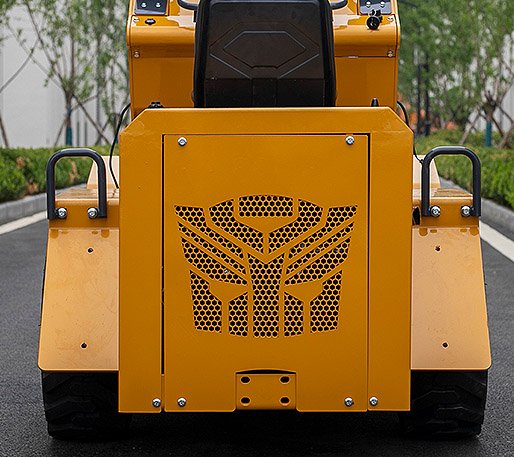

| Simple control panel A simpler console design. A more user-friendly designmakes the operating experience more comfortable andconvenient. | Comfortable seats, easier to operate Ergonomically designed seats can work for long houiwithout getting tired. A more recommended operatiolayout, simplifying the operation process, and improvwork efficiency. | The car body is made of high-qualitymaterials Our skid steer loader's body is made of high-quality steel,greatly improving its stability and wear resistance. Increaseproduct lifespan. |
 |  |  |

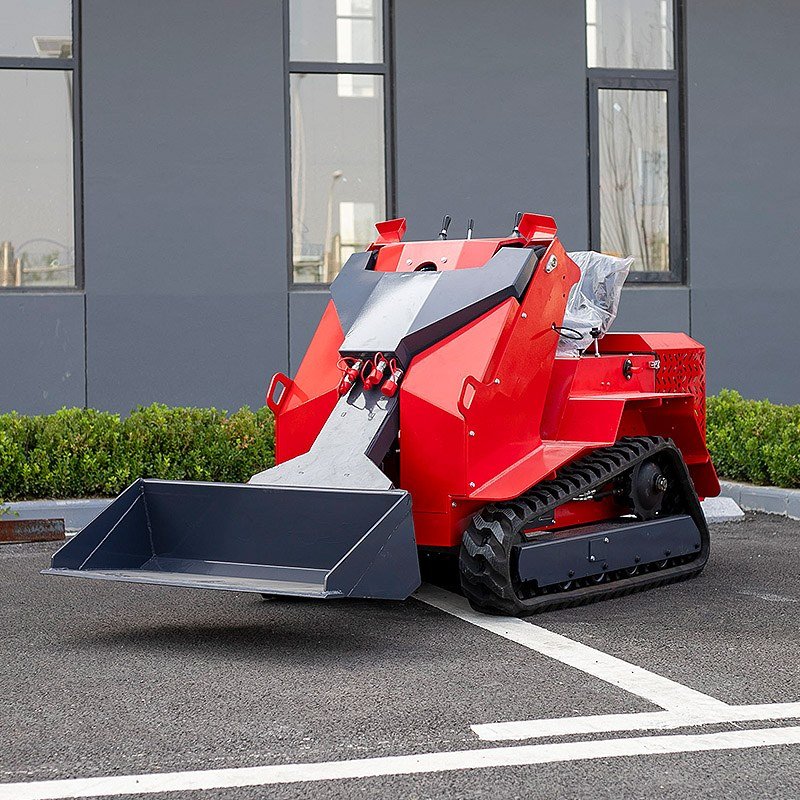

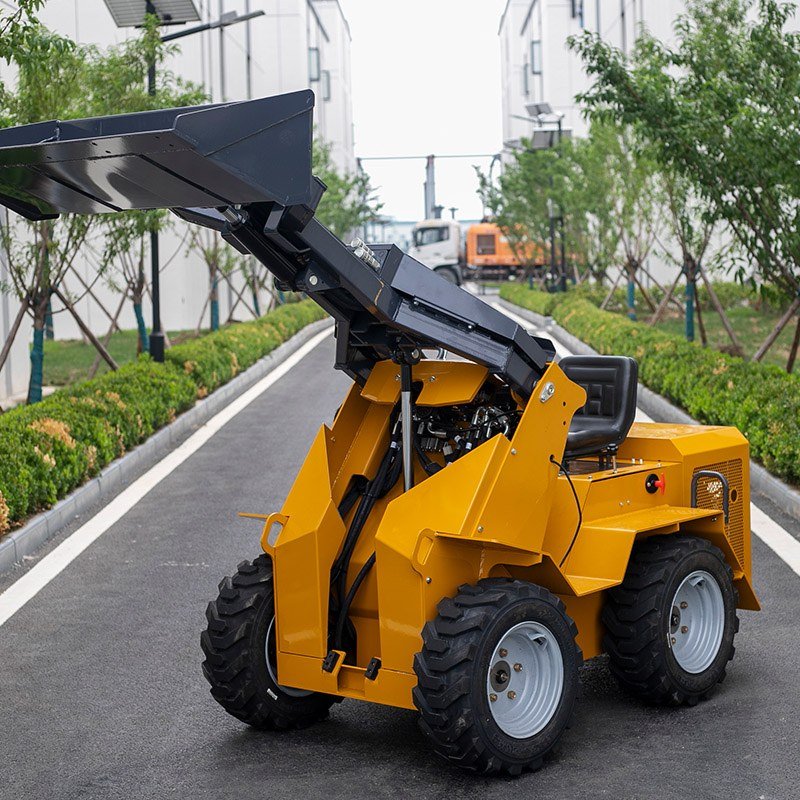

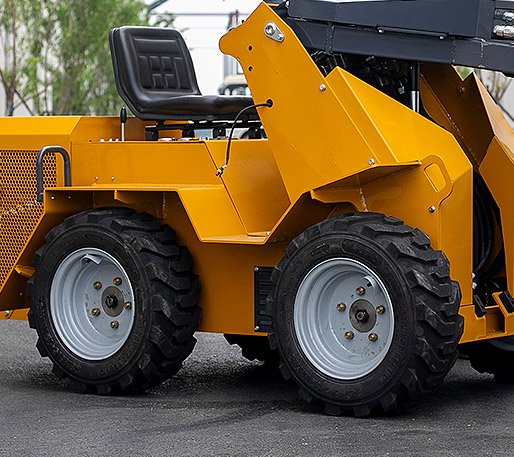

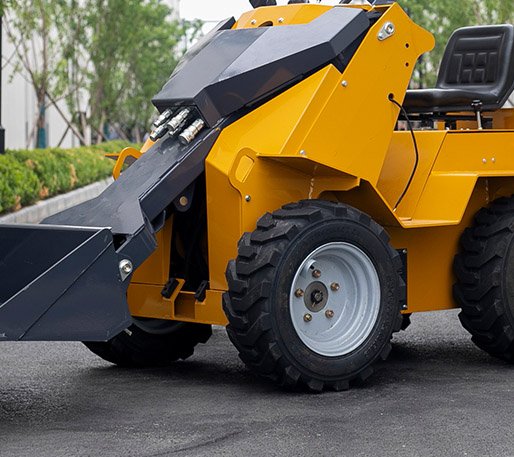

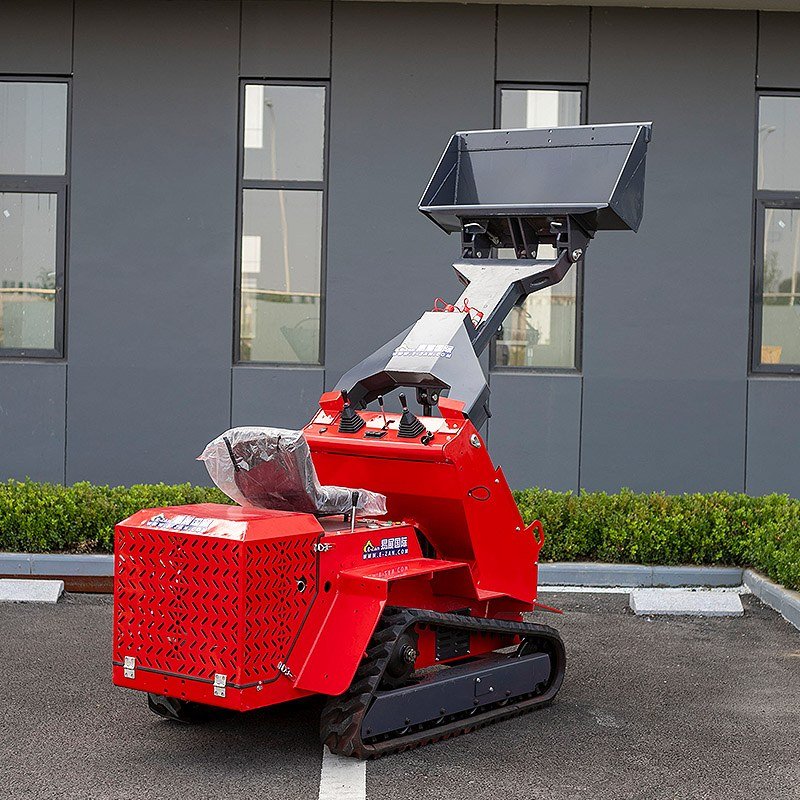

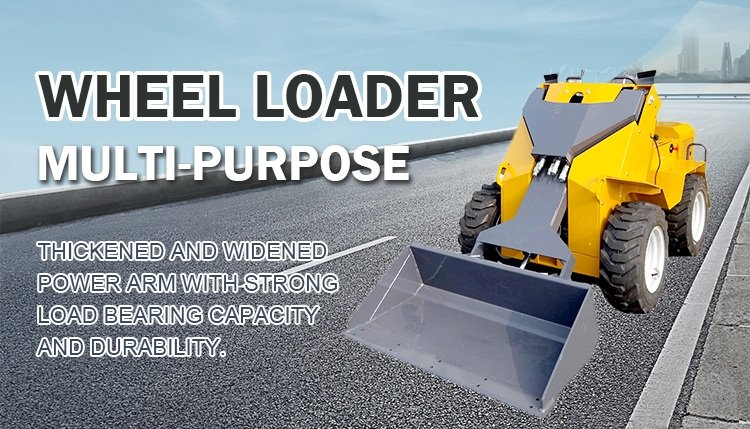

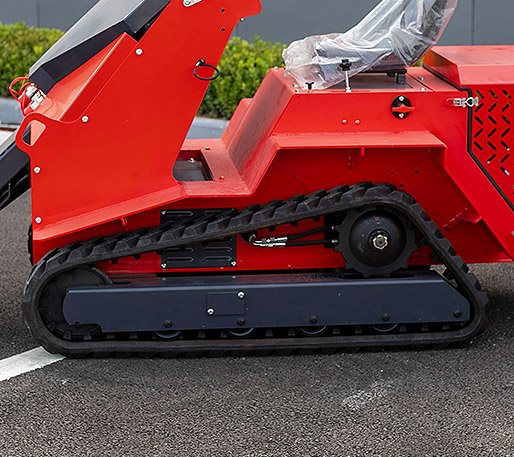

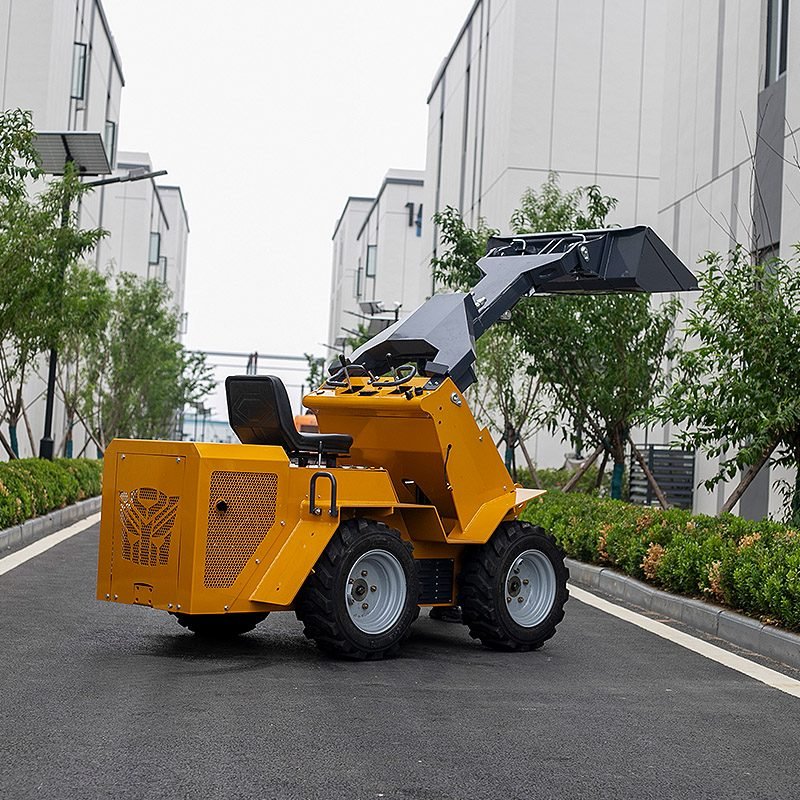

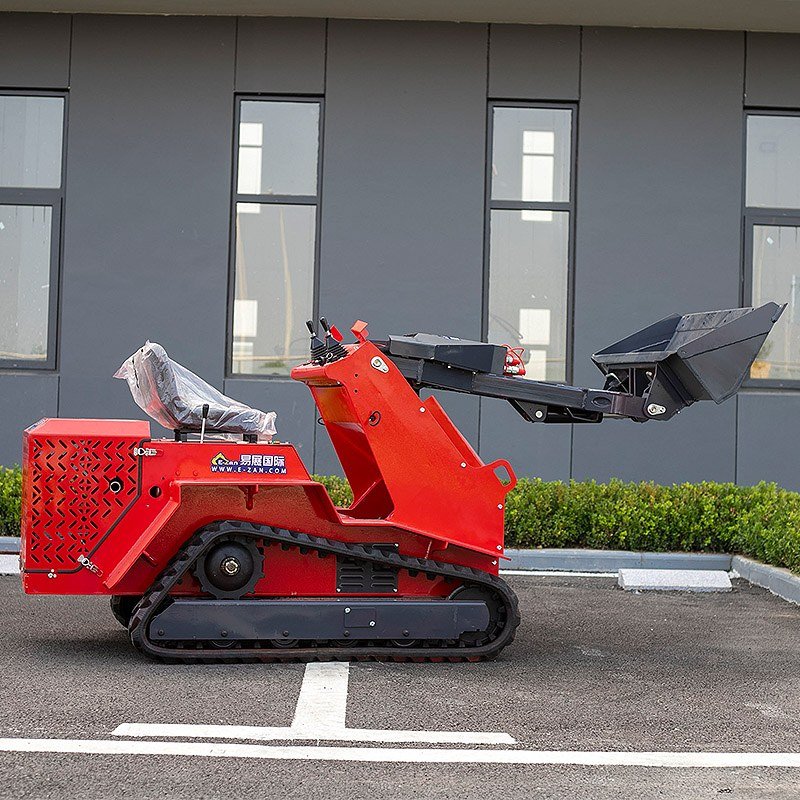

| A stronger core The branded engine and other high-quality built-incomponents ensure that the skid steer loader has expower, coupled with a quick change head, which canadapt to various tasks. | Wheeled style All wheel drive, flexible steering, able to move quickly, withlow tire maintenance costs and easy replacement, performsbetter on hard surfaces such as highways and indooroperations | Crawler style With high stability, it is not easy to slip or sink, especisuitable for complex terrain, and can provide greaterstrength and depth. |
| ISOCEEPAEUR05 | |
| Engine Model | Electric Vehicles/Science Popularization/Runtong/Bailitong |
| Rated power | 8kw, 72v, 200ah/15/19.2/17kw |
| cylinder | 2 |
| Intake method | Natural inhalation |
| Emission standards | Euro 5/EPA |
| Rated load | 250Kg |
| Maximum load | 350Kg |
| Maximum excavation force | 4.5KN |
| Bucket capacity | 0.12m³ |
| driving speed | 0-6km/h |
| Three tasks and | 9s |
| Working system pressure | 17-21 bar |
| Fuel tank capacity | 10L |
| Operational quality | 1200KG |
| Tire Model | 23*8.5-12 |
| Overall vehicle height | 1300mm |
| Overall length with standard bucket | 2700mm |
| vehicle width | 1100mm |
| Overall length without bucket | 2300mm |
| Bucket width | 1050mm |
| Tail length | 500mm |
| Maximum operating height | 2530mm |
| To bucket pin height | 1933mm |
| Maximum height of bucket laid flat | 1740mm |
| Unload height | 1400mm |
| Unloading distance | 595mm |
| wheelbase | 940mm |
| ground clearance | 180mm |
| The angle at which the bucket flips on the ground | 27° |
| The bucket tilts at its highest point. | 114° |
| (This size is for a standard bucket without any attachments, such as...) | Adding attachments requires additional measurement calculations. |
Skid slip loaders can be equipped with various accessories, such as buckets, forks, grabs, snow plows, etc., enabling them to perform a wide range of tasks from loading materials to clearing snow.
Q1: Is this machine wheeled or tracked?
Both are available. Wheeled machines are suitable for hard surfaces, high-speed movement, and have low tire replacement costs; tracked machines are suitable for mud, sand, and slopes, offering stronger anti-slip and anti-sinking capabilities.
Q2: Does it meet European and American emission standards?
Yes. The engine meets Euro 5 and EPA standards and can be exported to European and American markets.
Q3: What is the minimum order quantity (MOQ)?
Generally, the minimum order quantity is 1 unit. Bulk orders enjoy better pricing.
Q4: Is it difficult to operate?
The machine uses skid steering control, making operation intuitive. Even beginners can learn to operate it after a short training period.
Q5: What about after-sales service?
We provide after-sales support for the entire machine and major components, offering remote maintenance guidance and stocking key wear parts to ensure normal equipment operation.
Q6: How is it shipped? What is the delivery time?
Shipped from the nearest port, securely packaged. Delivery time depends on the destination; detailed shipping plans and tracking information will be provided after you place your order.
