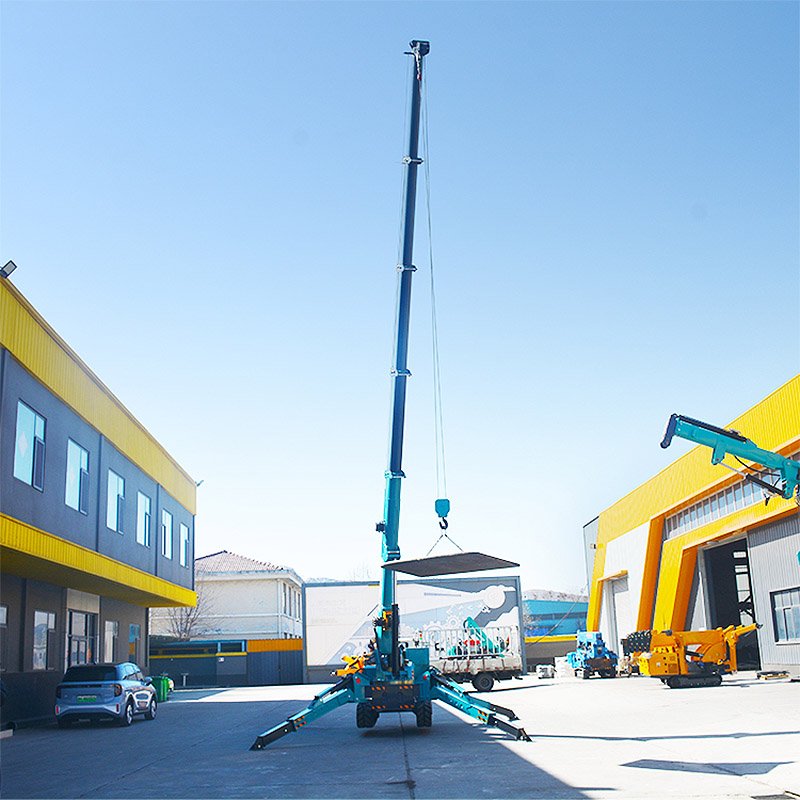

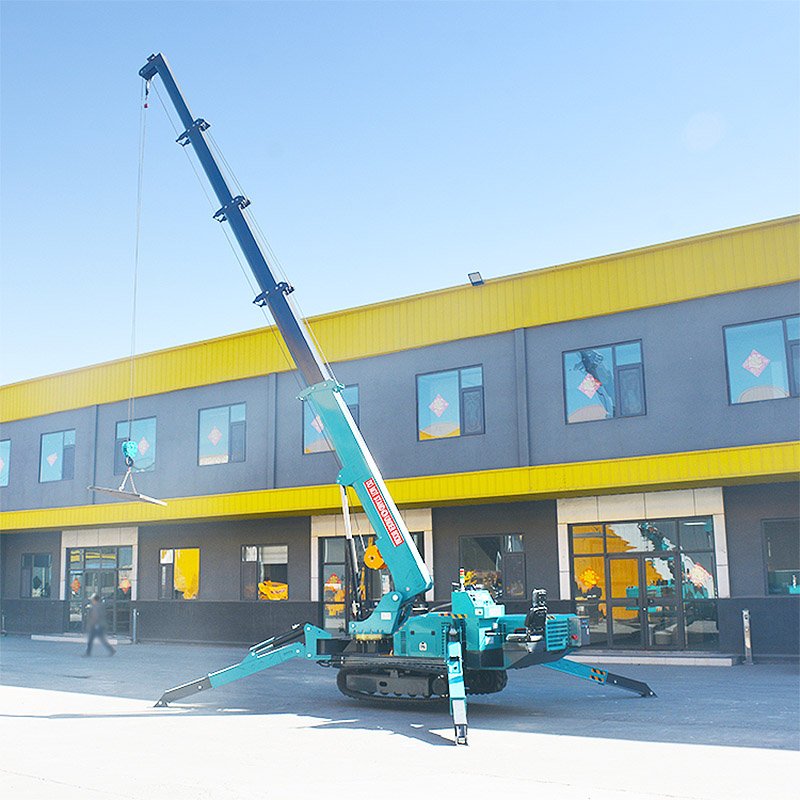

This 5-ton tracked spider crane is a high-performance light lifting device that combines large lifting capacity with a compact structure. Weighing only 6.5 tons, it boasts a maximum working radius of 15 meters and a lifting height of 17 meters, meeting the needs of large-scale lifting in most confined spaces. It uses a Yuchai diesel engine (customizable), meeting the National II emission standard, ensuring reliable power. The outriggers feature a manual swing-out + hydraulic automatic support structure, with a maximum extension range of 5.8 meters (length) × 5.6 meters (front) × 4.9 meters (rear), providing excellent operational stability. The overall dimensions are 4.7 meters long, 1.5 meters wide, and 2.25 meters high, allowing it to pass through most factory doorways. Driven by hydraulic motors, the tracks support dual-speed travel and a climbing ability of up to 25° (36%), adapting to various complex terrains. The boom is a 5-section telescopic structure (4m→17m), with a luffing time of only 13 seconds, continuous 360° rotation, and a rotation speed of 38 seconds per revolution, ensuring high operational efficiency. Optional features include torque limiters, wireless remote controls, suspended platforms, and hydraulic booms to meet the needs of different working conditions.

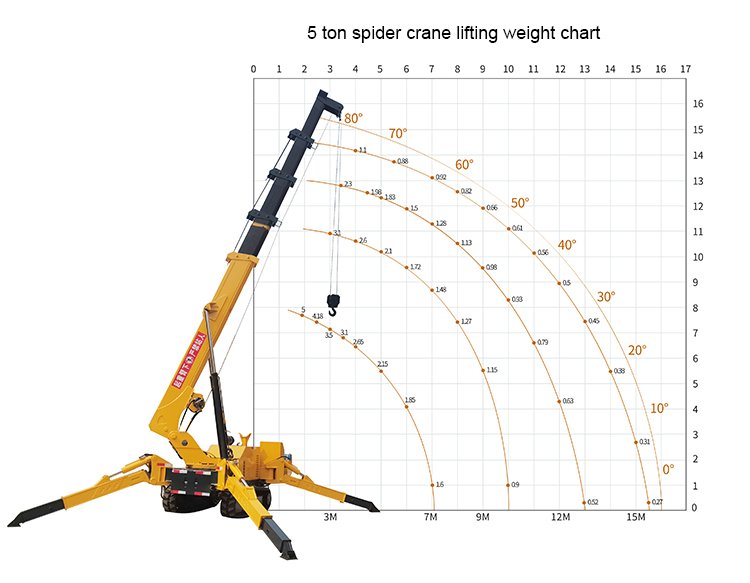

| TSZ-15 |
| TSZ-30 |
| TSZ-40 |
| TSZ-50 |
| TSZ-80 |
| TSZ-100 |
| TSZ-120 |
| PRODUCT PARAMETERS 1.2-16 tons, customizable | ||||||
| 5-ton tracked spider crane basic parameter table | ||||||
| Specification | 5t | sinceHeavy(T) | 6.5T | |||
| Maximum operating radius | 15m | Emission standards | Second grade | |||
| Maximum ground lift | 17m | Overall vehicle dimensions | It is 4.7 meters long, 1.5 meters wide, and 2.25 meters high. | |||
| hoisting device | Hook lifting speed | 12m/min (4 ropes) | ||||
| Wire rope specifications | φ11mm*60m | |||||
| Telescopic device | boom type | 4m x 5-section boom (customizable) | ||||
| boom length/time | 4.5m-17m/54sec (customizable) | |||||
| Amplitude converter | boom angle/time | 0-78°/13sec | ||||
| Rotary device | Rotation angle/speed | 0-360° (continuous) / 38sec | ||||
| outrigger | Support leg movement form | Manual unscrewing + hydraulic automatic support (two-section legs) | ||||
| Maximum extension range (mm)walking style | 5800(long)X4900(back)X5600(forward )Hydraulic motor driven (dual speed) | |||||
| Walking device | ||||||
| walking speed | 0-2.5km/h | |||||
| Climbing ability | 25° (36%) | |||||
| engine | Manufacturer | Yuchai (customizable) | ||||
| Type/Displacement | 490 | |||||
| Startup method | electric start | |||||
| Startup performance | -5℃-40℃ | |||||
| Fuel/Volume | Diesel/28L | |||||
| Battery capacityBatterycapacity | 24v45AH | |||||
| operating system | Operation type (boom/outrigger) / manual travel | Manual operation, manual movement (remote control optional) | ||||
| Operating characteristics | Manual operation (remote control optional) | |||||
| Track size | 300 (width) 52.5 (pitch) 90 (sections) | |||||
| Optional | Optional accessories include torque controller/remote control/suspended platform/hydraulic boom | |||||
| As products are continuously updated and upgraded, parameter configurations may change. Our company reserves the right of final interpretation without prior notice. For more detailed information, please consult your sales consultant. | ||||||
Factory Workshops: Large equipment installation, mold replacement, production line maintenance
Construction Sites: Steel structure hoisting, rooftop work, glass curtain wall installation, narrow alleyway construction
Shopping Malls and Theaters: Central air conditioning replacement, stage equipment hoisting, large billboard installation
Power and Telecommunications: Transformer replacement, communication tower repair, cable laying
Municipal Engineering: Bridge inspection, large street light repair, tree relocation
Emergency Rescue: Heavy equipment hoisting at disaster sites
Q1: Can this spider crane be used indoors?
Yes. The machine is 1.5 meters wide and 2.25 meters high, which can pass through most factory doorways.
Q2: How do I operate the outriggers?
The outriggers use a combination of manual unscrewing and hydraulic automatic support. After manually unscrewing the outriggers into position, the hydraulic system automatically completes the support and leveling, which is faster and less strenuous than manual leveling.
Q3: Does it support remote control operation?
Yes. The standard configuration is manual operation (boom/outriggers/traverse). A wireless remote control is optional, enabling remote operation and improving safety and convenience.
Q4: What is the maximum extension length of the boom?
The standard configuration is a 5-section boom, extending from 4.5 meters to 17 meters in length, with an extension time of approximately 54 seconds. Longer booms can also be customized according to customer needs.
Q5: What is the slewing angle?
It supports 360° continuous slewing, completing a 360° slewing operation in approximately 38 seconds, making it highly efficient.
Q6: What is its climbing ability?
Maximum climbing ability is 25° (36%), with 300mm wide tracks for stronger traction, suitable for complex terrain such as slopes and mud.
Q7: What optional equipment is available?

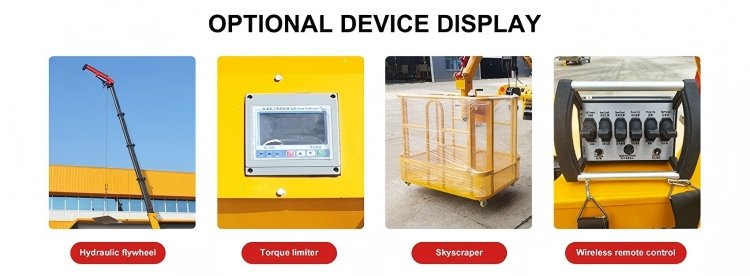

Optional equipment includes: Torque limiter (to prevent overload)
Wireless remote control
Suspended platform (for manned aerial work)
Hydraulic boom (to extend working range)
