This 3-ton tracked spider crane is a lightweight lifting device that combines a compact structure with powerful performance. Weighing only 2.7 tons, it boasts a maximum working radius of 10 meters and a lifting height of 10.8 meters. It utilizes a dual-power system of diesel engine and electric motor, suitable for both indoor and outdoor use. The outriggers are manually swivel and hydraulically supported, with three telescopic sections and a maximum extension of 4.3 meters, providing excellent operational stability. The overall dimensions are 3.5 meters long, 0.8 meters wide, and 1.85 meters high, allowing for entry into indoor spaces through standard doorways. The tracks are hydraulically driven, enabling a climbing ability of up to 25° (36%) and a travel speed of 0-2.5 km/h, adapting to various complex terrains. The boom features a 6-section telescopic structure with a telescopic time of only 20 seconds, a luffing time of 13 seconds, and continuous 360° rotation, resulting in high operational efficiency. Optional configurations include a torque limiter, wireless remote control, basket, and hydraulic boom to meet different working conditions.
| TSZ-15 |
| TSZ-30 |
| TSZ-40 |
| TSZ-50 |
| TSZ-80 |
| TSZ-100 |
| TSZ-120 |
| PRODUCT PARAMETERS 1.2-16 tons customizable | |||||||
| Specification | 3T | sinceHeavy(T) | 2.7T | ||||
| Maximum operating radius | 10m | Standard configuration | Diesel engine and electric motor (dual power) | ||||
| Maximum ground lift | 10.8m | Overall vehicle dimensions | 3.5 meters long, 0.8 meters wide, and 1.85 meters high. | ||||
| hoisting device | Hook lifting speed | 0-8m/min (4 ropes) | |||||
| Wire rope specifications | Φ8mm*45m | ||||||
| Telescopic device | boom type | 2.4m x 6-section boom (customizable) | |||||
| boom length/time | 3.1m-100.8m/20sec(Adjustable) | ||||||
| Amplitude converter | boom angle/time | 0-78°/13sec | |||||
| Rotary device | Rotation angle/speed | 0-360° (continuous) / 60sec | |||||
| branchleg | Support leg movement form | Manually unscrewed with hydraulic support (three-section retractable outriggers) | |||||
| Maximum extension range (mm) | 4300(long)X3700(back)X4300(forward) | ||||||
| Walking device | walking style | Hydraulic drive | |||||
| walking speed | 0-2.5km/h | ||||||
| Climbing ability | 25° (36%) | ||||||
| track | 220 (width) 72 (pitch) 50 (sections) | ||||||
| electricitymachine | Voltage | AC380V | |||||
| engine | Manufacturer | Changchai (customizable) | |||||
| model | Changchai CZ380G three-cylinder 14.7KW | ||||||
| Startup method | electric start | ||||||
| Startup performance | -50℃ to 45℃ | ||||||
| Fuel/Volume | Diesel/12L | ||||||
| Battery capacity | 12V45AH | ||||||
| Fuel consumption rate | 274g/kW-h | ||||||
| Noise level | Rated speed ≤ 81.5 dBA (1 m) | ||||||
| operating system | Operation type (boom/outrigger): Manual movement | Manual operation, manual movement (remote control optional) | |||||
| Operating characteristics | Manual operation (remote control optional) | ||||||

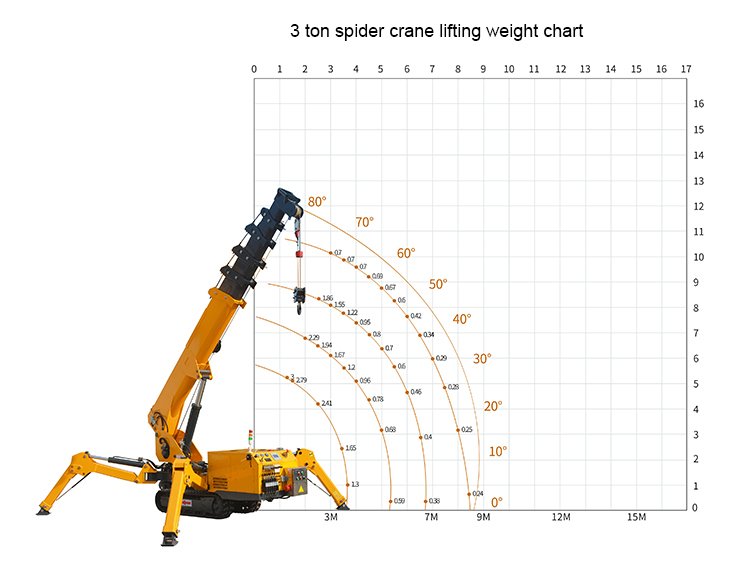

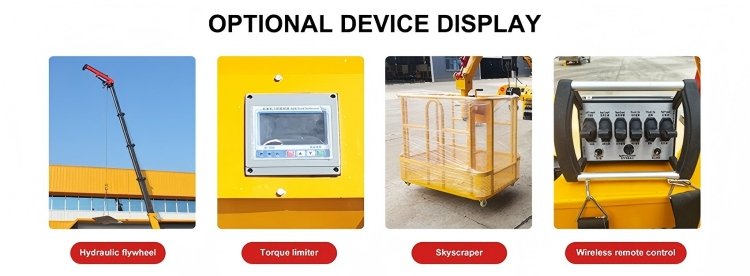

| Optional | Optional accessories include torque controller/remote control/suspended platform/hydraulic boom/colors: red, green, yellow, white, gray, black. | ||||||
| As products are continuously updated and upgraded, parameter configurations may change. Our company reserves the right of final interpretation without prior notice. For more detailed information, please consult your sales consultant. | |||||||
Indoor Installation and Maintenance: Equipment hoisting for shopping mall atriums, factory workshops, theater stages, and stadiums.

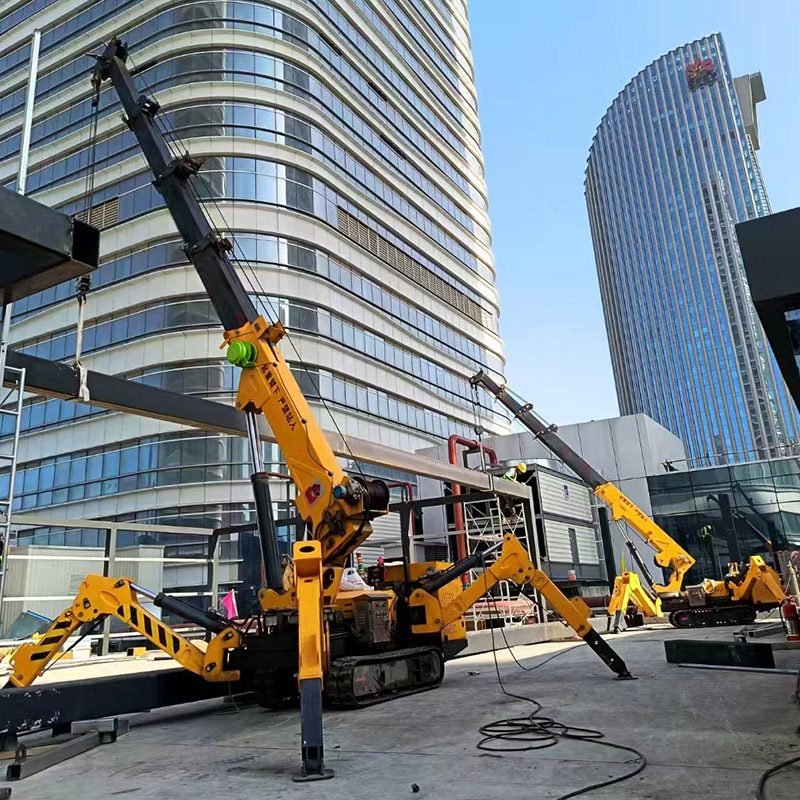

Construction Sites: Narrow alleyways, rooftop work, steel structure installation, and glass curtain wall hoisting.

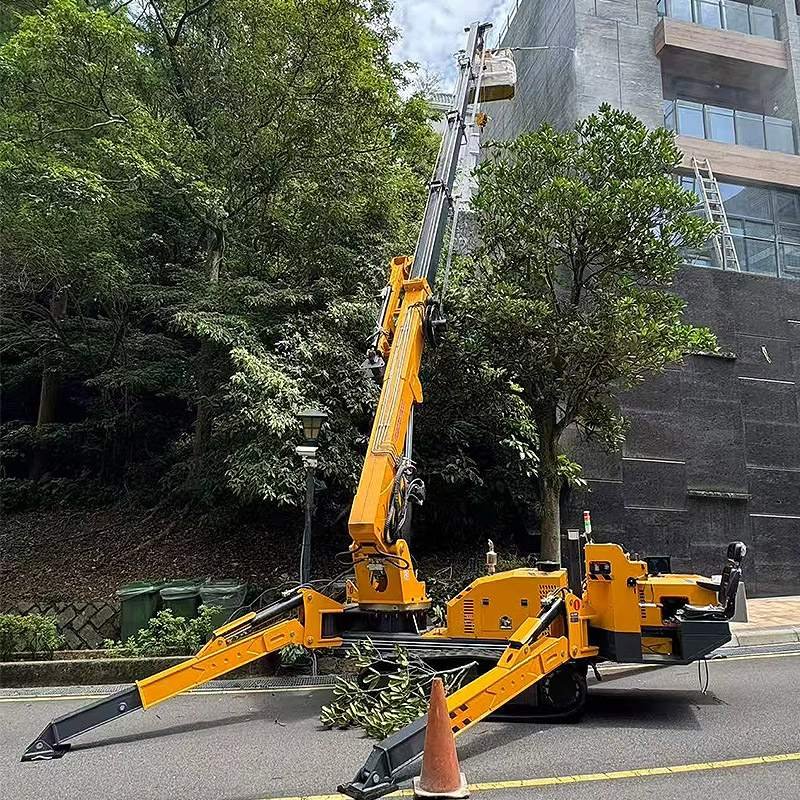

Municipal and Landscaping: Streetlight repair, tree relocation, bridge inspection, and river dredging.
Emergency Rescue: Equipment hoisting at disaster sites and rescue operations in confined spaces.
Power and Telecommunications: Substation equipment replacement, communication tower repair, and cable laying.
Q1: Can this spider crane be installed indoors?
Yes. With a width of only 0.8 meters and a height of 1.85 meters, it can easily pass through standard doorways. It comes standard with electric motor power, producing zero emissions and low noise for indoor use, making it ideal for environments such as shopping malls, factories, and theaters.
Q2: What if there's no power outdoors?
The equipment comes standard with a dual-power system of diesel engine and electric motor. When there is no outdoor power, it can switch to diesel engine drive. The diesel tank has a capacity of 12L, sufficient for all-day operation. The engine can start normally in environments ranging from -50°C to 45°C.
Q3: How do I operate the outriggers?
The outriggers use a manual screw-out + hydraulic support structure. First, manually screw the outriggers to the appropriate position, then use the hydraulic system for support and leveling. The outriggers are three-section telescopic designs, with a maximum extension of 4.3 meters, providing excellent stability.
Q4: Does it support remote control operation?
Yes. The equipment comes standard with manual operation (boom/outriggers/traverse are all manual), but a wireless remote control is optional for remote operation, improving safety and convenience.
Q5: What is the maximum extension length of the boom?
The standard configuration is a 6-section boom, extending from 3.1 meters to 10.8 meters in length, with an extension time of approximately 20 seconds. Custom boom lengths are also available upon request.
Q6: What is the slewing angle?
It supports 360° continuous slewing with adjustable speed. A 360° slewing time of approximately 60 seconds meets omnidirectional operation requirements.
Q7: What is its climbing ability?
The maximum climbing ability is 25° (equivalent to 36%). The track width is 220mm, the track pitch is 72mm, and there are 50 track sections in total. It has strong traction and is suitable for complex terrain such as slopes, mud, and gravel.
If you have any questions or needs about the product, please fill in the following form and we wll contact you as soon as possible.
