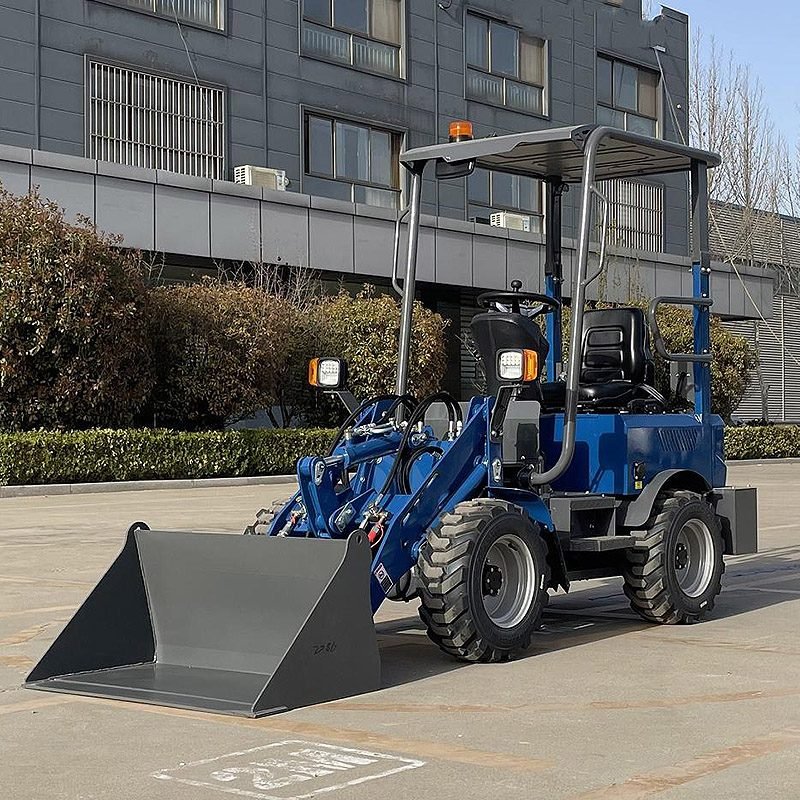

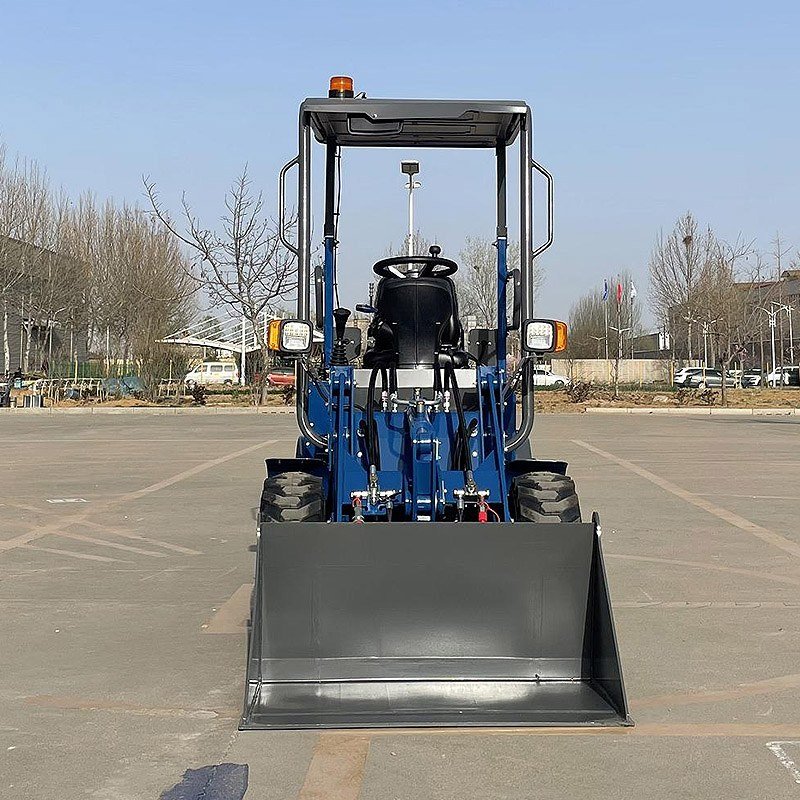

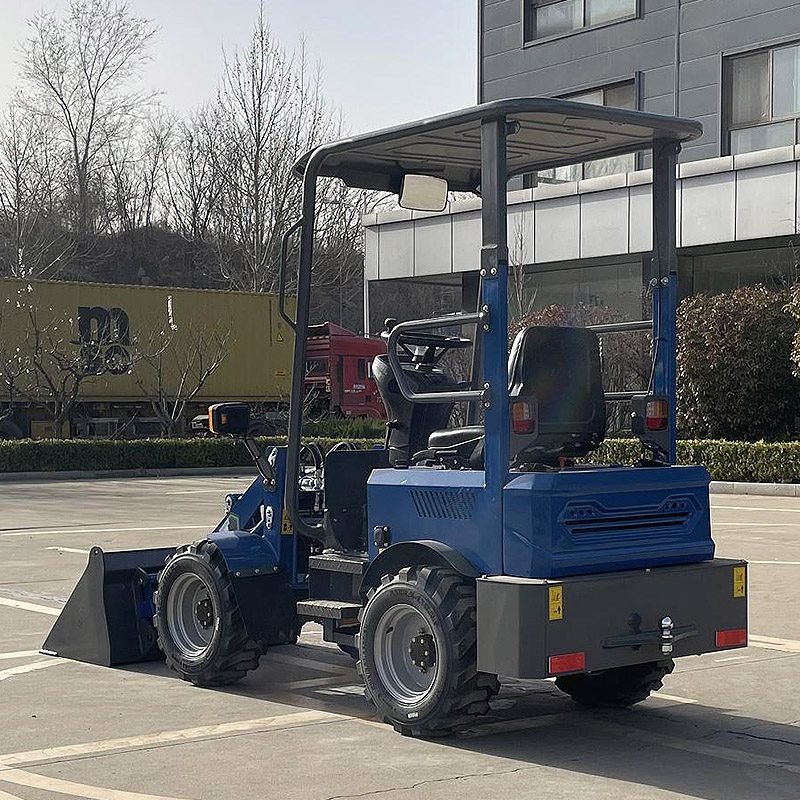

The Electric Loader is designed for efficient and eco-friendly material handling in construction and industrial environments. With a rated load of 400kg and a compact structure, it performs well in narrow and confined job sites.

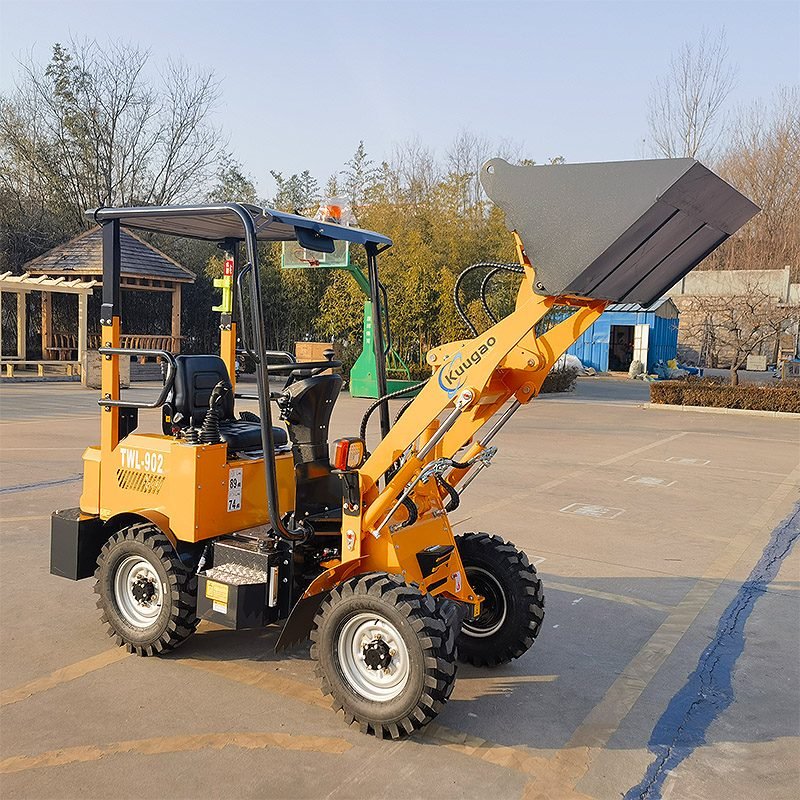

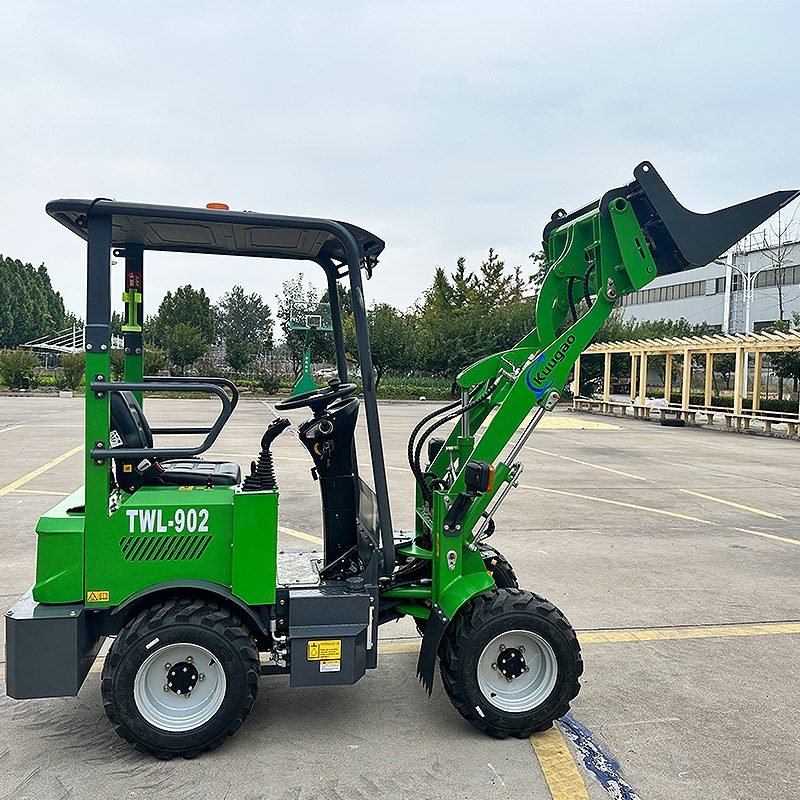

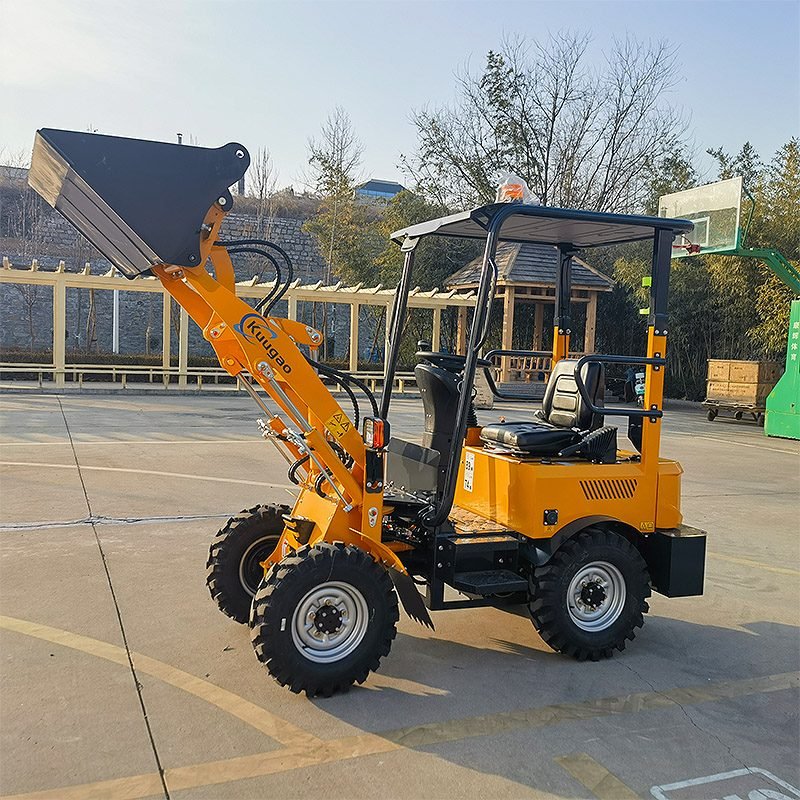

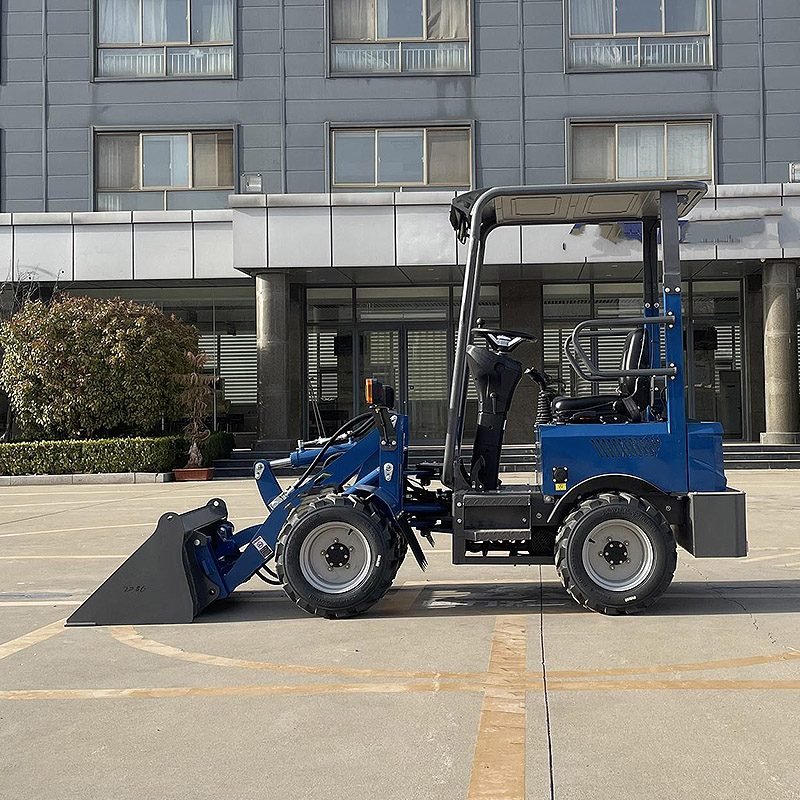

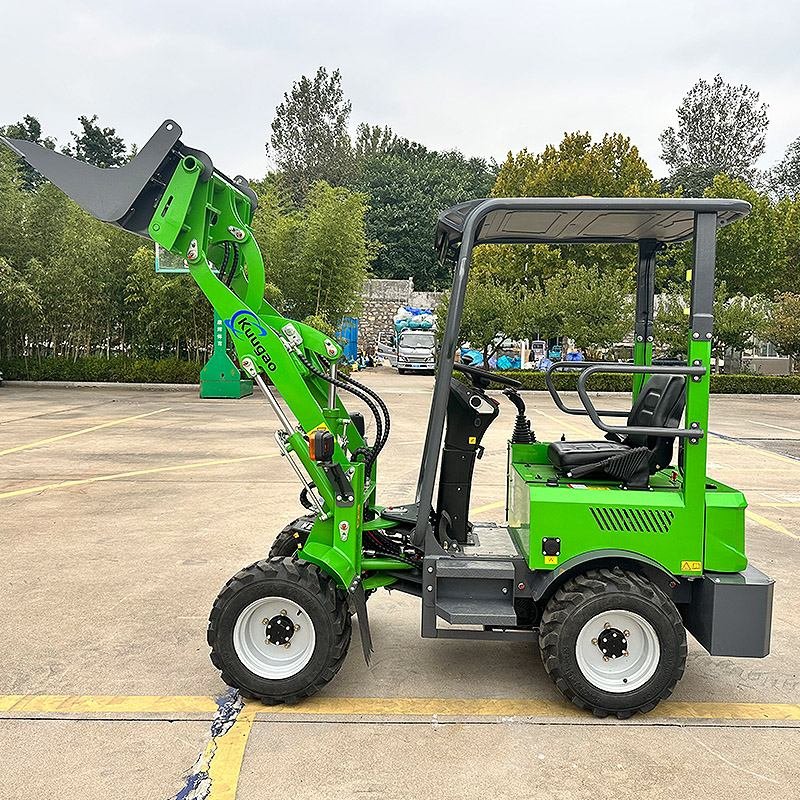

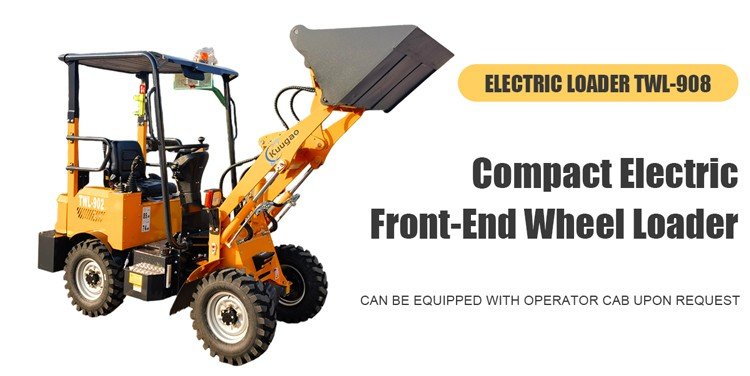

The TWL-908 New Energy Loader is a pure electric, zero-emission compact loader designed for indoor use, environments with high environmental requirements, and noise-sensitive environments. It features a 60V lead-acid maintenance-free battery system (5 sets, total capacity 9kW), charging in 8 hours and providing 6 hours of continuous operation. The walking system uses dual-motor drive (2×2.5kW), with a travel speed of 10-18km/h, offering smooth and efficient power delivery. The machine measures 3260×1140×2085mm, with a minimum turning radius of only 2520mm, ensuring agility and maneuverability. It has a bucket capacity of 0.2m³, a rated working capacity of 400kg, a total weight of 1120kg, an unloading height of 1400mm, a lifting height of 2160mm, and a three-way turning time of only 7.5 seconds, resulting in high operating efficiency. A quick-change system is standard, allowing for rapid switching between buckets, grapples, sweepers, and other attachments, making it a versatile machine. Equipped with 6.00-12 mountain tires and a ground clearance of 200mm, it boasts excellent off-road capability. With its low noise, zero emissions, simple operation, and convenient maintenance, it is an ideal choice for farms, warehouses, ranches, municipal facilities, and other scenarios.
| Technical Parameter | |
| Rated load(kg) | 400 |
| Overall weight (kg) | 1120 |
| Bucket capacity( m³) | 0.2 |
| Max.steering angle | ±35° |
| Min.steering radius(mm) | 2520 |
| Amplitude of the rear axle | 7° |
| Total time (s) | 7.5 |
| Working time (h) | 6 |
| Working speed(km/h) | low speed 10 high speed 18 |
| Dumping height(mm) | 1400 |
| Lifting height (mm) | 2160 |

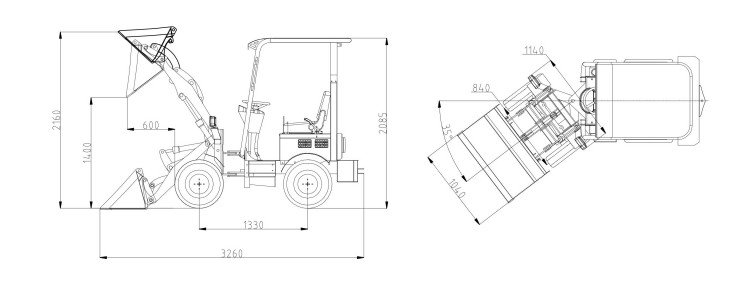

| Overall dimension(mm) | 3260*1140*2085 |
| Dumping distance (mm) | 600 |
| Bucket width(mm) | 1040 |
| Wheel base (mm) | 1330 |
| Wheel thread(mm) | 840 |
| Min.ground clearance (mm) | 200 |
| Battery model | 6-EVF-150 |
| Battery type | Lead-acid maintenance fre type |
| Battery quantity | 5 |
| Battery capacity(KW) | 9 |
| Rated voltage(V) | 60 |
| Charging time(h) | 8 |
| Walking system voltage (V) | 60 |
| Walking system power(KW) | 2.5*2 |
| Motor quantity | 2 |
| Tyre model | 6.00-12 |
| Working brake | Drum oil brake |
| Parking brake | Drum handbrake |

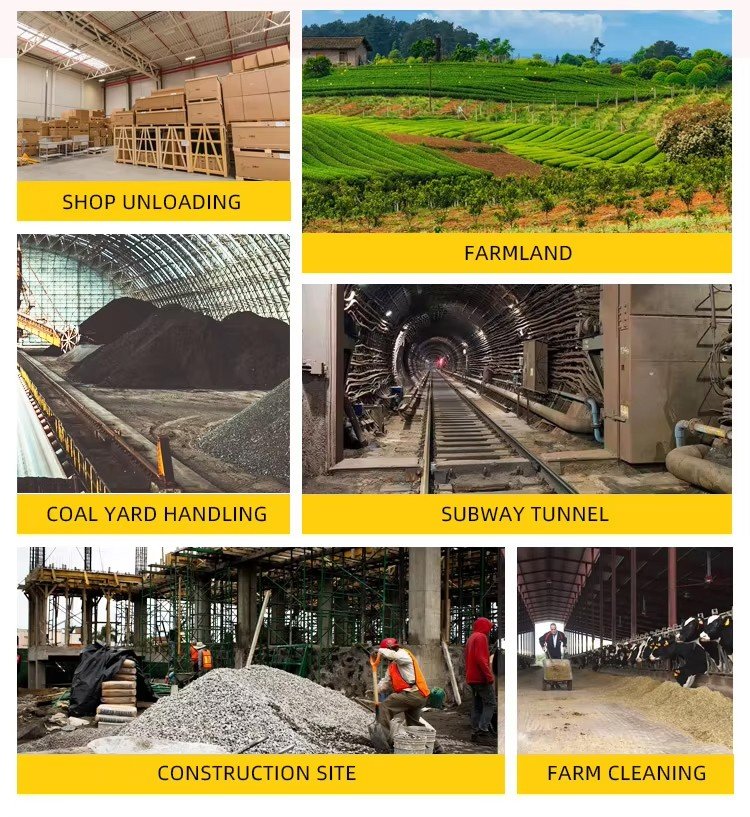

Indoor work: Warehouses, factories, workshops, underground parking garages (zero emissions, low noise)
Farms and ranches: Barns, livestock sheds, greenhouses (no exhaust fumes, no harm to animals)
Municipal and property management: Residential communities, schools, hospitals, parks (noise-sensitive areas)
Nighttime work: Nighttime construction or removal is permitted, without disturbing residents
Landscaping: Earthwork transportation, cleaning, and green space maintenance
Q1: Can it be customized?
Of course! We offer a variety of customization options. Please tell us your specific needs, and we will tailor a solution for you.
Q2: What is the delivery period?
40 days after receiving the final payment.
Q2: How is the machine shipped, and how long will it take to arrive?
We ship from the nearest port using secure packaging to prevent damage during transit. Shipping time depends on your country and destination port; we will provide a detailed shipping plan and tracking information after you place your order.
Q3: Do you have a minimum order quantity?
We welcome both small and large orders. For customized machines, we generally have flexible order quantities. Please contact our sales team to discuss your specific needs.
Q4: Do you provide after-sales support and warranties?
A: Yes, we offer reliable after-sales support with a 1-year warranty covering free replacement parts, plus lifetime technical assistance. Our goal is to ensure your machine runs smoothly long after purchase.
