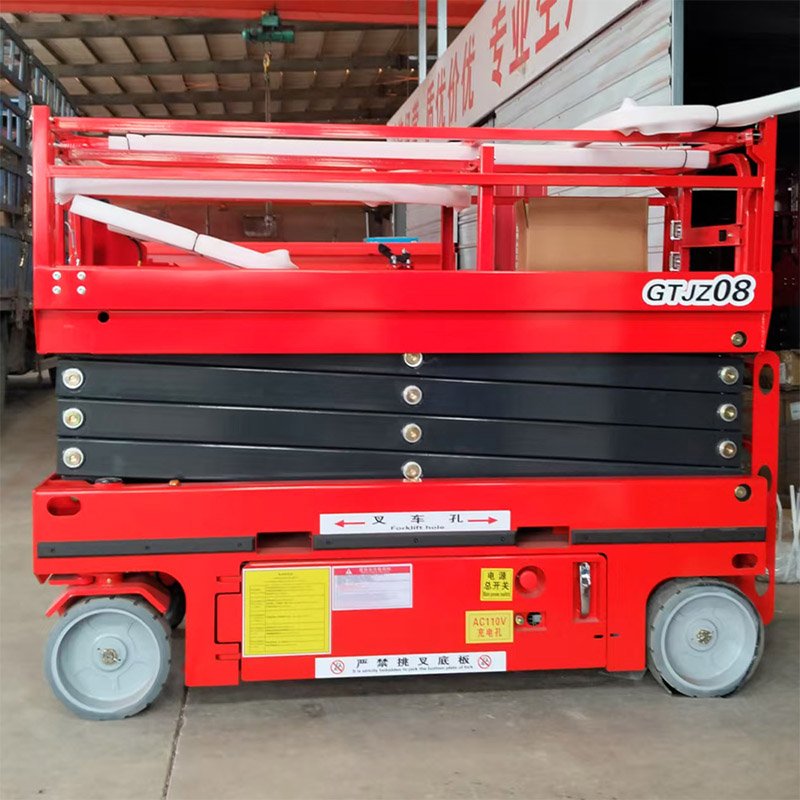

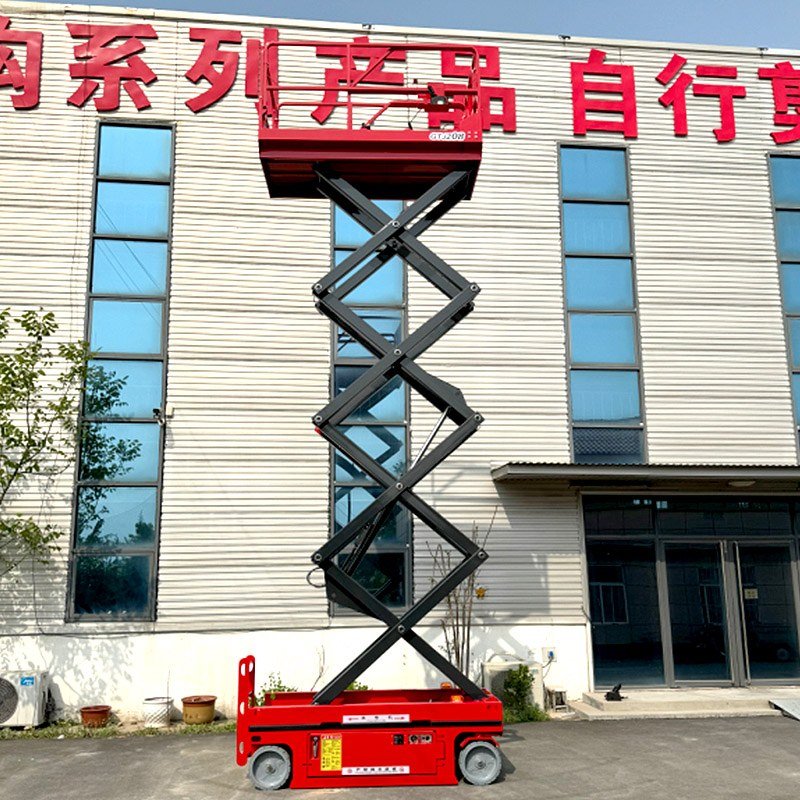

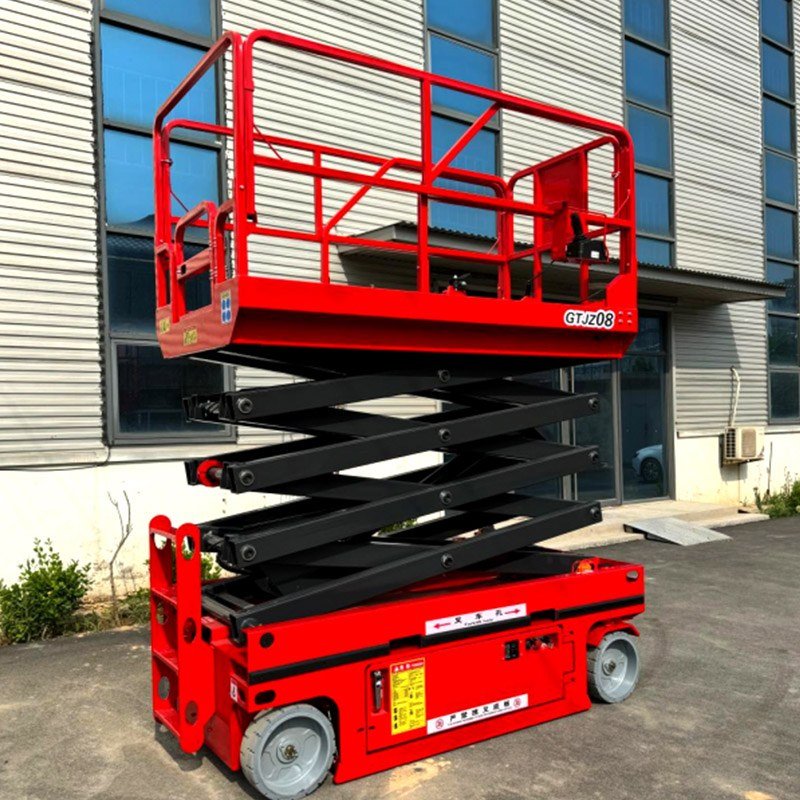

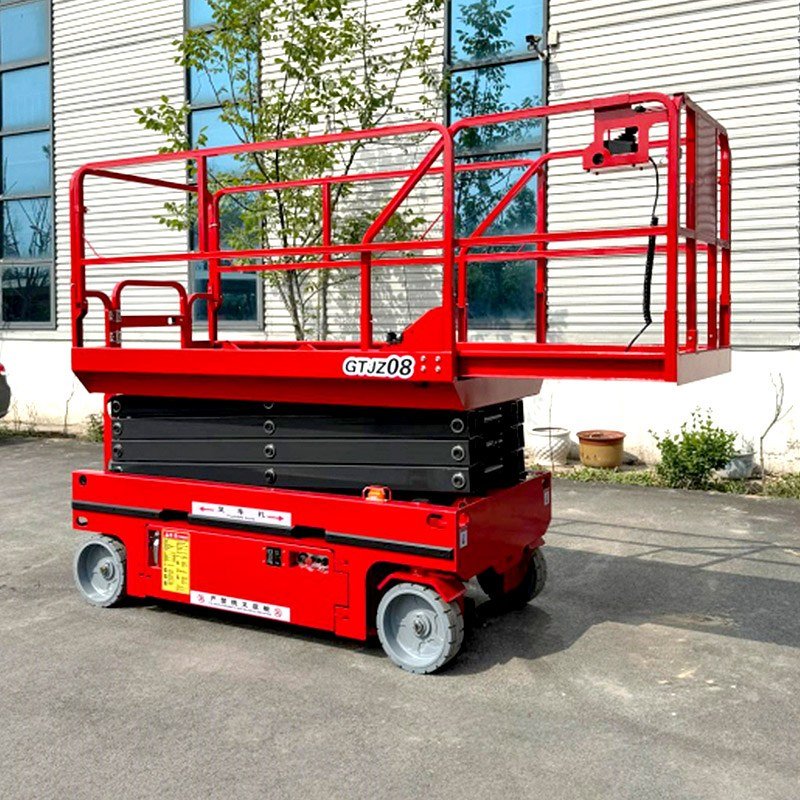

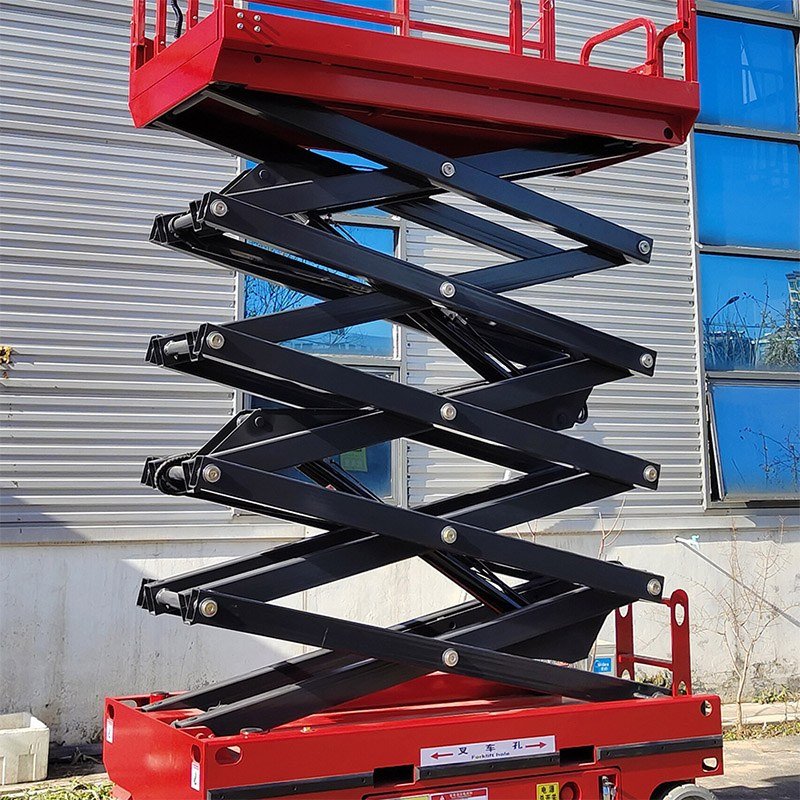

8m Scissor Lift is a mobile aerial work platform designed for safe height access in construction and maintenance. With stable lifting performance, it supports raising platform operations and can be configured as a porch lift elevator for efficient vertical access in indoor and outdoor environments.
High-altitude walking capability for efficient single-person operation
Continuously variable transmission, energy-saving and durable
Large-angle hydraulic steering for flexible maneuverability
Multiple safety protections for safer operation
Extended platform for expanded working range
Green and environmentally friendly, quiet and pollution-free
Intelligent charging for convenient maintenance
Strong climbing ability to adapt to complex terrain
Compact design for easy transportation
The fully self-propelled scissor lift platform is a highly efficient piece of equipment integrating high-altitude work, automatic movement, and flexible steering. Powered by DC batteries, it is quiet and environmentally friendly, suitable for various indoor and outdoor scenarios. Even when raised, the platform can move smoothly, allowing a single person to complete all operations—lifting, forward, backward, and turning—at height, significantly improving work efficiency. The equipment is equipped with multiple safety features, including an extended platform, explosion-proof hydraulic hoses, an emergency descent system, and tilt protection, and is CE certified, ensuring safe and reliable operation. Whether in airports, shopping malls, factories, municipal maintenance, or property repairs, it can easily replace traditional scaffolding, saving you time and costs.
Cleaning Operations: Cleaning of indoor and outdoor ceilings, curtain walls, windows, eaves, and awnings.
Installation and Maintenance: Installation and maintenance of billboards, inspection and repair of facilities such as chimneys.
Continuous Operations: Particularly suitable for large-area, long-term continuous high-altitude construction.
| TGZ-08 | TGZ-10 | TGZ-12 | |
| Maximum working height (A) | 9.80m | 11.80m | 13.80m |
| Maximum platform height (B) | 7.80m | 10m | 11.8m |
| Safe working load | 320kg | 320kg | 320kg |
| Extended platform safe working load | 100kg | 100kg | 100kg |
| Work Platform Dimensions (L x W x H) | 2.3*1.14*1.1m | 2.3x1.14x1.1m | 2.3x1.14x1.1m |
| Overall Dimensions (C x D x E, with guardrails folded) | 2.46x1.18x2.36m | 2.46x1.18x2.48m | 2.46x1.18x2. 6m |
| Overall Dimensions (C x D x F, with guardrails folded) | 2.46x1.18x1.78m | 2.46x1.18x1.97m | 2.46x1.18x2.03m |
| Extended Platform Dimensions (G) | 0.9m | 0.9m | 0.9m |
| Minimum Ground Clearance | 0.1/0.02m | 0.1/0.02m | 0.1/0.02m |
| Wheelbase (H) | 1.92m | 1.92m | 1.92m |
| Turning radius (inner wheel/outer wheel) | 0/2.35m | 0/2.35m | 0/2.35m |
| Lift/drive motor | 24V/4.5kw | 24V/4.5kw | 24V/4.5kw |
| Lifting speed | 3-5m/min | 3-5m/min | 3-5m/min |
| Machine travel speed (stowed) | 3. 5km/h | 3.5km/h | 3. 5km/h |
| Machine travel speed (lifted) | 0.8km/h | 0. 8km/h | 0.8km/h |
| Battery | 4x6V/200ah | 4x6V/200ah | 4x6V/200ah |
| Charger | 24V/30A | 24V/30A | 24V/30A |
| Maximum gradeability | 0.25 | 0.25 | 0.25 |
| Maximum operating angle | 1.5°/3 | 1.5°/3 | 1.5°/3° |
| Tires | Ф381x127mm | Ф381x127mm | Ф381 x127mm |
| Machine weight | 2400kg | 2600kg | 2860kg |
Airports, train stations, and docks – ceiling cleaning, signage installation, lighting maintenance;
Shopping malls and stadiums – facility inspection, decoration, equipment installation;
Residential and commercial buildings – window cleaning, awning repair, drainage maintenance;
Factories and warehouses – machine maintenance, plumbing installation, inventory management;
Municipal infrastructure – street light repair, traffic sign installation;
Replacing traditional scaffolding – more flexible, more efficient, and more economical.
Q1: Can the machine move when the platform is raised?
Yes. It supports full-height travel. The operator can control lifting, travel, steering, and speed from the platform, significantly improving efficiency.
Q2: How does it perform on slopes or uneven ground?
With a 25% climbing ability and tilt protection system, this machine can operate safely on moderate slopes. The maximum working angle is 1.5° (left/right) and 3° (forward/backward).
Q3: What happens in case of a power outage?
An emergency descent system and automatic locking function ensure the platform is locked in place, allowing for safe descent even in the event of a power outage.
Q4: Can it be used indoors?
Yes. It is powered by a DC battery, operates quietly with zero emissions, and is equipped with non-marking tires. It is ideal for noise-sensitive or indoor environments such as hospitals, shopping malls, and offices.
Q5: Are special tools required for maintenance?
No. The rotating power cab facilitates access to hydraulic and electrical components. For safety during maintenance, a maintenance support rod is included.
Q6: How long is the battery life?
The 200Ah battery system supports intermittent use throughout the day. The smart charger automatically stops charging once fully charged, thus extending battery life.
