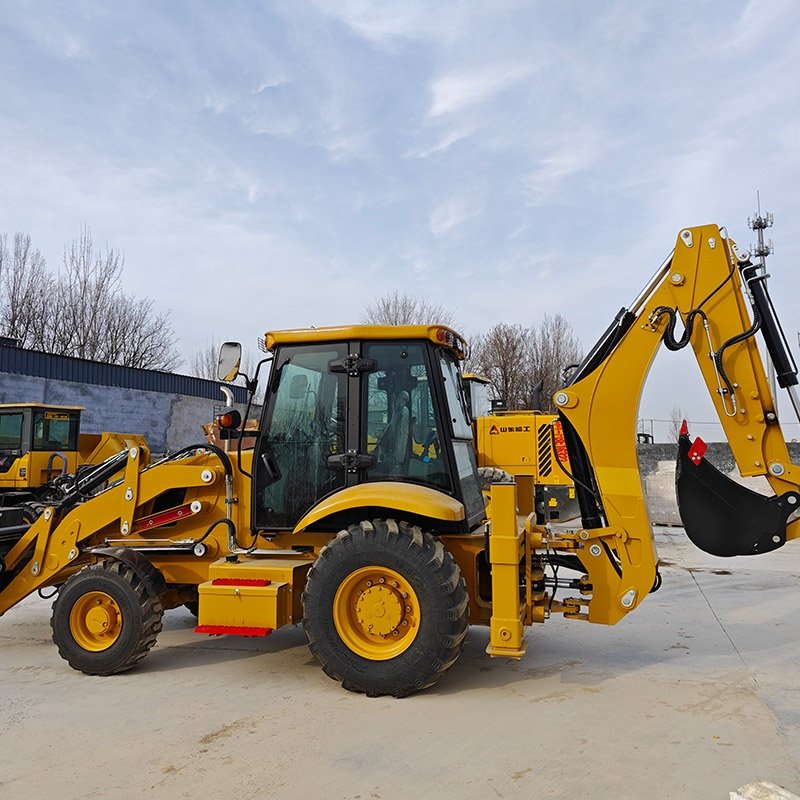

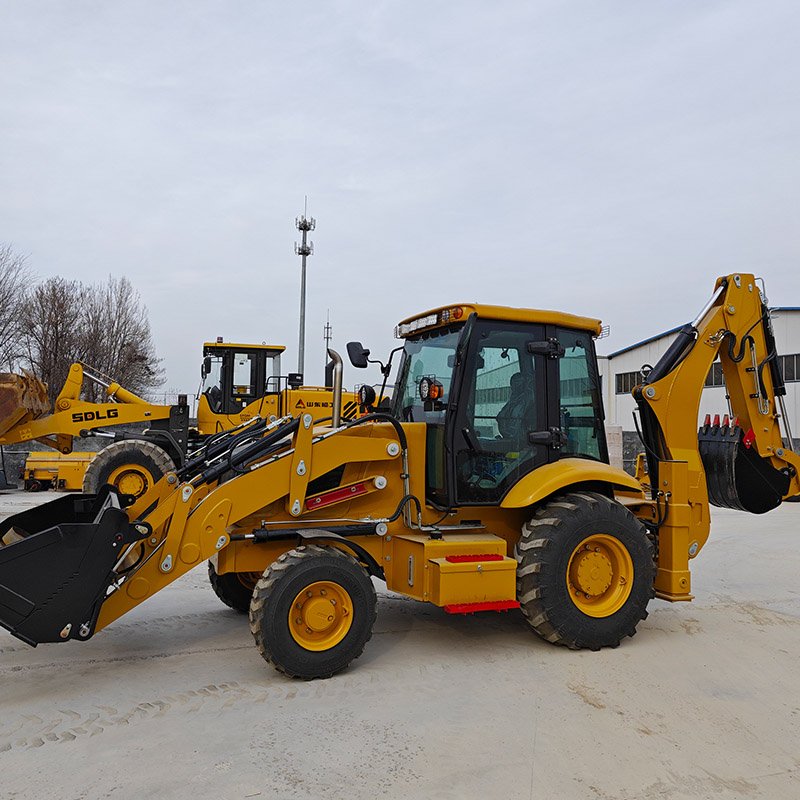

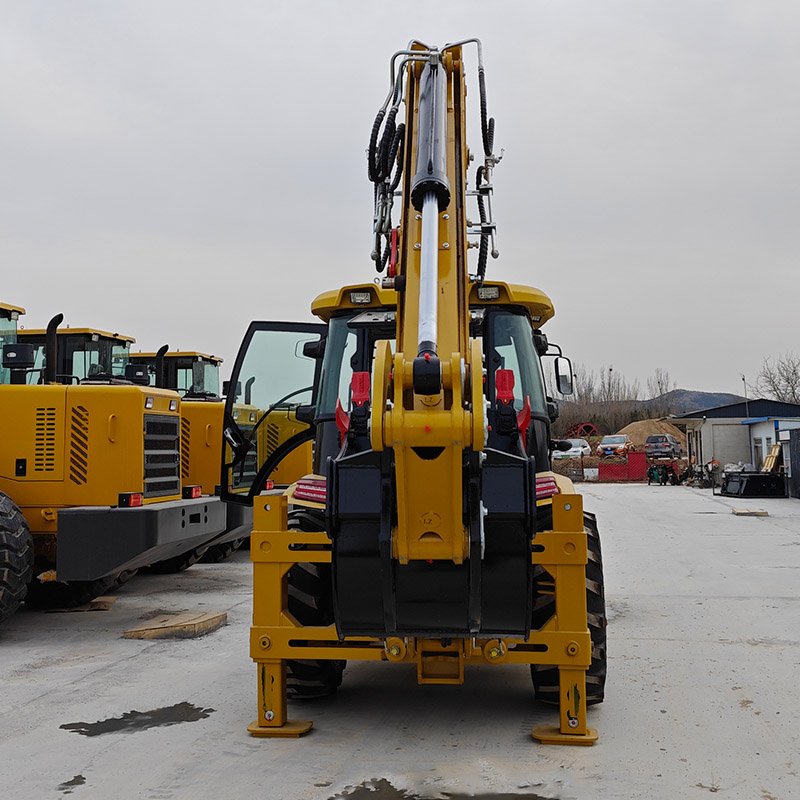

Backhoe Excavator Loader is designed for versatile construction, roadwork, and material handling applications. The machine is equipped with a rotating side swing bucket, allowing flexible side digging and smooth sliding operation, improving efficiency in narrow or complex job sites.
Powerful engine, ideal for heavy-duty applications
Excellent performance for excavation and loading
Versatile with a wide range of attachments
Precise control, stable and reliable
Highly adaptable and durable
Flexible customization to meet diverse needs

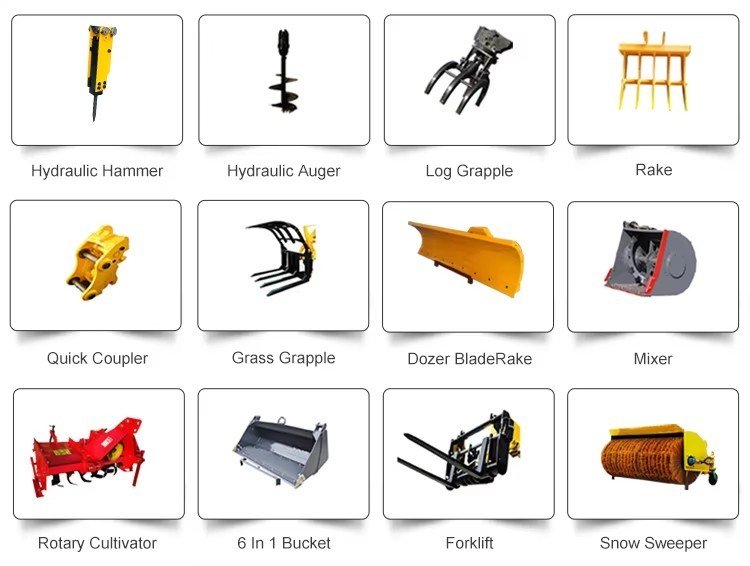

Our heavy-duty backhoe loaders feature a four-wheel drive and hydraulic transmission system, equipped with a Yuchai 4105 turbocharged or Cummins engine (85kW), a system pressure of 28MPa, a total weight of 8300kg, and a rated loading capacity of 2500kg. The maximum digging depth is 4–5.5m, the digging radius is 7.1m, the unloading height at the loading end is 2742mm, and the bucket capacity is 1m³. The machine can be customized with different engines, logos, and body colors, and can be equipped with dozens of attachments such as hydraulic breakers, augers, log grapples, sweepers, mixers, bulldozer blades, snow wipers, and 6-in-1 buckets. Electromagnetic hydraulic pilot control, a large-capacity fuel tank and hydraulic oil tank (100L each), and 14-17.5/19.5L-24 engineering tires ensure stable and efficient operation in heavy-duty scenarios such as mines, large construction sites, farms, and municipal projects.
Mining and Quarrying: Assists with excavation, loading, and crushing; four-wheel drive and 35° climbing ability adapt to complex terrain.
Large Construction Sites: Foundation excavation, backfilling, material handling, and site leveling.
Farms and Plantations: Equipped with auger for piling, rotary tiller, and log grappling for handling trees and straw.
Roads and Municipal Engineering: Equipped with snow wipers, 6-in-1 bucket quick-change function, and road breaker for demolition.
Warehousing and Logistics: Equipped with forklift attachments for pallet handling and hopper loading/unloading of bulk materials.
.
| Product details | ||
 |  |  |

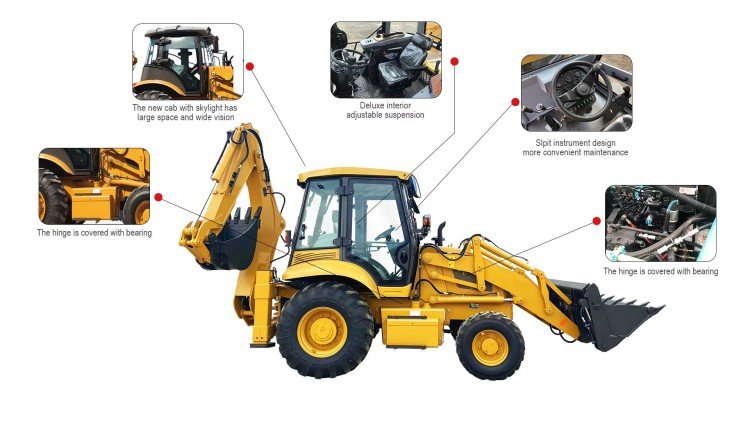

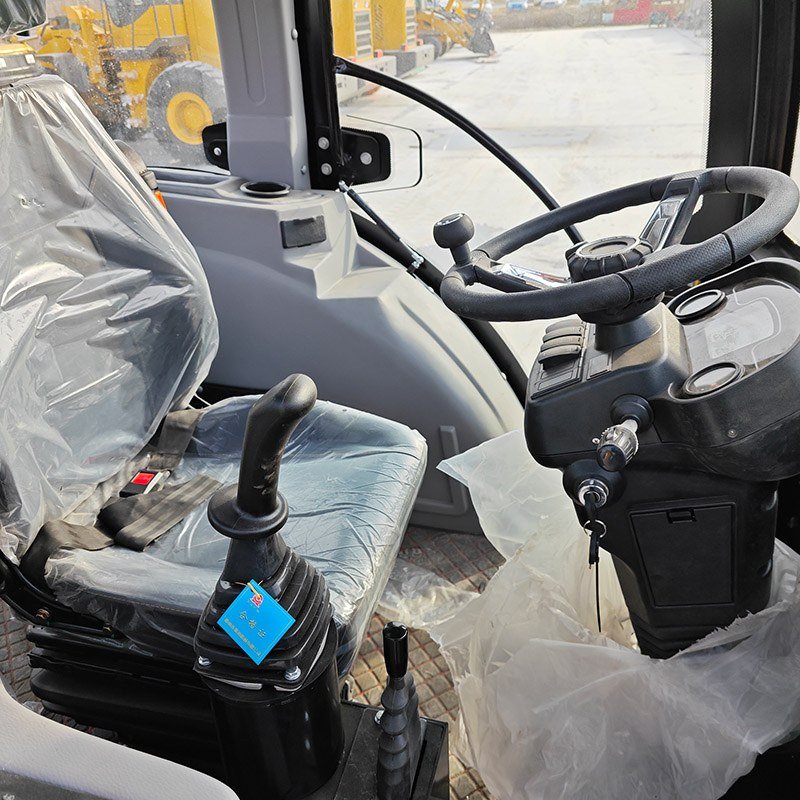

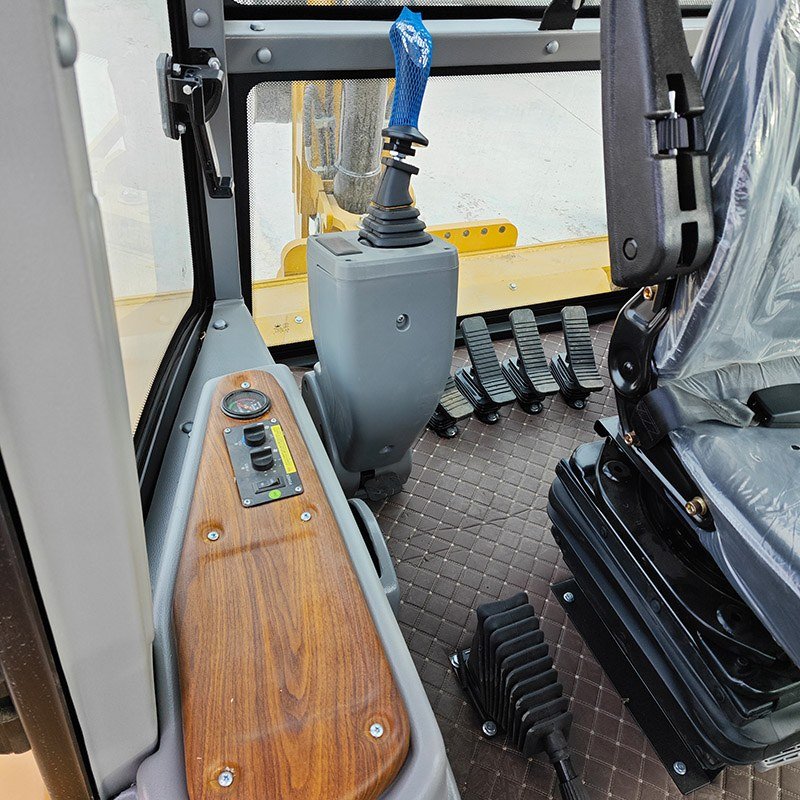

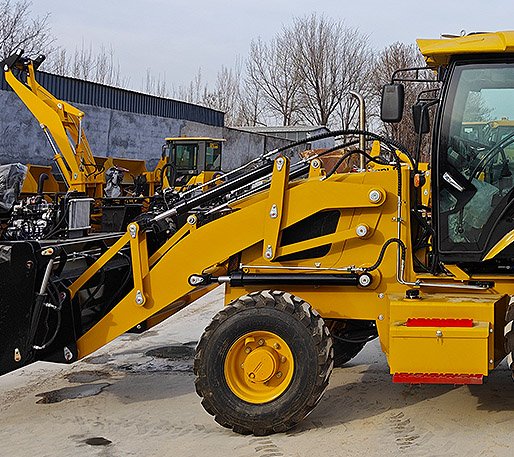

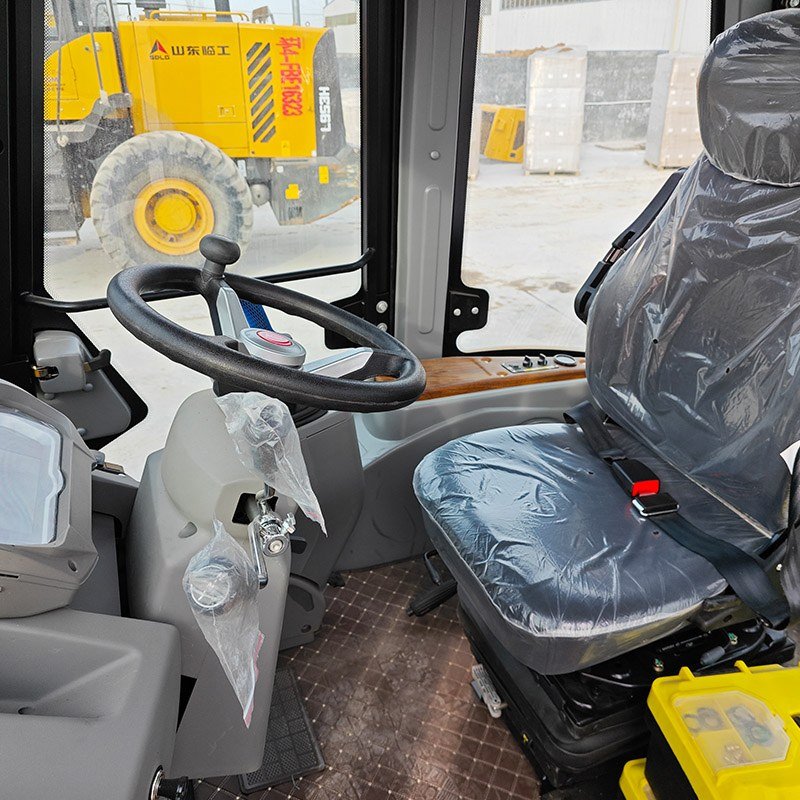

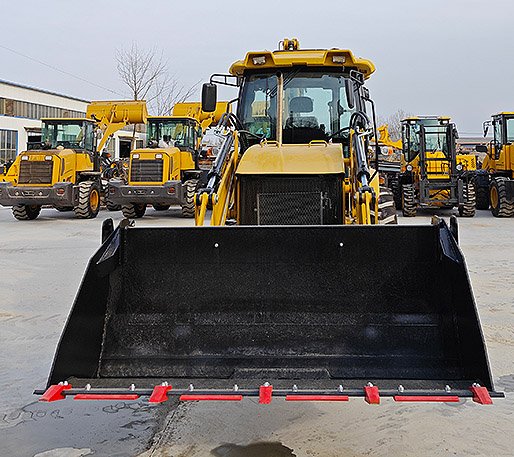

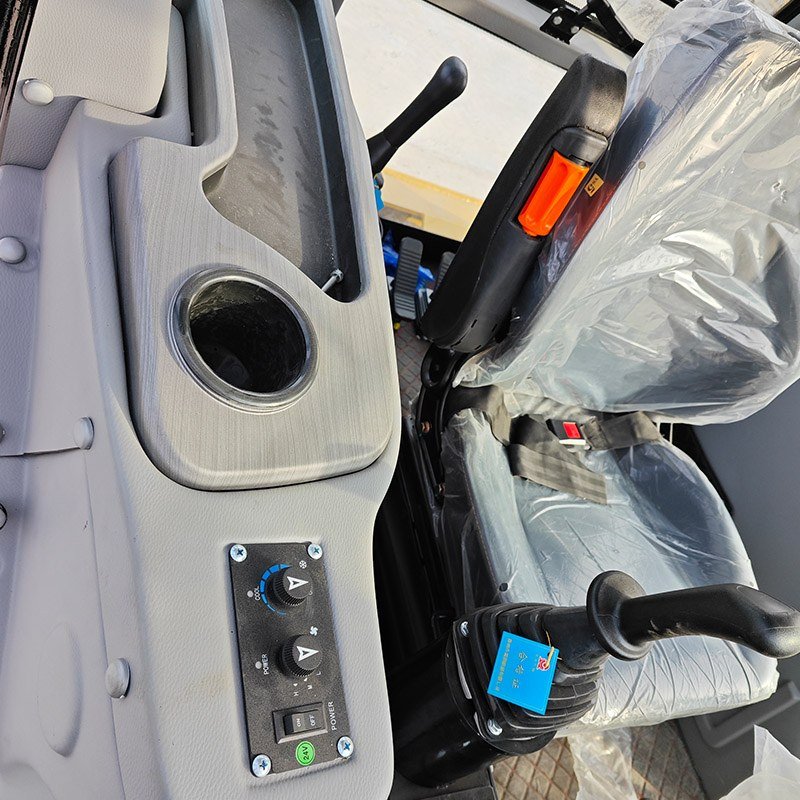

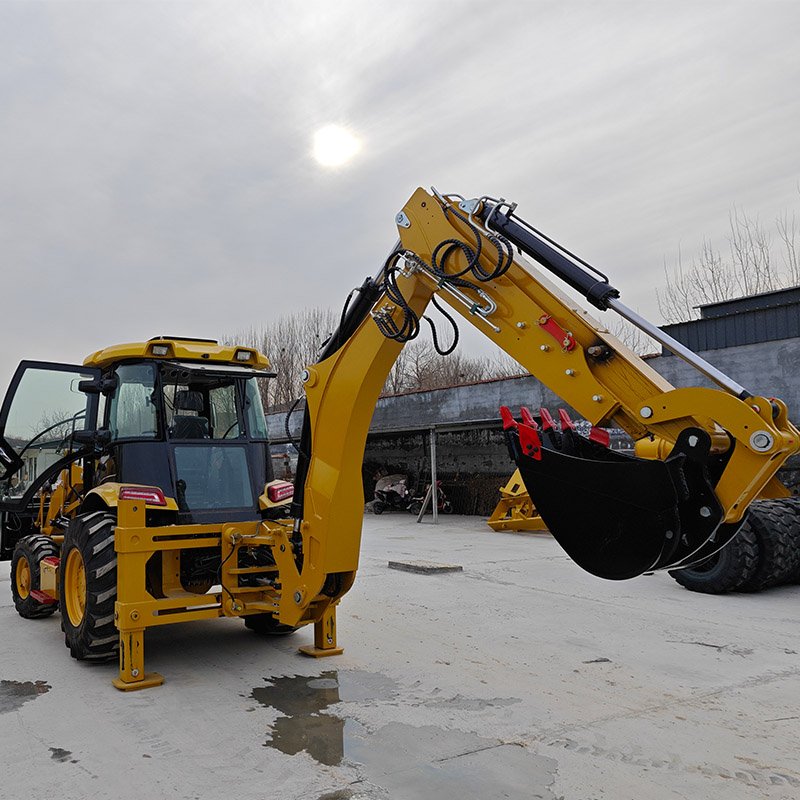

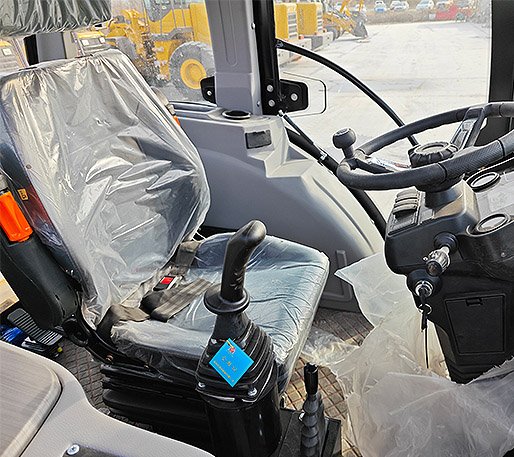

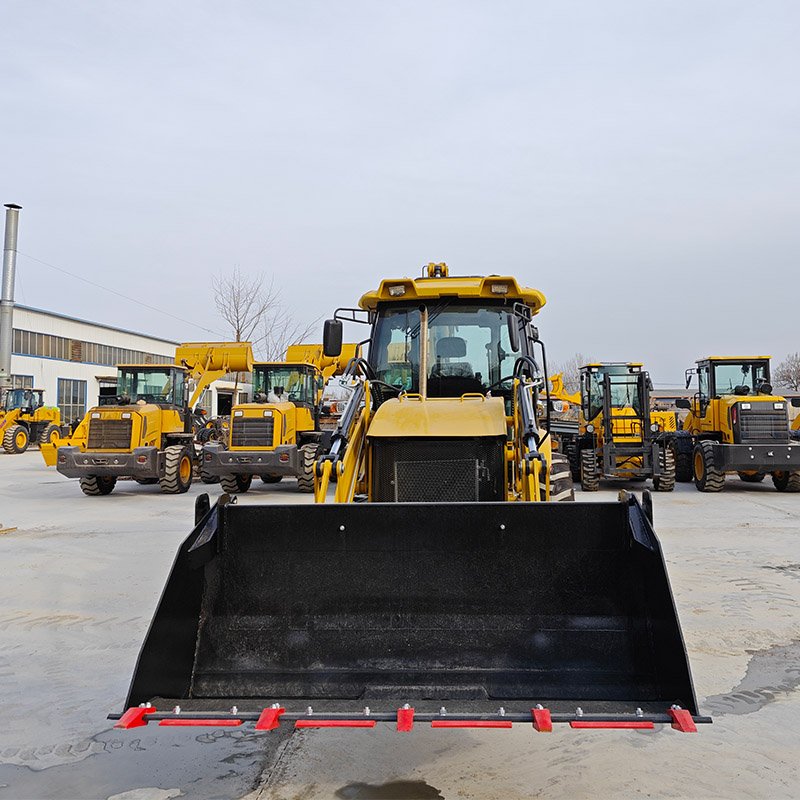

ROTATING SIDE SWING BUCKET The bucket adopts folding side digging and slides freely | LARGE CAPACITY BUCKET Filling and excavation of roads and loading of cement stockyards, etc. | SPACIOUS CAB Comfortable seat, easy operation table, 360° swivel seat |
| OVERALL SIZE | |
| Dimensions(mm) | 6150*2350*3763 |
| Wheel base(mm) | 2200 |
| Wheelbase(mm) | 1850/2000 |
| Minimum ground clearance(mm) | 300 |
| Minimum turning radius(mm) | 6580 |
| PERFORMANCE PARAMETERS | |
| System pressure(Mpa) | 28 |
| Total Weight(kg) | 8300 |
| Maximum speed(Km/h) | 22/38 |
| Maximum gradeability(°) | 35 |
| MINING PARAMETERS | |
| Max digging depth(mn) | 4000/5500 |
| Excavation unloading height(mm) | 4500/5500 |
| Max digging radius(mm) | 5800/7100 |
| Maximum Lifting Height(mm) | 6060/7200 |
| Bucket capacity(m³) | 0.3 |
| Excavator rotation angle(°) | 190 |
| LOAD PARAMETERS | |
| Unloading height(mm) | 2742 |
| Maximum unloading distance(mm) | 1062 |
| Bucket capacity(m³) | 1 |
| Rated loading capacity(KG) | 2500 |
| ENGINE | |
| Model | Yuchal 4105 Supercharger/Cummins |
| Type | Turbocharged |
| Rated power(KW) | 85 |
| Rated speed(r/min) | 2400 |
| TIRE | |
| Specification | 14-175/195L-24 |
| OILVOLUME | |
| Fuel tank(L) | 100 |
| Hydraulic tank(L) | 100 |
| OTHER | |
| Drive type | Four-wheel drive |
| Gear type | Hydraulic transmission |
| Control system | Electromagnetic hydraulic pilot control |
Q1: Can the excavator arm tilt to the side? What is the rotation angle?
The excavator arm rotates 190°, facilitating operation near walls or in narrow areas.
Q2: Are the tires durable? Are they suitable for gravel roads?
Equipped with 14-17.5/19.5L-24 engineering tires, thick-ply, wear-resistant, and puncture-resistant, suitable for harsh terrains such as mines, gravel, and mud.
Q3: What is the maximum travel speed?
22/38 km/h (two speeds), suitable for both site mobility and short-distance relocation.
Q4: What are the advantages of the hydraulic system?
The system pressure is 28MPa, the hydraulic oil tank is 100L, and with electromagnetic hydraulic pilot control, it offers sensitive operation, high digging force, and greater stability during long-term operation.
